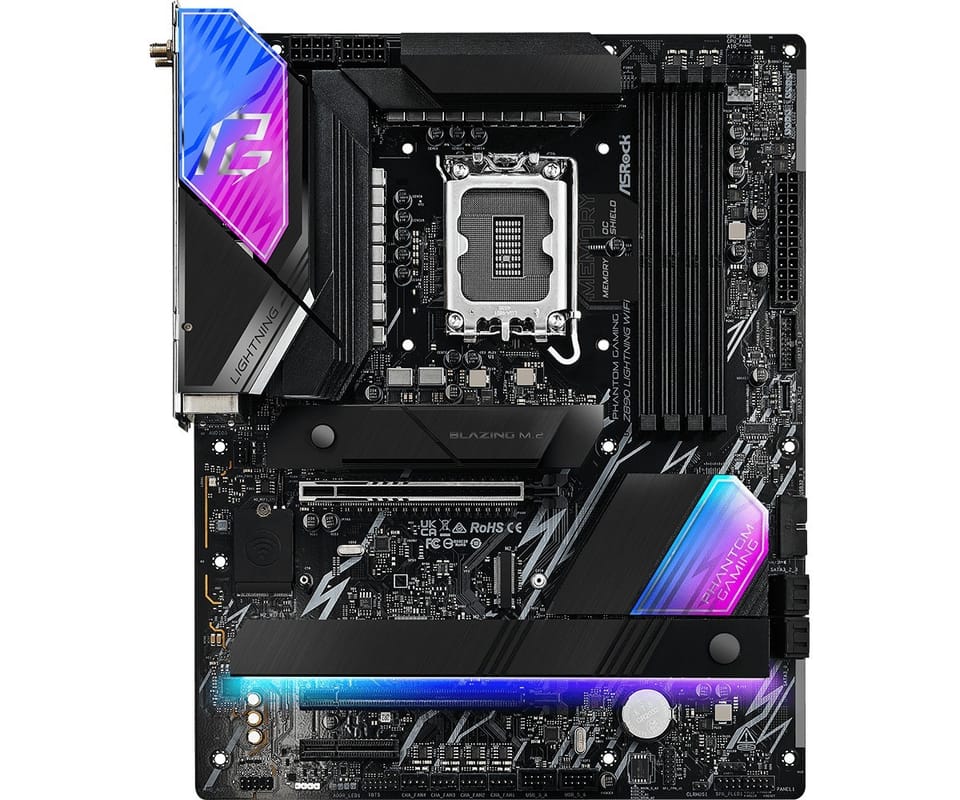

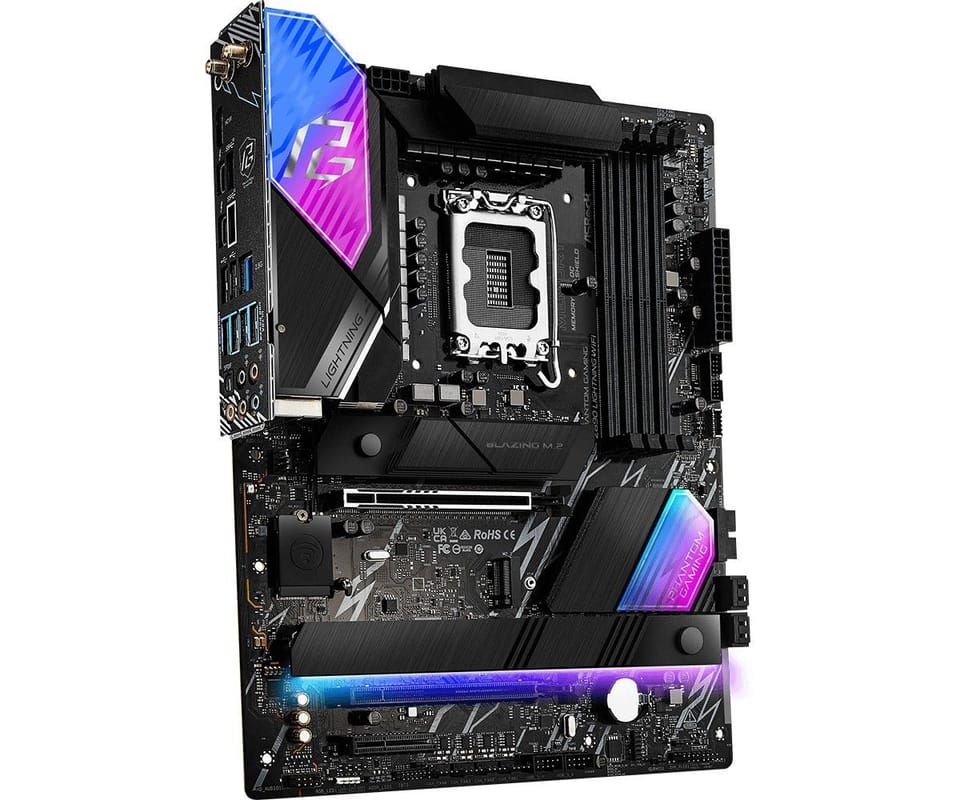

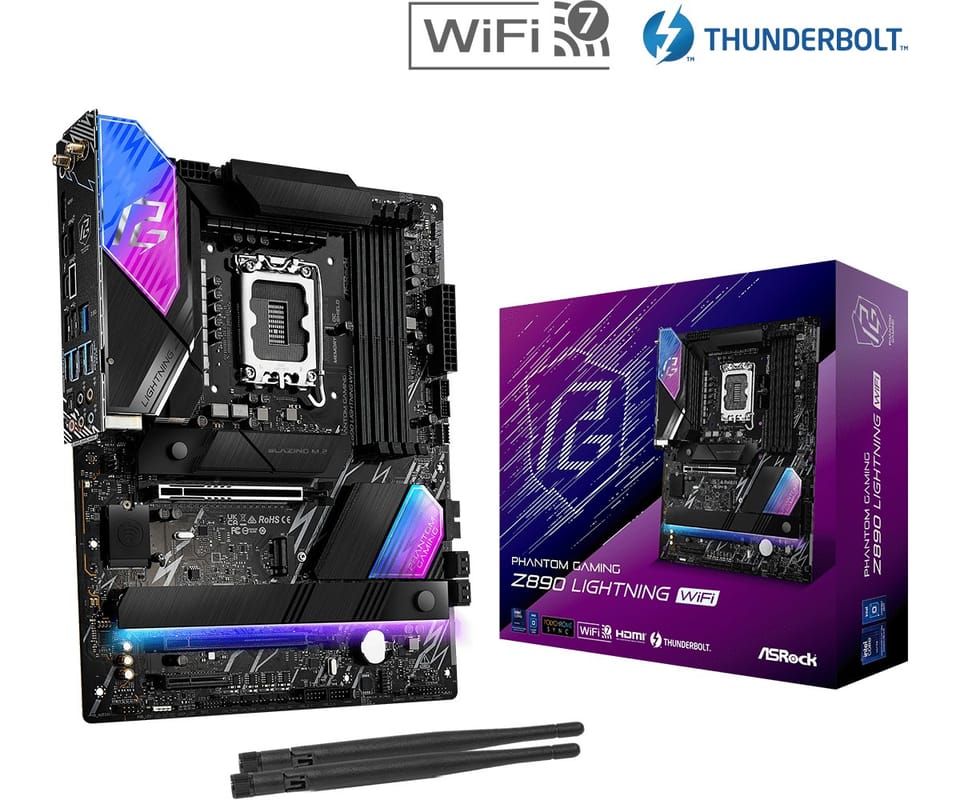

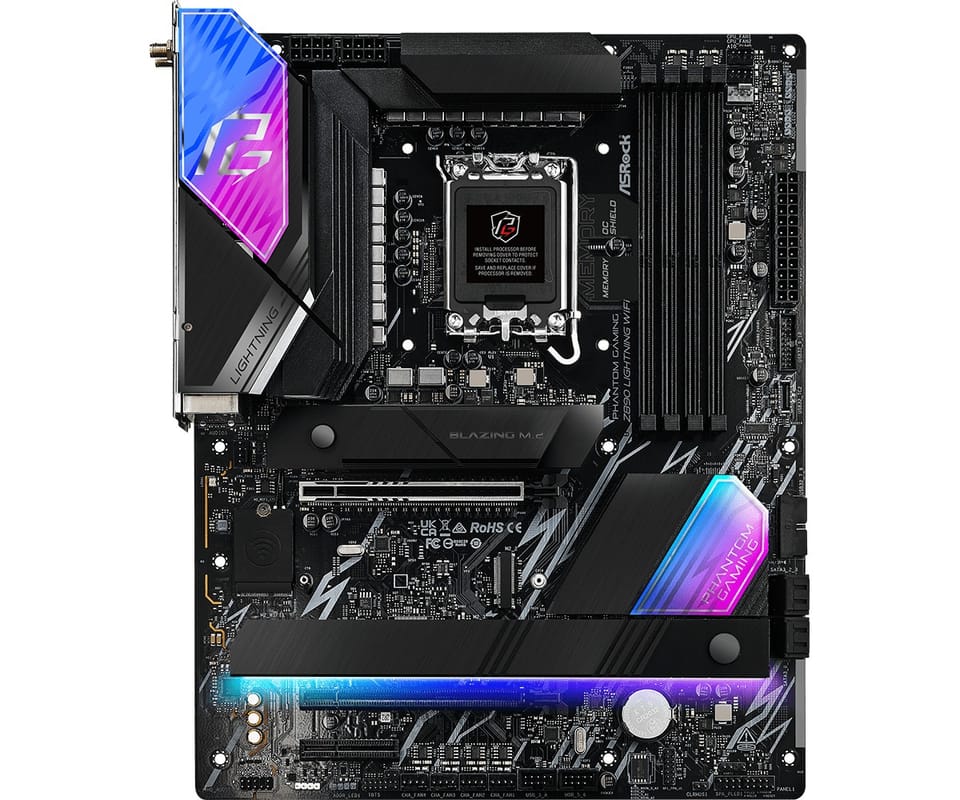

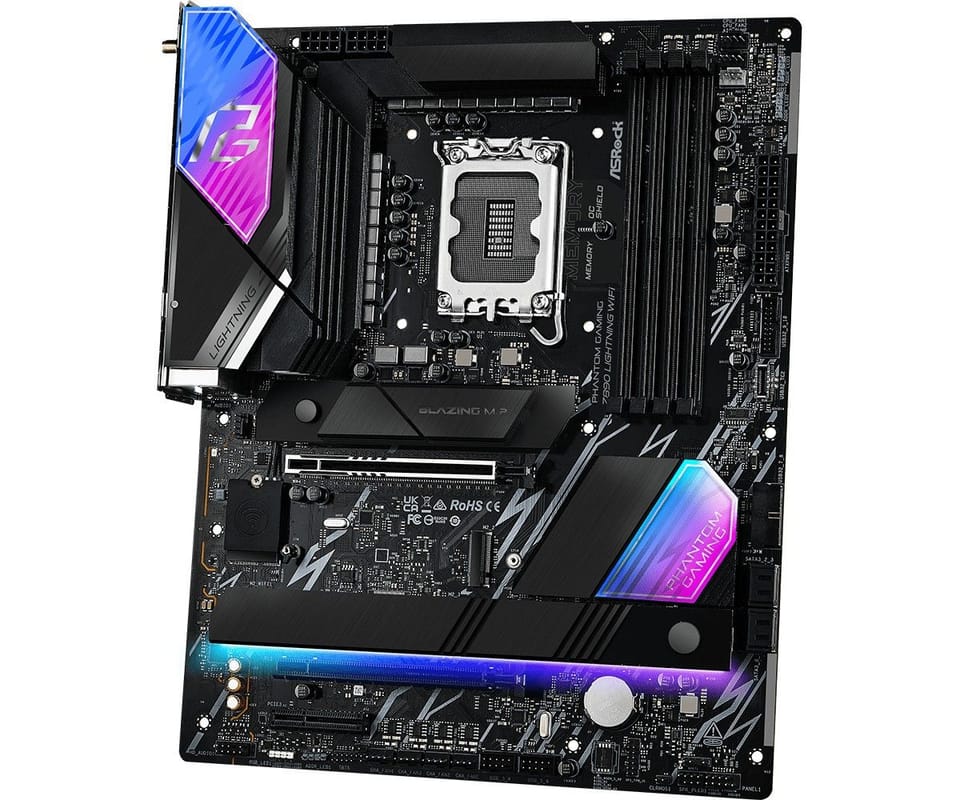

ASRock Z890 Z890 Lightning WiFi Motherboard

Name: ASRock Z890 Z890 Lightning WiFi Motherboard
Brand: ASRock
SKU: 2154031
Price: 309.37 EUR
Availability: InStock

€309.37

Shipping from warehouse: ⁨A3⁩

Estimated shipping: Tue, Jun 2 - Fri, Jun 5

14 days returnUnconditional return policy

Availability:: moderate quantity
Brand:: ASRock
Product code:: Z890 Lightning WiFi / 4710483947513

Specification

8-pin power connector 12 v:	2
Aio pump fan connector:	1
Antennas quantity:	2
Atx power connector (24-pin):	Yes
Audio chip:	Realtek ALC1220
Audio output channels:	7.1 channels
Bios type:	UEFI AMI
Cables included:	Thermistor Cable x 1, SATA III 2 pcs., ARGB Splitter Cable x 1
Certificates:	ErP/EuP ready, FCC, CE
Chassis fan connector (4-pin):	4
Compatible processor series:	Intel Core Ultra (Series 2)
Cpu fan connector:	2
Depth:	244 mm
Ecc сompatibility:	Non-ECC
Ethernet interface type:	2.5 Gigabit Ethernet
Ethernet lan:	Yes
Ethernet lan (rj-45) ports:	1
Front panel audio connector:	Yes
Hdmi ports quantity:	1
Headphone outputs:	1
Intel extreme memory profile (xmp) version:	3.0
Lan controller:	Killer E3100G
Maximum internal memory:	256 GB
Maximum number of smp processors:	1
Memory channels:	Dual-channel
Memory slots type:	DIMM
Microphone in:	Yes
Motherboard:	Yes
Motherboard chipset:	Intel Z890
Motherboard chipset family:	Intel
Motherboard form factor:	ATX
Number of antenna connectors:	2
Number of m.2 (m) slots:	1
Number of memory slots:	4
Number of sata iii connectors:	4
Number of thunderbolt 4 usb-c ports:	2
Number of usb 3.2 gen 2x2 (3.1 gen 2x2) type-c ports:	1
Pci express x1 (gen 3.x) slots:	1
Pci express x16 (gen 4.x) slots:	1
Pci express x16 (gen 5.x) slots:	1
Processor manufacturer:	Intel
Processor socket:	LGA1851
Pump connector:	1
Raid levels:	5, 1, 0, 10
Raid support:	Yes
Rgb led pin header:	Yes
Spdif optical output:	Y
Supported memory types:	DDR5-SDRAM
Supported storage drive interfaces:	M.2, SATA III
Supported storage drive types:	HDD & SSD
Thunderbolt headers:	1
Top wi-fi standard:	Wi-Fi 7 (802.11be)
Tpm connector:	Yes
Unbuffered memory:	Yes
Usb 2.0 connectors:	2
Usb 2.0 type-a ports quantity:	2
Usb 3.2 gen 1 (3.1 gen 1) connectors:	2
Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity:	4
Usb 3.2 gen 2 (3.1 gen 2) type-a ports quantity:	2
Wi-fi:	Yes
Wi-fi antenna:	Yes
Wi-fi frequency:	2,4 Ghz / 5 GHz / 6 GHz
Wi-fi standards:	IEEE 802.11b, IEEE 802.11n, 802.11 axe, IEEE 802.11ax, IEEE 802.11a, IEEE 802.11g, IEEE 802.11ac, IEEE 802.11be
Width:	305 mm
Windows operating systems supported:	Windows 11 x64, Windows 10 x64
Wireless statistics:	Yes

PHANTOM GAMING Z890 Lightning WiFiThe Lightning series is a symbol of both speed and power. The design uses linear and angular elements, evoking the image of lightning, a spectacle of raw energy and breathtaking speed.

Supports Intel Core Ultra (Series 2) Processors (LGA1851)
18+1+1+1+1 Power Phase, 80A SPS for VCore+GT+SA
4 x DDR5 DIMM
Supports Dual Channel, up to 9066+ (OC)
1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 4.0 x4
Graphics Output Options: 1 HDMI
2 Thunderbolt 4 Type-C
Realtek ALC1220 7.1 CH HD Audio Codec
Nahimic Audio
4 SATA3
1 Blazing M.2 (PCIe Gen5 x4)
2 Hyper M.2 (PCIe Gen4 x4)
1 Hyper M.2 (PCIe Gen4 x4 and SATA3)
2 Thunderbolt 4 Type-C (back)
1 USB 3.2 Gen2x2 Type-C (Front)
2 USB 3.2 Gen2 Type-A (Back)
8 USB 3.2 Gen1 (4 Back, 4 Front)
6 USB 2.0 (2 Back, 4 Front)
Killer 2.5G LAN
Intel 802.11be Wi-Fi 7 + Bluetooth
Supports BIOS Flashback, Memory OC Shield, 20K 1000uF Capacitors

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
