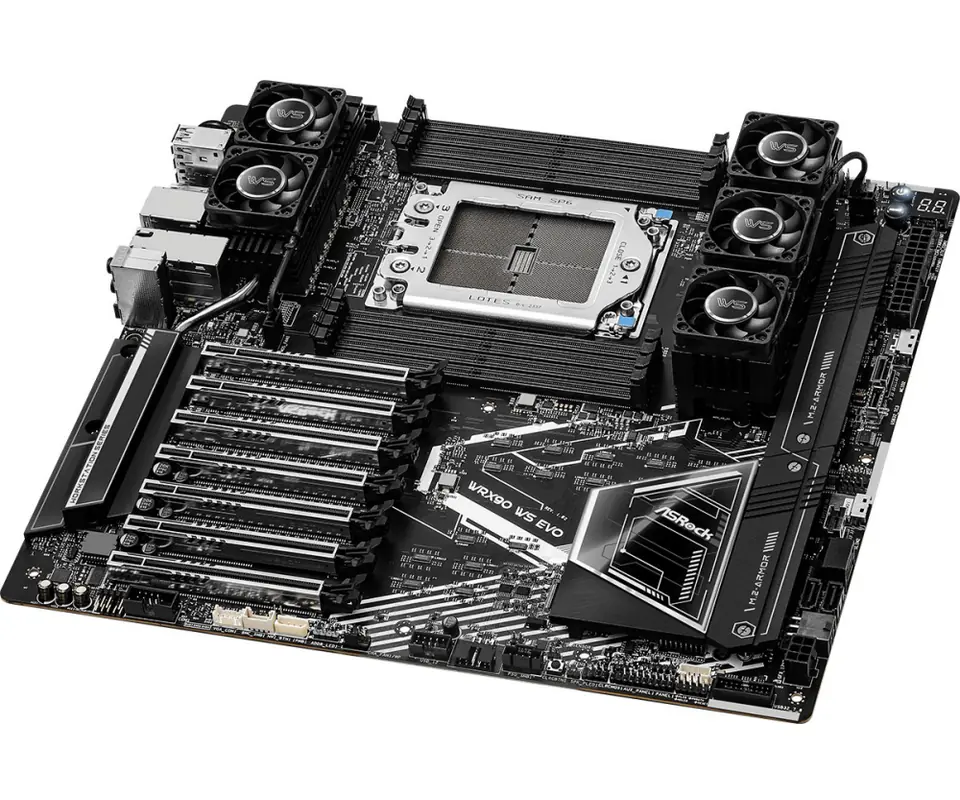

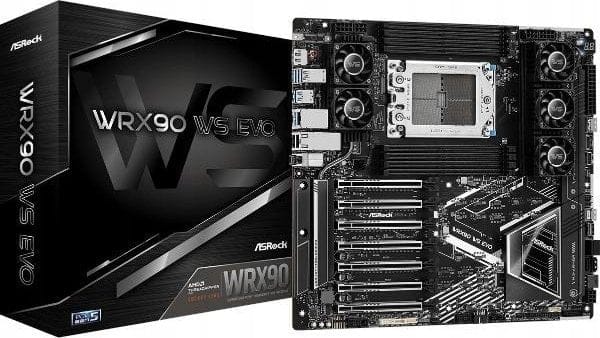

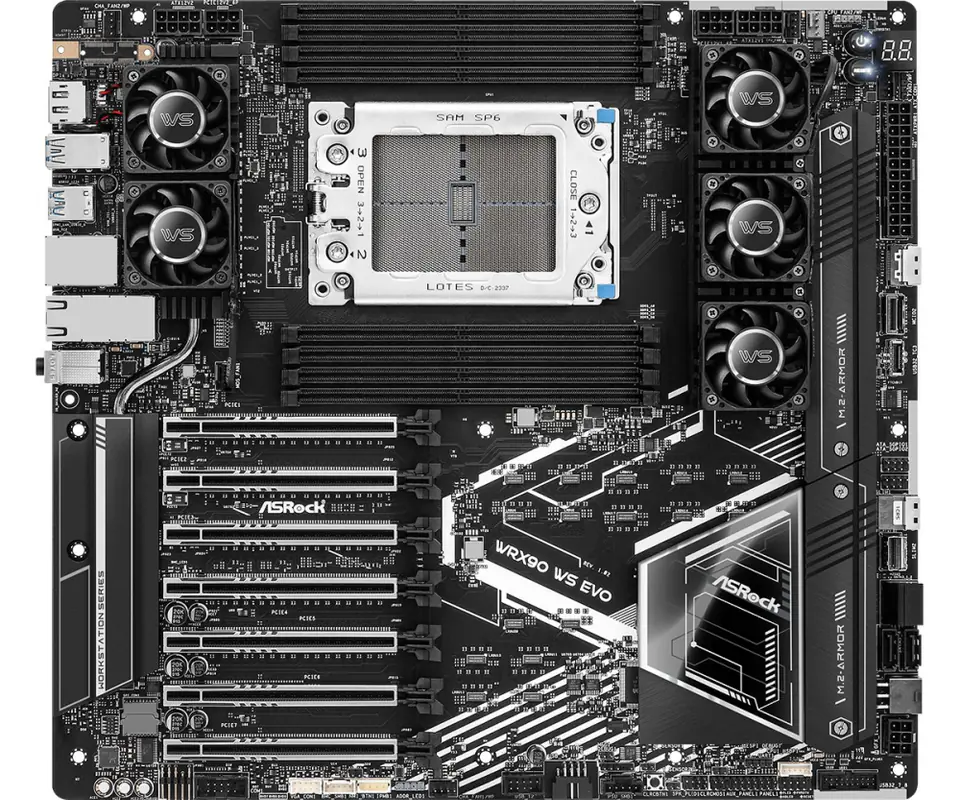

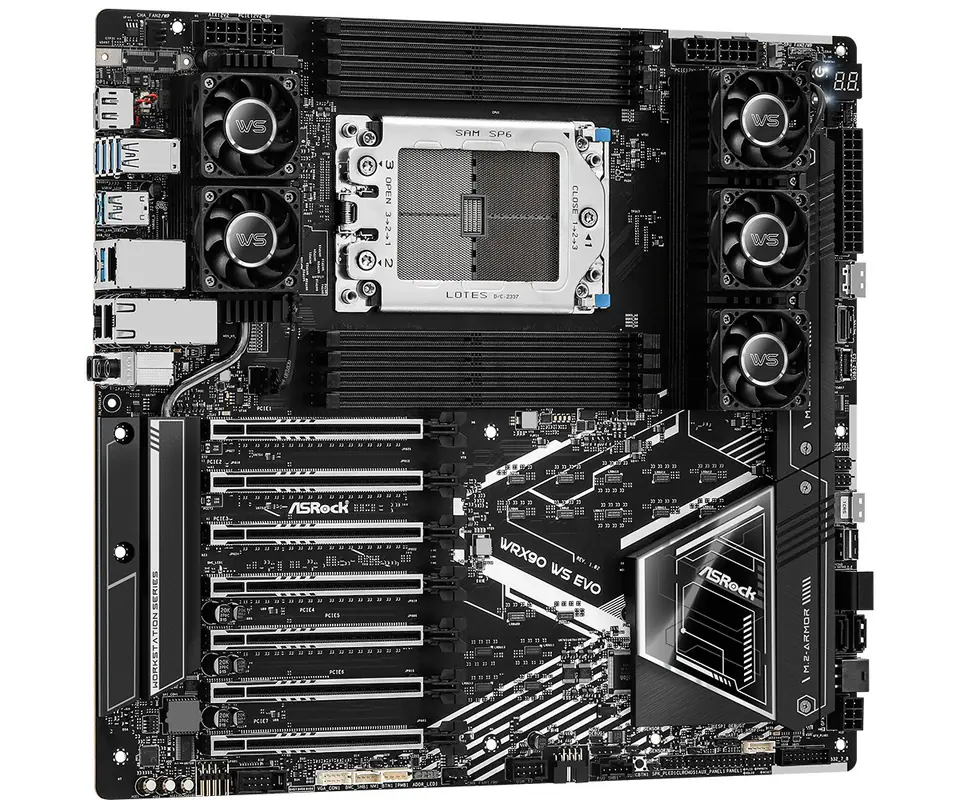

Asrock WRX90 WS EVO motherboard AMD WRX90 Socket sTR5 EEB
€1,030.62
Shipping from warehouse: A3
Estimated shipping: Mon, Dec 15 - Tue, Dec 16
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- ASRock
- Product code:
- WRX90 WS EVO / 4710483945199
Share this product:
Specification
| Atx power connector (24-pin): | Yes |
|---|---|
| Audio chip: | Realtek ALC1220 |
| Audio output channels: | 7.1 channels |
| Bios memory size: | 256 Mbit |
| Bios type: | EFI AMI |
| Compatible processor series: | AMD Ryzen Threadripper 1000 Series |
| Component for: | PC |
| Cpu fan connector: | Yes |
| Depth: | 330 mm |
| Displayport version: | 1.1a |
| Displayports quantity: | 1 |
| Ecc: | ECC |
| Ethernet interface type: | 10 Gigabit Ethernet |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 2 |
| Ipmi lan (rj-45) port: | Yes |
| Lan controller: | Intel X710-AT2 |
| Maximum internal memory: | 2 TB |
| Memory slots type: | DIMM |
| Microphone in: | Yes |
| Motherboard chipset: | AMD WRX90 |
| Motherboard chipset family: | AMD |
| Motherboard form factor: | EEB |
| Number of com connectors: | 1 |
| Number of m.2 (m) slots: | 2 |
| Number of memory slots: | 8 |
| Number of sata iii connectors: | 4 |
| Pci express x16 (gen 5.x) slots: | 7 |
| Processor manufacturer: | AMD |
| Processor socket: | Socket sTR5 |
| Raid levels: | 10, 1, 0 |
| Raid support: | Yes |
| S/pdif out port: | Yes |
| Supported memory clock speeds: | 7600 MHz |
| Supported memory types: | DDR5-SDRAM |
| Supported storage drive interfaces: | M.2, SATA III |
| Usb 2.0 connectors: | 2 |
| Usb 3.2 gen 1 (3.1 gen 1) connectors: | 1 |
| Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity: | 2 |
| Usb 3.2 gen 2 (3.1 gen 2) type-a ports quantity: | 4 |
| Usb 3.2 gen 2x2 connectors: | 1 |
| Usb4 gen 2x2 ports quantity: | 2 |
| Wi-fi: | No |
| Width: | 305 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
