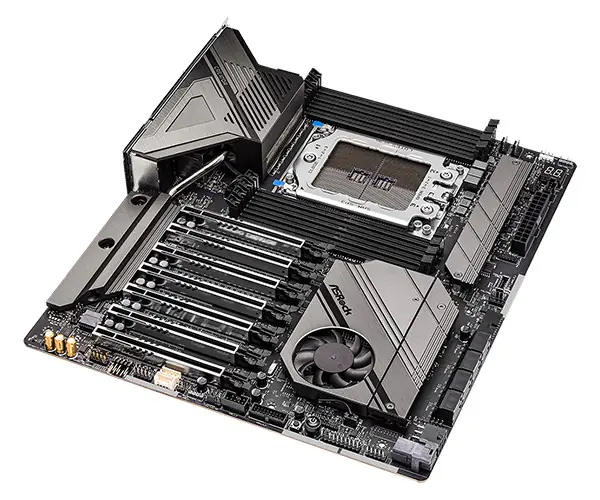

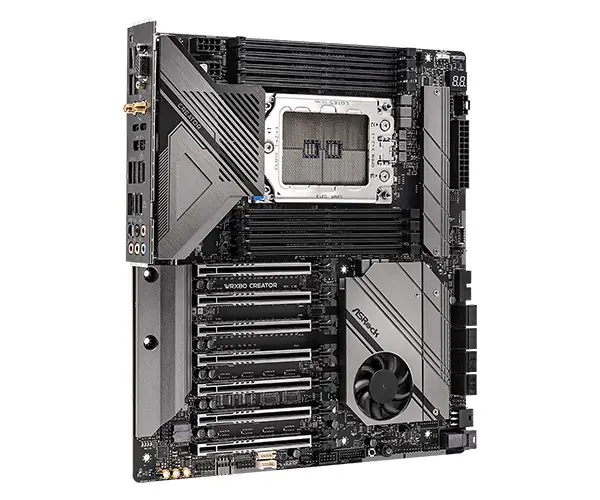

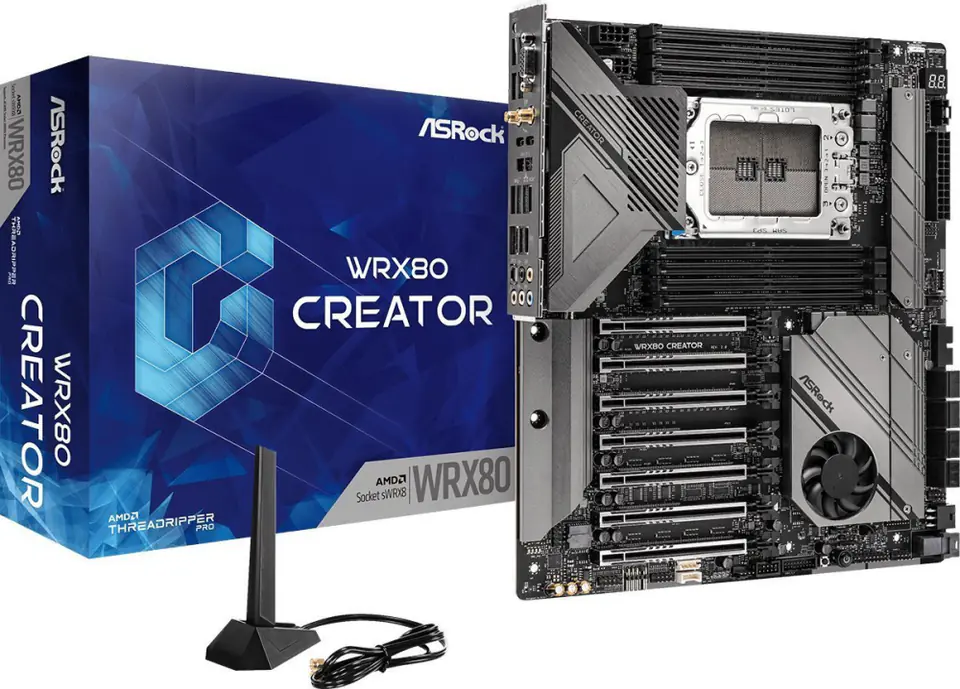

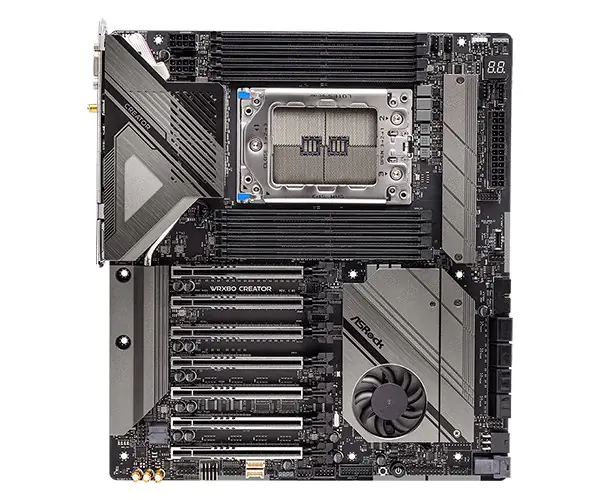

Asrock WRX 80 CREATOR AMD WRX80 Socket sWRX8 Extended ATX
This product is not available
- Availability:
- expected delivery
- Brand:
- ASRock
- Product code:
- WRX80 CREATOR R2.0 / 4710483941368
Share this product:
Specification
| Atx power connector (24-pin): | Yes |
|---|---|
| Audio output channels: | 7.1 channels |
| Bios type: | EFI AMI |
| Bluetooth: | Yes |
| Compatible processor series: | AMD Ryzen™ Threadripper™ |
| Cpu fan connector: | Yes |
| Depth: | 272 mm |
| Ethernet interface type: | 10 Gigabit Ethernet |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 3 |
| Front panel audio connector: | Yes |
| Graphics card: | AST2500 |
| Graphics card family: | ASPEED |
| Harmonized system (hs) code: | 84733020 |
| Maximum internal memory: | 2.05 TB |
| Memory slots type: | DIMM |
| Motherboard chipset: | AMD WRX80 |
| Motherboard chipset family: | AMD |
| Motherboard form factor: | Extended ATX |
| Number of m.2 (m) slots: | 1 |
| Number of memory slots: | 8 |
| Number of sata iii connectors: | 8 |
| Pc health monitoring: | CPU, Water cooling, Fan, Temperature |
| Pci express x16 (gen 4.x) slots: | 7 |
| Processor manufacturer: | AMD |
| Processor socket: | Socket sWRX8 |
| Raid levels: | 1, 0, 5, 10 |
| Raid support: | Yes |
| Rgb led pin header: | Yes |
| S/pdif out port: | Yes |
| Supported memory types: | DDR4-SDRAM |
| Supported storage drive interfaces: | M.2, SATA III |
| Thunderbolt ports quantity: | 2 |
| Top wi-fi standard: | Wi-Fi 6E (802.11ax) |
| Unbuffered memory: | Yes |
| Usb 2.0 connectors: | 1 |
| Usb 3.2 gen 1 (3.1 gen 1) connectors: | 2 |
| Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity: | 2 |
| Usb 3.2 gen 2 (3.1 gen 2) connectors: | 1 |
| Usb 3.2 gen 2 (3.1 gen 2) type-a ports quantity: | 4 |
| Usb4 gen 3x2 ports quantity: | 2 |
| Vga (d-sub) ports quantity: | 1 |
| Wi-fi: | Yes |
| Wi-fi standards: | 802.11g, 802.11b, Wi-Fi 6E (802.11ax), 802.11a |
| Width: | 305 mm |
| Windows operating systems supported: | Windows 10 x64, Windows 11 x64 |
