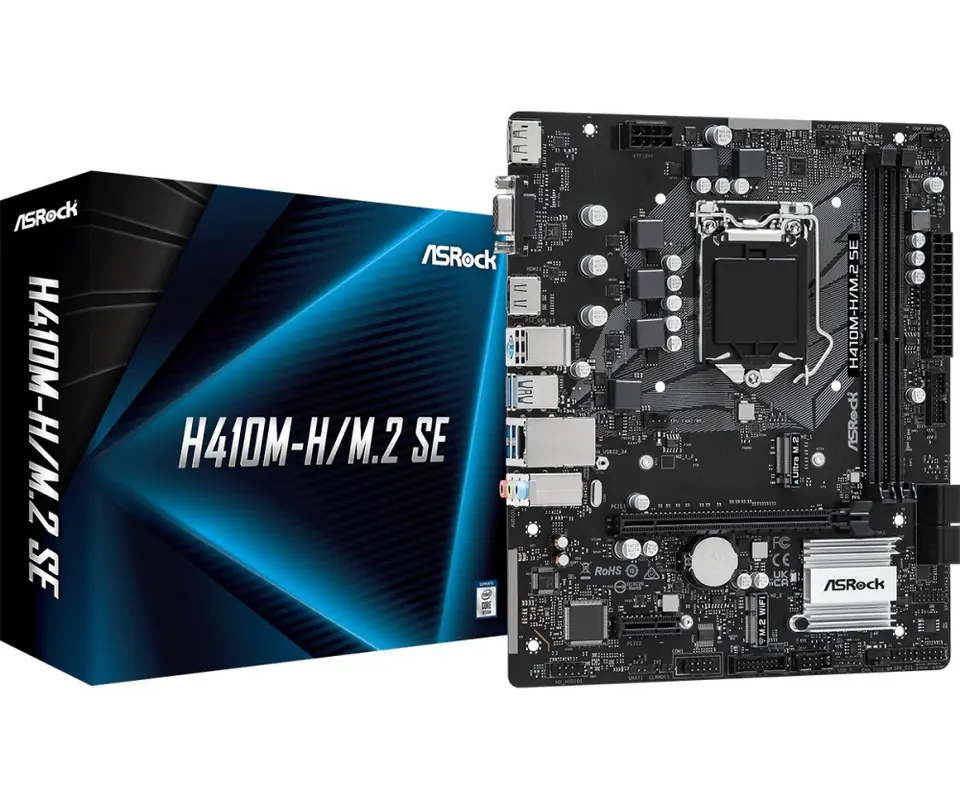

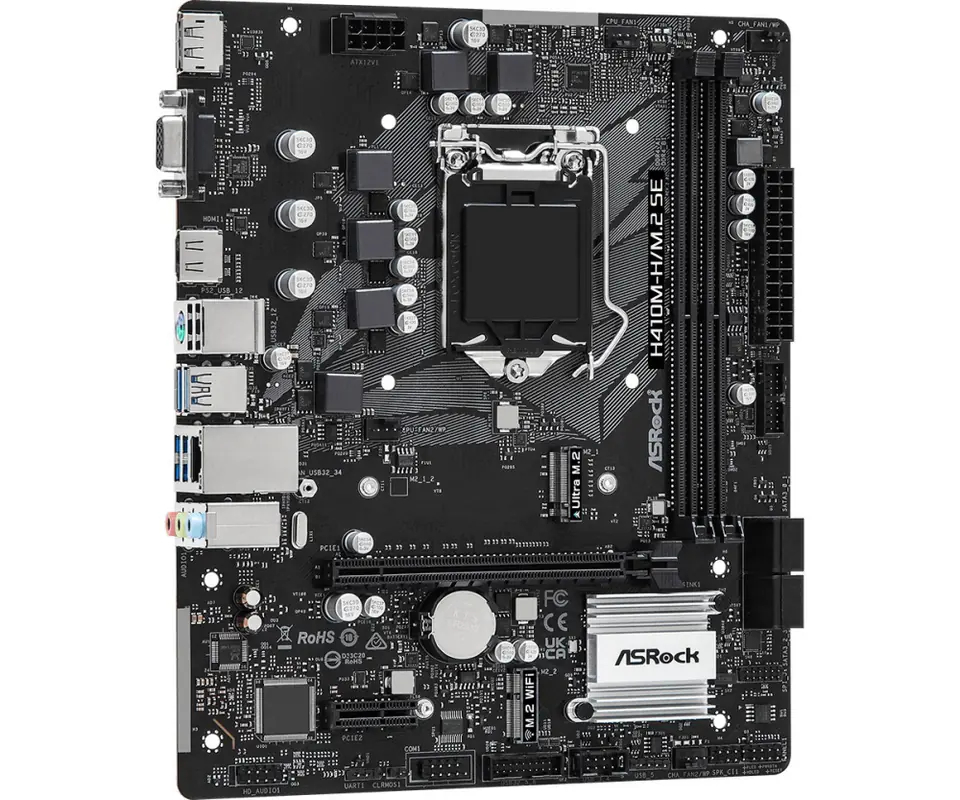

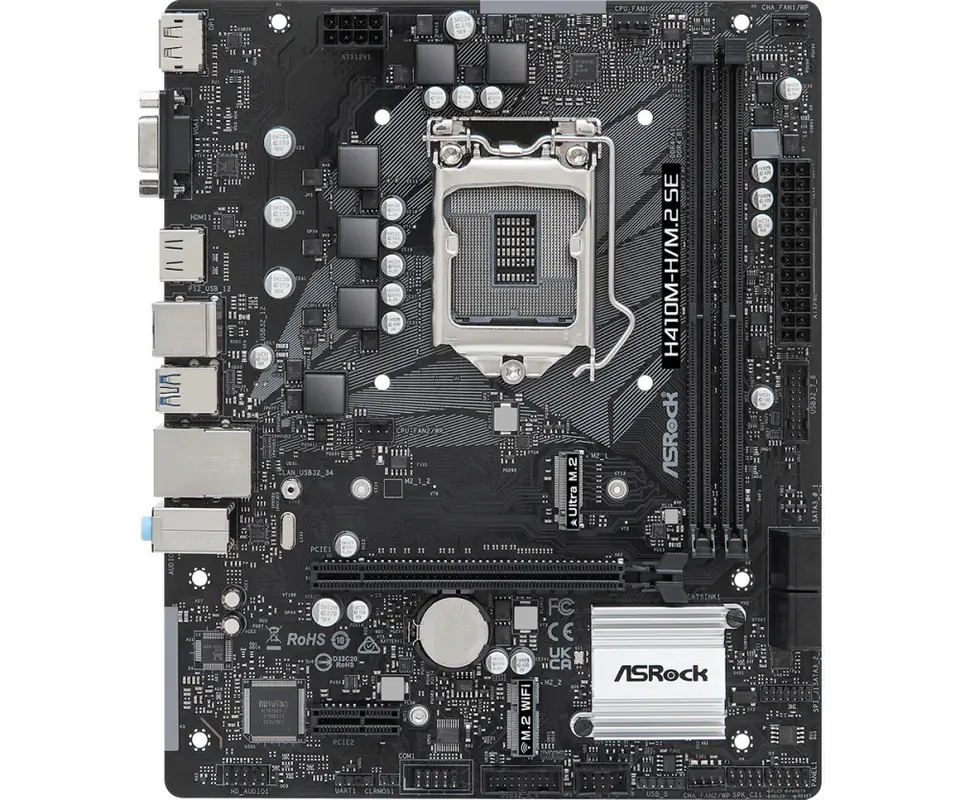

Asrock H410M-H/M.2 SE motherboard
This product is not available
- Availability:
- expected delivery
- Brand:
- ASRock
- Product code:
- H410M-H/M.2 SE / 4710483943539
Share this product:
Specification
| 12v power connector: | Yes |
|---|---|
| Atx power connector (24-pin): | Yes |
| Audio chip: | Realtek ALC897 |
| Audio output channels: | 7.1 channels |
| Bios type: | UEFI |
| Cpu fan connector: | Yes |
| Depth: | 188 mm |
| Displayports quantity: | 1 |
| Ethernet interface type: | Gigabit Ethernet |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 1 |
| Front panel audio connector: | Yes |
| Hdmi ports quantity: | 1 |
| Lan controller: | Realtek 8111H |
| Maximum internal memory: | 64 GB |
| Maximum resolution: | 4096 x 2304 pixels |
| Memory channels: | Dual-channel |
| Memory slots type: | DIMM |
| Motherboard chipset: | Intel® H370 |
| Motherboard chipset family: | Intel |
| Motherboard form factor: | micro ATX |
| Number of com connectors: | 1 |
| Number of m.2 (e) slots: | 1 |
| Number of memory slots: | 2 |
| Number of sata iii connectors: | 4 |
| Number of storage drives supported: | 4 |
| Pci express x1 (gen 3.x) slots: | 1 |
| Pci express x16 (gen 3.x) slots: | 1 |
| Processor manufacturer: | Intel |
| Processor socket: | LGA 1200 |
| Ps/2 ports quantity: | 1 |
| Raid levels: | 1, 10, 0, 5 |
| Raid support: | Yes |
| Supported memory clock speeds: | 2933, 2666, 2133, 2400, 2800 |
| Supported memory types: | DDR4-SDRAM |
| Supported storage drive interfaces: | M.2, SATA III |
| Tpm connector: | Yes |
| Unbuffered memory: | Yes |
| Usb 2.0 connectors: | 2 |
| Usb 2.0 ports quantity: | 2 |
| Usb 3.2 gen 1 (3.1 gen 1) connectors: | 2 |
| Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity: | 4 |
| Vga (d-sub) ports quantity: | 1 |
| Wake-on-lan ready: | Yes |
| Width: | 226 mm |
| Windows operating systems supported: | Windows 11 x64, Windows 10 x64 |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
