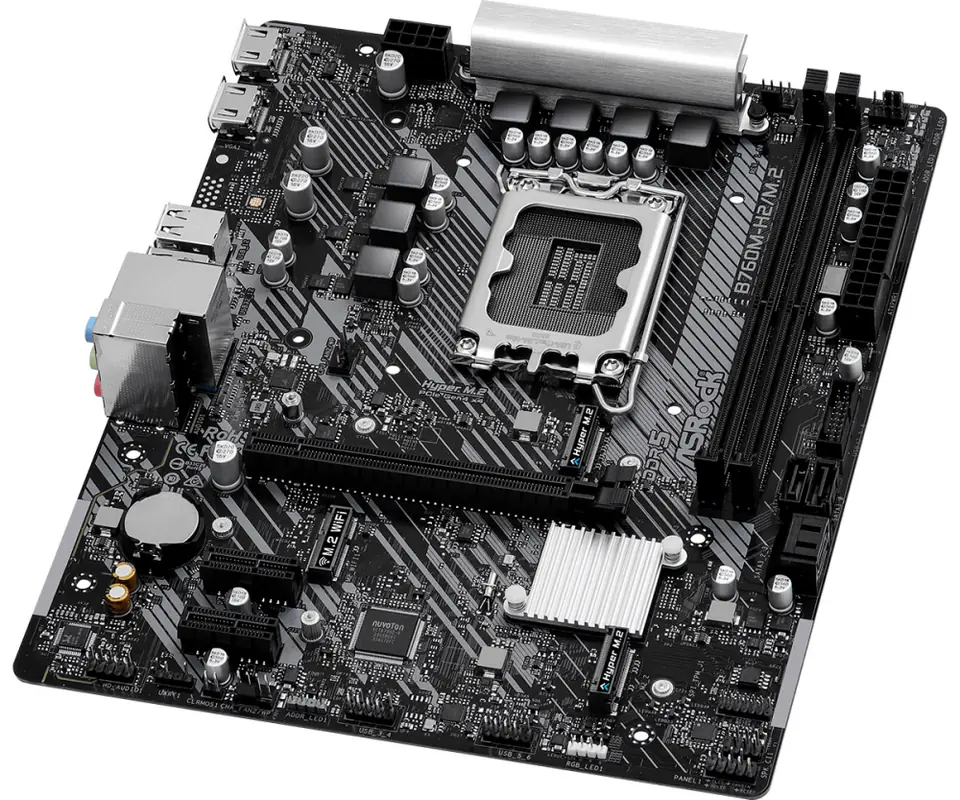

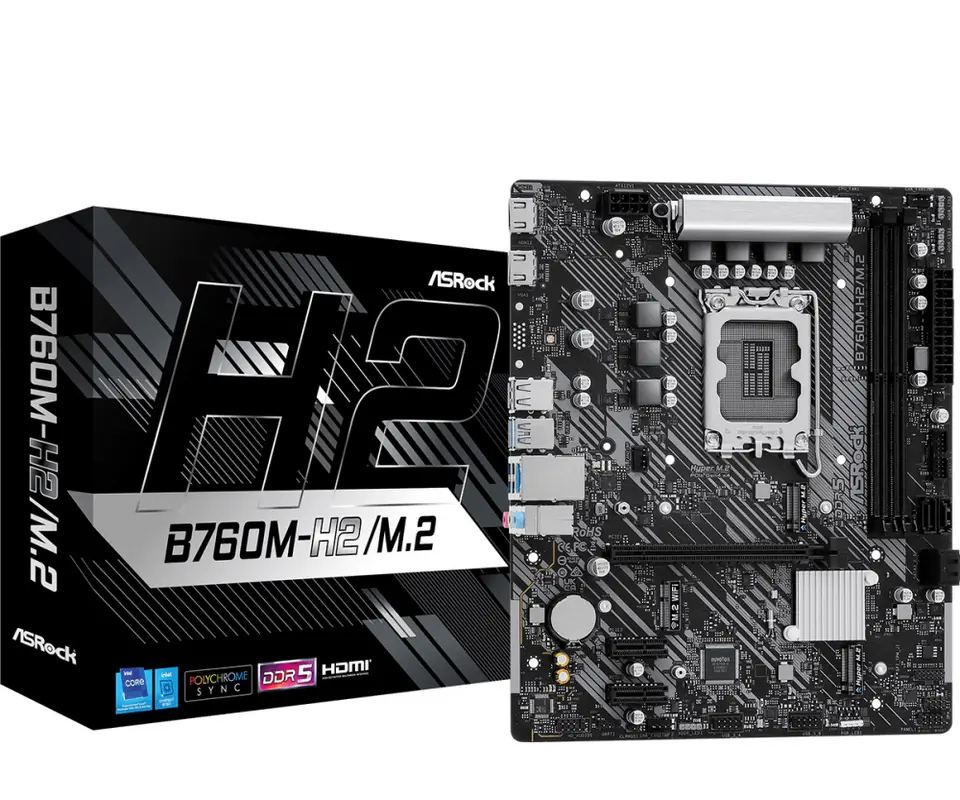

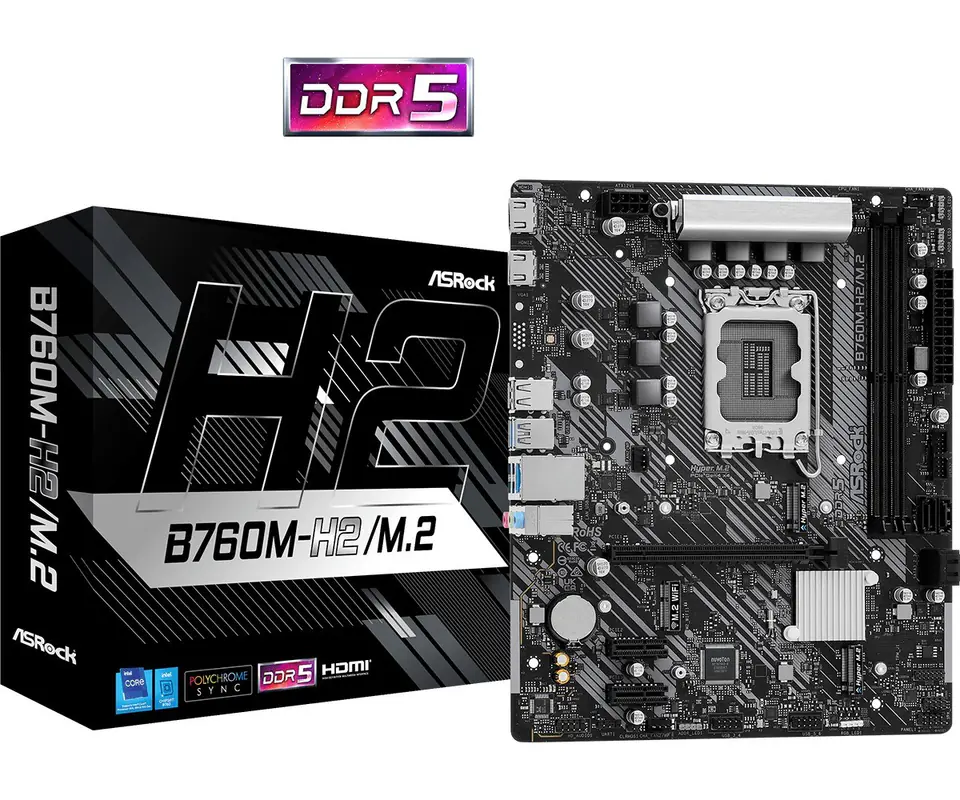

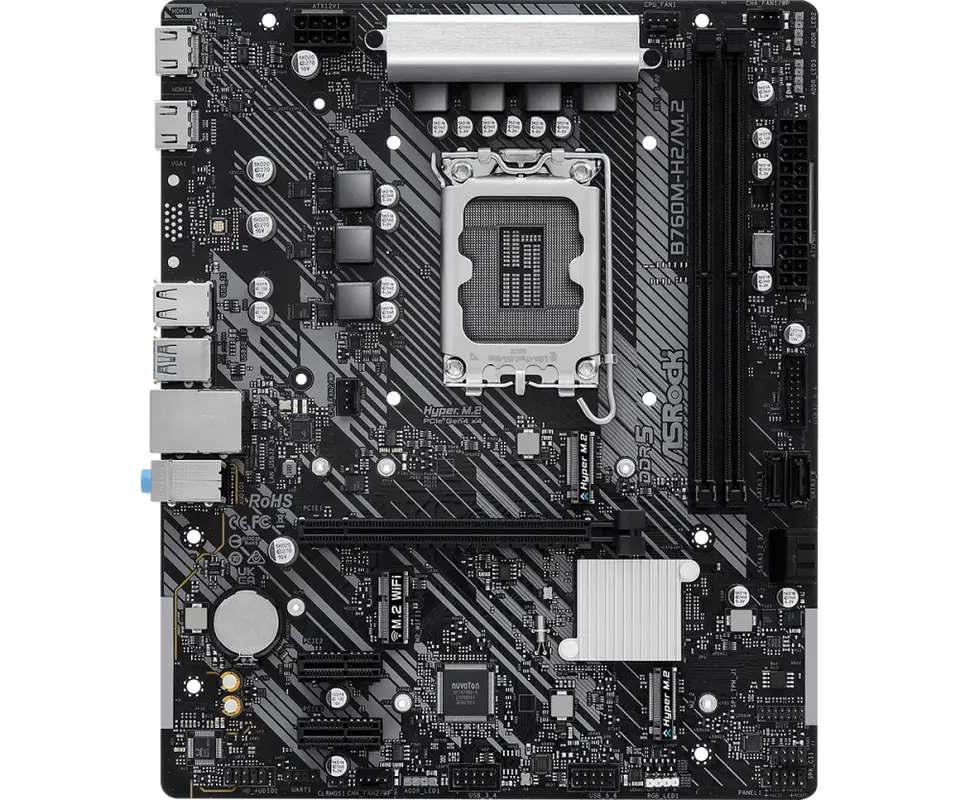

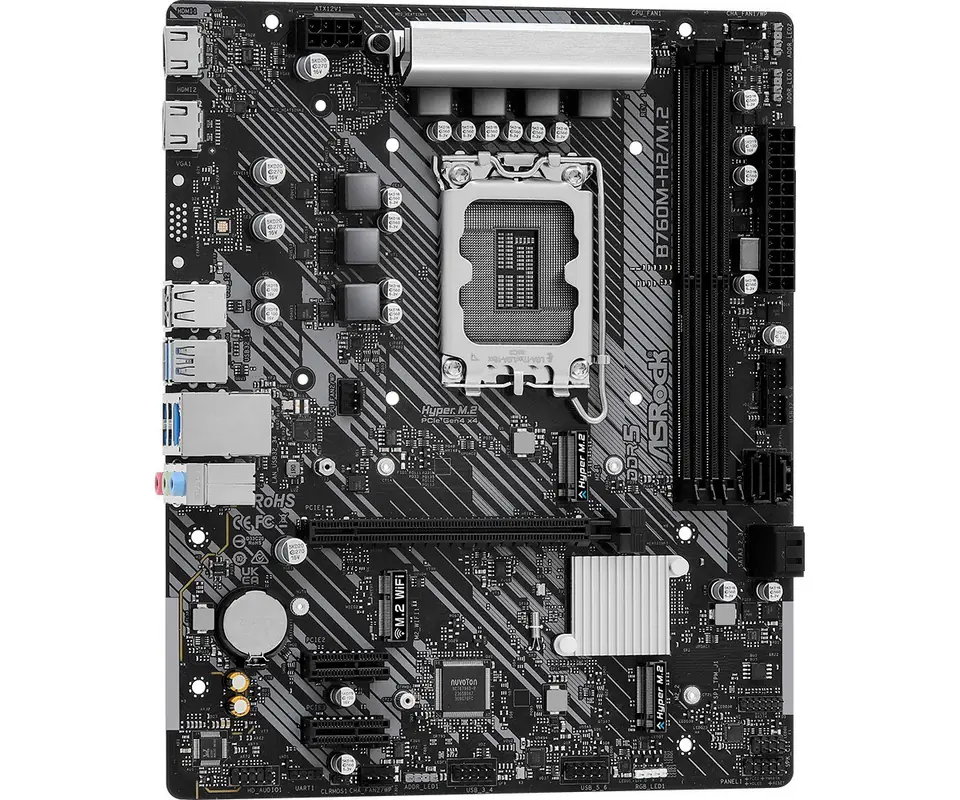

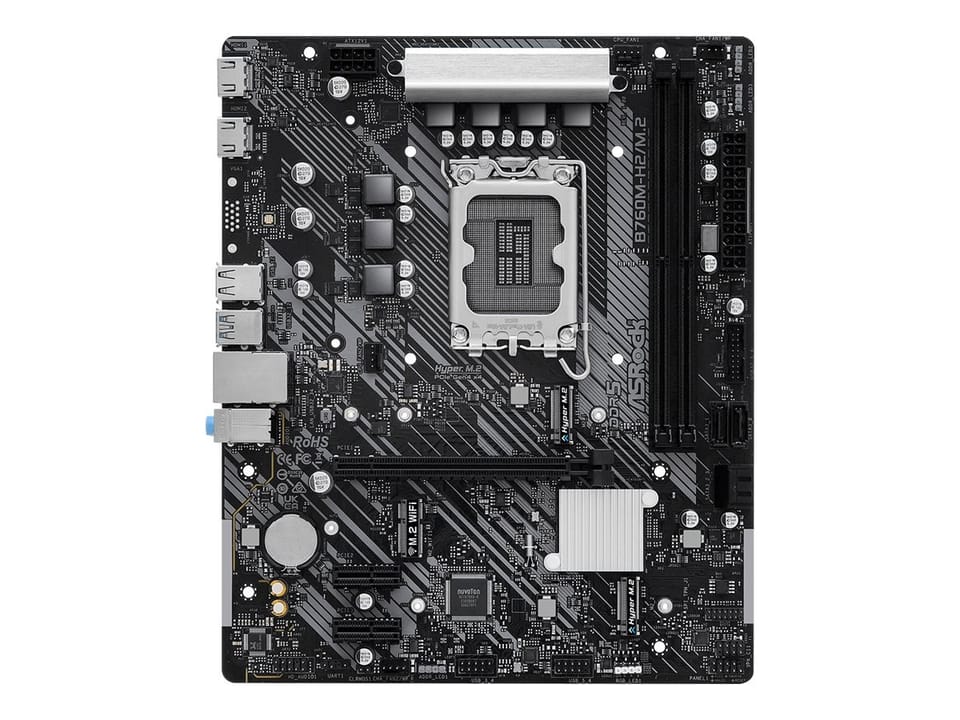

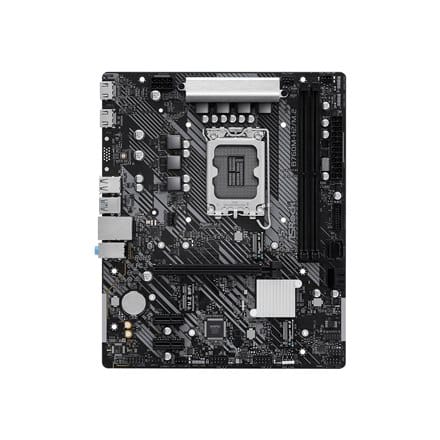

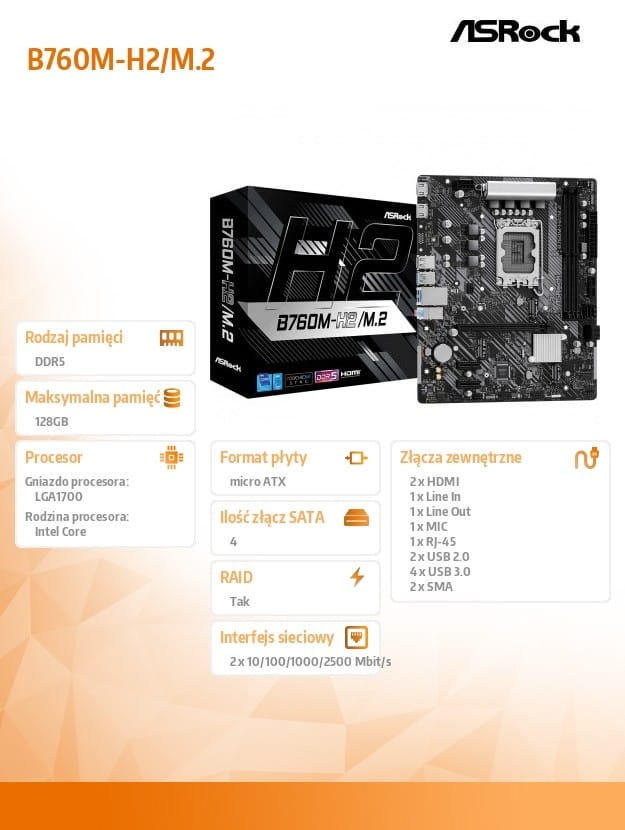

ASRock B760M-H2/M.2 motherboard

€98.13
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
ASRock
Product code:
B760M-H2/M.2 / 4710483944215

Specification

12v power connector (8-pin):Y
Atx power connector (24-pin):Yes
Audio chip:Realtek ALC897
Audio output channels:7.1 channels
Bios type:UEFI AMI
Compatible processor series:Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Core™ i3
Cpu fan connector:Yes
Depth:201 mm
Ethernet interface type:Gigabit Ethernet
Ethernet lan:Yes
Ethernet lan (rj-45) ports:1
Front panel audio connector:Yes
Hdmi ports quantity:2
Lan controller:Dragon RTL8125BG
Led connector:Y
Maximum internal memory:96 GB
Maximum number of smp processors:1
Memory slots type:DIMM
Motherboard chipset:Intel B760
Motherboard chipset family:Intel
Motherboard form factor:micro ATX
Number of audio jack connectors:3
Number of m.2 (m) slots:1
Number of memory slots:2
Number of sata iii connectors:4
Parallel processing technology support:Not supported
Pci express x1 (gen 3.x) slots:2
Pci express x16 (gen 4.x) slots:1
Processor manufacturer:Intel
Processor socket:LGA 1700
Raid levels:1, 5, 10, 0
Raid support:Yes
Supported memory types:DDR5-SDRAM
Supported storage drive interfaces:M.2, SATA III
Supported storage drive types:HDD & SSD
Tpm connector:Yes
Unbuffered memory:Yes
Usb 2.0 connectors:2
Usb 2.0 ports quantity:2
Usb 3.2 gen 1 (3.1 gen 1) connectors:1
Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity:4
Wi-fi:Yes (Requires antenna)
Width:244 mm
Wifi-ap antenna jack:2
Windows operating systems supported:Windows 10 x64, Windows 11 x64

B760M-H2/M.2 Motherboard

  • Supports Intel Core 14th, 13th, and 12th generation processors (LGA1700)
  • Power phase: 5+1+1
  • 2 × DDR5 DIMM slots
  • Supports Dual Channel, up to 7200+ MHz (OC)
  • Expansion slots: 1 × PCIe 4.0 x16, 2 × PCIe 3.0 x1, 1 × M.2 Key E for Wi-Fi

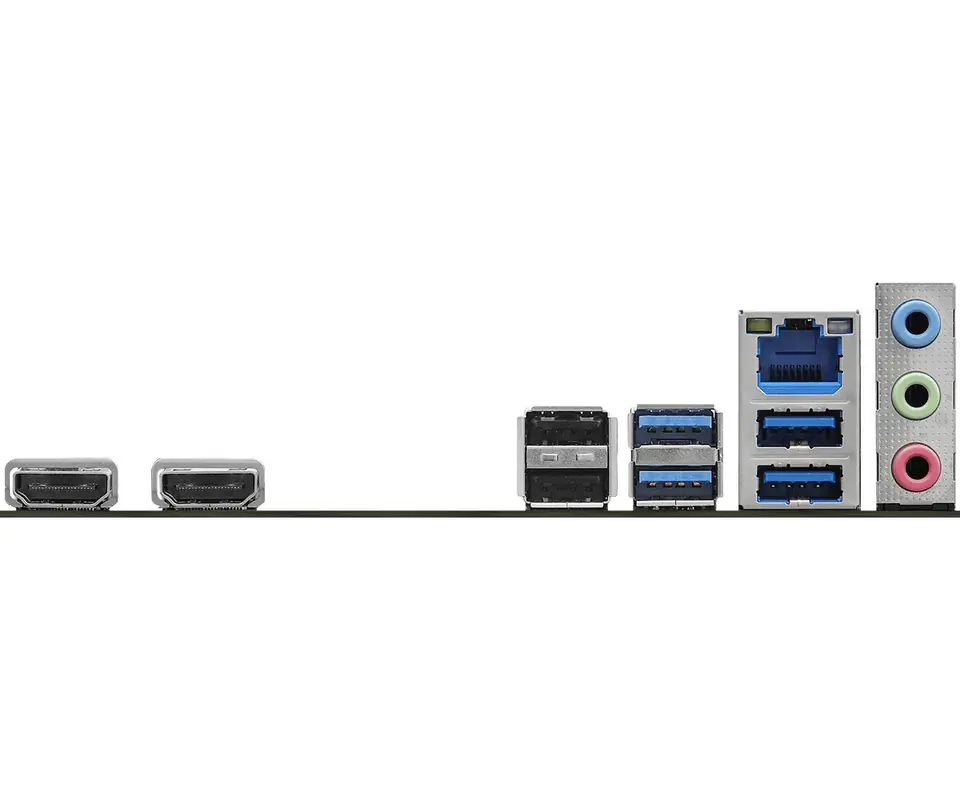

  • Graphics output options: 2 × HDMI
  • Audio codec: Realtek ALC897 7.1 CH HD
  • Storage: 4 × SATA3, 2 × Hyper M.2 (PCIe Gen4x4)
  • USB ports: 6 × USB 3.2 Gen1 Type-A (4 rear, 2 front), 6 × USB 2.0 (2 rear, 4 front)
  • Network card: Dragon 2.5G
  • Supports ASRock Automatic Driver Installer

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
