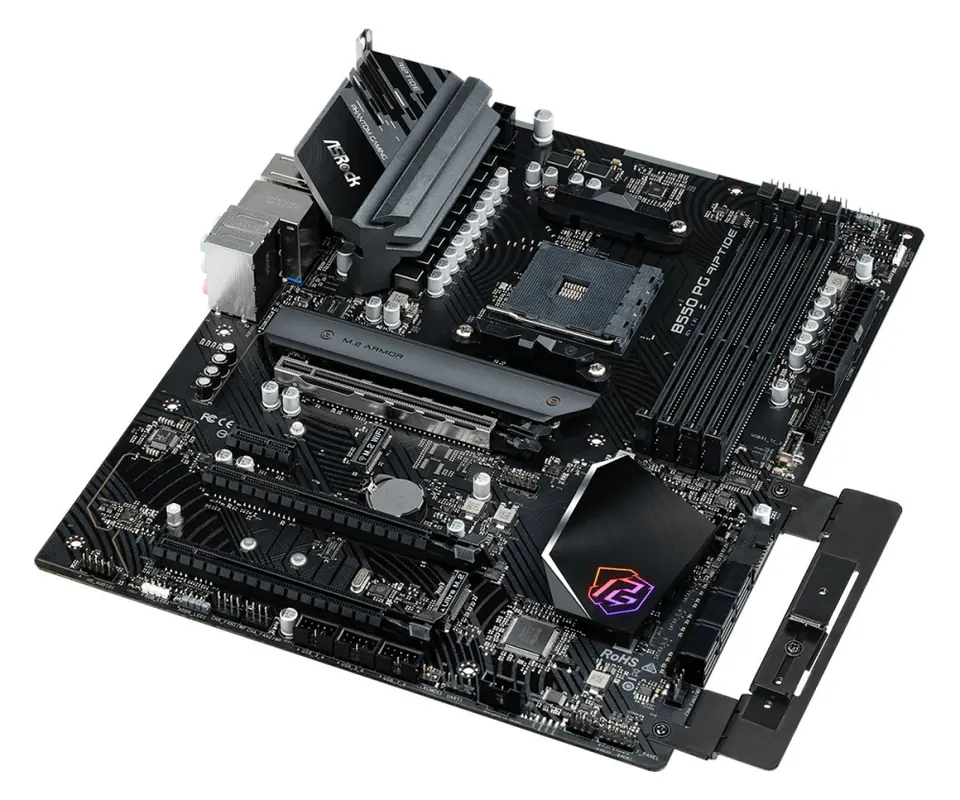

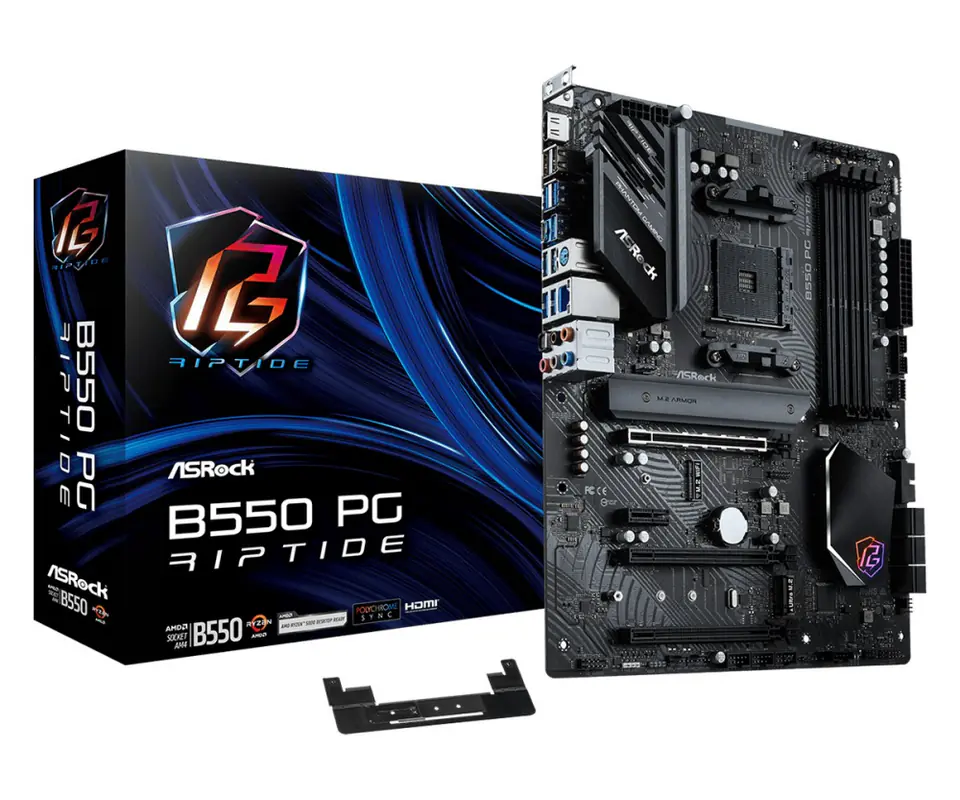

Asrock B550 PG Riptide AMD B550 Socket AM4 ATX
PLN 596.11
Shipping from warehouse: M7
Estimated shipping: Tue, Apr 29 - Fri, May 2
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- ASRock
- Product code:
- B550 PG RIPTIDE / 4710483935190
Share this product:
Specification
| 12v power connector: | Yes |
|---|---|
| Atx power connector (24-pin): | Yes |
| Audio chip: | Realtek ALC897 |
| Audio output channels: | 7.1 channels |
| Bios type: | UEFI AMI |
| Cables included: | SATA |
| Compatible processor series: | AMD Ryzen 5000 Series, AMD Ryzen 3000 Series |
| Cpu fan connector: | Yes |
| Depth: | 244 mm |
| Digital audio optical out: | 1 |
| Directx version: | 12.0 |
| Drivers included: | Yes |
| Ecc сompatibility: | Non-ECC |
| Ethernet interface type: | 2.5 Gigabit Ethernet |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 1 |
| Front panel audio connector: | Yes |
| Harmonized system (hs) code: | 84733020 |
| Hdcp: | Yes |
| Hdmi version: | 2.1 |
| Height: | 330 mm |
| Lan controller: | Killer E3100G |
| Maximum internal memory: | 128 GB |
| Maximum number of smp processors: | 1 |
| Maximum resolution: | 4096 x 2160 pixels |
| Memory channels: | Dual-channel |
| Memory slots type: | DIMM |
| Motherboard chipset: | AMD B550 |
| Motherboard chipset family: | AMD |
| Motherboard form factor: | ATX |
| Number of chassis fan connectors: | 5 |
| Number of m.2 (m) slots: | 2 |
| Number of memory slots: | 4 |
| Number of sata iii connectors: | 6 |
| Parallel processing technology support: | CrossFireX, Quad-GPU CrossFireX |
| Pc health monitoring: | Voltage, Temperature, CPU, Fan |
| Pci express x1 (gen 3.x) slots: | 1 |
| Pci express x16 slots: | 3 |
| Processor manufacturer: | AMD |
| Processor socket: | Socket AM4 |
| Ps/2 ports quantity: | 1 |
| Raid levels: | 1, 0, 10 |
| Raid support: | Yes |
| Rgb led pin header: | Yes |
| S/pdif out port: | Yes |
| Supported memory clock speeds: | 2133, 4200, 3200 MHz, 4266, 4133, 4000, 4933 MHz, 4533, 3800, 4466, 2933, 3600, 3866, 4733 MHz, 3466, 2667, 3733, 4400 MHz, 4666, 4333, 4600, 2400 |
| Supported memory types: | DDR4-SDRAM |
| Supported storage drive interfaces: | M.2, SATA III |
| Supported storage drive types: | HDD & SSD |
| Thunderbolt headers: | 1 |
| Tpm connector: | Yes |
| Unbuffered memory: | Yes |
| Usb 2.0 connectors: | 3 |
| Usb 2.0 ports quantity: | 2 |
| Usb 3.2 gen 1 (3.1 gen 1) connectors: | 2 |
| Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity: | 6 |
| Usb 3.2 gen 2 (3.1 gen 2) connectors: | 1 |
| Usb 3.2 gen 2 (3.1 gen 2) type-a ports quantity: | 1 |
| Usb 3.2 gen 2 (3.1 gen 2) type-c ports quantity: | 1 |
| Wake-on-lan ready: | Yes |
| Weight: | 465 g |
| Wi-fi: | No |
| Width: | 305 mm |
| Windows operating systems supported: | Windows 11 x64, Windows 10 x64 |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
