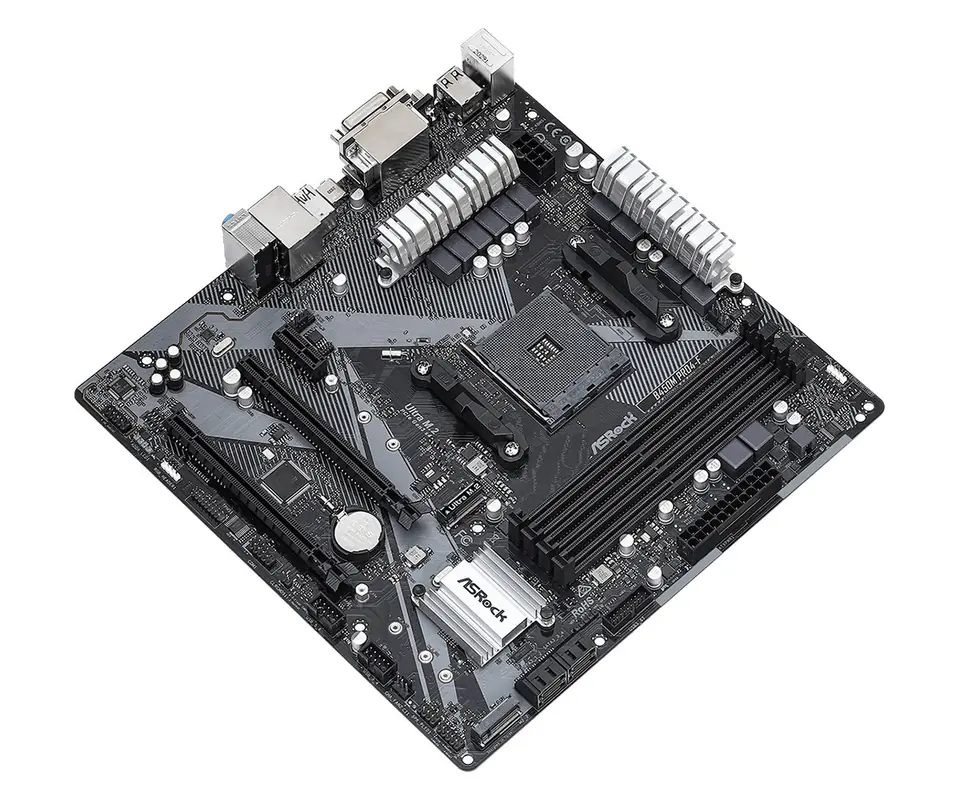

Asrock B450M Pro4-F R2.0 AMD B450 Socket AM4 micro ATX
This product is not available
- Availability:
- expected delivery
- Brand:
- ASRock
- Product code:
- B450M PRO4-F R2.0 / 4710483933233
Share this product:
Specification
| 12v power connector: | Y |
|---|---|
| Atx power connector (24-pin): | Y |
| Audio chip: | Realtek ALC892 / Realtek ALC897 |
| Audio output channels: | 7.1 channels |
| Bios type: | UEFI AMI |
| Cables included: | SATA |
| Compatible processor series: | 3rd Generation AMD Ryzen™ 9, AMD Ryzen 9 5th Gen, AMD Ryzen™ 7, AMD Ryzen™ 3, AMD Athlon, AMD Ryzen™ 5 |
| Cpu fan connector: | Y |
| Depth: | 244 mm |
| Directx version: | 12.0 |
| Drivers included: | Y |
| Dvi-d ports quantity: | 1 |
| Ethernet interface type: | Gigabit Ethernet |
| Ethernet lan: | Y |
| Ethernet lan (rj-45) ports: | 1 |
| Front panel audio connector: | Y |
| Hdcp: | Y |
| Hdmi ports quantity: | 1 |
| Hdmi version: | 1.4 |
| Lan controller: | Realtek RTL8111GR |
| Maximum internal memory: | 128 GB |
| Maximum number of smp processors: | 1 |
| Maximum resolution: | 4096 x 2160 pixels |
| Memory channels: | Dual-channel |
| Memory slots type: | DIMM |
| Motherboard chipset: | AMD B450 |
| Motherboard chipset family: | AMD |
| Motherboard form factor: | micro ATX |
| Number of chassis fan connectors: | 2 |
| Number of com connectors: | 1 |
| Number of displays supported: | 3 |
| Number of m.2 (m) slots: | 2 |
| Number of memory slots: | 4 |
| Number of sata iii connectors: | 4 |
| Pc health monitoring: | Temperature, CPU, Voltage |
| Pci express x1 (gen 2.x) slots: | 1 |
| Pci express x16 slots: | 2 |
| Processor manufacturer: | AMD |
| Processor socket: | Socket AM4 |
| Ps/2 ports quantity: | 2 |
| Raid levels: | 10, 1, 0 |
| Raid support: | Y |
| Rgb led pin header: | Y |
| Supported memory clock speeds: | 2133, 2400, 2667, 3200 MHz, 2933 |
| Supported memory types: | DDR4-SDRAM |
| Supported storage drive interfaces: | M.2, SATA III |
| Tpm connector: | Y |
| Unbuffered memory: | Y |
| Usb 2.0 connectors: | 2 |
| Usb 2.0 ports quantity: | 2 |
| Usb 3.2 gen 1 (3.1 gen 1) connectors: | 1 |
| Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity: | 4 |
| Usb 3.2 gen 1 (3.1 gen 1) type-c ports quantity: | 1 |
| Vga (d-sub) ports quantity: | 1 |
| Wake-on-lan ready: | Y |
| Wi-fi: | N |
| Width: | 244 mm |
| Windows operating systems supported: | Windows 10 x64 |
