- Supports AMD Socket AM5 Ryzen 7000 series processors
- Power phase 8+2+1, Dr.MOS
- Supports DDR5 7200+ MHz (OC)
- 2 PCIe 4.0 x16, 1 PCIe 4.0 x1, 1 M.2 Key E for Wi-Fi
- Integrated AMD RDNA 2 graphics*

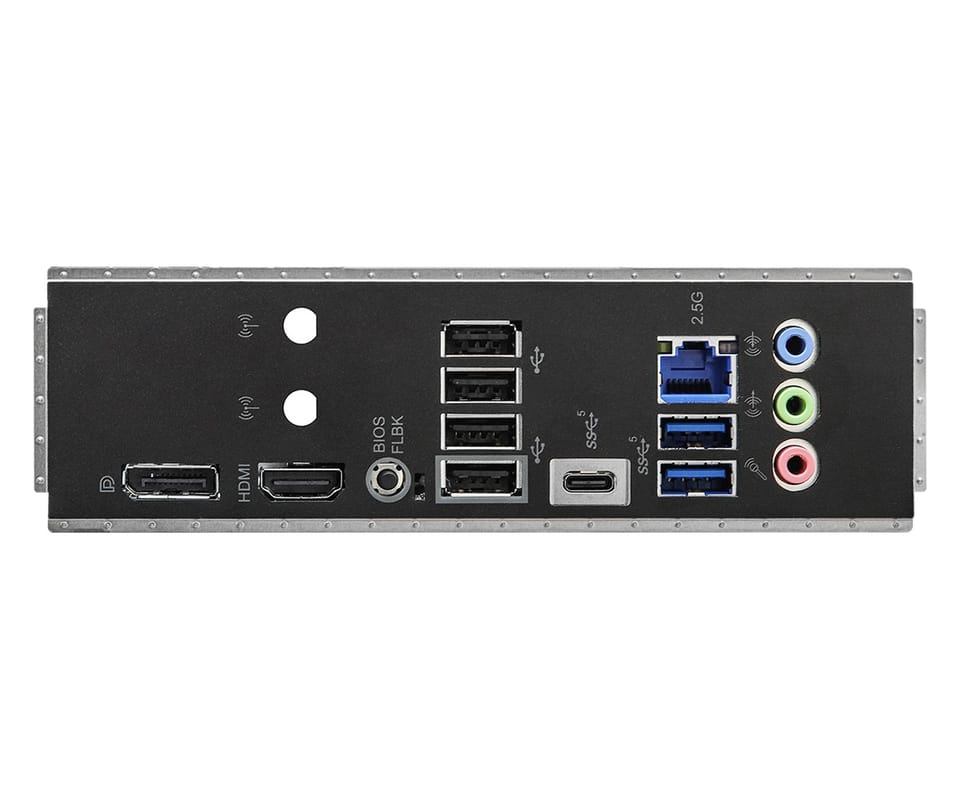

- Graphics output options: HDMI, DisplayPort
- Realtek ALC897 7.1 CH HD audio codec, Nahimic sound
- 4 SATA3, 1 blazing M.2 (PCIe Gen5x4),
- 1 Hyper M.2 (PCIe Gen4x4)
- 1 front USB 3.2 Gen2 Type C port,
- 7 USB 3.2 Gen1 ports (2 rear, 1 rear Type-C, 4 front)
- Dragon 2.5G network card
- Supports ASRock automatic driver installer, BIOS Flashback
- I/O shield pre-installed

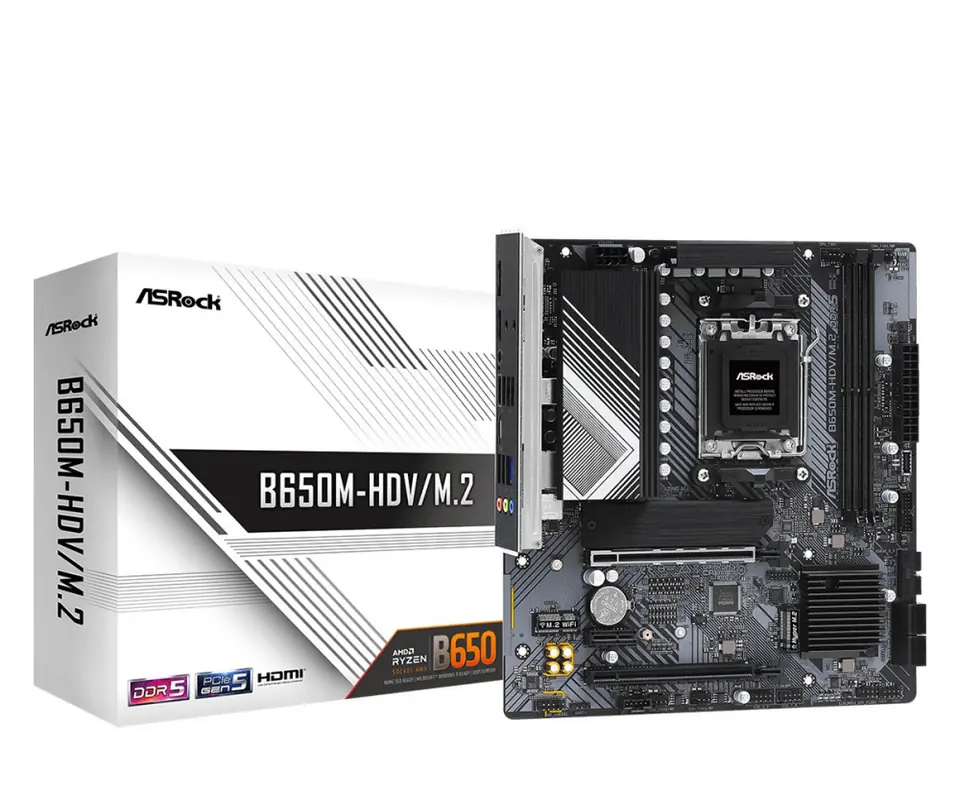

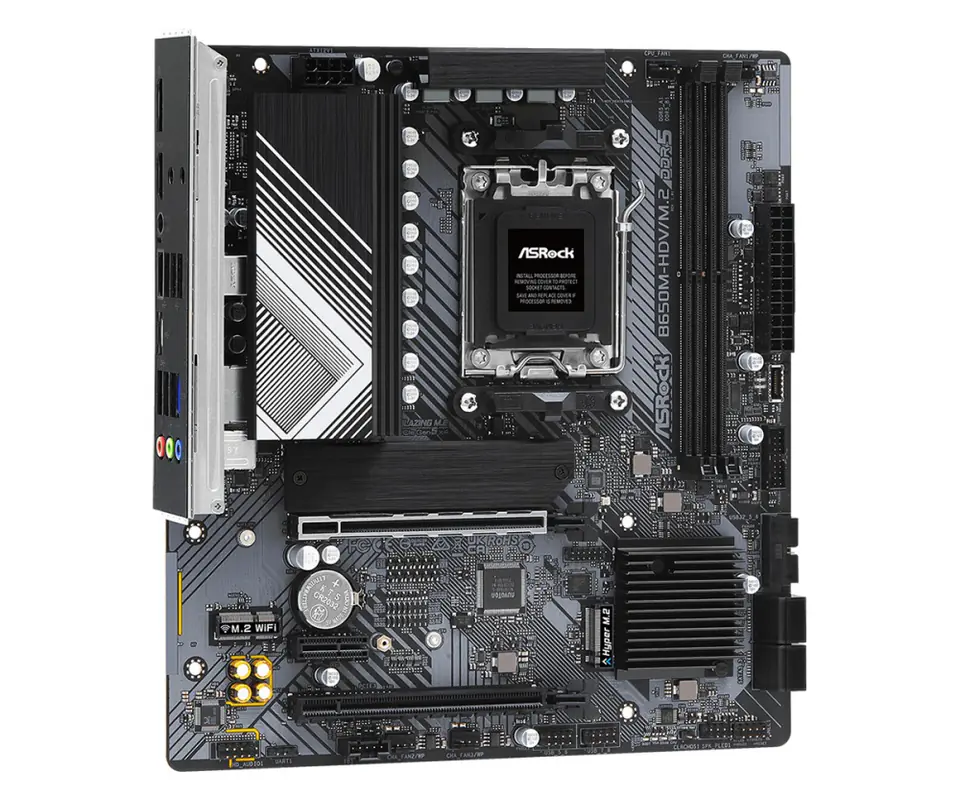

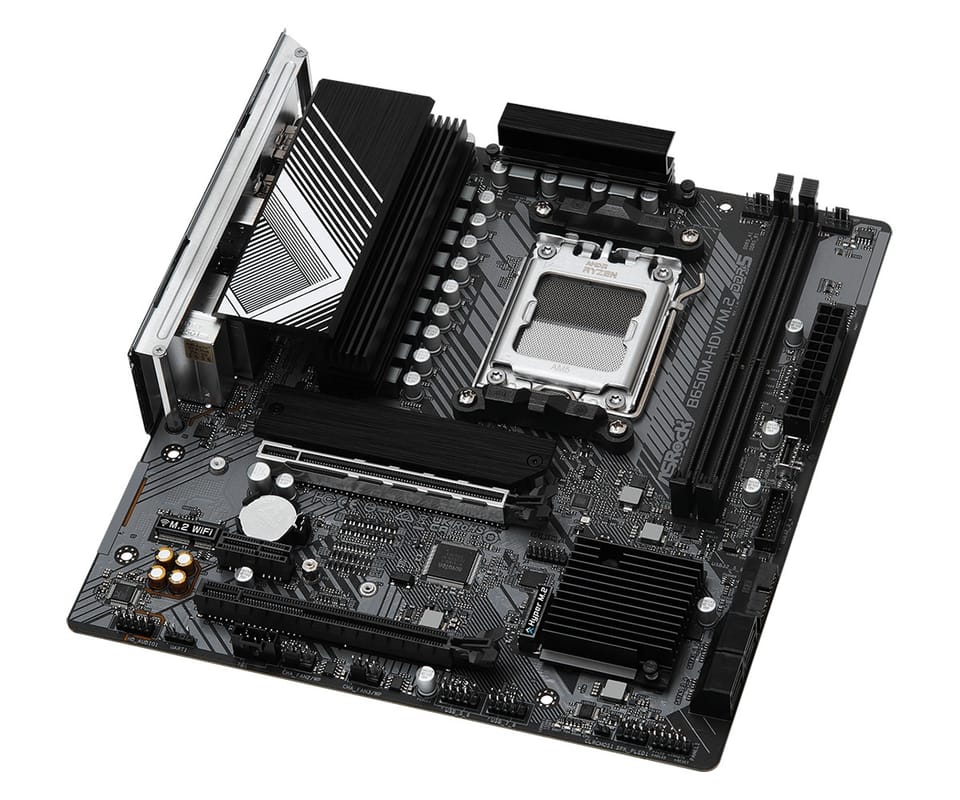

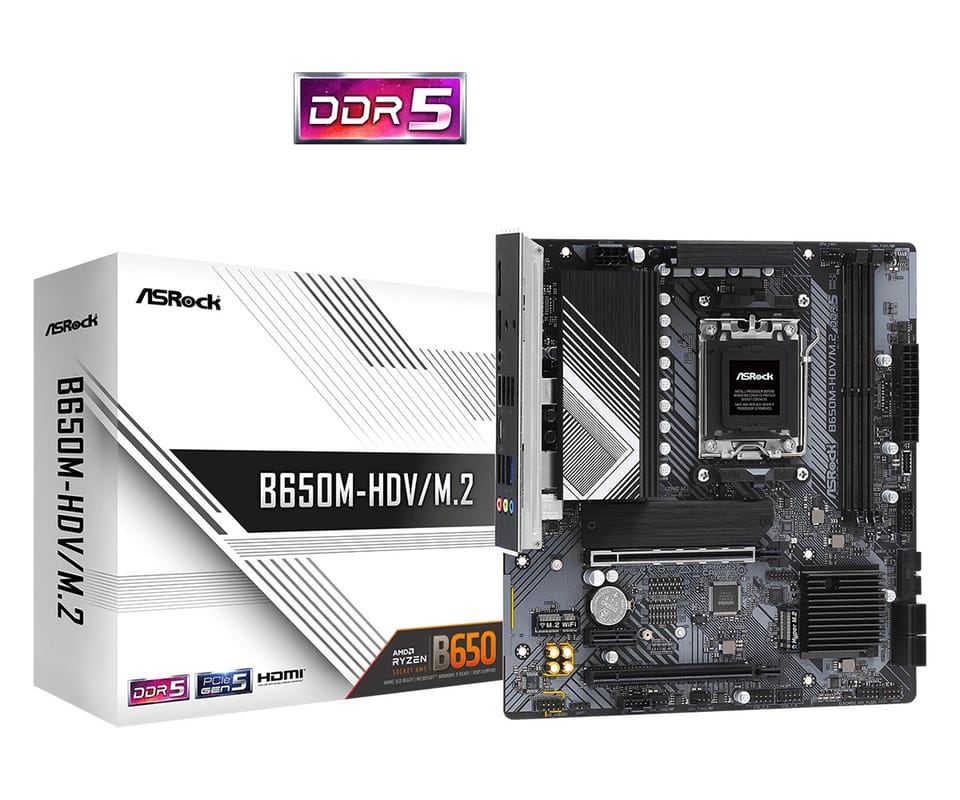

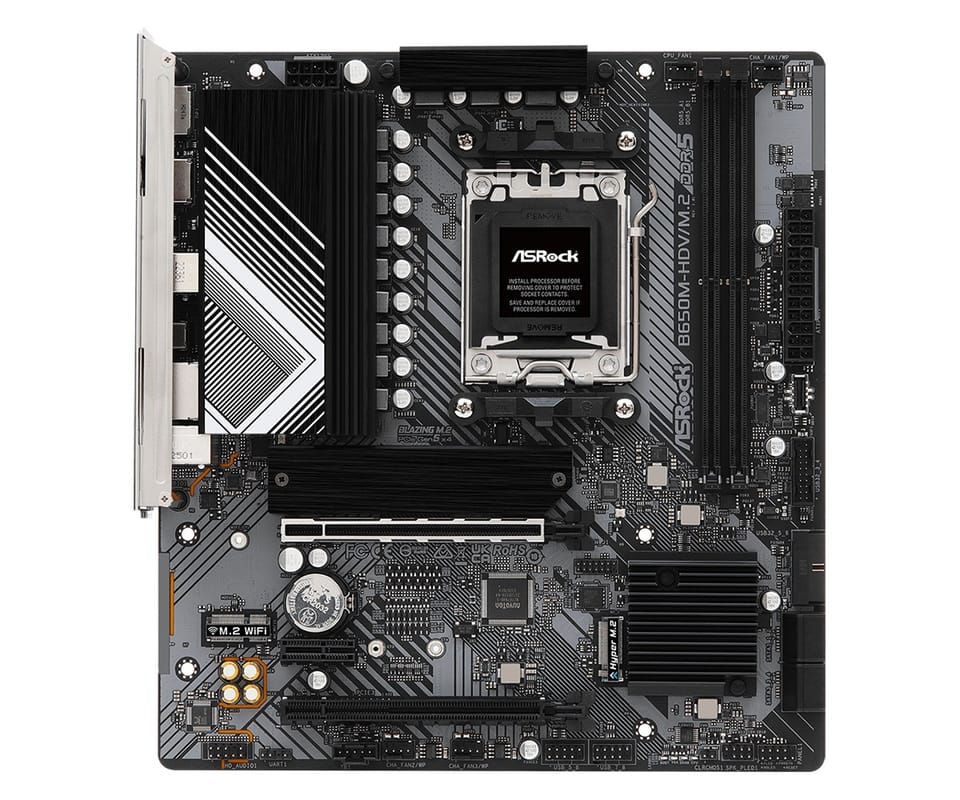

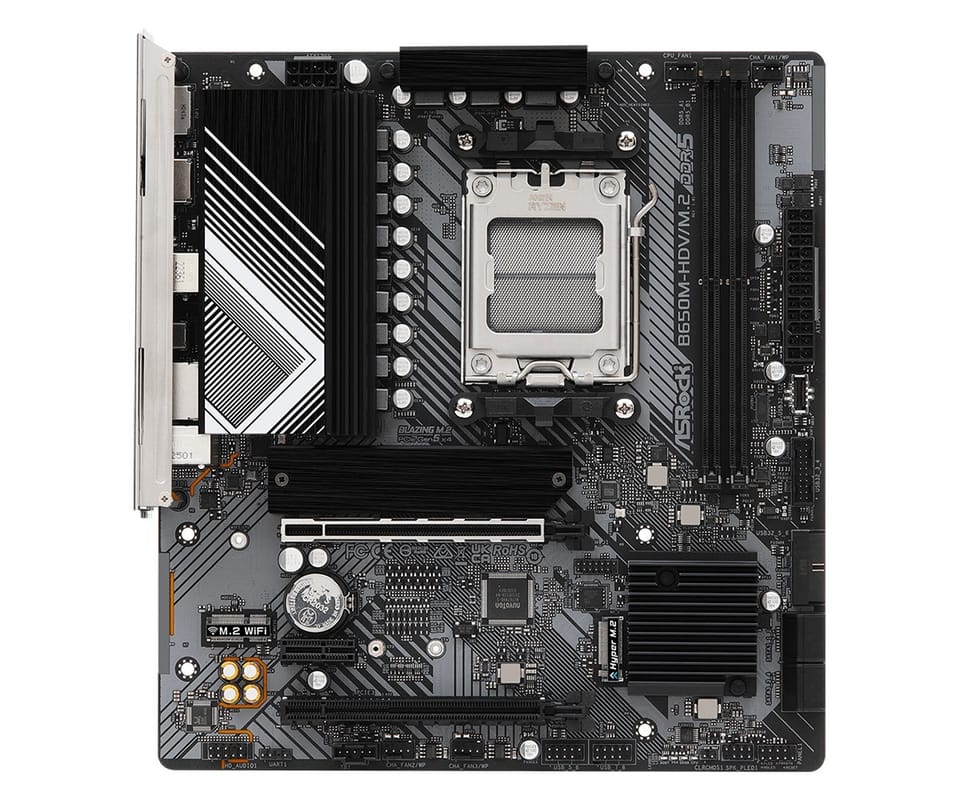

Asrock AM5 B650M-HDV/M.2 uATX
€117.12
Shipping from warehouse: A3
Estimated shipping: Thu, May 21 - Mon, May 25
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- AMD
- Product code:
- 90-MXBLA0-A0UAYZ / 4710483942693
Share this product:
Specification
| Atx power connector (24-pin): | Yes |
|---|---|
| Audio chip: | Realtek ALC897 |
| Audio output channels: | 7.1 channels |
| Bios type: | EFI AMI |
| Compatible processor series: | AMD Ryzen™ 7 |
| Cpu fan connector: | Yes |
| Depth: | 226 mm |
| Displayport version: | 1.4 |
| Displayports quantity: | 1 |
| Ecc сompatibility: | Non-ECC |
| Eps power connector (8-pin): | Yes |
| Ethernet interface type: | 2.5 Gigabit Ethernet |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 1 |
| Front panel audio connector: | Yes |
| Hdmi ports quantity: | 1 |
| Lan controller: | Realtek RTL8125-BG |
| Line-in: | Yes |
| Maximum internal memory: | 64 GB |
| Memory slots type: | DIMM |
| Microphone in: | Yes |
| Motherboard chipset: | AMD B650 |
| Motherboard chipset family: | AMD |
| Motherboard form factor: | micro ATX |
| Number of m.2 (m) slots: | 1 |
| Number of memory slots: | 2 |
| Number of sata iii connectors: | 4 |
| Pci express x1 (gen 4.x) slots: | 1 |
| Pci express x16 (gen 4.x) slots: | 1 |
| Processor manufacturer: | AMD |
| Processor socket: | Socket AM5 |
| Raid levels: | 1, 10, 0 |
| Raid support: | Yes |
| Supported memory types: | DDR5-SDRAM |
| Supported storage drive interfaces: | M.2, SATA III |
| Supported storage drive types: | HDD & SSD |
| Thunderbolt headers: | 1 |
| Tpm connector: | Yes |
| Unbuffered memory: | Yes |
| Usb 2.0 connectors: | 2 |
| Usb 2.0 ports quantity: | 4 |
| Usb 3.2 gen 1 (3.1 gen 1) connectors: | 2 |
| Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity: | 2 |
| Usb 3.2 gen 1 (3.1 gen 1) type-c ports quantity: | 1 |
| Usb 3.2 gen 2 (3.1 gen 2) connectors: | 1 |
| Wi-fi: | No |
| Width: | 244 mm |
| Windows operating systems supported: | Windows 11 x64, Windows 10 x64 |
