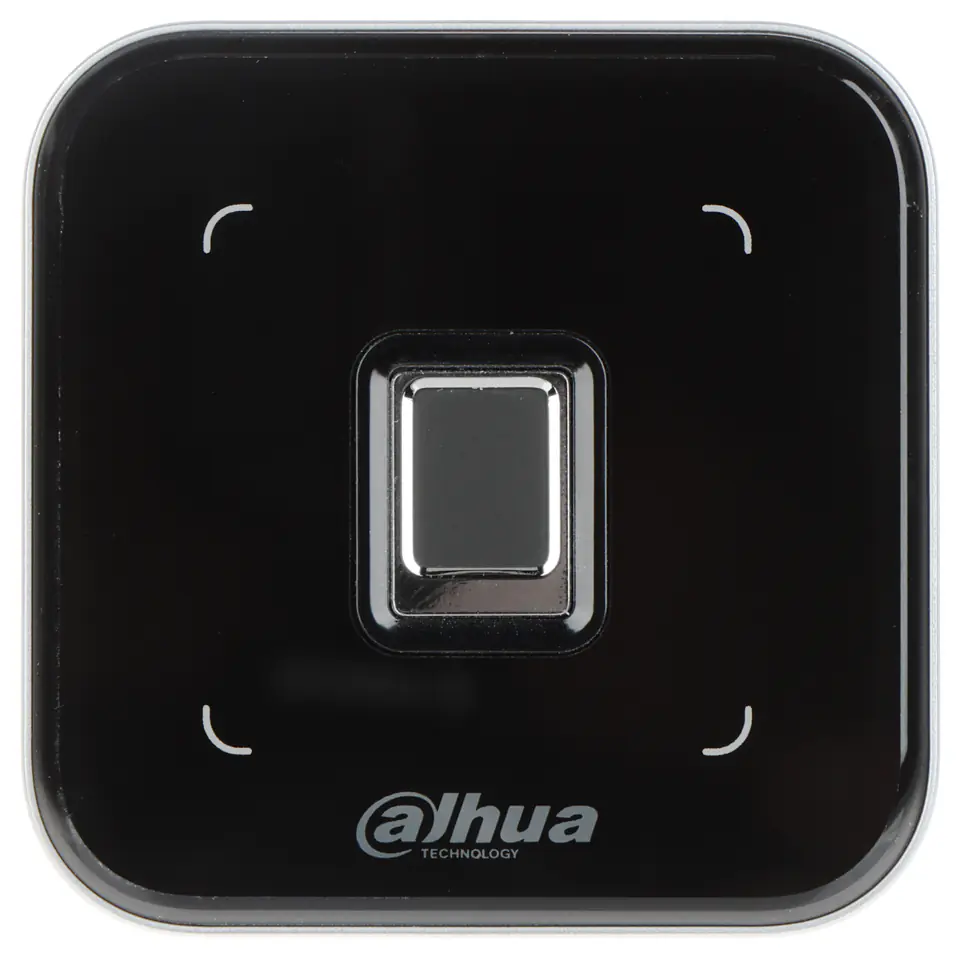

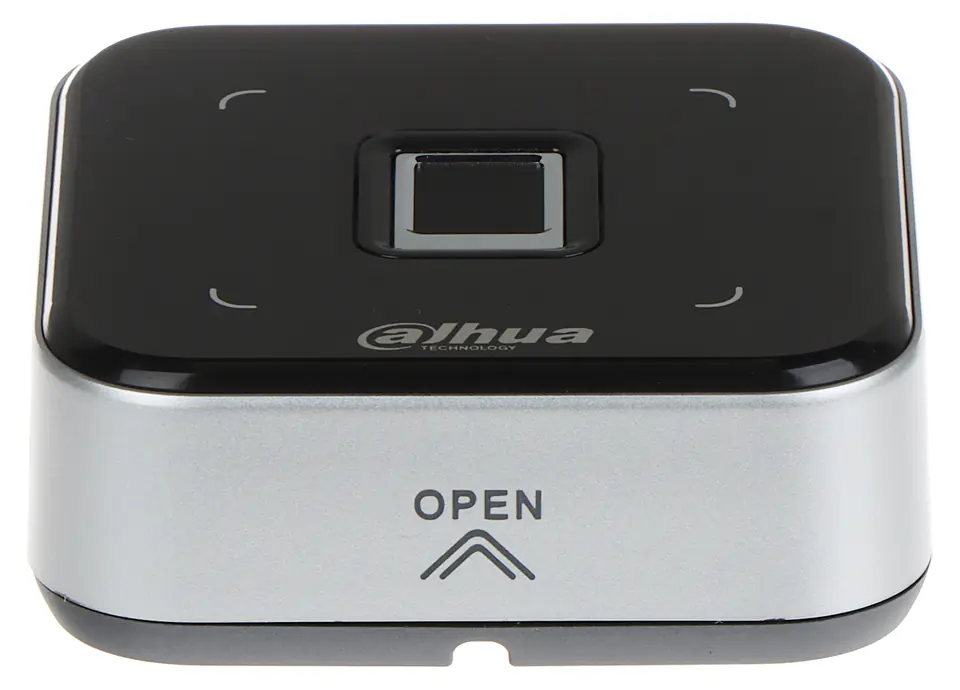

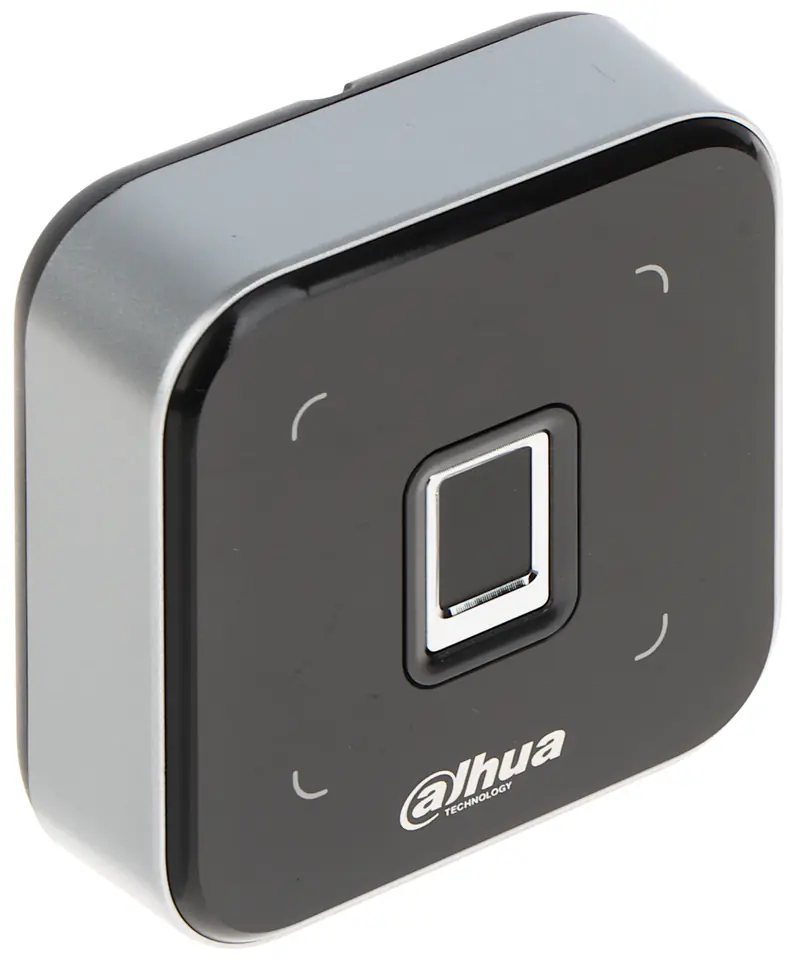

External fingerprint reader with built-in RFID reader
ASR2102A DAHUA FINGERPRINT + RFID READER
This product is not available
- Availability:
- expected delivery
- Brand:
- Dahua
- Product code:
- ASR2102A / 6939554951145
Share this product:
Specification
| Card read range: | 0 ... 5 cm |
|---|---|
| Card support: | MIFARE 13.56 MHz |
| Case: | Plastic + Acrylic glass (plexiglas) |
| Colour: | Silver / Black |
| Communication: | RS-485 |

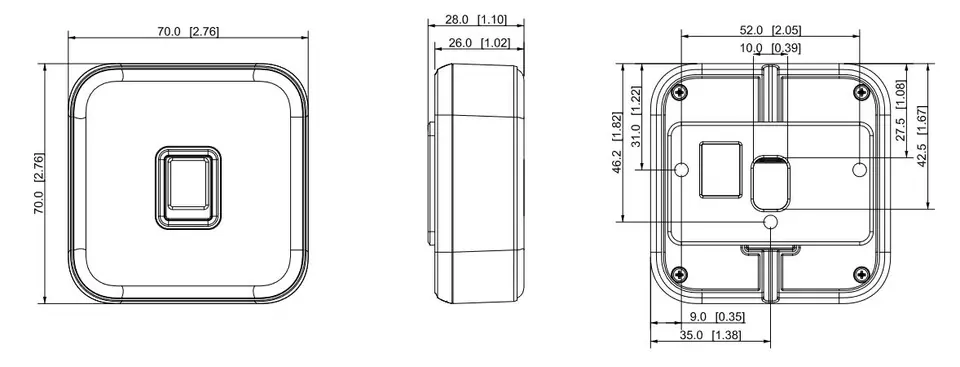

| Dimensions: | 70 x 70 x 26 mm |
| Identification time: | ≤ 1.5 sec |
| Maximum current consumption: | 500 mA |
| Operating temperature: | -20 °C ... 65 °C |
| Permissible relative ambient humidity: | 5 ... 95 % (non-condensing) |
| Power: | 12 volts DC |
| Producer / brand: | DAHUA |
| Scales: | 0.09 kg |
| Sealing: | IP65 - after additional sealing of the connection of the housing with the mounting surface, e.g. silicone, |
| Selected features: | Memory of 3000 fingerprint patterns Built-in watchdog Buzzer LED indicator for working status Opening with card or fingerprint and combination Protection : Surge Protector, Overload |
| Warranty: | 3 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
