The internal USB fingerprint reader is designed to work with access control systems based on SmartPSS AC, DSS Prosoftware The device is equipped with a USB 2.0 connector and works in accordance with the Plug and Play standard
ASM101A DAHUA FINGERPRINT + RFID READER
€123.78
Shipping from warehouse: D4
Estimated shipping: Thu, Dec 18 - Mon, Dec 22
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Dahua
- Product code:
- ASM101A / 6939554951152
Share this product:
Specification
| Card read range: | 0 ... 5 cm |
|---|---|
| Card support: | Unique EM 125kHz, MIFARE 13.56 MHz |
| Case: | Plastic + Acrylic glass (plexiglas) |
| Colour: | Silver / Black |
| Communication: | USB 2.0 |

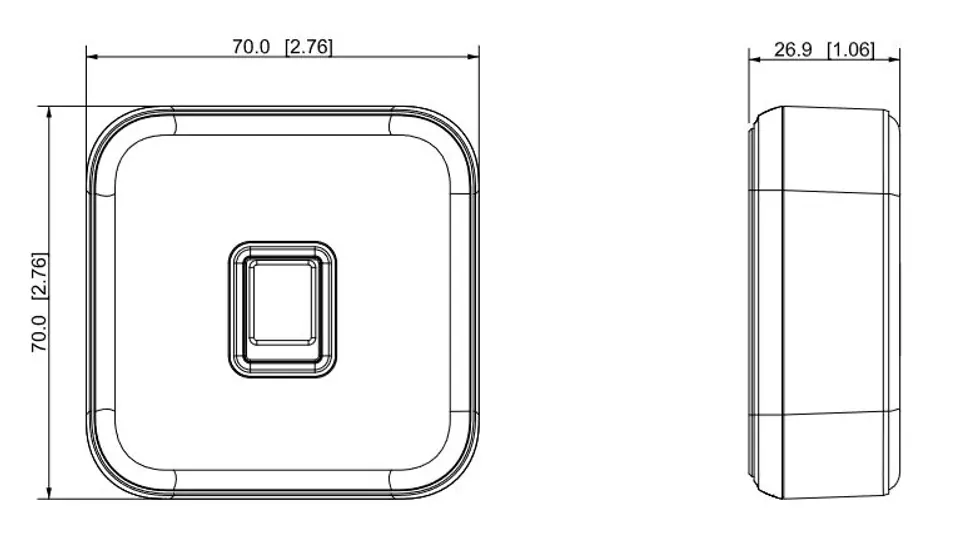

| Dimensions: | 70 x 70 x 26 mm |
| Identification time: | 1.8 sec |
| Maximum current consumption: | 500 mA |
| Operating temperature: | -20 °C ... 65 °C |
| Permissible relative ambient humidity: | 5 ... 95 % (non-condensing) |
| Power: | 5 V DC via USB port |
| Producer / brand: | DAHUA |
| Scales: | 0.09 kg |

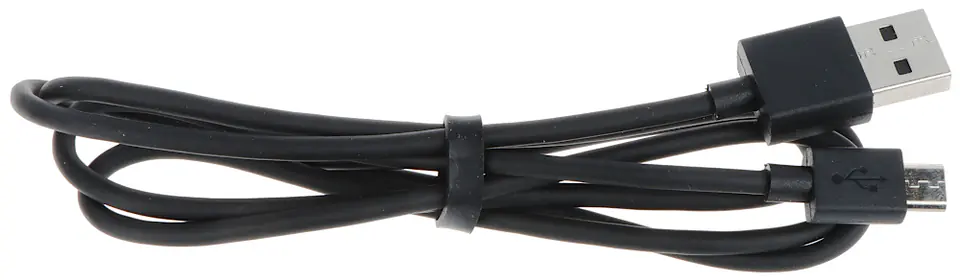

| Selected features: | Fingerprint recording in the client application Platform Support: SmartPSS AC, DSS Pro usb Interface - Plug & Play Buzzer LED indicator for operating status Micro USB port USB cable - included |
| Warranty: | 3 years |
