The ASI1212D controller can work in stand-alone or network modeThe device allows one-sided or two-way control of the transition. In the case of two-sided control, an external ASR series access reader or a reader equipped with a Wiegand interface must be attached to the controller.

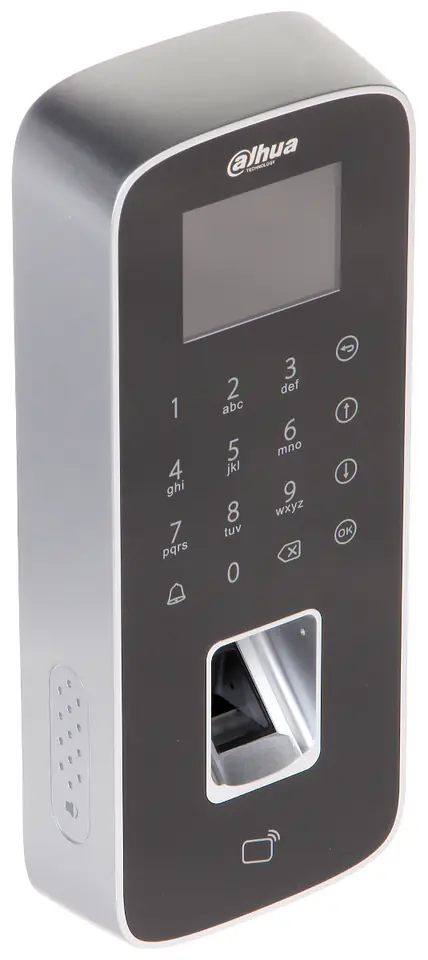

ASI1212D DAHUA ACCESS CONTROLLER
This product is not available
- Availability:
- expected delivery
- Brand:
- Dahua
- Product code:
- ASI1212D / 6939554912689
Share this product:
Specification
Built-in keyboard:: | Touch control buttons |
---|---|
Card reading range:: | Max. 8 cm |
Card support:: | MIFARE 13.56 MHz |
Communication:: | RS-485 Wiegand LAN |
Default administrator login / password:: | - / 88888888 |
Dimensions:: | 205 x 83 x 33 mm |
Far (misapprove factor):: | < 0.00004 % |
Frr (error rate of rejections):: | < 0.15 % |
Identification time:: | < 1.5 s |
Input lines:: | 3 |
Manufacturer / brand:: | DAHUA |
Network interface:: | 10/100 Base-T |
Operating temperature:: | -30 °C ... 60 °C |
Output lines:: | 3 |
Permissible relative humidity:: | Max. 95 % (non-condensing) |
Power:: | 9 ... 15 VDC |
Scales:: | 0.29 kg |
Sealing:: | IP65 |
Selected features:: | Built-in Mifare 13.56 MHz proximity reader, Built-in fingerprint reader Memory 3000 fingerprint patterns Possibility to attach an additional ASR series reader (double-sided transition control) Identification modes : Mifare proximity ID, Fingerprint, Any combination of the above Tamper detection - detachment from the ground Cooperation with the opening sensor and exit button Signaling of force input and no closure of 30000 indexed doors users 6 access groups 128 time schedules 128 time zones inside the schedule Holiday settings Anti-passback History of 150000 events Integration with the alarm system via I/O line Remote programming from a computer Built-in watchdog |
Supported languages:: | English |
Warranty:: | 3 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
