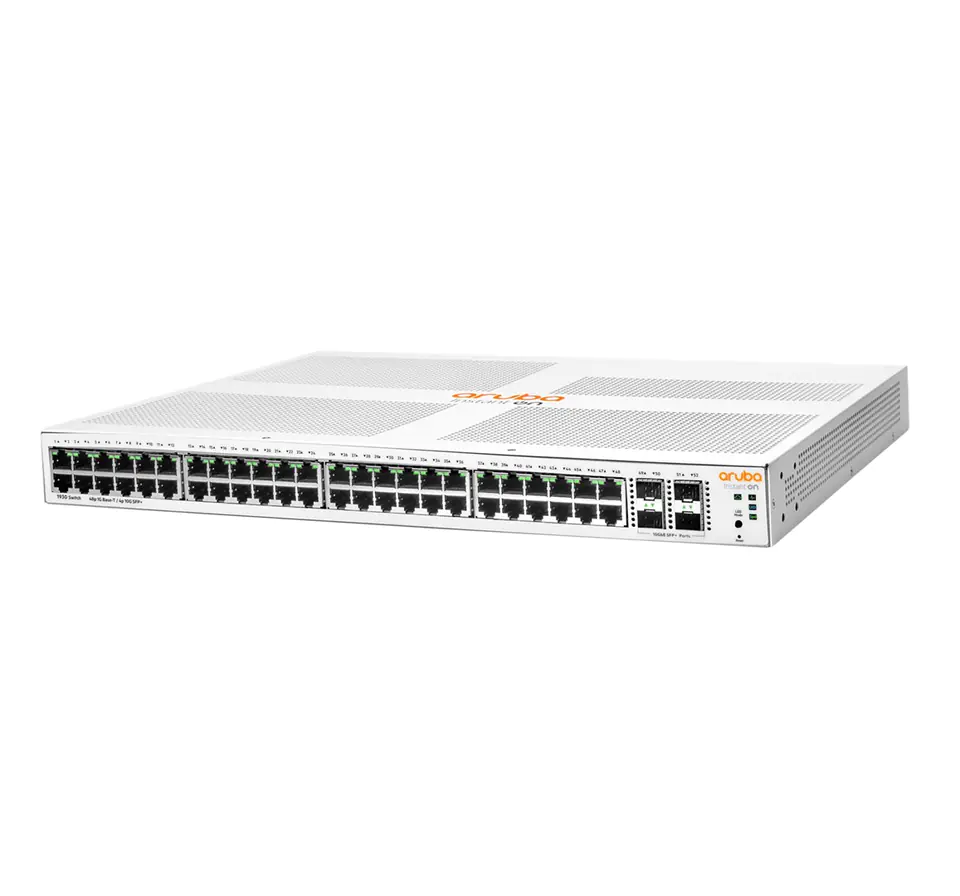

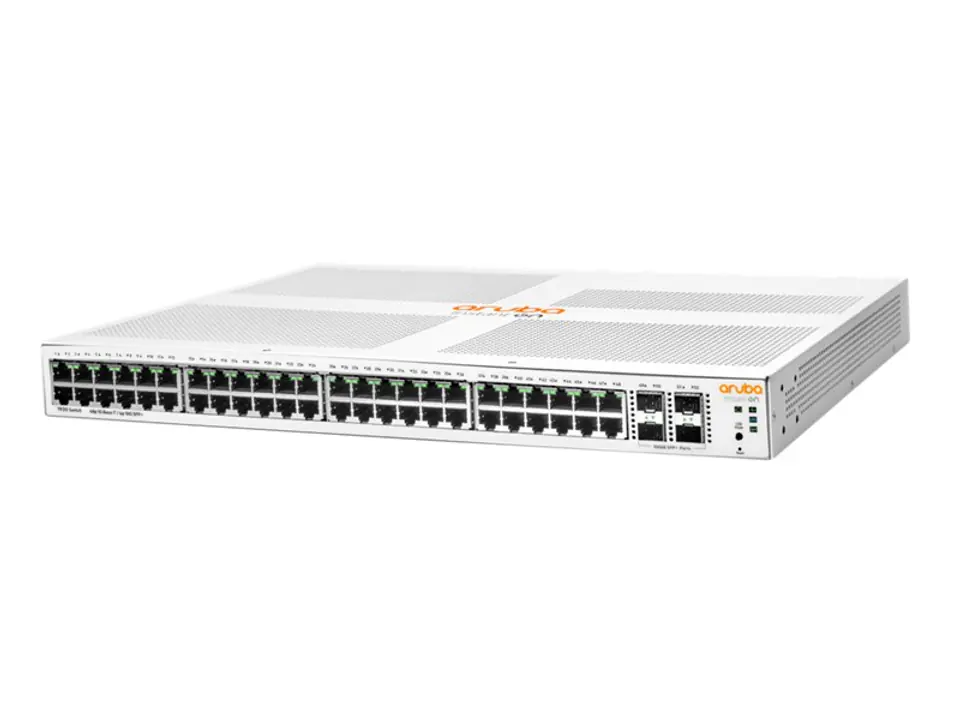

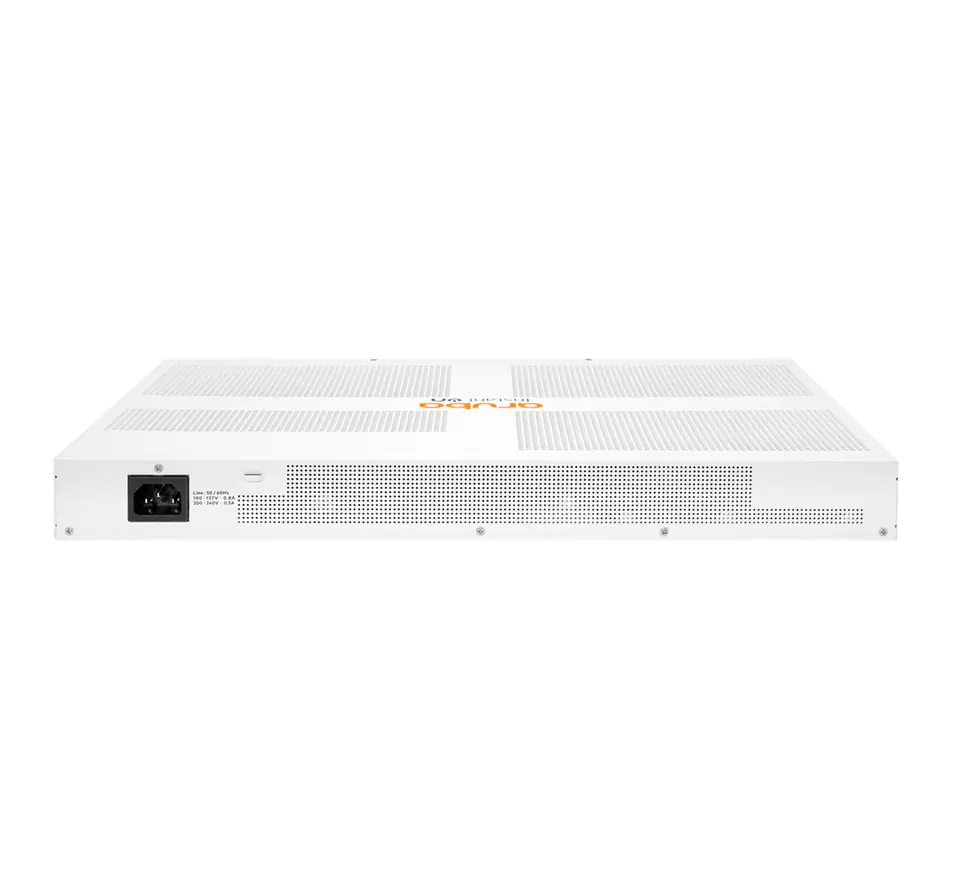

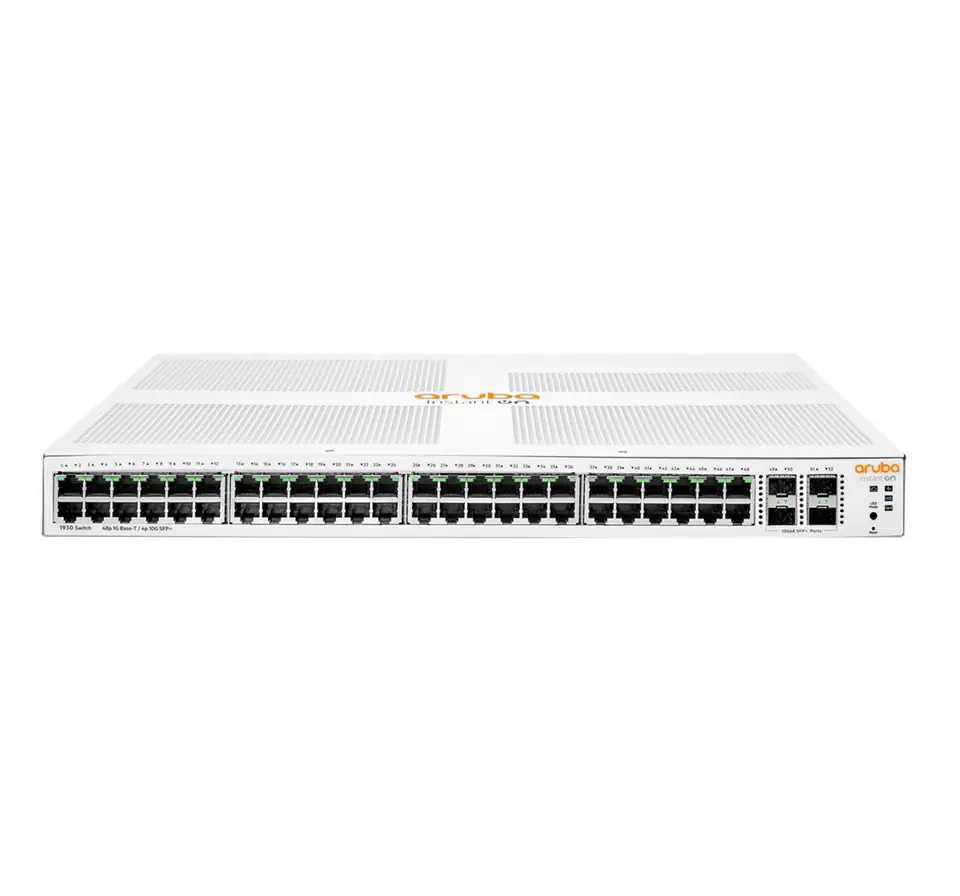

Aruba Instant On 48x1GbE 4xSFP+ JL685A Switch
PLN 1,797.49
Shipping from warehouse: M7
Estimated shipping: Tue, Oct 28 - Fri, Oct 31
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- HP
- Product code:
- JL685A / 0190017356112
Share this product:
Specification
| 10g support: | No |
|---|---|
| Ac input frequency: | 50 - 60 Hz |
| Ac input voltage: | 100 - 240 V |
| Access control list (acl): | Yes |
| Active link detection: | Yes |
| Arp inspection: | Yes |
| Auto mdi/mdi-x: | Yes |
| Auto-sensing: | Yes |
| Basic switching rj-45 ethernet ports quantity: | 24 |
| Basic switching rj-45 ethernet ports type: | Gigabit Ethernet (10/100/1000) |
| Bpdu filtering/protection: | Yes |
| Built-in processor: | Yes |
| Bus speed: | 176 Gbps |
| Cloud-managed: | Yes |
| Copper ethernet cabling technology: | 1000BASE-T |
| Depth: | 282.5 mm |
| Dhcp features: | DHCP snooping, DHCP client |
| Ethernet lan data rates: | 10,1000,100 Mbit/s |
| Flash memory: | 256 MB |
| Flow control support: | Yes |
| Form factor: | 1U |
| Full duplex: | Yes |
| Harmonized system (hs) code: | 85176990 |
| Height: | 43.9 mm |
| Igmp snooping: | Yes |
| Input current: | 0.2 A |
| Internal memory: | 512 MB |
| Ip routing: | Yes |
| Latency (1 gbps): | 2.2 µs |
| Latency (10 gbps): | 1.2 µs |
| Latency (10-100 mbps): | 4.5 µs |
| Link aggregation: | Yes |
| Loop protection: | Yes |
| Mac address table: | 16000 entries |
| Memory type: | SDRAM / Flash |
| Multicast support: | Yes |
| Networking standards: | IEEE 802.1x, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3z |
| Number of vlans: | 4093 |
| Operating relative humidity (h-h): | 15 - 95% |
| Operating temperature (t-t): | 0 - 40 °C |
| Packet buffer memory: | 1.5 MB |
| Port mirroring: | Yes |
| Power consumption (max): | 36.9 W |
| Power over ethernet (poe): | No |
| Power source: | AC |
| Power supply included: | Yes |
| Processor frequency: | 800 MHz |
| Processor model: | ARM Cortex-A9 |
| Product colour: | White |
| Quality of service (qos) support: | Yes |
| Rack mounting: | Yes |
| Rate limiting: | Yes |
| Routing entries: | 32 |
| Sfp+ module slots quantity: | 4 |
| Spanning tree protocol: | Yes |
| Ssh/ssl support: | Yes |
| Stackable: | Yes |
| Storage relative humidity (h-h): | 15 - 95% |
| Storage temperature (t-t): | -40 - 70 °C |
| Switch layer: | L2+ |
| Switch type: | Managed |
| Switching capacity: | 176 Gbit/s |
| Switching layer: | L2+ |
| System event log: | Yes |
| Throughput: | 130.95 Mpps |
| Vlan support: | Yes |
| Web-based management: | Yes |
| Weight: | 3.13 kg |
| Width: | 442.5 mm |
