AQUARIUS HERMETA'S NEST. 2X IP54 Z/U WHITE

€7.84

Shipping from warehouse: ⁨T2⁩

Estimated shipping: Wed, May 1 - Mon, May 6

14 days returnUnconditional return policy

Availability:: large quantity
Brand:: KONTAKT-SIMON
Product code:: AQGZ1-2/11 / 5902787574116

Specification

Child-resistant:	No
Closed:	No
Color shade:	White
Colour:	White
Connection type:	Screw terminal
Cover:	Complete housing
Degree of protection (ip):	IP54
For use in harsh environments (according to vde):	No
Frequency range [hz] from:	50
Frequency range [hz] to:	60
Halogen-free:	No
Material:	Plastic
Material type:	Thermoplastic
Method of attachment:	Screw mounting
Model:	With grounding pin
Mounting method:	Surface mounting
Number of units:	2
Overcurrent protection:	No
Overprint/symbol:	No print
Power off function:	No
Rated current [a]:	16
Rated voltage [v]:	250
Space for label/marking:	No
Special power supply:	Without special power supply
Surface finish:	Shiny
Surface protection:	Untreated
Swivel central insert:	No
With backlight:	No
With miniature fuse:	No
With plug ejection mechanism:	No
With surge protection:	No
With tilting cover:	Yes

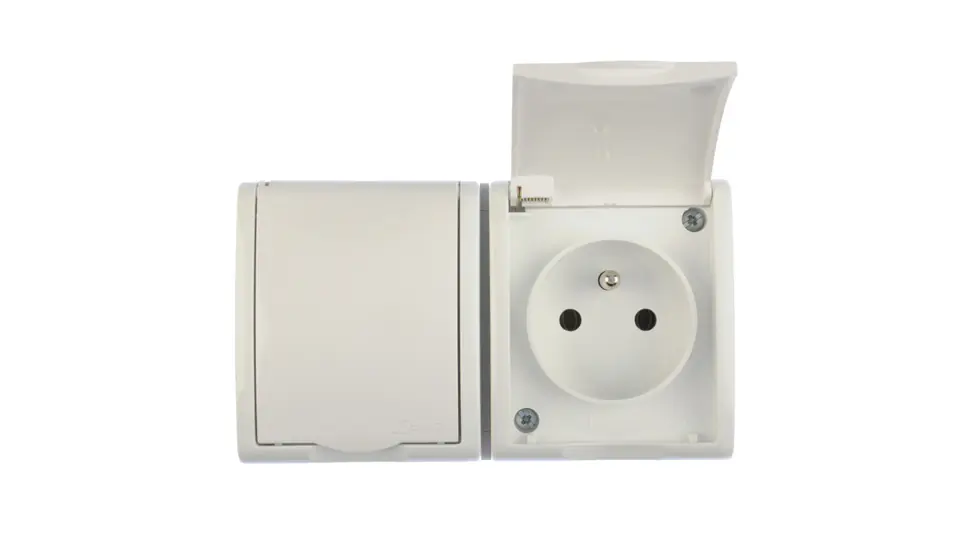

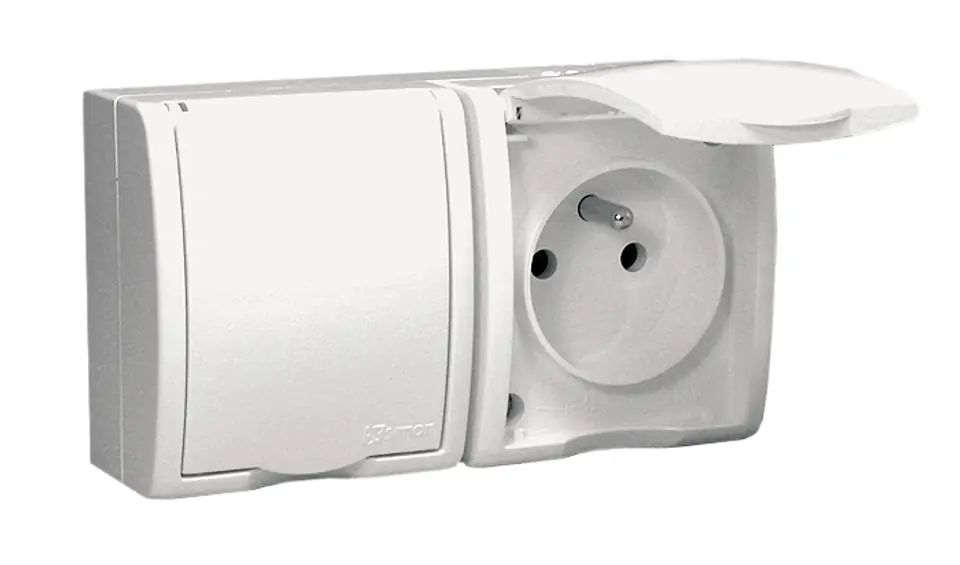

Double socket with grounding, surface-mounted.
The lid of the socket tilts to an angle of 180 degrees, which makes it easier to insert the plug and limits the possibility of breaking the flap.
A connector which is generally part of an electrical installation and is used to connect electricity consumers to it.
White.
Rated voltage 250V~.
Rated current 16AX.
Protection class IP-54.
Screw terminals

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
