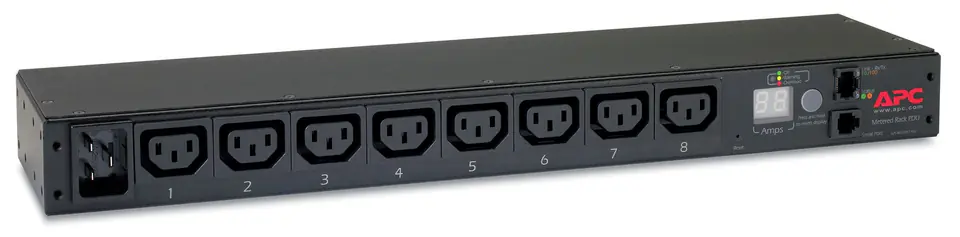

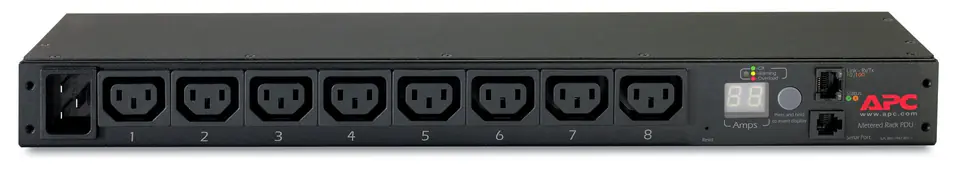

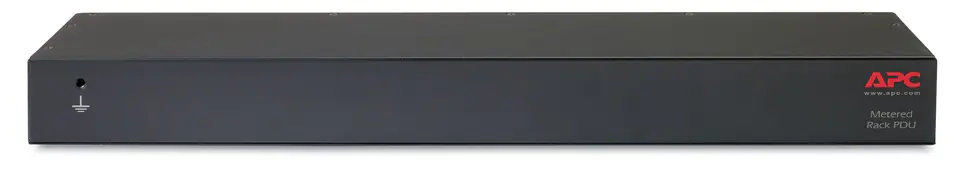

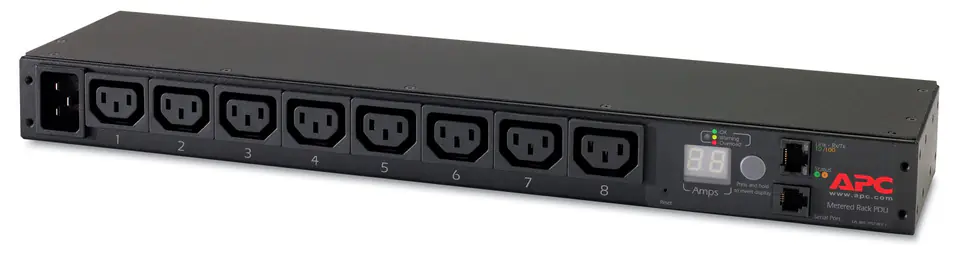

APC AP7821B power distribution unit (PDU) 8 AC outlet s) 0U/1U Blac
This product is not available
- Availability:
- expected delivery
- Brand:
- APC
- Product code:
- AP7821B / 0731304331513
Share this product:
Specification
| Ac input frequency: | 50 - 60 Hz |
|---|---|
| Ac outlet types: | C13 coupler |
| Ac outlets quantity: | 8 AC outlet(s) |
| Compliance certificates: | RoHS |
| Dimensions (wxdxh): | 444 x 102 x 44 mm |
| Input connection type: | IEC-320 C20 |
| Led indicators: | Yes |
| Load capacity: | 3680 VA |
| Maximum current: | 20 A |
| Maximum input current per phase: | 16 A |
| Maximum power: | 3680 W |
| Maximum total current draw per phase: | 16 A |
| Monitoring: | Voltage, Current, Power |
| Mounting: | Horizontal/Vertical |
| Nominal input voltage: | 200-230 V |
| Non-operating altitude: | 0 - 15000 m |
| Operating altitude: | 0 - 3000 m |
| Operating relative humidity (h-h): | 5 - 95% |
| Operating temperature (t-t): | -5 - 45 °C |
| Output voltage: | 230 V |
| Package dimensions (wxdxh): | 470 x 337 x 64 mm |
| Package weight: | 2.92 kg |
| Pdu types: | Metered |
| Power plug: | C20 coupler |
| Product colour: | Black |
| Rack capacity: | 0U/1U |
| Storage relative humidity (h-h): | 5 - 95% |
| Storage temperature (t-t): | -25 - 65 °C |
| Sustainability certificates: | RoHS |
| Weight: | 1.74 kg |
