Aparat do gwintowania 30xM1,4-7 TAPMATIC

€1,376.10
Shipping from warehouse: ⁨B6⁩
Estimated shipping: Fri, Jun 13 - Mon, Jun 16
14 days returnUnconditional return policy
Availability:
large quantity
Brand:
TAPMATIC
Product code:
10316 / 4330816865767

Specification

Collets:J115, J116, J117
Cutting range in steel:M1.4 – M7

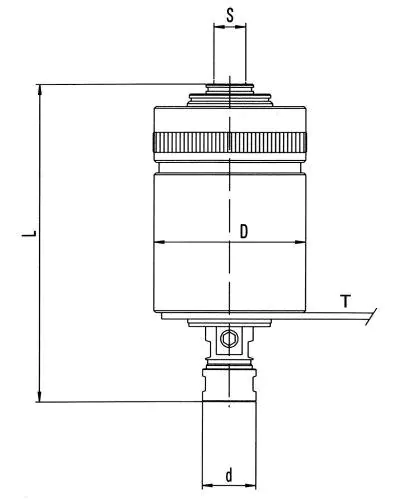

Dimension d:19 mm
Dimension l:113 mm
Max. speed:2000 min-1
Model:30 X
Scales:0.5 kg
Slot inner cone:B 16
T-pumping:3.5 mm

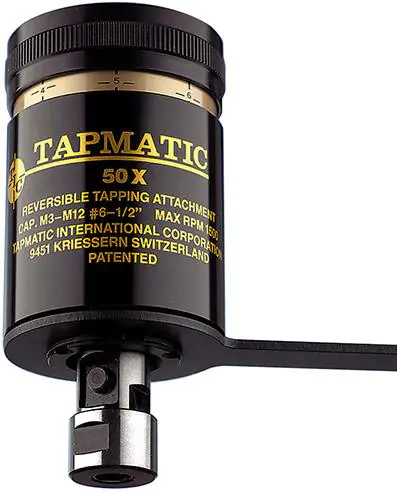

Tapping apparatus

Design: with adjustable slipper clutch and fast return movement. Length compensation and integrated compression spring system in the cutting part. For right-hand drives .
Application: for tapping with all table and stationary drills, in which the work is based on manual feed and there is no possibility to change the direction of rotation of the spindle.
Scope of delivery: threading apparatus with restraint arm, 2 fastening wrenches and Allen key.
Note: threading apparatus for left thread available on request.

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
