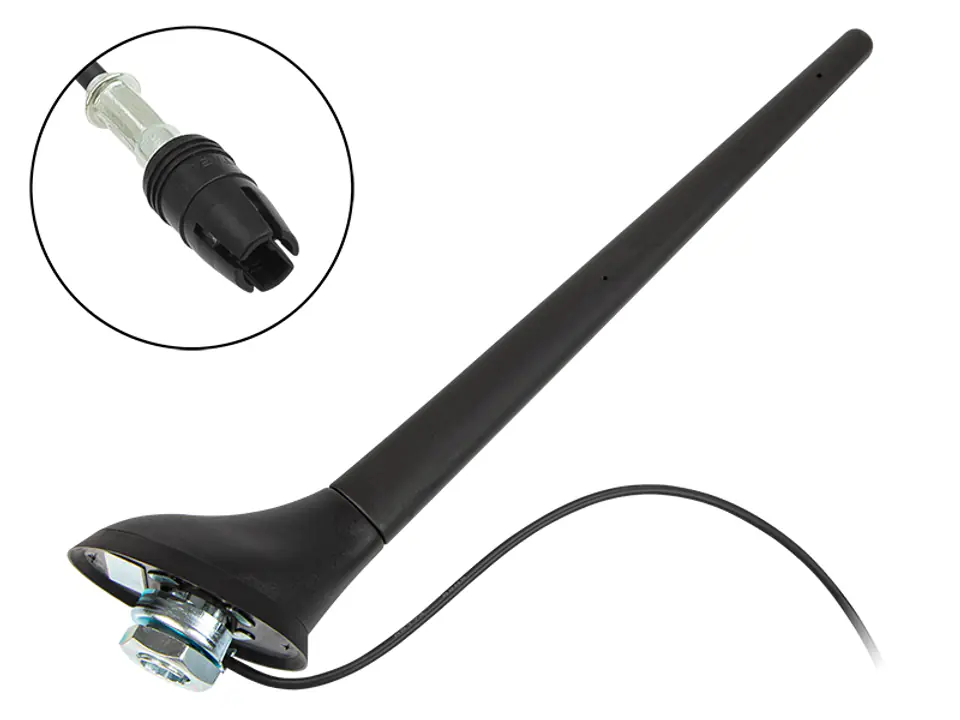

Professional FM/AM to FIAT roof antenna with high gain amplifier with original mast The antenna is the equivalent of the original antenna used for the first installation. It performs the function of receiving AM/FM radio waves. The antenna has a built-in high-quality SMD amplifier, which is located in the antenna foot. The antenna amplifier inside the antenna has a Phantom power supply, which means that it is powered through an internal conductor (antenna cable). The antenna cooperates with any factory or non-factory radio with FAKRA FEMALE connector. In the case of a non-factory radio, it is necessary to use the so-called antenna separator, which supplies power to the inner conductor of the antenna cable. The antenna does not work with an external antenna amplifier.
The antenna can be mounted to the following models:
• Alfa Romeo 147 (2000-2010)
• Alfa Romeo GT Coupe mod.947 (2003-2010)
• Fiat Bravo (2007->)
• Fiat Grande Punto (2005-2012)
• Fiat Punto EVO (2012->)
• Fiat Idea (2003-2012)
• Fiat Linea (2007->)
• Fiat 500 Nuova (2007-2012)
• Fiat Croma (2005->)
• Fiat Panda-2 FL (2006->)
• Fiat Panda-3 (2012->)
• Fiat Stilo (2003-2007)
Specification:
• External thread of antenna base: M14
• Detachable mast: yes
• Mast length: 20 cm
• Cable length: 27.5cm
• RAW connector (Raku I) - FM/AM signal
