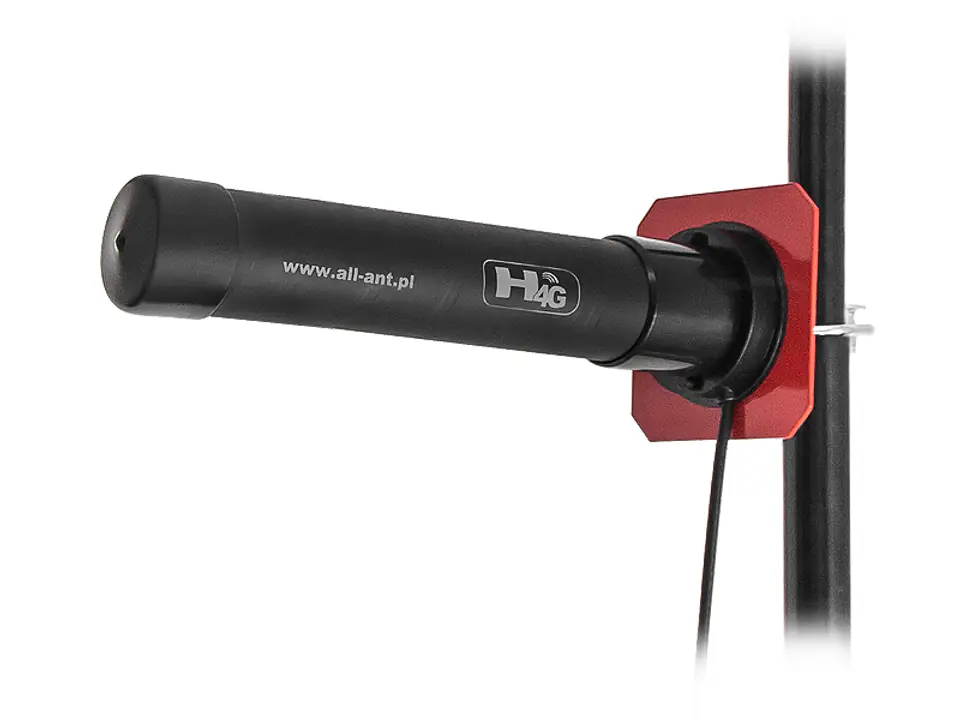

Antenna H4G 15dBi LTE/UMTS 1.8-2.1GHz
H4G antenna, 15dBi antenna gain. It is an external, highly directional antenna, designed for LTE, UMTS, HSPA+ mobile telephony systems, operating in the 1.8-2.2 GHz band. It perfectly solves the problem when the 4G / 3G signal is too weak for the proper operation of the modem or repeater. Simply attach the antenna to the modem to improve the signal level. A higher level of antenna signal means greater speed and stability of the Internet connection.
Antenna features:
- Circularly polarized H4G antenna, does not require care for proper polarization setting. This makes it easier to install the antenna, by
people who are not familiar with technical issues.
- Helical design, allows you to get a large profit with a wide frequency transmission band.
- Tight and solid housing, resistant to extreme weather conditions, guarantees long and reliable operation.
- Modern compact design.
- The mounting bracket allows for a large range of diameters of the masts used.
- The mounting bracket allows the antenna to be tilted 50 degrees in a vertical plane, a parameter important in mountainous terrain.
- High quality materials were used - copper, aluminum, galvanized steel, modified plastics
Parameters:
- cable length: 10m
- connector type: SMA
- energy gain max: 15 dBi
- Band: 1800-2200 MHz
- polarization: omnidirectional, clockwise
- standing wave coefficient: < 1.4
- half-power angle of radiation: 30 degrees
- reverse attenuation P/T: 23 dB
- impedance: 50 Ohm
- dimensions L x W x H: 45x11x11 cm
- mounting diameter: up to 43mm
