| Cable attenuation over a distance of 100m: | 4.5 dB @ 47 MHz5.8 dB @ 88 MHz8 dB @ 174 MHz9.2 dB @ 230 MHz13.2 dB @ 470 MHz18.1 dB @ 862 MHz20.1 dB @ 950 MHz27.7 dB @ 2150 MHz30.8 dB @ 2400 MHz |
|---|---|
| Coaxial cable: | TRISET |
| Dc conductor resistance: | 16.85 Ω/km |
| Dielectric: | Ø 4.8 mm (physically foamed) |
| In ": | 200 m . Price for 1m when buying the whole roll |
| Insulation: | 2000 MΩ/km |
| Internal vein: | Ø 1.13 mm Cu Wire |
| Minimum bending radius: | 30 mm |
| Outer shell: | Ø 6.8 mm PVC |
| Shielding efficiency: | > 100 dB @100-900 MHz |

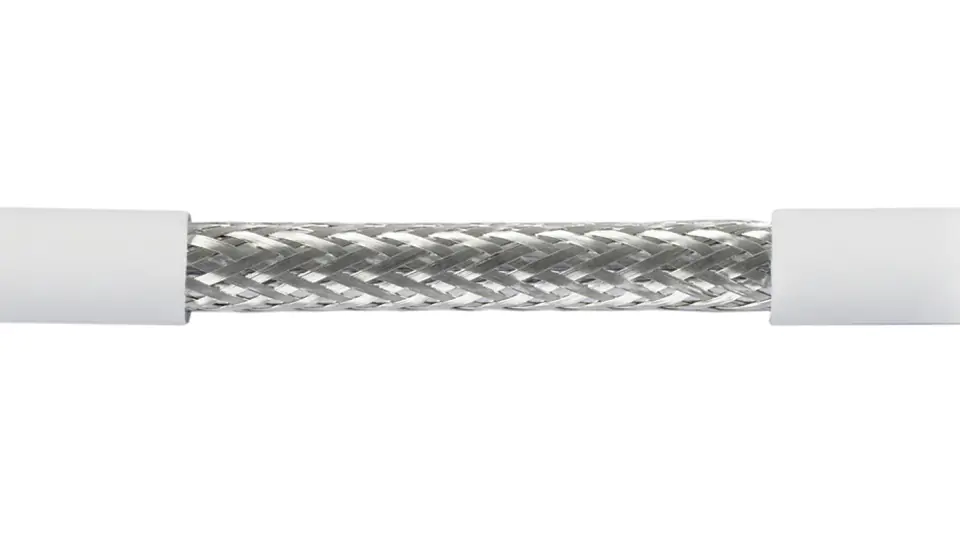

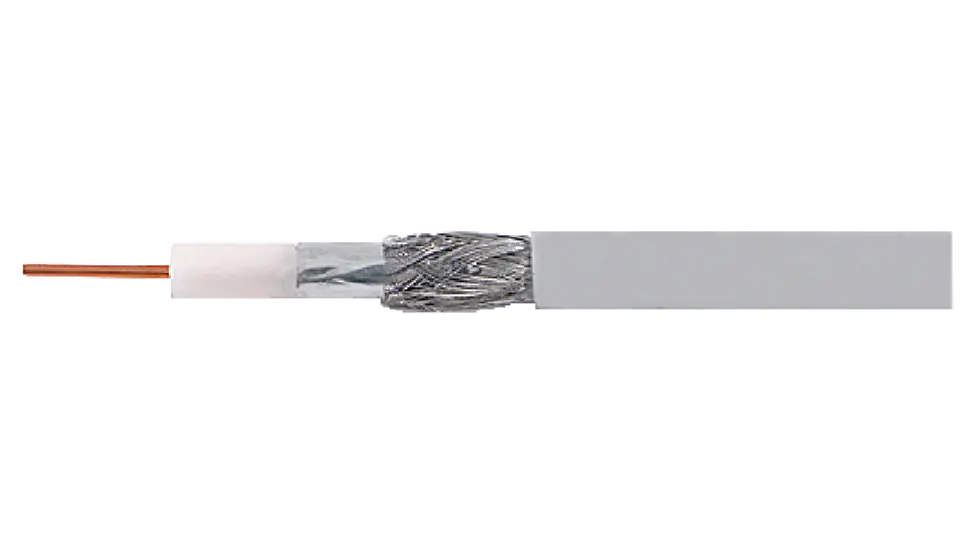

TRISET-113/200 is a modern cable with an impedance of 75 Ω characterized by very good electrical and mechanical parametersTo facilitate work, a length marker has been printed on the cable every 1 m
The cable was made with strict quality rigour, with small permissible deviations from the nominal parameters
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
