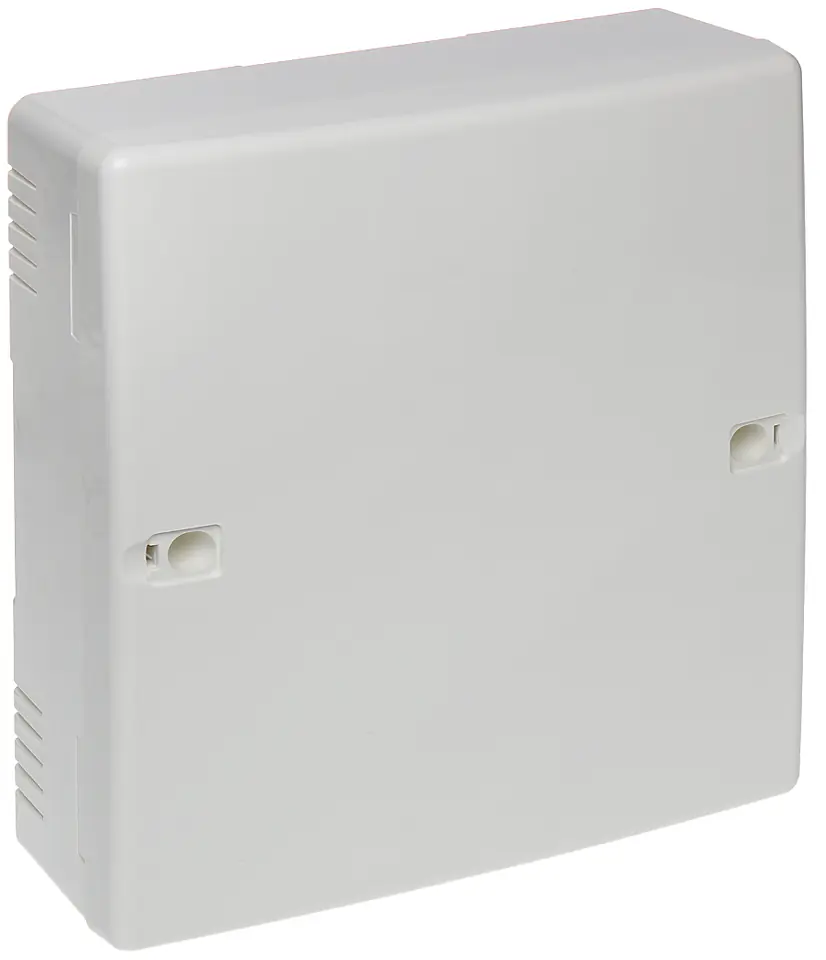

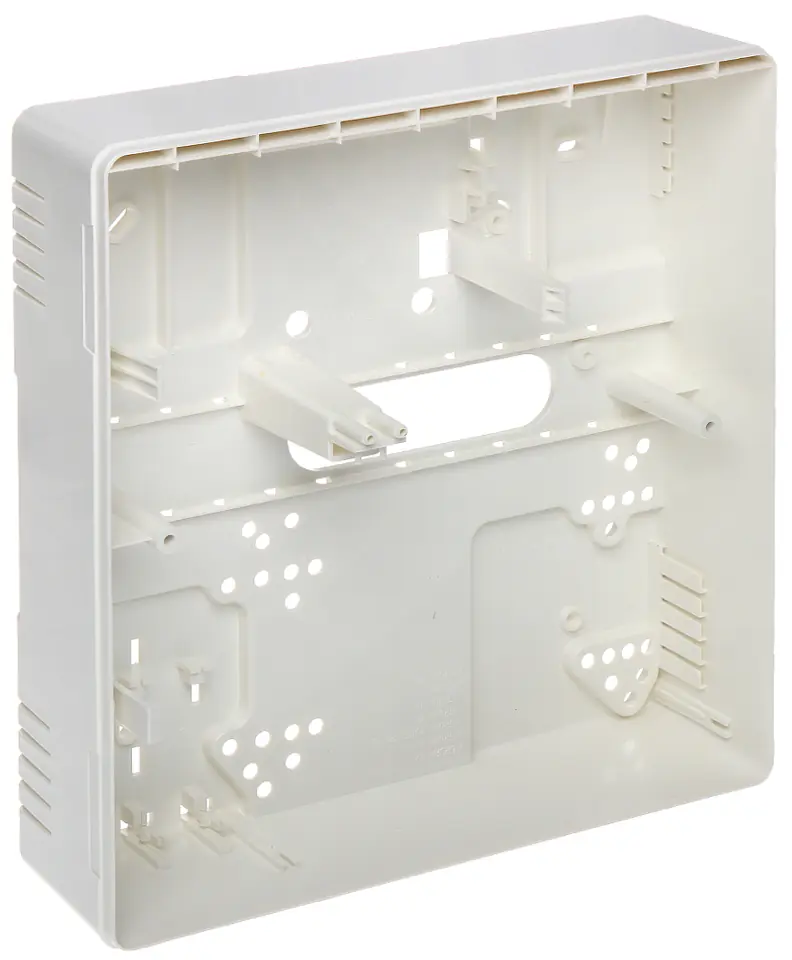

| Dimensions: | 180 x 69 mm - PCB283 x 265 x 100 mm - Case |
|---|---|
| Event memory: | 2047 |
| Expansion modules: | .max. 3 |
| Grade: | 2 |

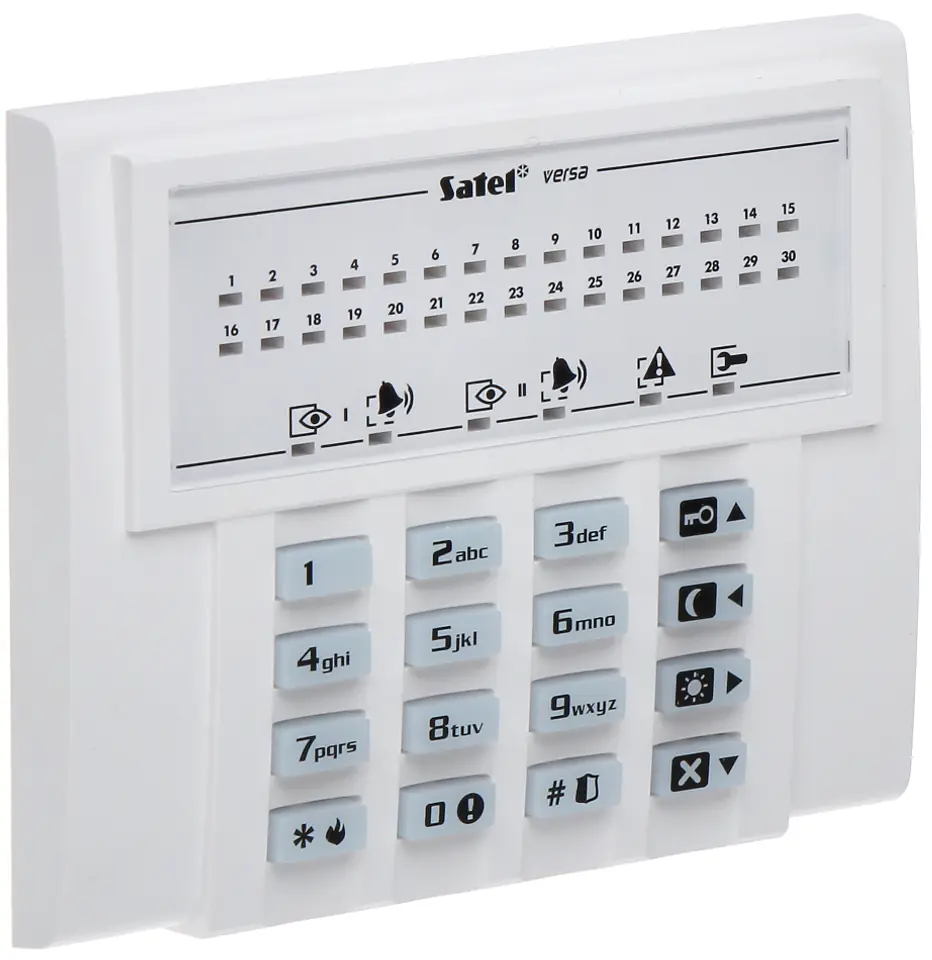

| Keyboard included: | LED keyboard - VERSA-LED-GR |
| Load capacity of low-current programmable outputs: | 50 mA |
| Load capacity of programmable high-current outputs (+/- 10%): | 1.1 A - 2 pcs. |
| Maximum number of supported inputs: | 30 pcs. |
| Maximum number of supported outputs: | 12 pcs. |

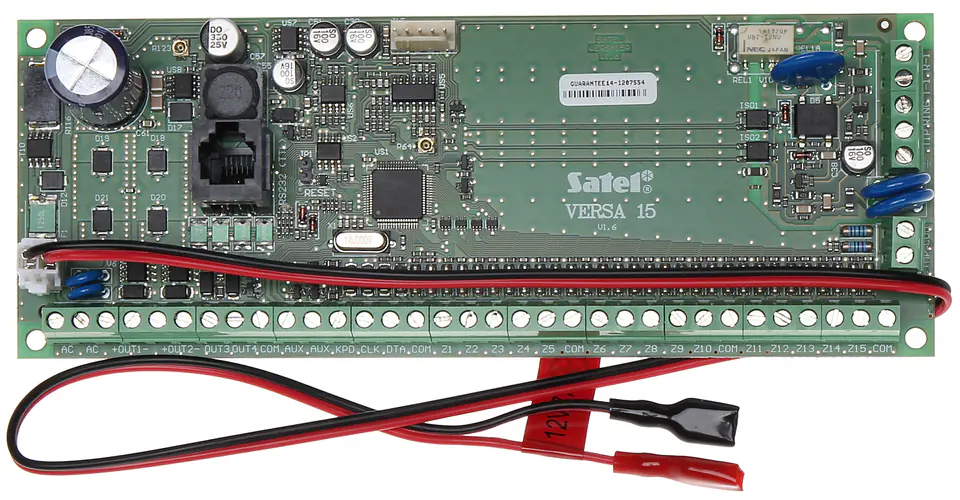

| Motherboard inputs: | 15 pcs. |
| Motherboard outputs: | 4 pcs. |
| Operating temperature: | -10 °C ... 55 °C |
| Permissible relative ambient humidity: | 93 % |
| Power: | 18 V AC / 160 mA |
| Power supply current efficiency: | 2 A |
| Producer / brand: | SATEL |
| Scales: | 1.29 kg (with case and accessories) |
| Supported keyboards: | .max. 6 pcs. |
| Supported languages: | Polish - no possibility to change the language |
| Timers: | 4 |
| Users + administrators: | 30 + 1 |
| Warranty: | 2 years |
| Zone: | 2 |
The VERSA-15-KLED control panel is designed to protect small and medium-sized objects, offering comprehensive functionality in the field of securityThe device is distinguished by the possibility of wired and wireless expansion and advanced communication functions available thanks to dedicated GSM/GPRS and TCP/IP communicators
Remark! No power supply included
