Akyga ATX power supply 500 W, 12 cm, AK-B 1 -500

€28.44
Shipping from warehouse: ⁨A3⁩
Estimated shipping: Tue, Jun 10 - Fri, Jun 13
14 days returnUnconditional return policy
Availability:
large quantity
Brand:
Akyga
Product code:
AK-B1-500 / 5901720130334

Specification

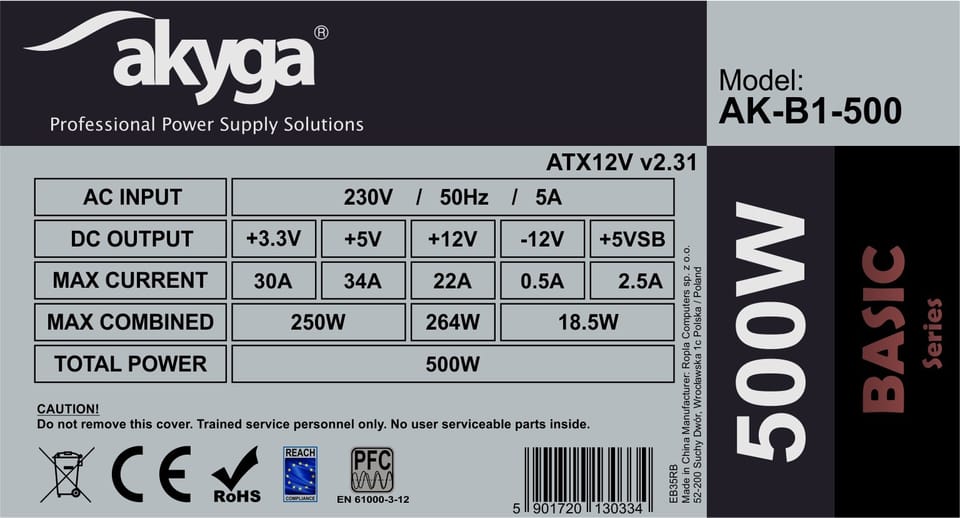

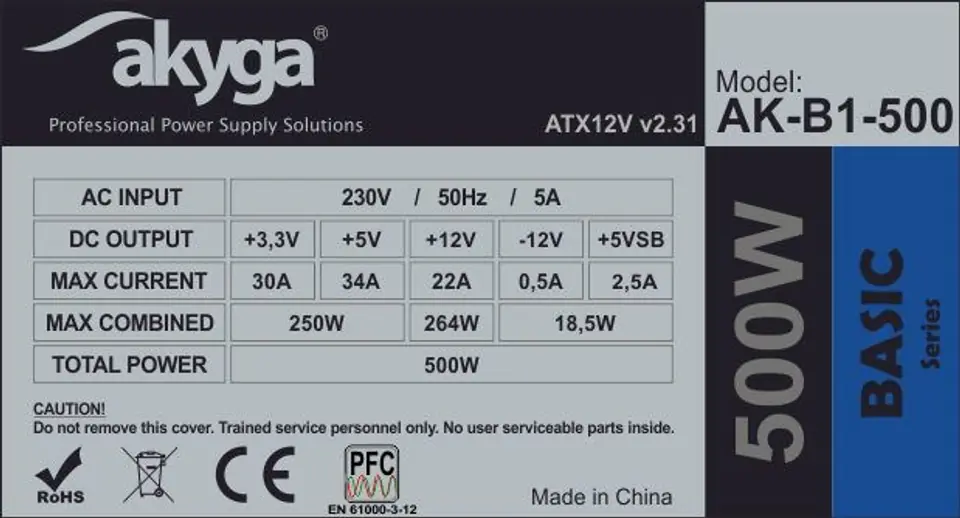

Ac input voltage:230 V
Atx power connector (20+4 pin):Yes
Atx version:2.31
Cabling type:Non-Modular
Combined power (-12v):18.5 W
Combined power (+12v):264 W
Combined power (+3.3v):250 W
Combined power (+5v):250 W
Combined power (+5vsb):18.5 W
Cooling type:Active
Cpu p4 connector (4-pin):1
Cpu power cable length:45 cm
Depth:140 mm
Efficiency:70%
Fan diameter:12 cm
Fan location:Top
Height:85 mm
Input current:5 A
Manual:Yes
Max output current (-12v):0.5 A
Max output current (+12v):22 A
Max output current (+3.3v):30 A
Max output current (+5v):34 A
Max output current (+5vsb):2.5 A
Mean time between failures (mtbf):100000 h
Motherboard power connector:20+4 pin ATX
Number of fans:1 fan(s)
Number of sata power connectors:3
On/off switch:Yes
Operating temperature (t-t):5 - 50 °C
Package depth:220 mm
Package height:95 mm
Package type:Box
Package weight:1.1 kg
Package width:160 mm
Pci express power connectors (6+2 pin):1
Peak power:500 W
Peripheral (molex) power cable length:300 mm
Peripheral (molex) power connectors (4-pin):2
Power protection features:Over power, Over current, Overheating, Short circuit, Over voltage
Power supply unit (psu) form factor:ATX
Product colour:Grey
Purpose:PC
Sata power cable length:300 mm
Sustainability certificates:RoHS
Total power:500 W
Warranty card:Yes
Weight:1.03 kg
Width:150 mm

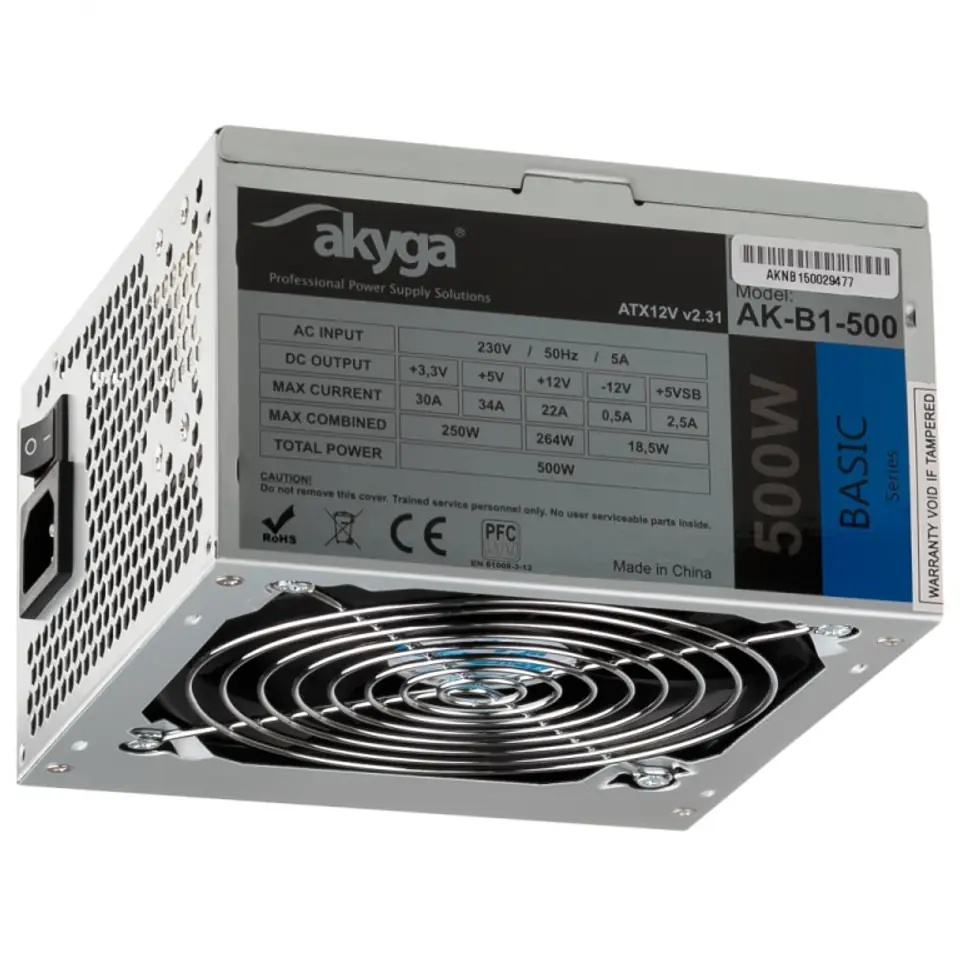

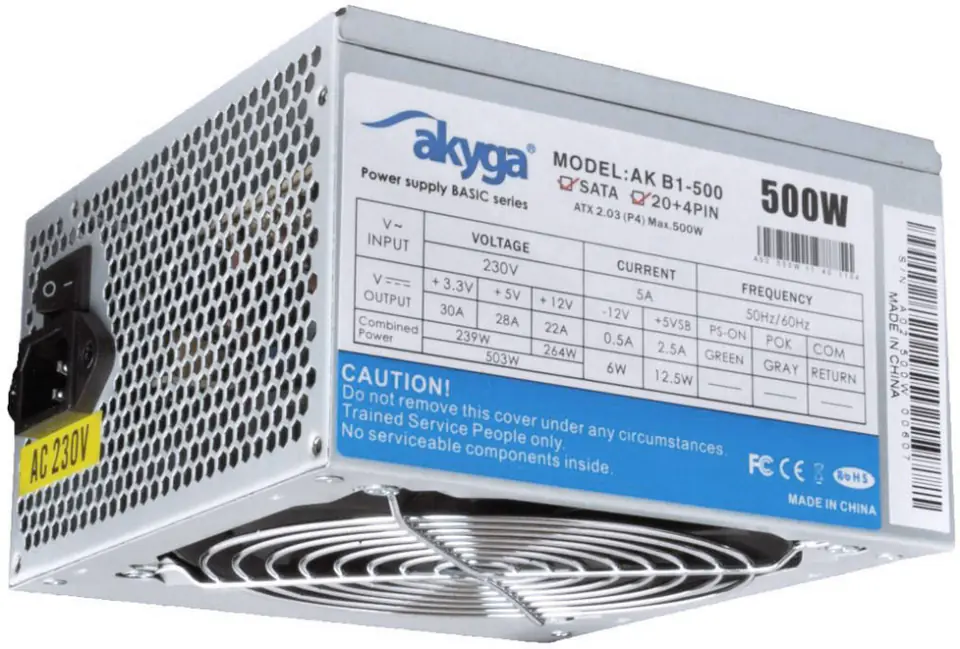

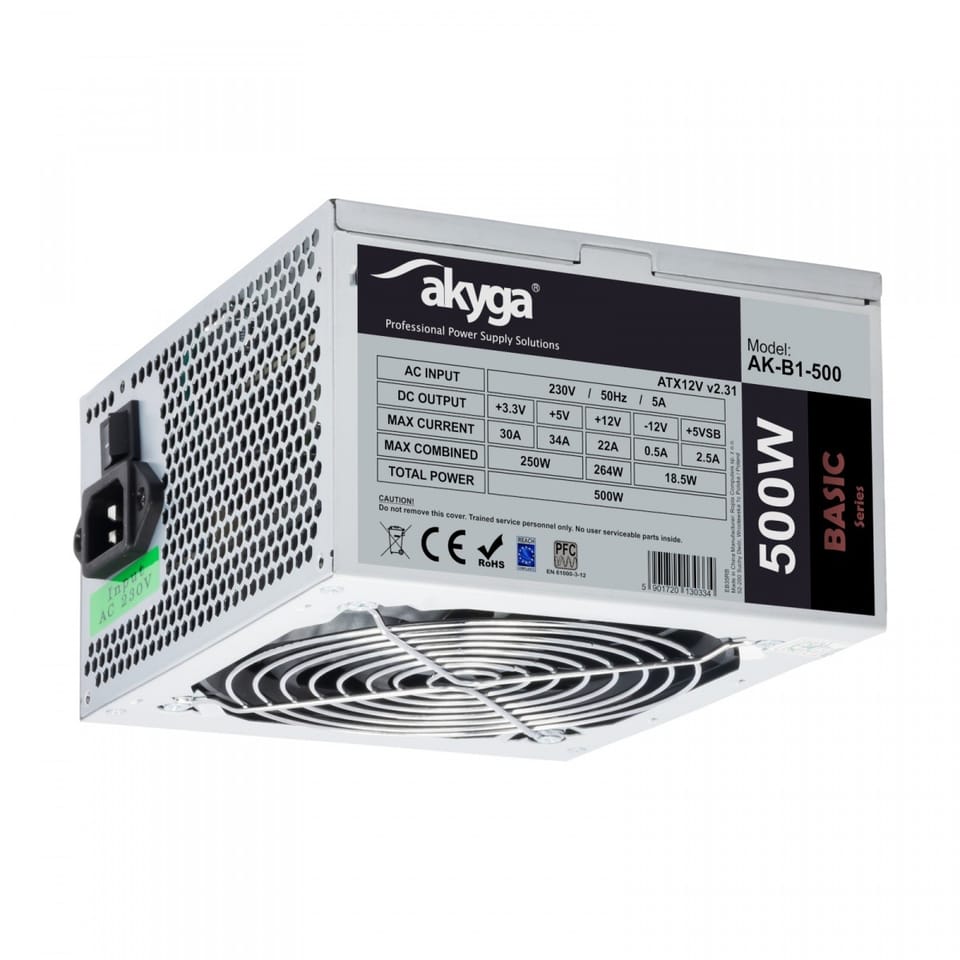

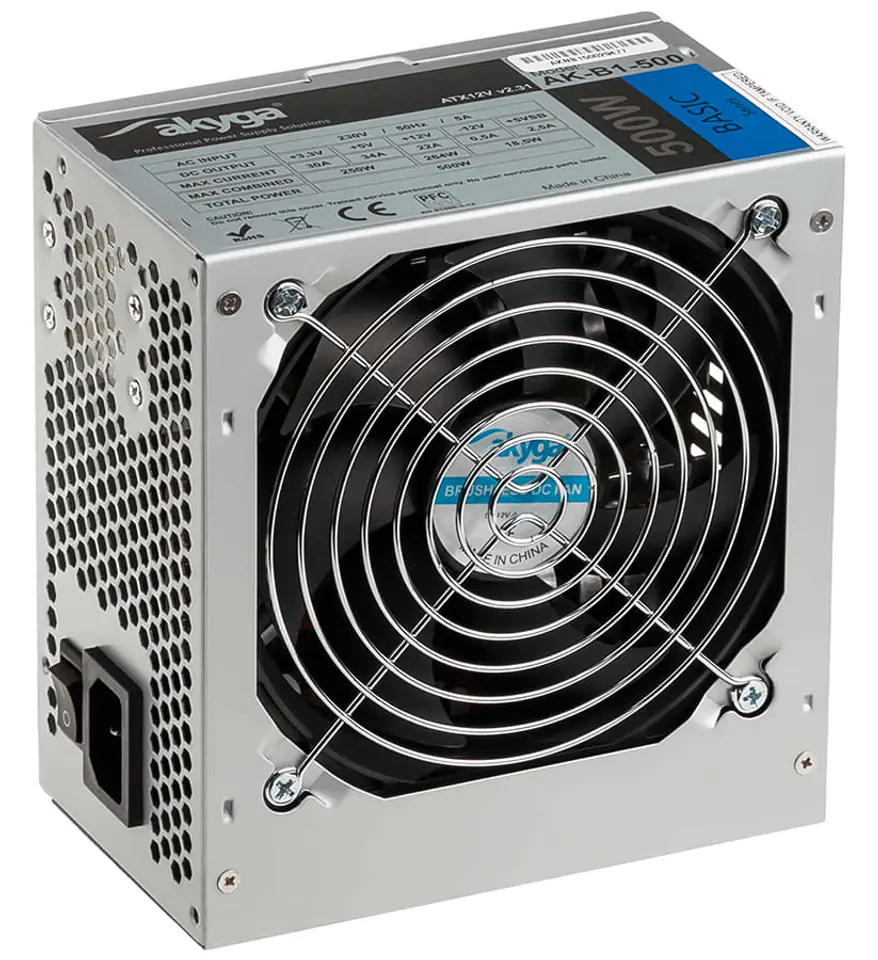

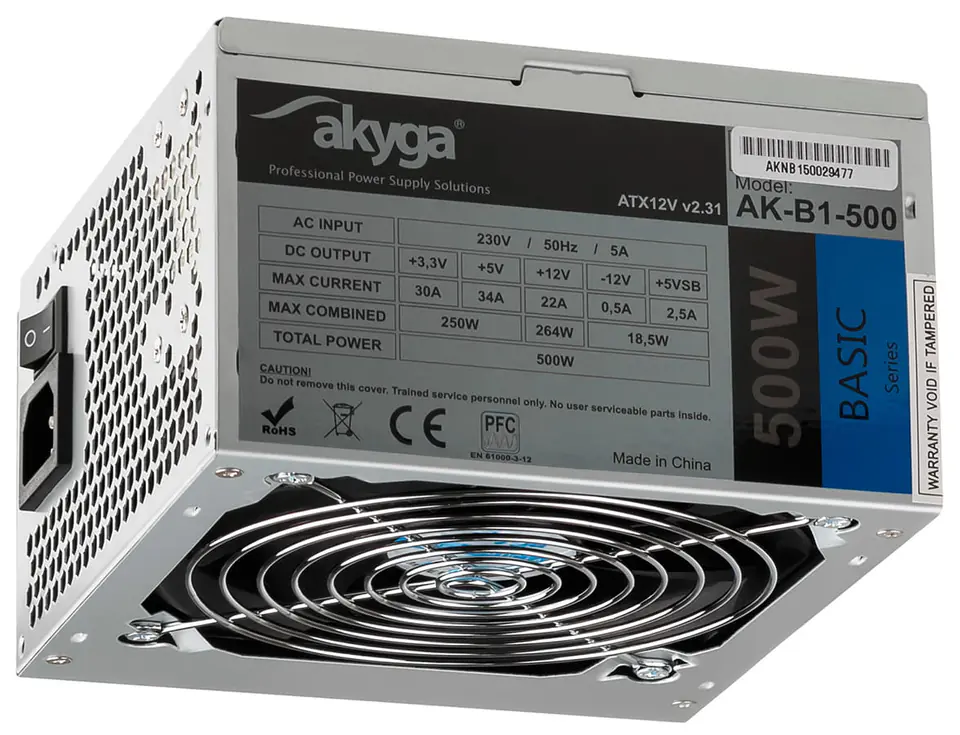

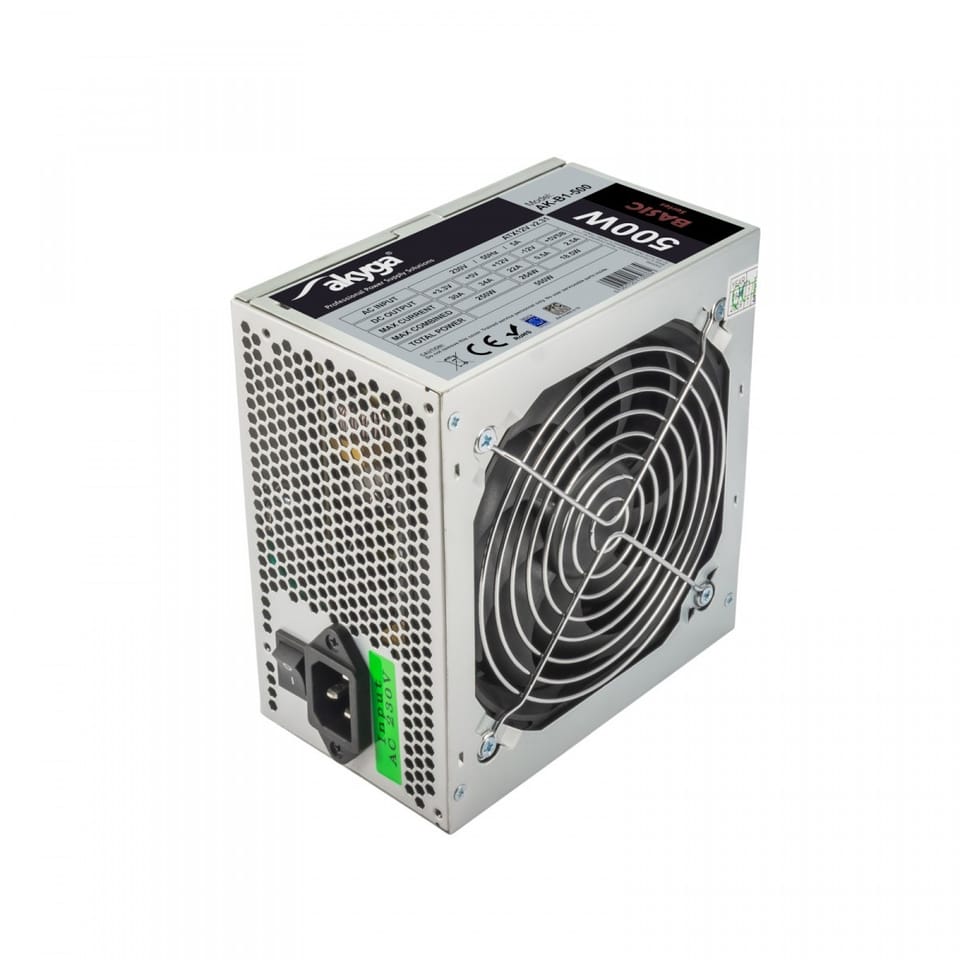

Akyga AK-B1-500 ATX power supply 500W is one of the basic power supplies in our offer dedicated to power desktop computers.

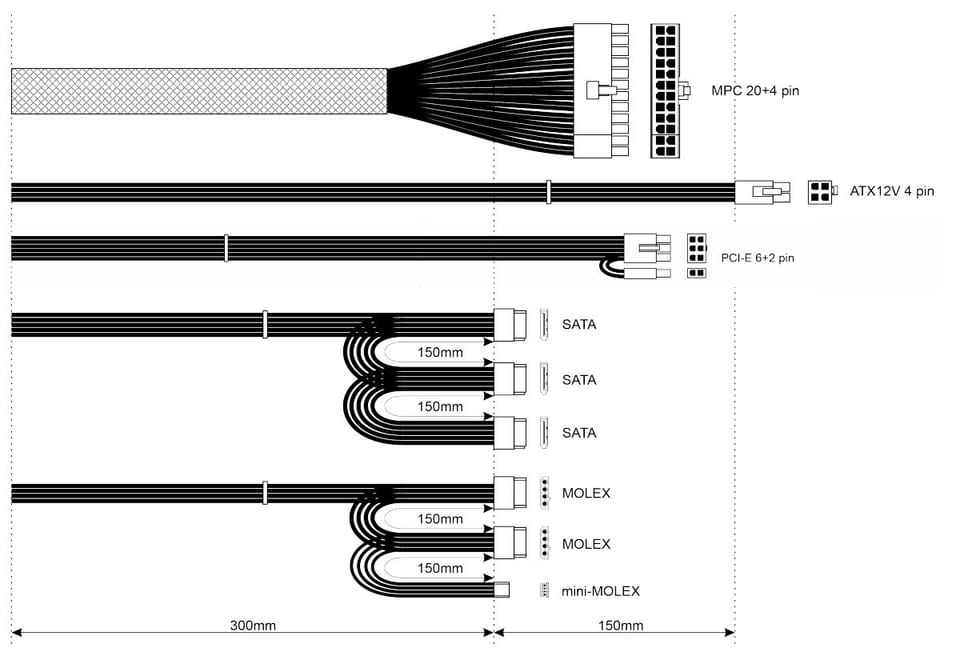

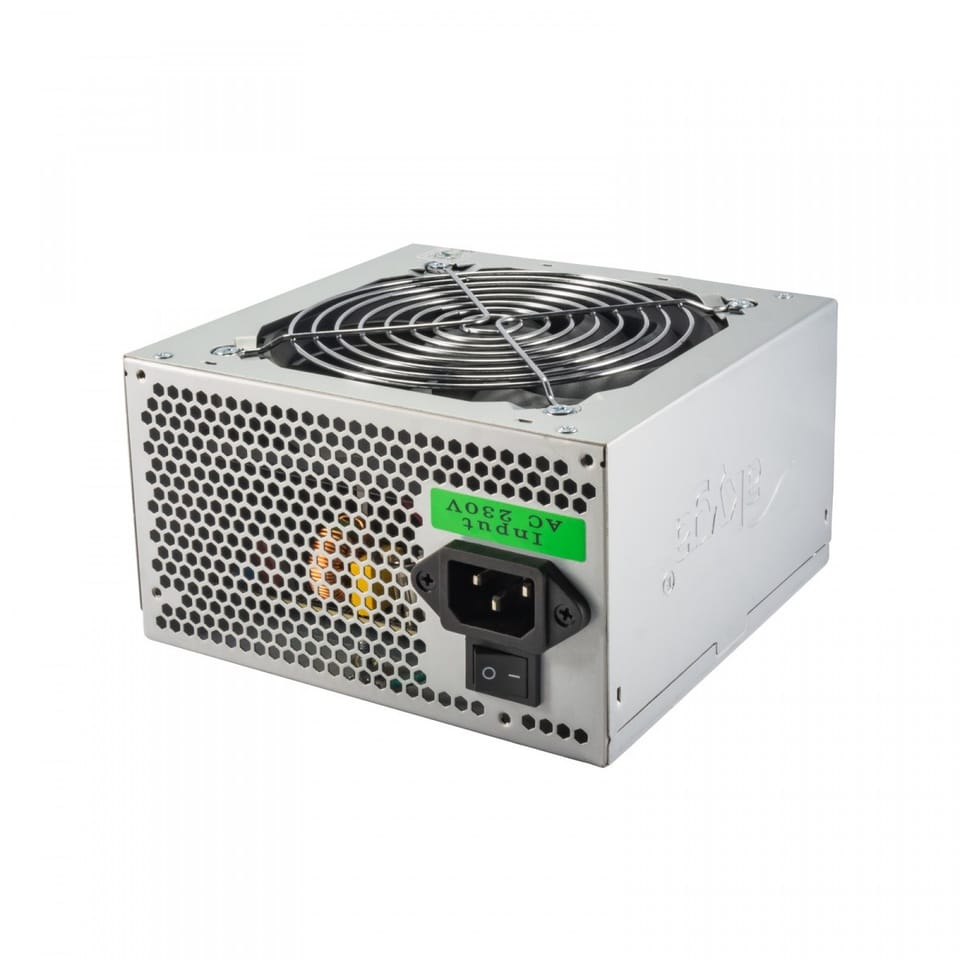

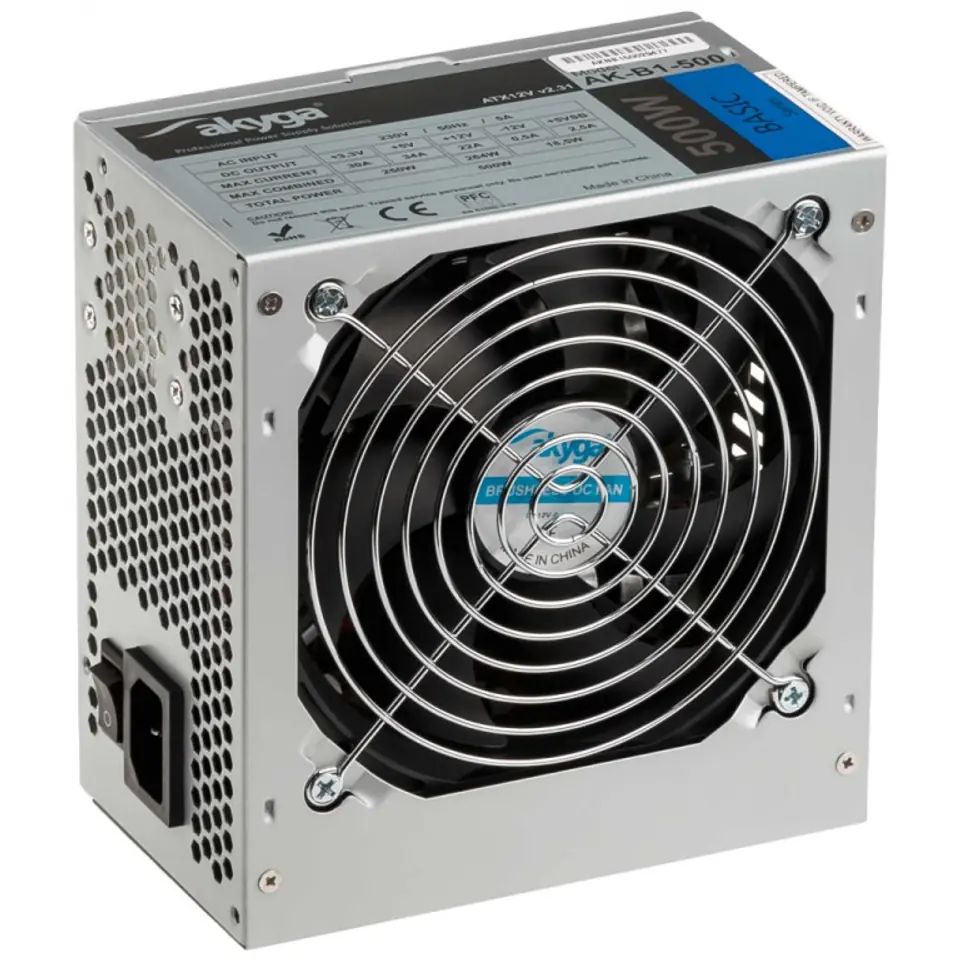

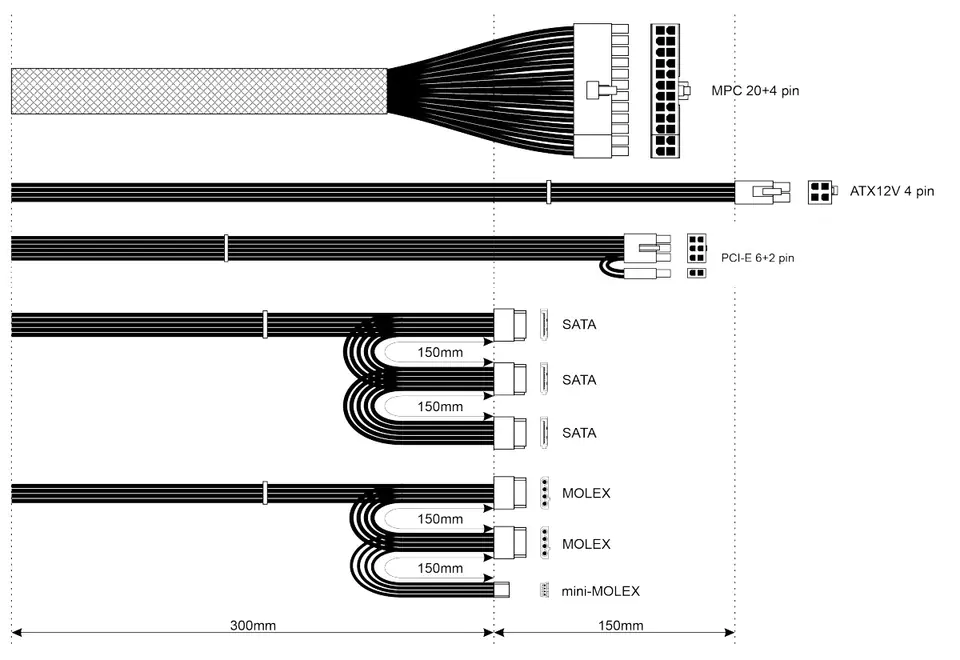

Made of high quality components, the power supply has a 3 SATA connectors, 2 MOLEX connectors, mini-MOLEX connector, P4 4-pin connector, PCI-E 6+2-pin connector and an universal 24-pin motherboard connector. Supports ATX 12V 2.0 specifications, so it can be used with current and next generation of platforms with multi-core processors. Silent 12 cm fan with chromed grill provide efficient cooling. Manual on/off switch allows for safe power cut off without the need of disconnecting the network cord. High efficiency and stable operation of the power supply affects the reliability of all computer components.

Several important protectors (OVP, OCP, OPP, OTP, SCP) and PFC filter protect and prevent main computer parts from damage and stabilize the operation of the power supply so that it works without any unwanted interference.

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
