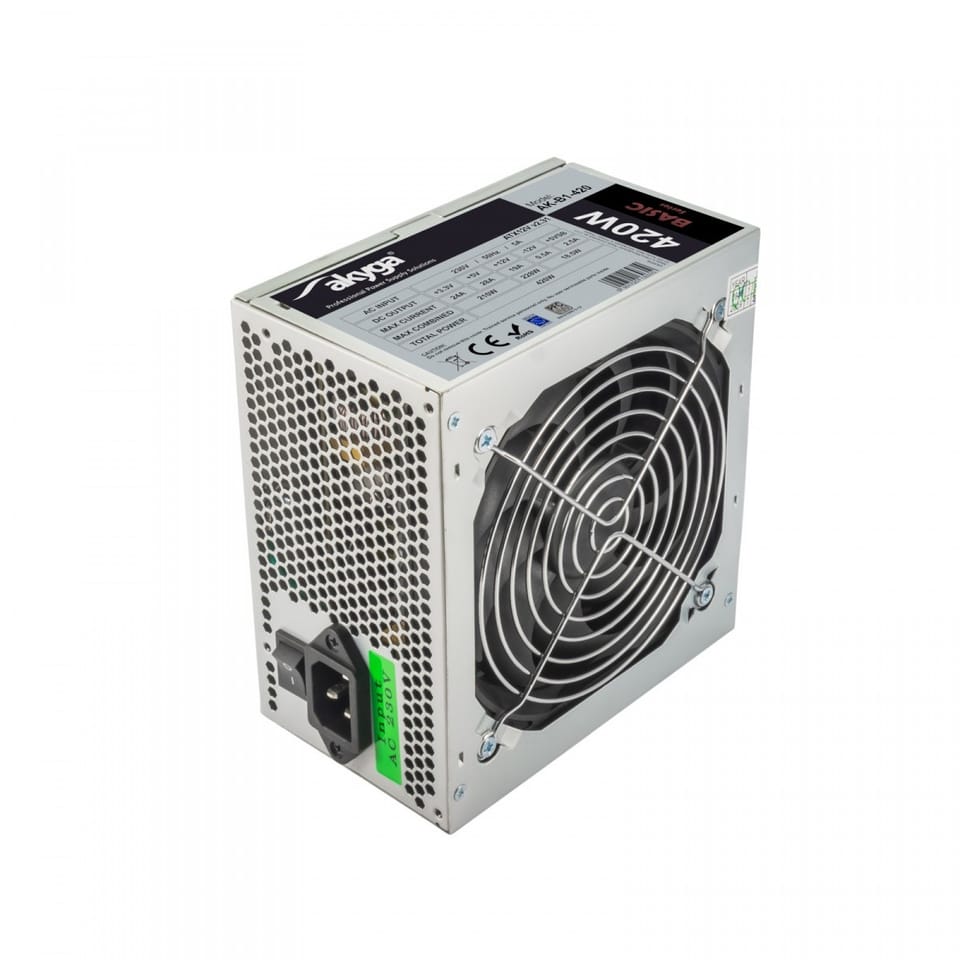

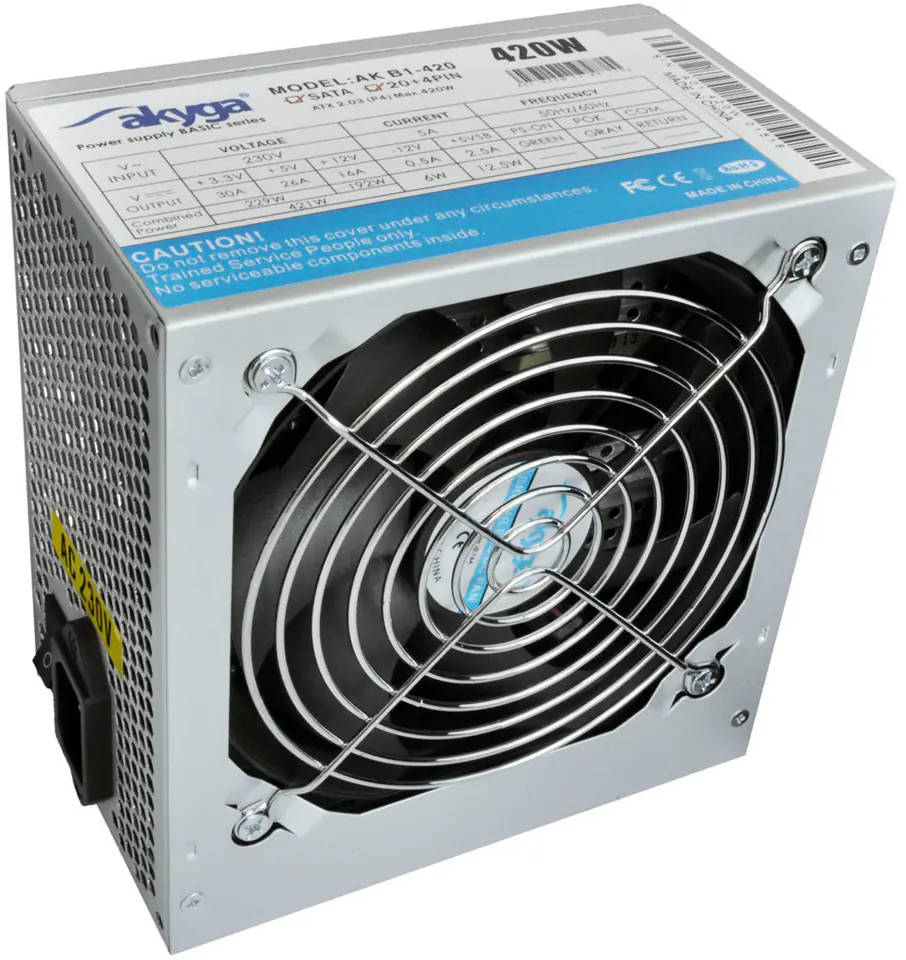

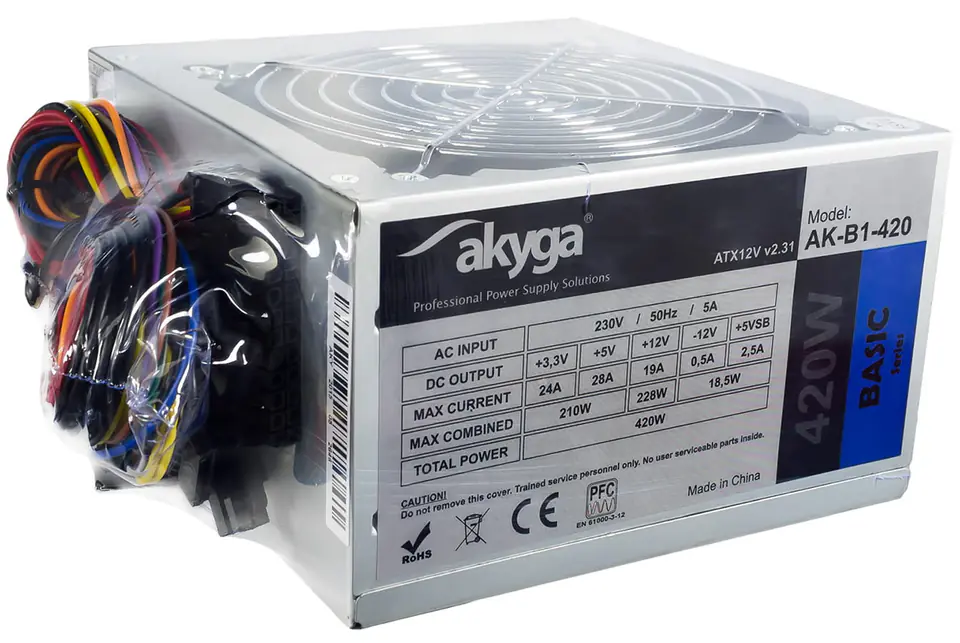

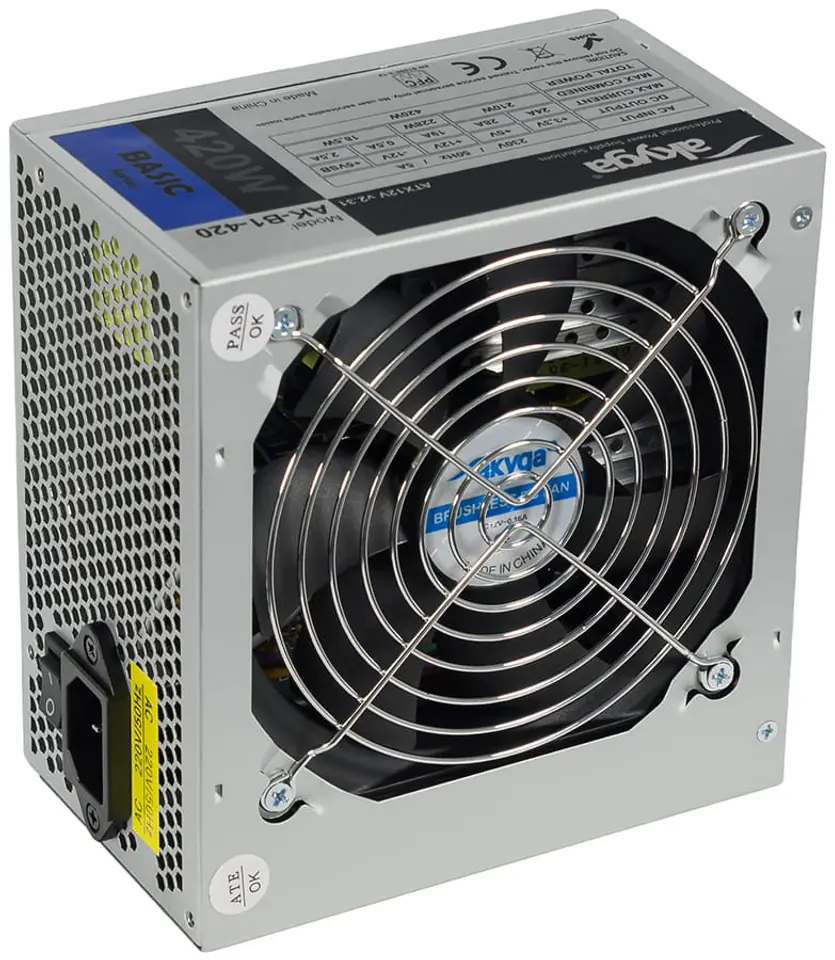

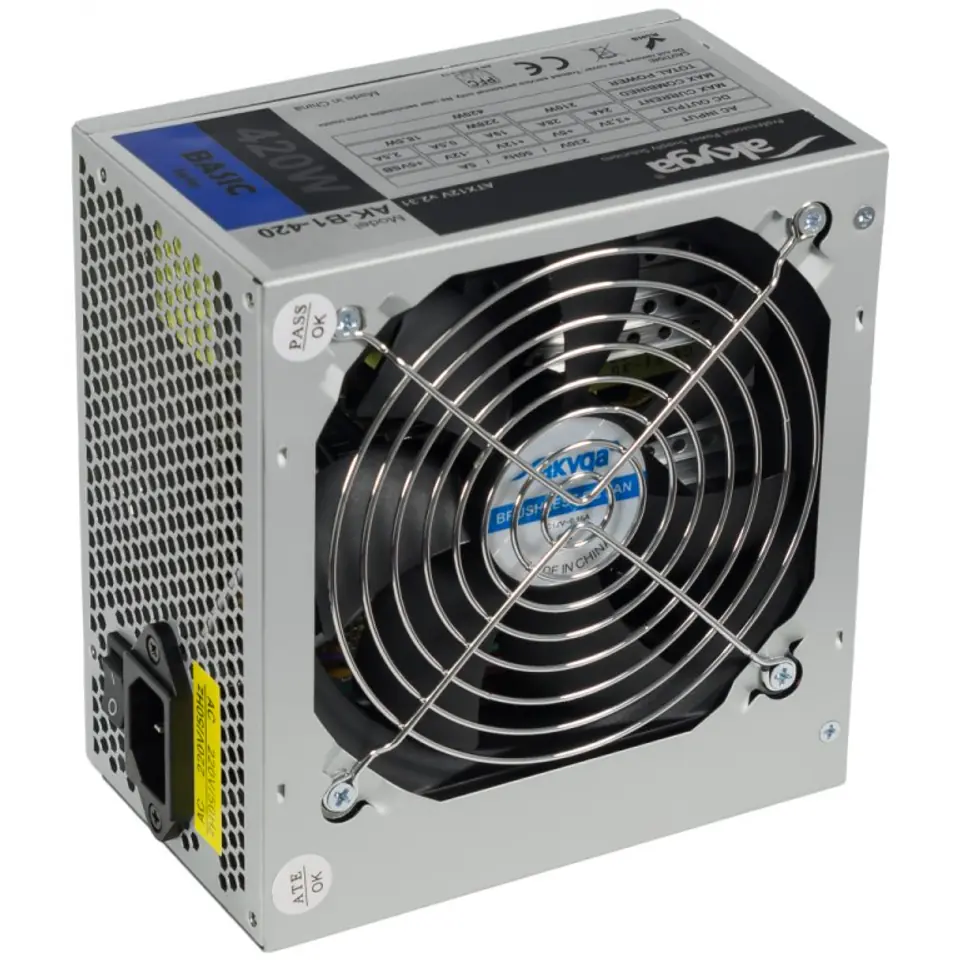

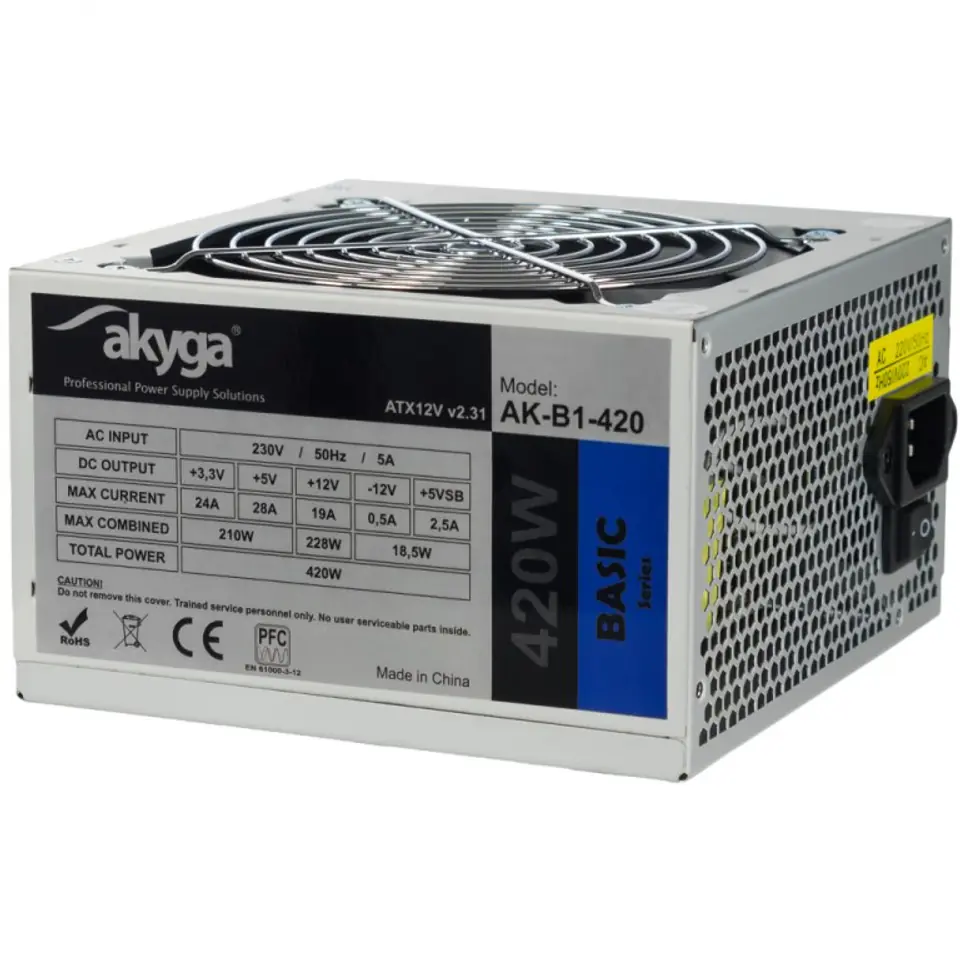

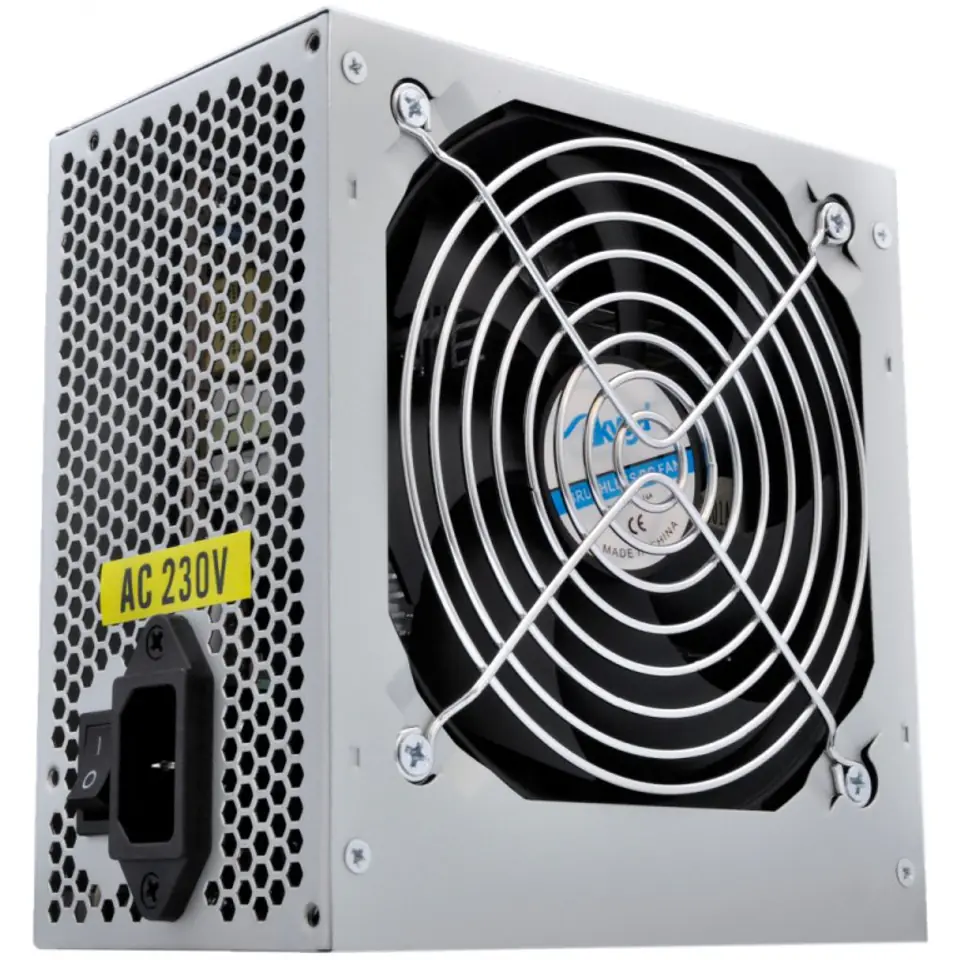

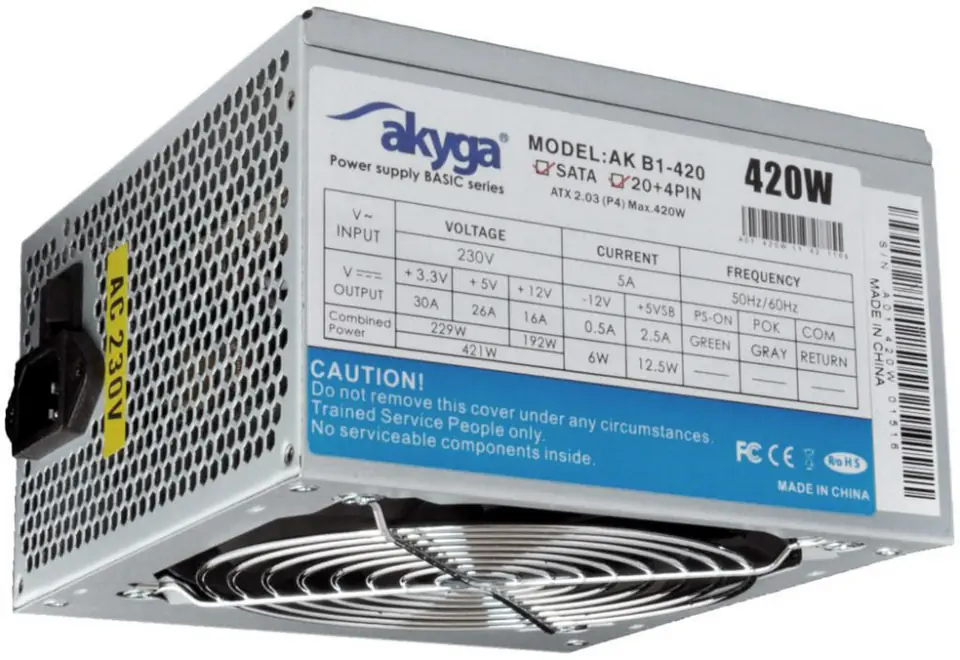

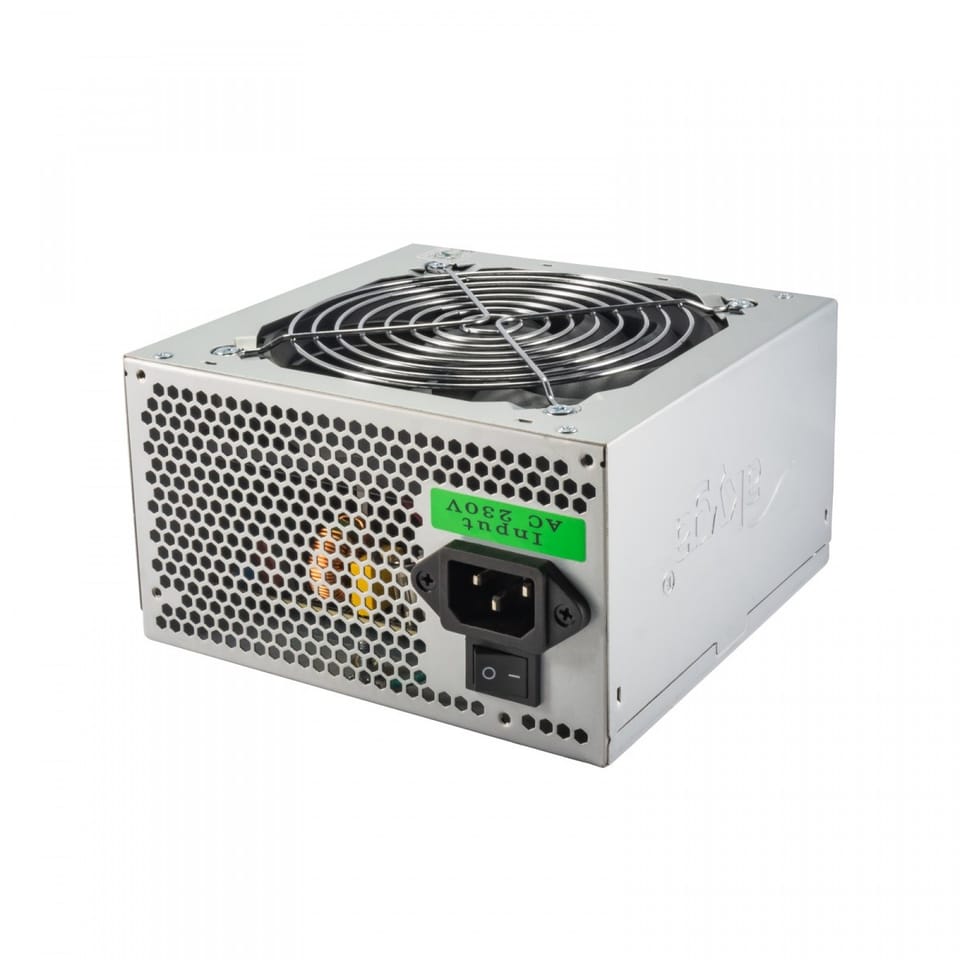

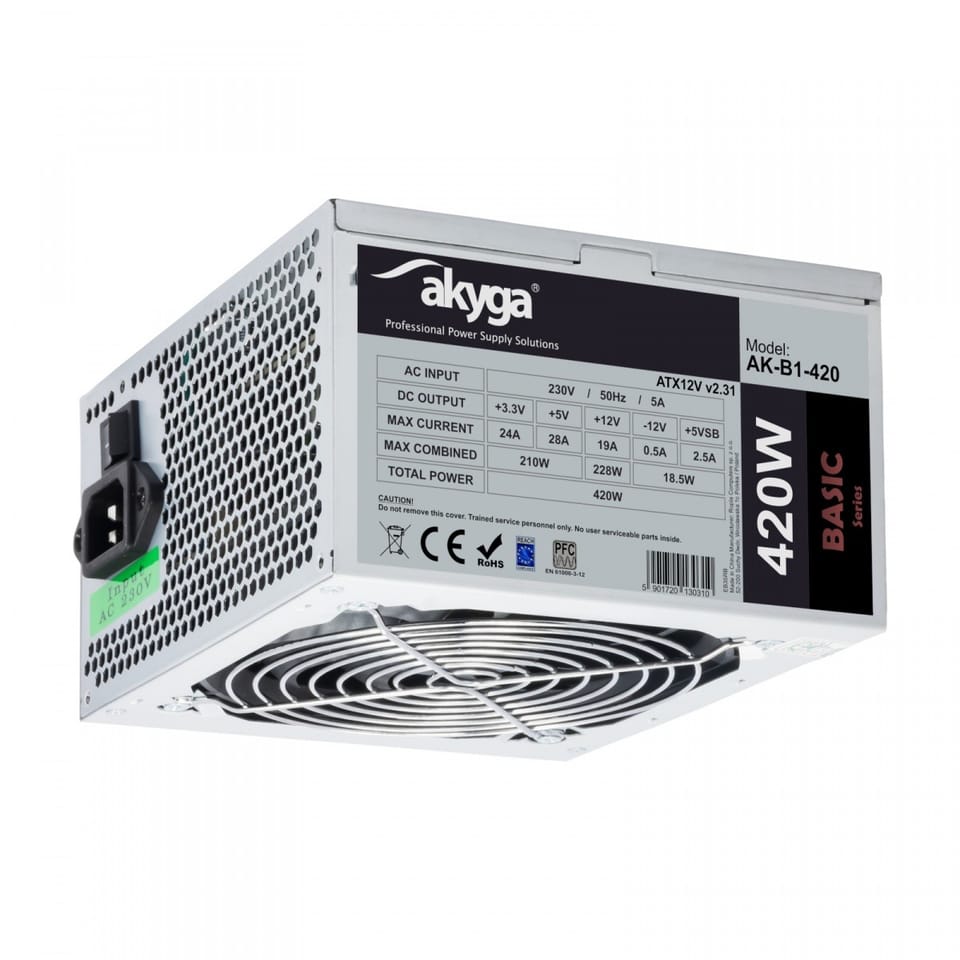

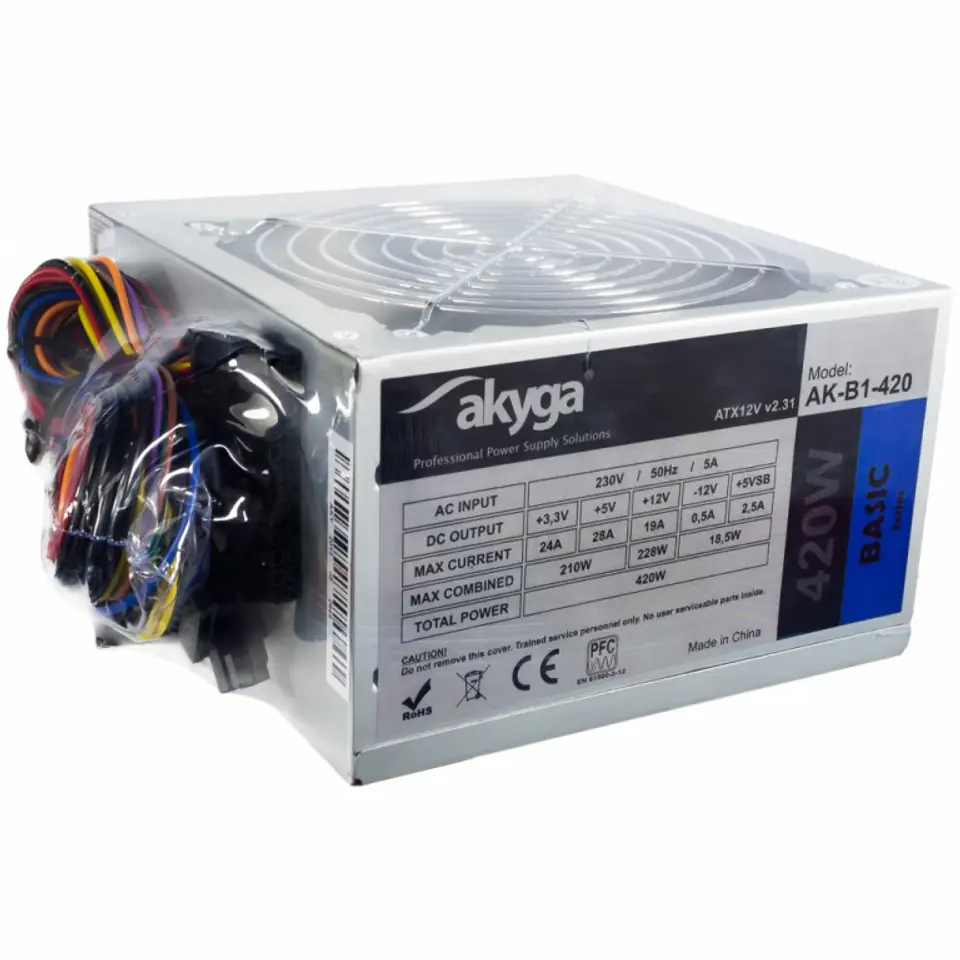

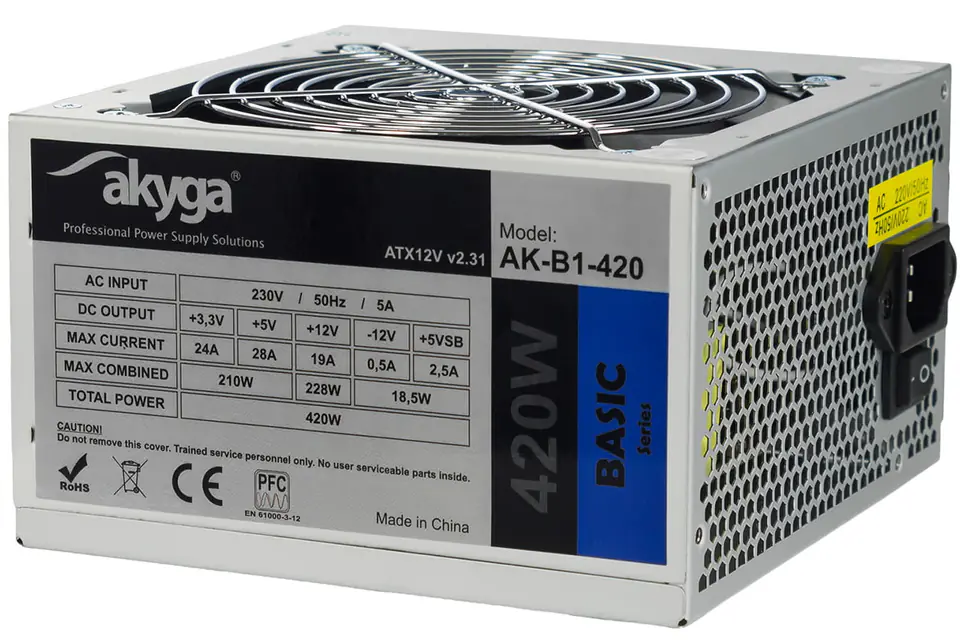

Akyga ATX power supply 420 W, 12 cm, AK-B 1-420

€23.12
Shipping from warehouse: ⁨A3⁩
Estimated shipping: Mon, Jul 7 - Wed, Jul 9
14 days returnUnconditional return policy
Availability:
large quantity
Brand:
Akyga
Product code:
AK-B1-420 / 5901720130310

Specification

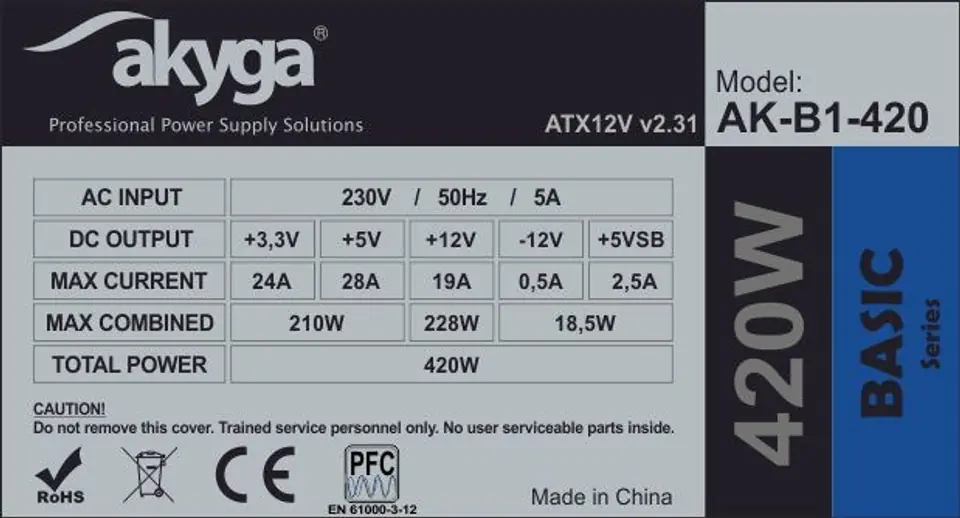

Ac input frequency:50 Hz
Ac input voltage:230 V
Atx power connector (20-pin):Y
Atx version:2.31
Combined power (-12v):18.5 W
Combined power (+12v):228 W
Combined power (+3.3v):210 W
Combined power (+5v):210 W
Combined power (+5vsb):18.5 W
Cpu p4 connector (4-pin):1
Depth:140 mm
Efficiency:70%
Height:85 mm
Input current:5 A
Max output current (-12v):0.5 A
Max output current (+12v):19 A
Max output current (+3.3v):24 A
Max output current (+5v):28 A
Max output current (+5vsb):2.5 A
Mean time between failures (mtbf):100000 h
Motherboard power connector:20+4 pin ATX
Number of sata power connectors:3
Operating temperature (t-t):5 - 50 °C
Package depth:196 mm
Package height:86 mm
Package type:Box
Package weight:1.05 kg
Package width:151 mm
Peripheral (molex) power connectors (4-pin):2
Power protection features:Over power, Short circuit, Over voltage, Under voltage, Over current
Power supply unit (psu) form factor:ATX
Product colour:Grey
Purpose:PC
Sustainability certificates:RoHS
Total power:420 W
Weight:1.04 kg
Width:150 mm

Description

Akyga AK-B1-420 ATX power supply 420W is one of the basic power supplies in our offer dedicated to power desktop computers.

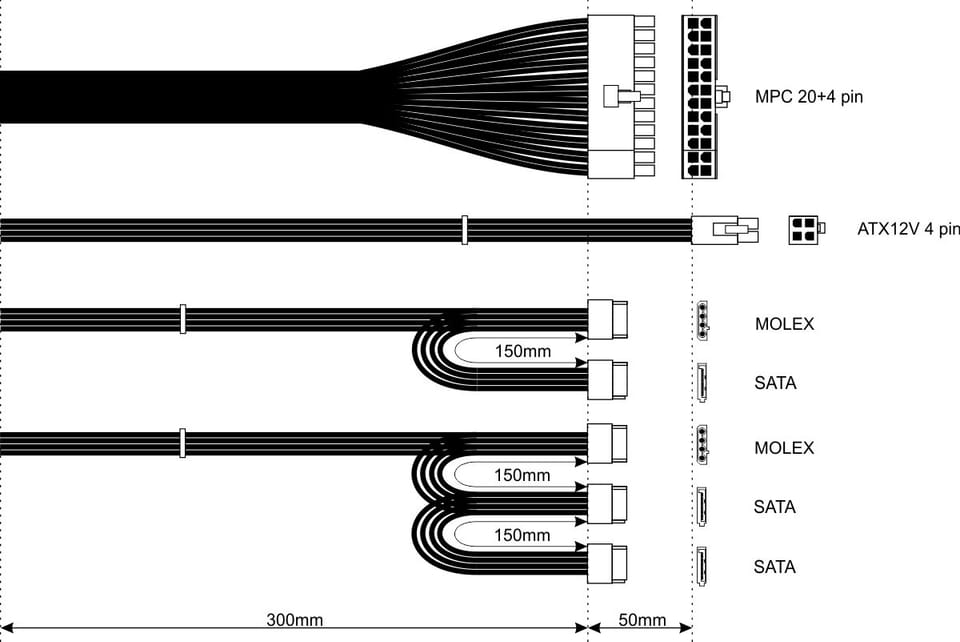

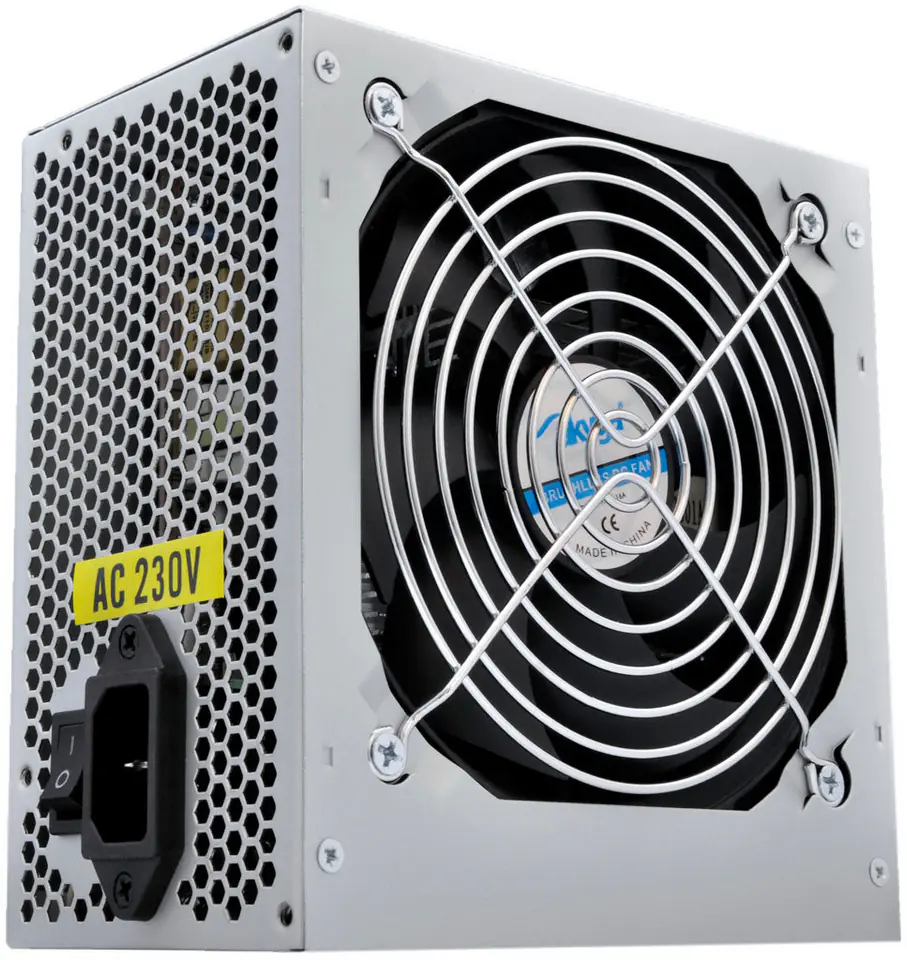

Made of high quality components, the power supply has a 3 SATA connectors, 2 MOLEX connectors, P4 4-pin connector and a universal 24-pin motherboard connector. Supports ATX 12V 2.0 specifications, so it can be used with current and next generation of platforms with multi-core processors. Silent 12 cm fan with chromed grill provide efficient cooling. Manual on/off switch allows for safe power cut off without the need of disconnecting the network cord. High efficiency and stable operation of the power supply affects the reliability of all computer components.

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
