Akyga AK-B1-700 power supply unit 700 W 20+4 pin ATX ATX Grey

PLN 174.77
Shipping from warehouse: ⁨A3⁩
Estimated shipping: Mon, Jul 28 - Tue, Jul 29
14 days returnUnconditional return policy
Availability:
large quantity
Brand:
Akyga
Product code:
AK-B1-700 / 5901720131485

Specification

Ac input frequency:50 Hz
Ac input voltage:220 - 230 V
Atx version:2.31
Cabling type:Non-Modular
Combined power (-12v):18.5 W
Combined power (+12v):384 W
Combined power (+3.3v):300 W
Combined power (+5v):300 W
Combined power (+5vsb):18.5 W
Cooling type:Active
Depth:160 mm
Efficiency:70%
Eps cable length:60 cm
Eps power connector (4+4 pin):Yes
Fan diameter:12 cm
Fan location:Side
Height:85 mm
Max output current (-12v):0.5 A
Max output current (+12v):32 A
Max output current (+3.3v):35 A
Max output current (+5v):38 A
Max output current (+5vsb):2.5 A
Mean time between failures (mtbf):100000 h
Motherboard power cable length:45 cm
Motherboard power connector:20+4 pin ATX
Number of fans:1 fan(s)
Number of sata power connectors:5
On/off switch:Yes
Operating temperature (t-t):5 - 50 °C
Package depth:260 mm
Package height:95 mm
Package type:Box
Package weight:1.33 kg
Package width:180 mm
Pci express power cable length:45 cm
Pci express power connectors (6+2 pin):2
Peripheral (molex) power cable length:150, 300 mm
Peripheral (molex) power connectors (4-pin):2
Power factor correction (pfc) type:Passive
Power protection features:Over power, Short circuit, Over voltage, Over current, Overheating
Power supply unit (psu) form factor:ATX
Product colour:Grey
Purpose:PC
Sata power cable length:150, 300 mm
Sustainability certificates:RoHS
Total power:700 W
Weight:1.26 kg
Width:150 mm

Akyga AK-B1-700 ATX power supply 700W is one of the basic power supplies in our offer dedicated to power desktop computers.

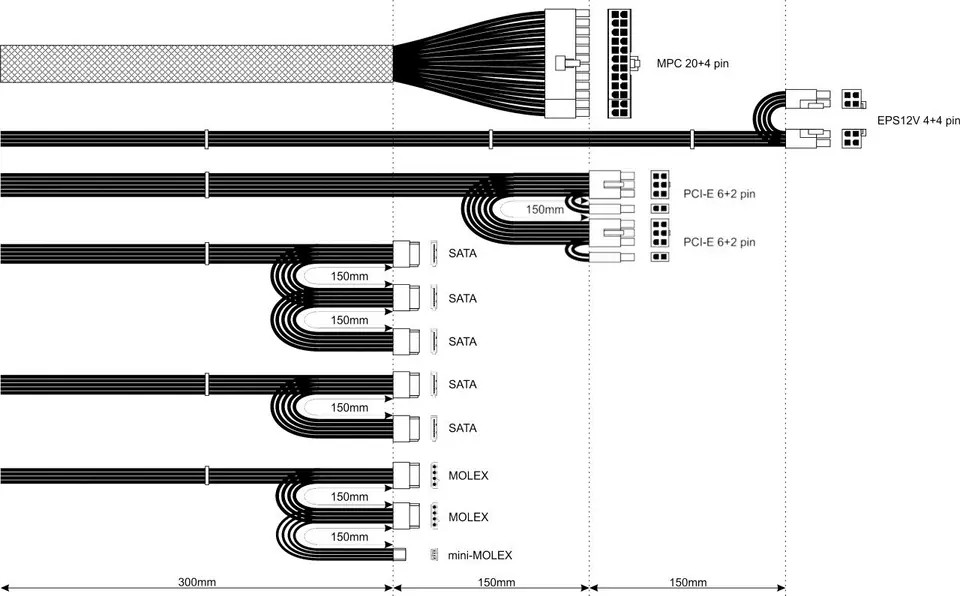

Made of high quality components, the power supply has 5x SATA connectors, 2x MOLEX connectors, mini-MOLEX connector, EPS12V 4+4pin connector,  2x PCI-E 6+2-pin connector and an universal 24-pinmotherboard connector. Silent 12 cm fan with chromed grill provide efficient cooling. Manual on/off switch allows for safe power cut off without the need of disconnecting the network cord. High efficiency and stable operation of the power supply affects the reliability of all computer components.

Several important protectors (OVP, OCP, OPP, OTP, SCP) and PFC filter protect and prevent main computer parts from damage and stabilize the operation of the power supply so that it works without any unwanted interference.

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
