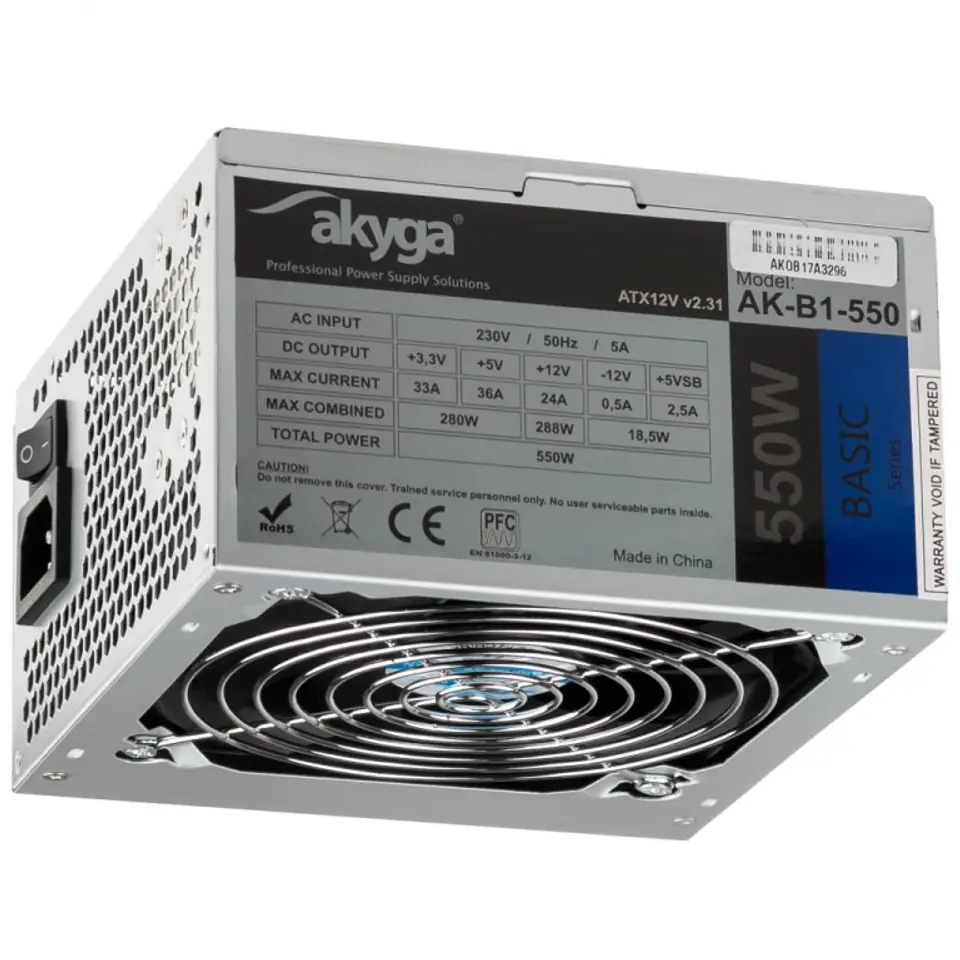

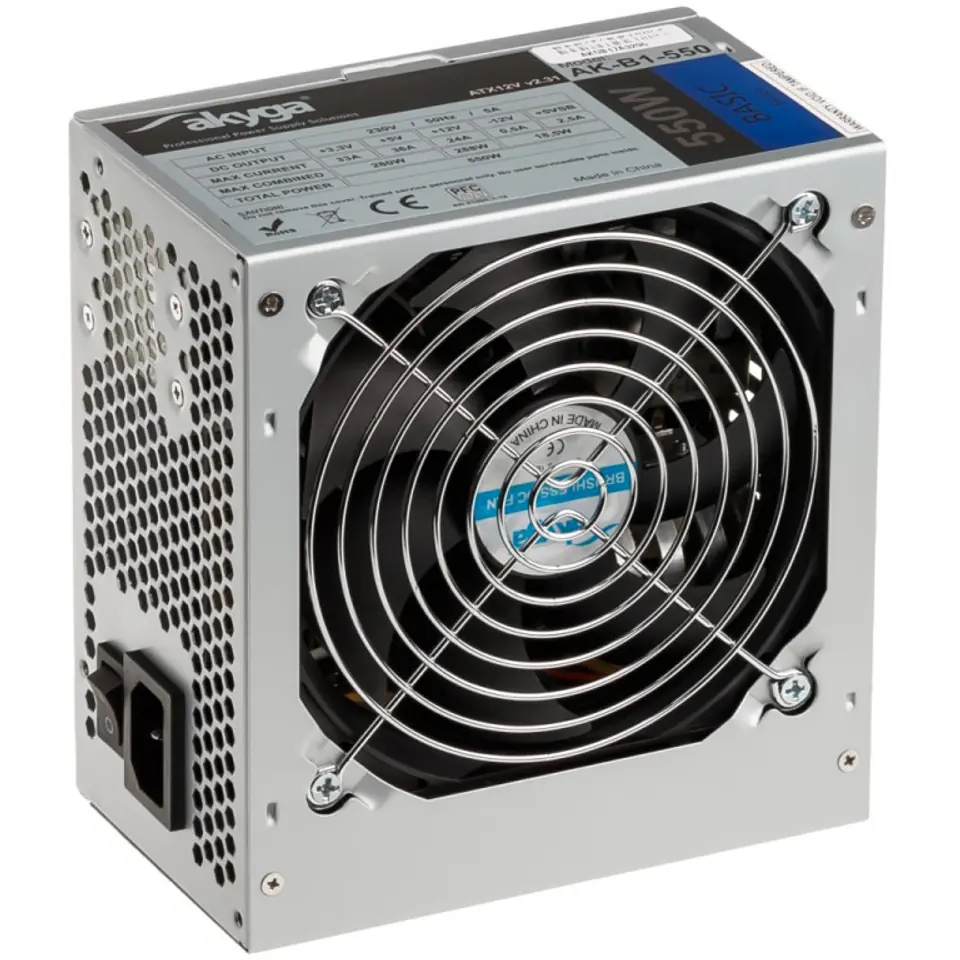

Akyga AK-B1-550 power supply unit 550 W 20+4 pin ATX ATX Grey
PLN 126.63
Shipping from warehouse: A3
Estimated shipping: Mon, Feb 16 - Thu, Feb 19
14 days returnUnconditional return policy
- Availability:
- running out
- Brand:
- Product code:
- AK-B1-550 / 5901720130341
Share this product:
Specification

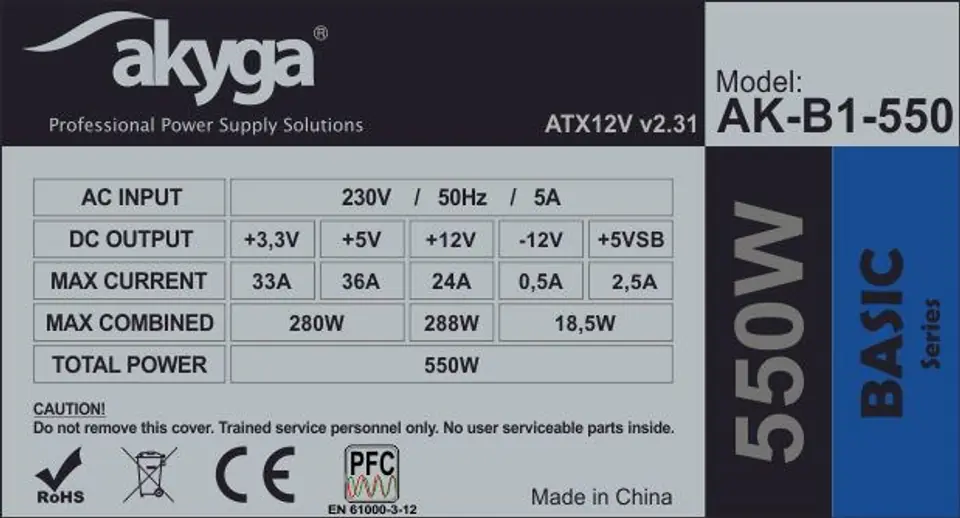

| Ac input voltage: | 230 V |
|---|---|
| Atx version: | 2.31 |
| Cabling type: | Non-Modular |
| Combined power (-12v): | 18.5 W |
| Combined power (+12v): | 288 W |
| Combined power (+3.3v): | 280 W |
| Combined power (+5v): | 280 W |
| Combined power (+5vsb): | 18.5 W |
| Cooling type: | Active |
| Cpu p4 connector (4-pin): | 1 |
| Cpu power cable length: | 45 cm |
| Depth: | 140 mm |
| Efficiency: | 70% |
| Fan diameter: | 12 cm |
| Fan location: | Top |
| Height: | 85 mm |
| Input current: | 5 A |
| Manual: | Yes |
| Max output current (-12v): | 0.5 A |
| Max output current (+12v): | 24 A |
| Max output current (+3.3v): | 33 A |
| Max output current (+5v): | 36 A |
| Max output current (+5vsb): | 2.5 A |
| Mean time between failures (mtbf): | 100000 h |

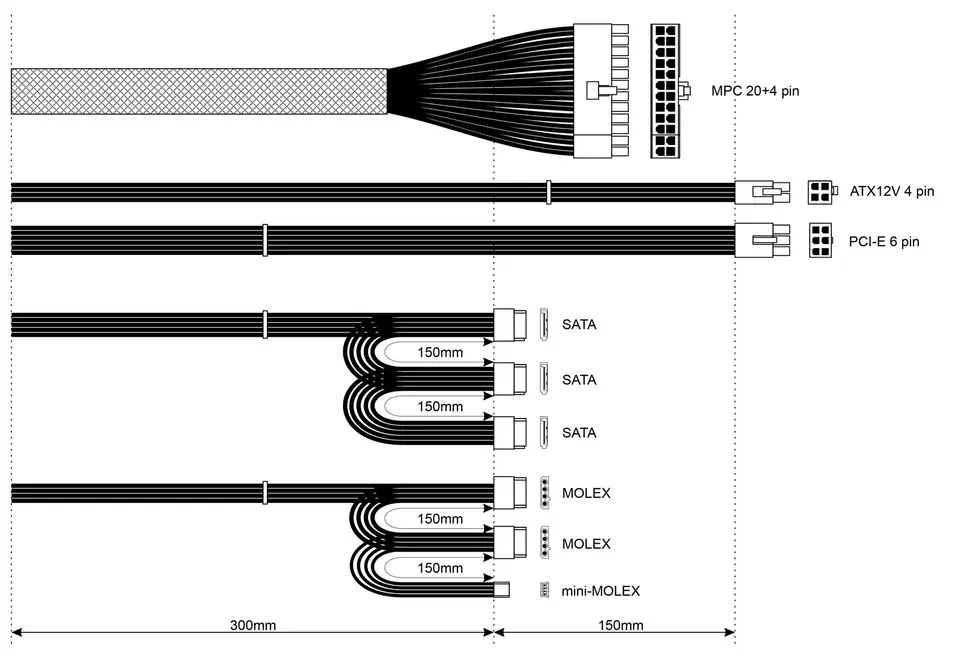

| Motherboard power connector: | 20+4 pin ATX |
| Number of fans: | 1 fan(s) |
| Number of sata power connectors: | 3 |
| On/off switch: | Yes |
| Operating temperature (t-t): | 5 - 50 °C |
| Package depth: | 220 mm |
| Package height: | 95 mm |
| Package type: | Box |
| Package weight: | 1.12 kg |
| Package width: | 160 mm |
| Pci express power connectors (6-pin): | 1 |
| Peak power: | 550 W |
| Peripheral (molex) power cable length: | 300 mm |
| Peripheral (molex) power connectors (4-pin): | 2 |
| Power protection features: | Over current, Short circuit, Over voltage, Over power, Overheating |
| Power supply unit (psu) form factor: | ATX |
| Product colour: | Grey |
| Purpose: | PC |
| Sata power cable length: | 300 mm |
| Supported motherboard form factors: | ATX |
| Sustainability certificates: | RoHS |
| Total power: | 550 W |
| Warranty card: | Yes |
| Weight: | 1.04 kg |
| Width: | 150 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
