| Access from a mobile phone:: | Port: 8000 or Cloud Access (P2P) Android: Free BCS Manager iOS App (iPhone): Free BCS Manager App |
|---|---|
| Archiving on external media:: | Backup to USB drive (pendrive, external drive) |
| Audio inputs:: | 1 pc. CINCH, Coaxial audio - Audio from cameras |
| Audio outputs:: | 1 pc. CINCH |
| Bitrate:: | 32 ... 6144 Kb/s |
| Colour:: | white |
| Default administrator login / password:: | admin / - |
| Default ip address:: | DHCP or 192.168.1.64 |
| Dimensions:: | 210 x 200 x 48 mm |
| Image compression method:: | H.265+ / H.265 / H.264+ / H.264 |
| Manufacturer / brand:: | BCS View |
| Motion detection:: | Screen division into zones : 22 x 18 detection fields |
| Network features:: | Client program and IE viewer: live preview, playback and archiving of recordings, partial configuration of DVR parameters |
| Network interface:: | 1 x RJ-45 - 10/100 Base-TX |
| Network protocols:: | TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF |
| Onvif port:: | 80 |
| Operating modes:: | 8 x HD-TVI / AHD / HD-CVI / CVBS / IP + 4 x IP |
| Port of access via mobile application:: | 8000 |
| Ports for access via the pc application:: | 554 RTSP, 8000 |

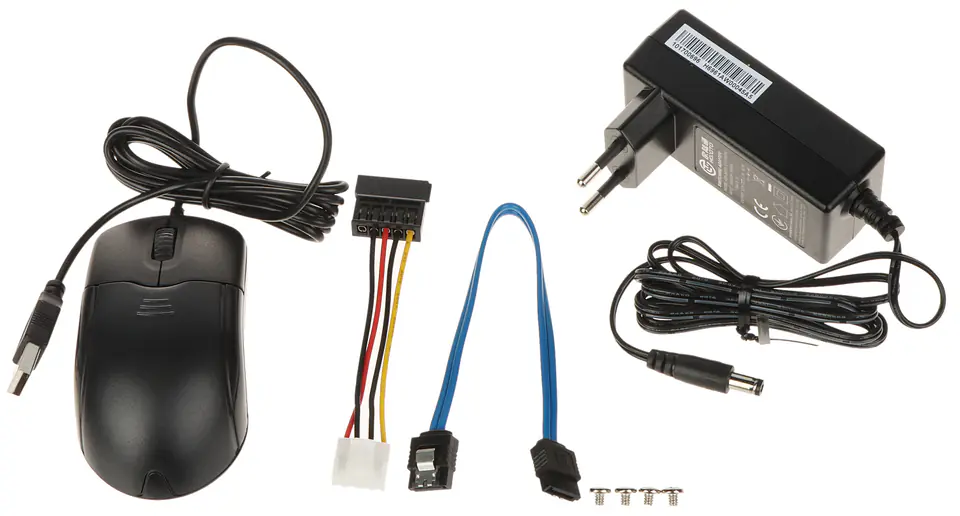

| Power:: | 12 V DC / 1.5 A (power supply included) |
| Ptz rotary heads control:: | HD-TVI coax compatible control |
| Recording modes:: | Manual, motion detection, scheduler |
| Resolutions of the saved image:: | HD-TVI: 4M-N - 1280 x 1440 ,3 Mpx - 1920 x 1536 - Channel 1 / 2 ,1080p - 1920 x 1080 ,1080N - 960 x 1080 ,720p - 1280 x 720 AHD / HD-CVI : 4M-N - 1280 x 1440 , 1080p - 1920 x 1080 ,1080N - 960 x 1080 ,720p - 1280 x 720 CVBS : 960H - 960 x 576 , IP : max. 6 Mpx - 3072 x 2048 |
| Rtsp url:: | Main stream : rtsp://user:password o@192.168.1.64:554/Streaming/Channels/nrkanału01/ Substream : rtsp://user:password o@192.168.1.64:554/Streaming/Channels/nrkanału02/ |
| Scales:: | 0.51 kg |
| Searching and playing recordings:: | Search for recordings in the timeline or in the file list. Playback: forward, accelerate, slow down the recording. Simultaneous playback max. 8 cameras |
| Standard:: | AHD, HD-CVI, HD-TVI, CVBS, TCP/IP |
| Supported hard drives:: | 1 x 6 TB SATA |
| Supported languages:: | Polish, English |
| Usb:: | 2 pcs. USB 2.0 |

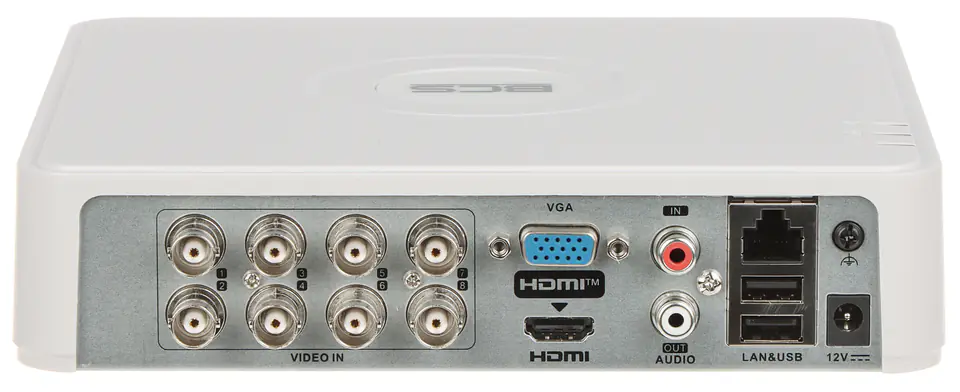

| Video inputs:: | 8 pcs. BNC - AHD / HD-CVI / HD-TVI / CVBS |
| Video outputs:: | 1 pc. HDMI1 pcs. VGA |
| Warranty:: | 3 years |
| Web access ports:: | 80 |
| Write speed adjustment:: | 6 Mpx IP @ 1 ... 25 fps/s4M-N @ 1 ... 15 fps / s3 Mpx @ 1 ... 15 fps 1080p @ 1 ... 15 fps / s1080N @ 1 ... 25 fps / s720p @ 1 ... 25 fps / s960H @ 1 ... 25 fps / sD1 @ 1 ... 25 fps for each channel allocation |

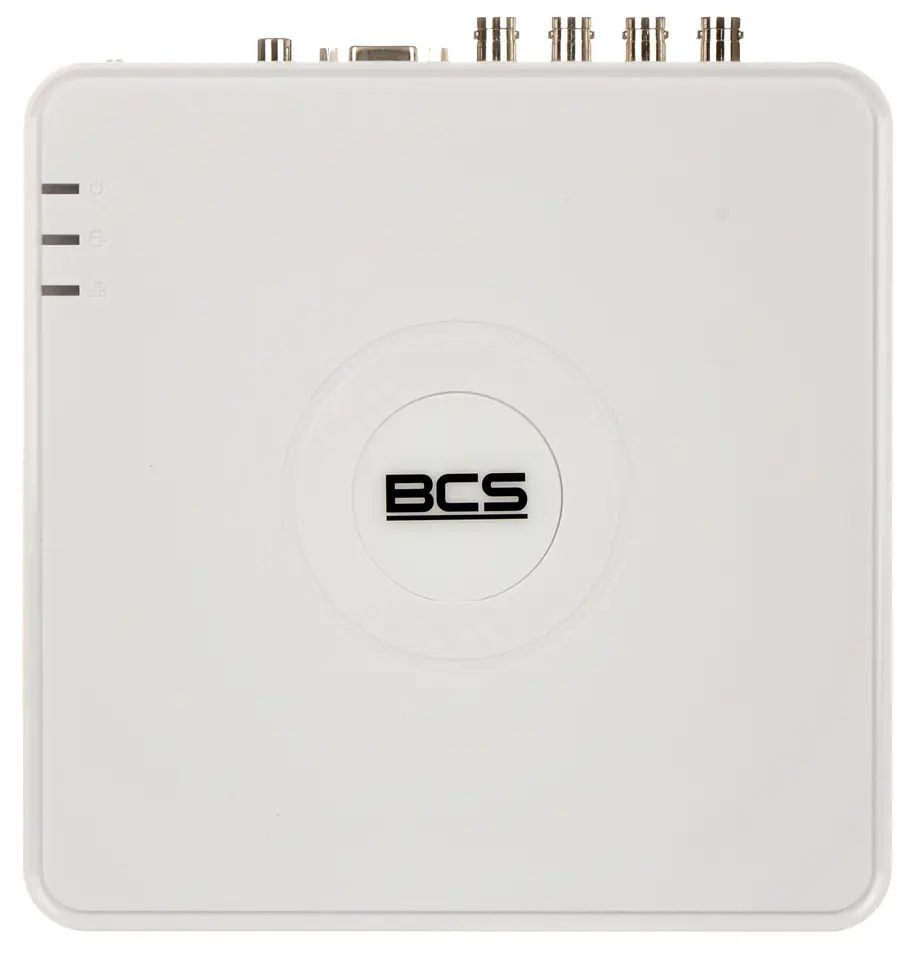

BCS-V-SXVR0801 dvr with AHD (Analog High Definition), HD-CVI (High Definition Composite Video Interface), HD-TVI (High Definition Transport Video Interface), TCP/IP and CVBS is a professional device used in CCTV systems
The menu has been designed in a way that makes it easier for everyone, even a novice user, to navigate and make changes to the DVR settings.
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
