| Access from a mobile phone:: | Port: 37777 or Cloud Access (P2P) Android: Free BCS Manager iOS App (iPhone): Free BCS Manager App |
|---|---|
| Archiving on external media:: | Frame shot of an image or recordings from an archive to a USB drive |
| Audio inputs:: | 1 pc. CINCH |
| Audio outputs:: | 1 pc. CINCH |
| Colour:: | Black |
| Dimensions:: | 375 x 288 x 53 mm |
| Image compression method:: | H.265+ / H.265 / H.264+ / H.264 / AI Coding |
| Manufacturer / brand:: | BCS Line |
| Motion detection:: | Screen division into zones : 22 x 18 detection fields |
| Network features:: | Client program and IE viewer: live preview, playback and archiving of recordings, partial configuration of DVR parameters |
| Operating modes:: | 32 x AHD / HD-CVI / HD-TVI / CVBS / IP + 8 IP |
| Power:: | 12 V DC / 5 A (power supply included) |
| Ptz rotary heads control:: | RS-485 - PELCO-D/P and others |
| Recording modes:: | Manual, motion detection, scheduler |
| Resolutions of the saved image:: | AHD / HD-CVI / HD-TVI :5M-N - 1296 x 1944 ,4M-N - 1280 x 1440 ,1080p - 1920 x 1080 ,1080N - 960 x 1080 ,720p - 1280 x 720 CVBS :960H - 960 x 576 , IP :max. 6 Mpx - 3072 x 2048 |
| Scales:: | 2.05 kg |
| Searching and playing recordings:: | Search for recordings by time + timeline with recording type. Playback: Forward, accelerate, slow down, stepping Advanced search (every second) |
| Selected features:: | Intelligent Image Analysis: line crossing, intrusion - classification of people and vehicles, abandoned/missing object, face detection, Face recognition - 2 Channels Cooperation with POS terminals (Point of Sale) Filtering false alarms based on recognizing people and vehicles (line crossing, intrusion) - perimeter protection 2 SMD PLUS channels - search for an object classified as: human, motor vehicle, motorized vehicle - 16 Channels |
| Standard:: | AHD, HD-CVI, HD-TVI, CVBS, TCP/IP |
| Supported hard drives:: | 2 x 16 TB SATA |
| Supported languages:: | Polish, English |
| Usb:: | 1 x USB 2.01 x USB 3.0 |

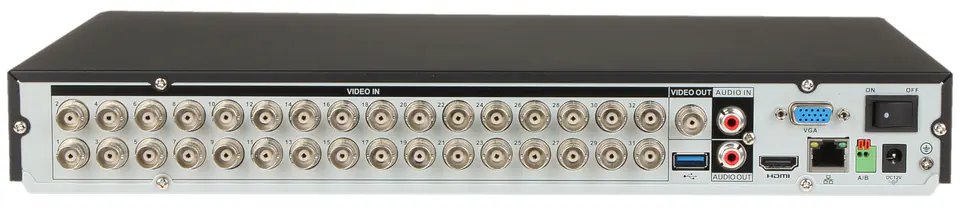

| Video inputs:: | 32 pcs. BNC |
| Video outputs:: | 1 pc. HDMI1 pcs. VGA |
| Warranty:: | 3 years |
| Write speed adjustment:: | 6 Mpx IP @ 1 ... 25 fps5M-N @ 1 ... 10 fps/s4M-N @ 1 ... 15 fps 1080p @ 1 ... 15 fps / s1080N @ 1 ... 25 fps / s720p @ 1 ... 25 fps / s960H @ 1 ... 25 fps for each channel allocation |

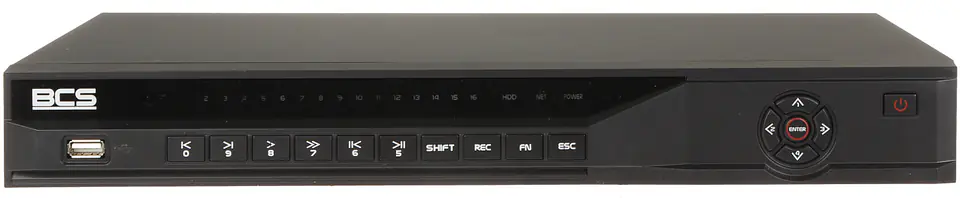

BCS-L-XVR3202-V digital recorder with AHD (Analog High Definition), HD-CVI (High Definition Composite Video Interface), HD-TVI (High Definition Transport Video Interface), TCP/IP and CVBS is a professional device used in CCTV systems
The menu has been designed in a way that makes it easier for everyone, even a novice user, to navigate and make changes to the DVR settings.
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
