AHD, PAL, IP PROTECT-218 (4 CHANNELS)

€450.64

Shipping from warehouse: ⁨D4⁩

Estimated shipping: Wed, May 1 - Mon, May 6

14 days returnUnconditional return policy

Availability:: moderate quantity
Product code:: PROTECT-218 / 5902887068607

Specification

Alarm inputs / outputs:	8 / 1
Audio inputs:	4 pcs. CINCH
Audio outputs:	1 pc CINCH

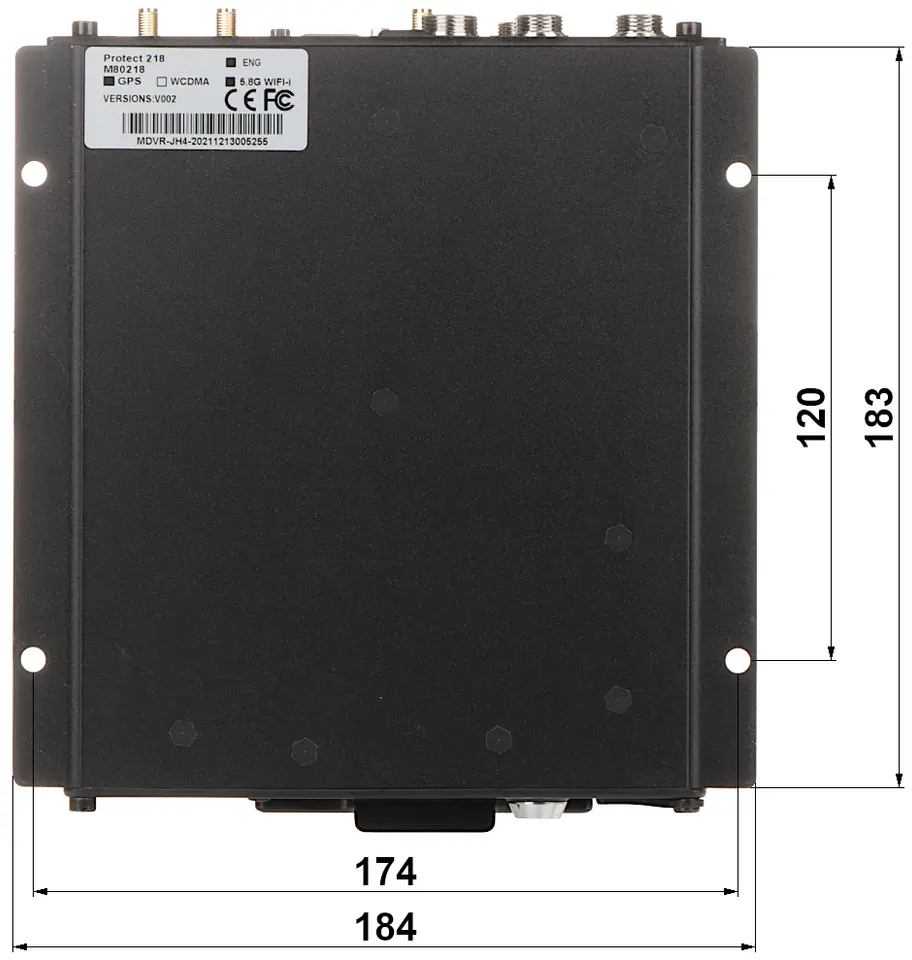

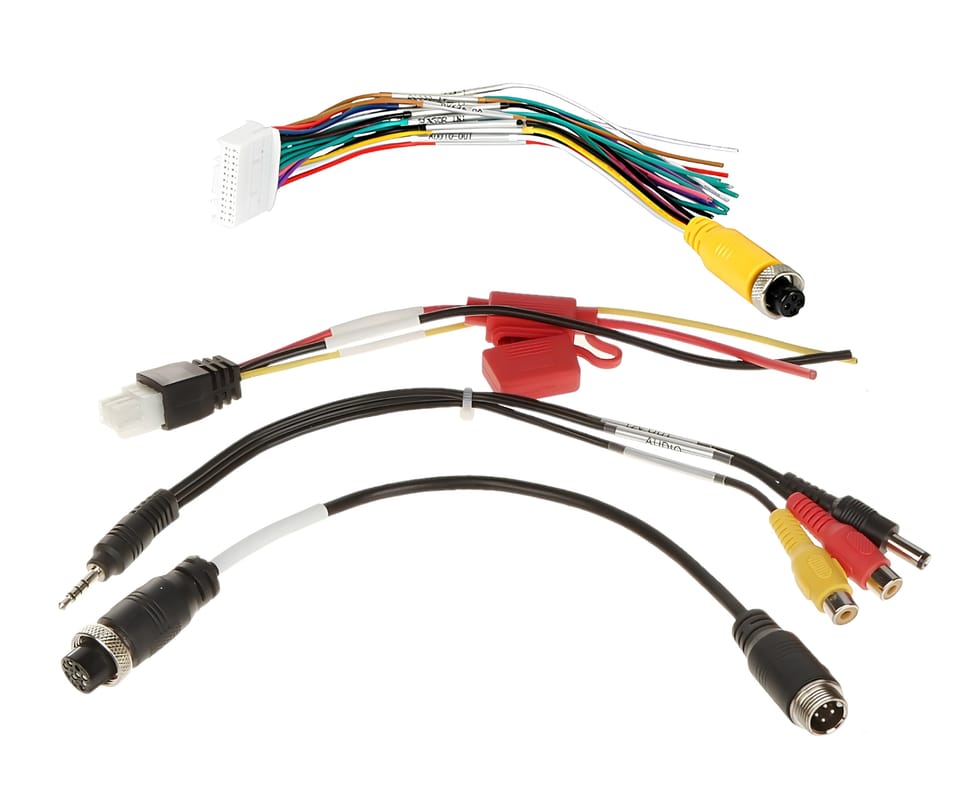

Dimensions:	195 x 184 x 61 mm 248 x 184 x 61 mm + additional cable enclosure
G-sensor:	3-axis
Gyroscope:	3-axis
Image compression method:	H.265 / H.264
Memory usage for video recording:	0.4 GB/h @ 1920 x 1080 px H.265 15 fps
Operating temperature:	-40 °C ... 80 °C
Permissible relative ambient humidity:	20 % ... 95 % RH
Port ethernet:	1 x RJ-45 Passive PoE
Port usb:	1 x USB 3.0
Power:	8 V ... 36 VDC
Power consumption:	< 0.5 W (tryb czuwania)< 36 W (praca)
Resolution of recorded videos:	1920 x 1080, 1280 x 720, 960 x 576, 720 x 576, 704 x 576 px
Scales:	1.72 kg
Selected features:	The cameras are powered by 12V DC/3A directly from the DVR: 4 x DC 2.1/5.5mm socket + 1 x Passive PoE Automatic recording when turned on Power backup - Continue recording after a short power outage (up to 8 seconds) Cooperation with DSM cameras for driver behavior Cooperation with ADAS cameras investigating vehicle behavior Registration of alarm and service events Reading alarm and fault memoryRecording the route traveled by the vehicle using a GPS receiver GPS, G-Sensor and gyroscope sensors allow you to detect events such as: collision, sharp braking, acceleration or too fast cornering Integration with sensors in the vehicle Backup to USB drive (pendrive, external drive) Backup to micro SD memory card Wi-Fi Support - Automatic data synchronization Default administrator password : 888888 Remote control MIL-STD-810G compliant Automatic heating of the hard disk slot allows you to start recording at temperatures from -40°C Mirror - Image mirroring
Standard:	AHD, CVBS, TCP/IP
Supported hard drives:	1 x 2TB HDD / SSD 2.5"
Supported languages:	English
Total max. write speed:	100 fps @ 4 x AHD 1080p, 100 fps @ 4 x CVBS 960H, 25 fps @ 1 x IP 1080p
Video inputs:	4 pcs. BNC
Video outputs:	1 pc VGA1 pcs. CINCH1 pcs. M12 socket, 4-pin
Warranty:	2 years
Wi-fi module:	2.4 GHz, 5 GHz - IEEE 802.11 a/b/g/n/ac

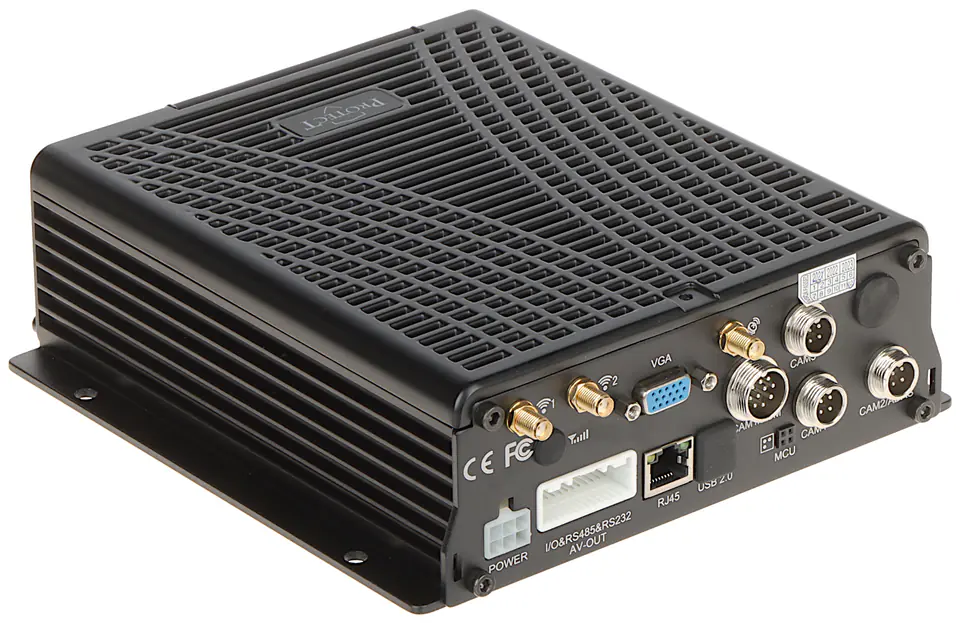

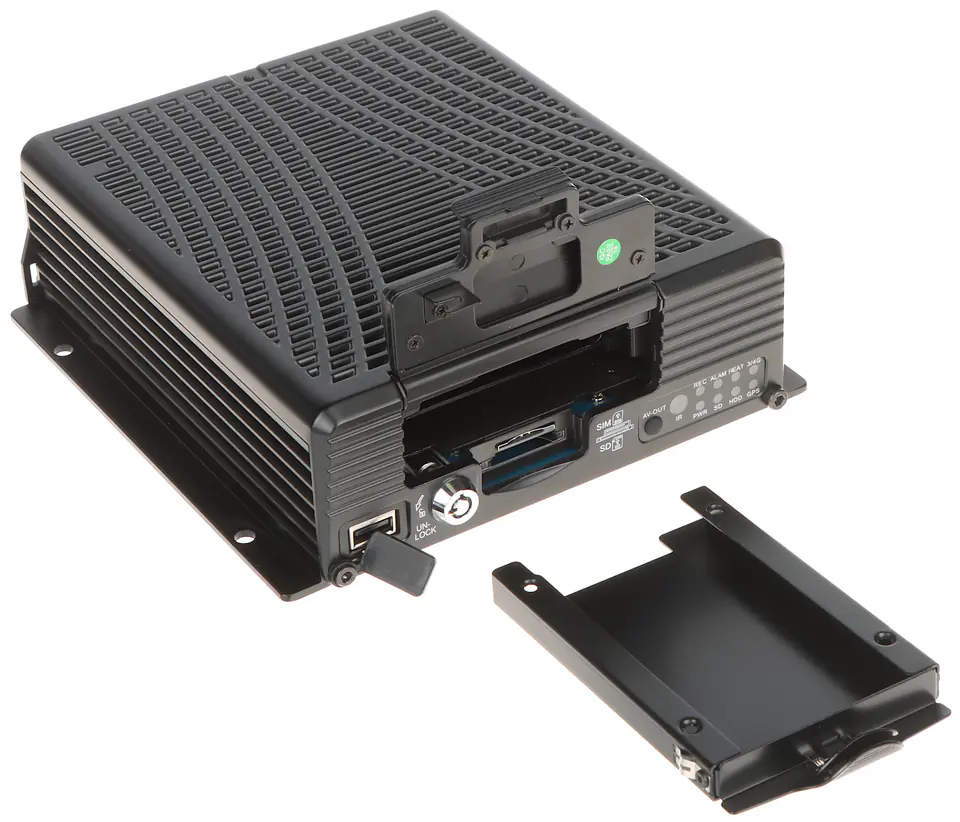

PROTECT-218 is a mobile recorder designed for use in coaches, city buses, buses, trams, metro, company and passenger vehicles and special vehicles, i.e. trucks, police cars, prison or military cars, ambulancesThe device has been specially designed to show increased resistance to vibrations and shocksThe recorder supports a 2.5" disk with a capacity of up to 2 TB

The PROTECT-218 power cables are connected to the battery and ignition (similarly to the radio), so that after turning the ignition, the device automatically starts audio-video recordingIn addition, the device has a power backup and for 8 seconds after a power outage continues to record

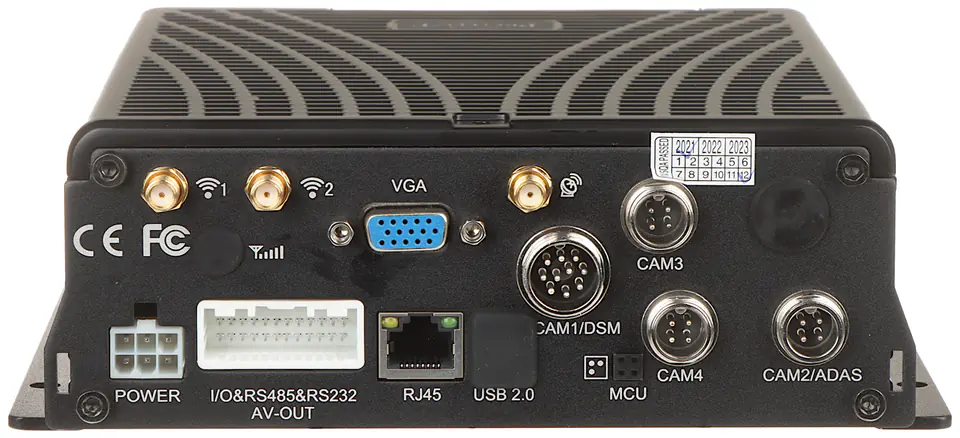

PROTECT-218 has 4 video inputs, 3 of which are equipped with standard M12 connectors, and one (first) with a 10-pin connectorCAM1 connector is a connector with DSM signal, which allows you to connect a special camera that examines the driver's behaviorCAM2 connector allows you to connect an ADAS camera that monitors the movement of the vehicle

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
