| Alarm inputs / outputs: | 16 / 3 |
|---|---|
| Archiving on external media: | Screenshot of a frame of an image or recordings from an archive to a USB drive |
| Audio inputs: | 16 pcs. - CINCH 16 - Coaxial cable audio support, HD-CVI only |
| Audio outputs: | 1 pc CINCH |
| Colour: | Black |
| Dimensions: | 325 x 257 x 55 mm |
| Image compression method: | AI Coding / H.265+ / H.265 / H.264+ / H.264 |
| Mobile phone access: | Port: 37777 or cloud access (P2P) Android: Free DMSS app iOS (iPhone): Free DMSS app Watch the video on how to configure P2P in Dahua DVRs and how to enable the mobile application |
| Motion detection: | Zoning: 22 x 18 detection fields |
| Network features: | Client program and IE browser: live viewing, playback and archiving of recordings, partial configuration of DVR parameters |
| Operating modes: | 16 x AHD / HD-CVI / HD-TVI / CVBS / IP + 16 x IP |
| Power: | 12 V DC / 3 A (power adapter included) |
| Producer / brand: | DAHUA |
| Ptz rotary head control: | IP Cameras: PTZ HD-CVRS-485 - PELCO-D/P |
| Recorded image resolutions: | AHD / HD-CVI / HD-TVI: 8 Mpx - 3840 x 2160, 4K-N - 1920 x 2160, 6 Mpx - 2880 x 1920 - only HD-CVI, 5 Mpx - 2592 x 1944, 4 Mpx - 2560 x 1440, 4M-N - 1280 x 1440, 3 Mpx - 2048 x 1536 - only AHD / HD-TVI, 1080p - 1920 x 1080, 720p - 1280 x 720 CVBS: 960H - 960 x 576 IP: max. 8 MP - 3840 x 2160 |
| Recording modes: | Manual, alarm, motion detection, scheduling |
| Scales: | 1.4 kg |
| Search and play back recordings: | Search for recordings by time + timeline with recording type. Playback: forward, accelerate, decelerate, stepAdvancedSearch (up to the second) Intelligent AI face search - simultaneous search in the archive of face recordings based on max 8 photos taking into account the similarity threshold (for each photo separately) |
| Selected features: | Cooperation with Dahua devices working in the concept of the Internet of Things (IoT), POS - cooperation with devices installed in points of sale and displaying data from them in the form of overlaid text in the selected channel window, SMD PLUS - searching for an object classified as: human, motor vehicle, Coax audio/alarm support, intelligent image analysis: crossing the line, crossing the warning zone, abandoned/missing object, Classification of people and vehicles Advanced face and vehicle recognition and search functions Support for up to 10 face databases, including 20,000 face photos Detection of faces not in the device database Search in face recordings based on up to 8 selected photos with the possibility of independent similarity threshold setting for each photo |
| Standard: | AHD, HD-CVI, HD-TVI, CVBS, TCP/IP |
| Supported hard drives: | 1 x 16 TB SATA |
| Supported languages: | Polish, Bulgarian, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Norwegian, Portuguese, Romanian, Russian, Serbian, Spanish, Swedish, Turkish, Ukrainian |
| Usb: | 1 pc USB 2.0 1 pc USB 3.0 |
| Video inputs: | 16 pcs. BNC |
| Video outputs: | 1 pc HDMI 4K 1 pc VGAMability to configure the SPOT function on one of the video outputs |
| Warranty: | 3 years |
| Write speed adjustment: | 8 Mpx IP @ 1 ... 25 fps Mpx @ 1 ... 7 fps4K-N @ 1 ... 15 fps 6 Mpx @ 1 ... 10 fps 5 Mpx @ 1 ... 12 fps / s4 Mpx @ 1 ... 15 fps / s4M-N @ 1 ... 25 fps Mpx @ 1 ... 15 fps @ 1080p @ 1 ... 25 fps @ 1 ... 25 fps @ 1 ... 25 fps per channel |
The XVR5116HE-4KL-I3 digital recorder with AHD (Analog High Definition), HD-CVI (High Definition Composite Video Interface), HD-TVI (High Definition Transport Video Interface), TCP/IP and CVBS interfaces is a professional device used in CCTV systems

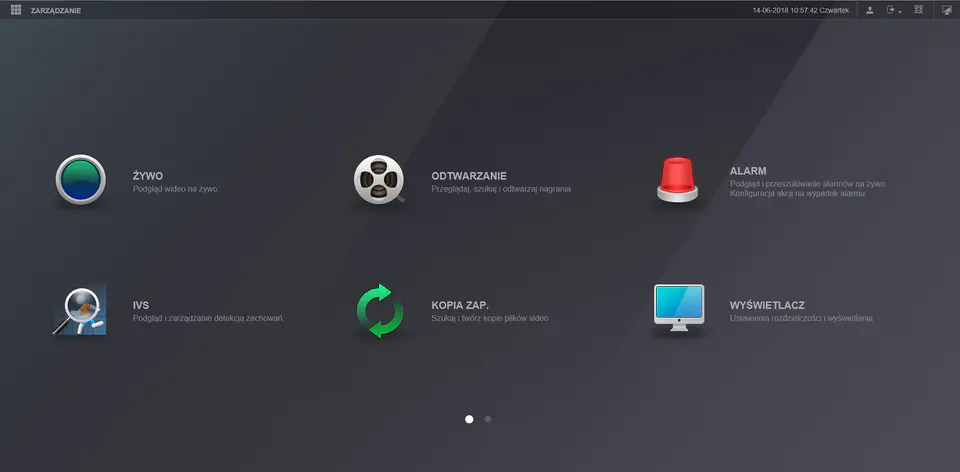

The menu has been designed in a way that makes it easier for everyone, even novice users, to navigate and make changes to the DVR settings
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
