| Alarm inputs / outputs: | 4 / 1 |
|---|---|
| Archiving on external media: | Archiving recordings in (.avi) format to a USB drive (pendrive) |
| Audio inputs: | 4 - Support audio over coaxial cable 4 pcs. CINCH |
| Audio outputs: | 1 pc CINCH |
| Colour: | Black |
| Country of origin: | China |
| Default administrator login / password: | admin / 12345 |
| Default ip address: | 192.168.1.88 |
| Dimensions: | 260 x 242 x 46 mm |
| Image compression method: | H.265+ / H.265 / H.264+ / H.264 |
| Mobile app access port: | 80, 5000, 6000 |
| Mobile phone access: | Port: 6000 or access via cloud (P2P) Android: Free BitVision application, Android: Free iVMS320 application iOS (iPhone): Free BitVision application, iOS: Free iVMS320 application |
| Motion detection: | Zoning: 22 x 18 detection fields |
| Network features: | Client program (iVMS320): Live viewing, playback and archiving of recordings IE, MS Edge, Google Chrome, Firefox, Safari: live image preview, device configuration |
| Operating modes: | 4 x AHD / HD-CVI / HD-TVI / CVBS + 4 x IP max. 8.3 Mpx 2 x AHD / HD-CVI HD-TVI CVBS + 7 x IP max. 8.3 Mpx 16 x IP max. 8.3 Mpx All modes allow you to freely combine AHD, HD-CVI, HD-TVI, CVBS cameras |
| Pc app access ports: | 80, 5000, 554 |

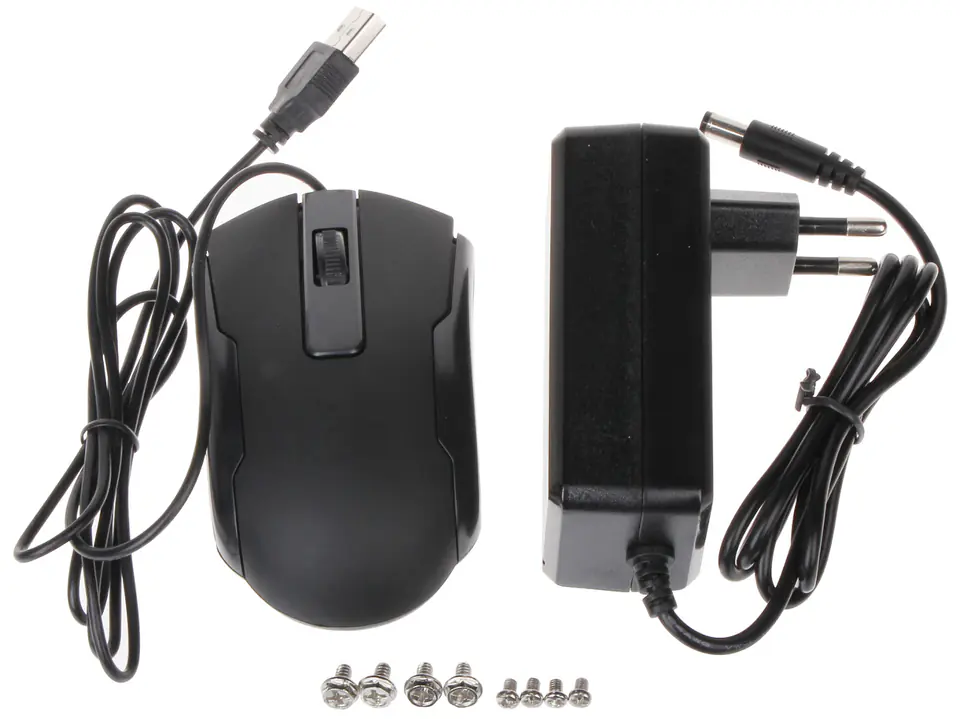

| Power: | 12 V DC / 2 A (power adapter included) |
| Producer / brand: | APTI |
| Ptz rotary head control: | Pelco-D, Pelco-P |
| Recorded image resolutions: | AHD / HD-TVI: 8 Mpx - 3840 x 2160 px, 4K UHD, 5 Mpx - 2592 x 1944 px, 4 Mpx - 2560 x 1440 px, 3 Mpx - 2048 x 1536 px, 1080p - 1920 x 1080 px, 720p - 1280 x 720 px, HD-CVI: 8 Mpx - 3840 x 2160 px, 4K UHD, 4 Mpx - 2560 x 1440 px, 1080p - 1920 x 1080 px, 720p - 1280 x 720 px, CVBS: 960H - 960 x 576 px, IP : max. 8 Mpx - 3840 x 2160 px |
| Recording modes: | Motion detection, schedule |
| Scales: | 0.80 kg |
| Search and play back recordings: | Search for recordings in the timeline or file list. Playback: forward, backward, accelerate, slow down recording. Simultaneous playback of recordings with max. 4 cameras |
| Standard: | AHD, HD-CVI, HD-TVI, CVBS, TCP/IP |
| Supported hard drives: | 1 x 8 TB SATA |
| Supported languages: | Polish, Bulgarian, Czech, English, French, German, Hungarian, Italian, Portuguese, Russian, Spanish, Turkish |
| Usb: | 3 pcs. USB 2.0 |

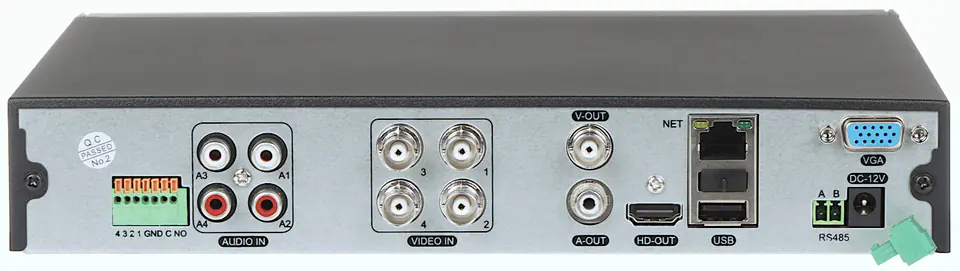

| Video inputs: | 4 pcs. BNC |
| Video outputs: | 1 pc HDMI 1 pc VGA 1 pc BNC |
| Warranty: | 2 years |
| Web access ports: | 80, 5000, 554 |
| Write speed adjustment: | 8 Mpx IP @ 1 ... 25 fps Mpx @ 1 ... 8 fps 5 Mpx @ 1 ... 12 fps / s4 Mpx @ 1 ... 15 fps Mpx @ 1 ... 18 fps @ 1080p @ 1 ... 25 fps @ 1 ... 25 fps @ 1 ... 25 fps per channel |

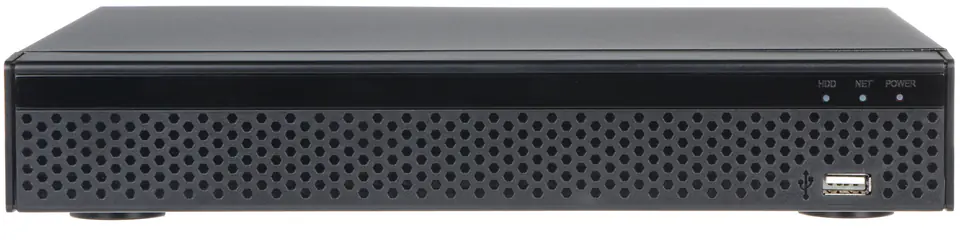

APTI-XB0401HS-4KS5 with AHD (Analog High Definition), HD-CVI (High Definition Composite Video Interface), HD-TVI (High Definition Transport Video Interface), TCP/IP and CVBS interfaces is a professional device used in CCTV systems
The menu has been designed in a way that makes it easier for everyone, even novice users, to navigate and make changes to the DVR settings
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
