| Archiving on external media: | Archiving to a USB drive (pendrive, external drive) |
|---|---|
| Audio inputs: | 1 pc CINCH, Coaxial audio - Audio from cameras |
| Audio outputs: | 1 pc CINCH |
| Bitrate: | 32 ... 6144 Kb/s |
| Colour: | white |
| Default administrator login / password: | admin/- |
| Default ip address: | DHCP or 192.168.1.64 |
| Dimensions: | 210 x 200 x 48 mm |
| Image compression method: | H.265+ / H.265 / H.264+ / H.264 |
| Mobile app access port: | 8000 |
| Mobile phone access: | Port: 8000 or cloud access (P2P) Android: Free BCS Manager app iOS (iPhone): Free BCS Manager app |
| Motion detection: | Zoning: 22 x 18 detection fields |
| Network features: | Client program and IE browser: live viewing, playback and archiving of recordings, partial configuration of DVR parameters |
| Network interface: | 1 x RJ-45 - 10/100 Base-TX |
| Network protocols: | TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF |
| Operating modes: | 4 x HD-TVI / AHD / HD-CVI / CVBS / IP + 2 x IP |
| Pc app access ports: | 554 RTSP, 8000 |
| Port onvif: | 80 |
| Power: | 12 V DC / 1.5 A (power adapter included) |
| Producer / brand: | BCS View |
| Ptz rotary head control: | Control compatible with coax HD-TVI |
| Recorded image resolutions: | HD-TVI: 4M-N - 1280 x 1440, 3 Mpx - 1920 x 1536 - Channel 1 / 2, 1080p - 1920 x 1080, 1080N - 960 x 1080, 720p - 1280 x 720 AHD / HD-CVI: 4M-N - 1280 x 1440, 1080p - 1920 x 1080, 1080N - 960 x 1080, 720p - 1280 x 720 CVBS: 960H - 960 x 576, IP: max. 6 MP - 3072 x 2048 |
| Recording modes: | Manual, motion detection, scheduling |
| Rtsp url: | Main stream : rtsp://user:password o@192.168.1.64:554/Streaming/Channels/nrkanału01/ Auxiliary stream : rtsp://user:password o@192.168.1.64:554/Streaming/Channels/nrkanału02/ |
| Scales: | 0.51 kg |
| Search and play back recordings: | Search for recordings in the timeline or file list. Playback: forward, accelerate, slow down recording. Play simultaneously max. 8 cameras |
| Standard: | AHD, HD-CVI, HD-TVI, CVBS, TCP/IP |
| Supported hard drives: | 1 x 6 TB SATA |
| Supported languages: | Polish, English |
| Usb: | 2 pcs. USB 2.0 |
| Video inputs: | 4 pcs. BNC - AHD / HD-CVI / HD-TVI / CVBS |
| Video outputs: | 1 pc HDMI1 pcs. VGA |
| Warranty: | 3 years |
| Web access ports: | 80 |
| Write speed adjustment: | 6 Mpx IP @ 1 ... 25 fps4M-N @ 1 ... 15 fps Mpx @ 1 ... 15 fps @ 1080p @ 1 ... 15 fps @ 1080N @ 1 ... 25 fps @ 1 ... 25 fps @ 1 ... 25 fps @ 1 ... 25 fps per channel |

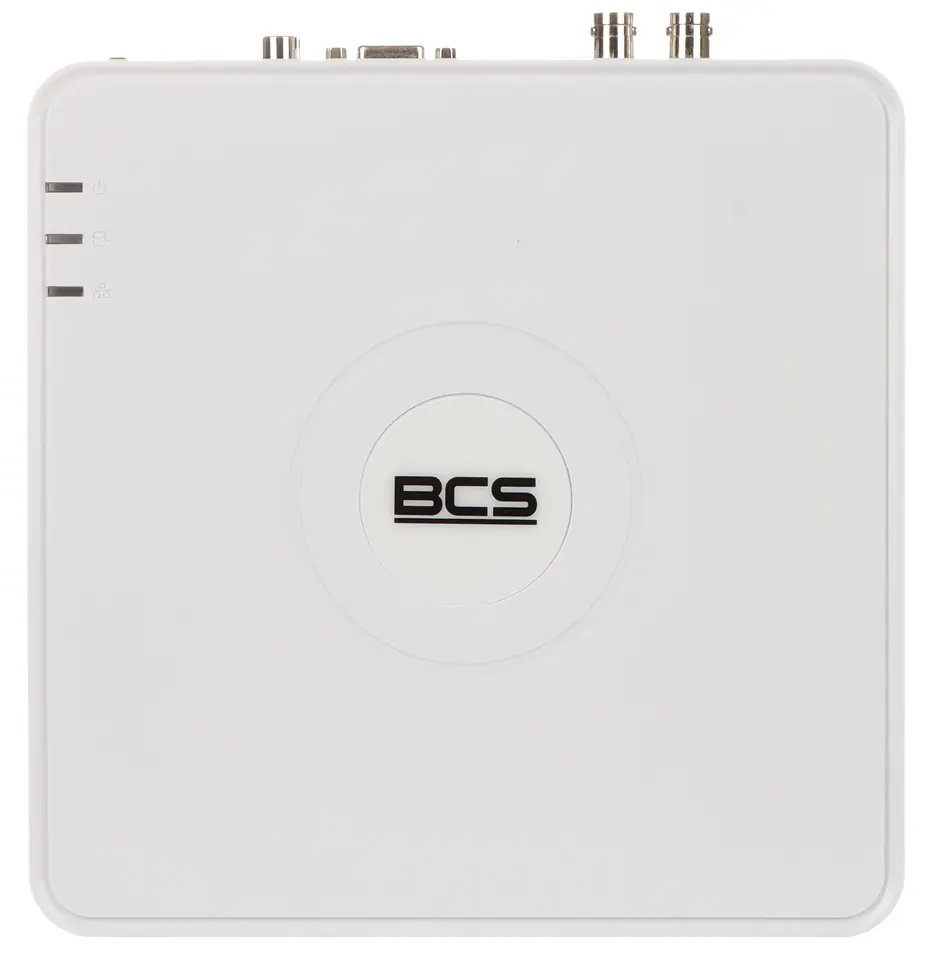

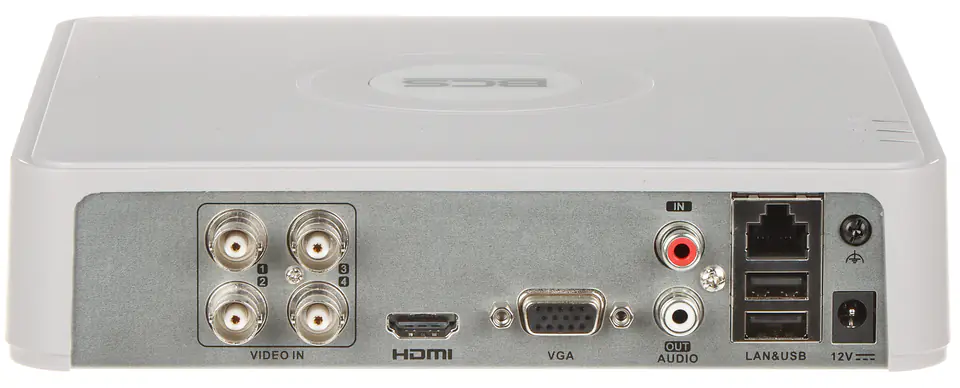

BCS-V-SXVR0401 digital recorder with AHD (Analog High Definition), HD-CVI (High Definition Composite Video Interface), HD-TVI (High Definition Transport Video Interface), TCP/IP and CVBS interfaces is a professional device used in monitoring systems
The menu has been designed in a way that makes it easier for everyone, even novice users, to navigate and make changes to the DVR settings
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
