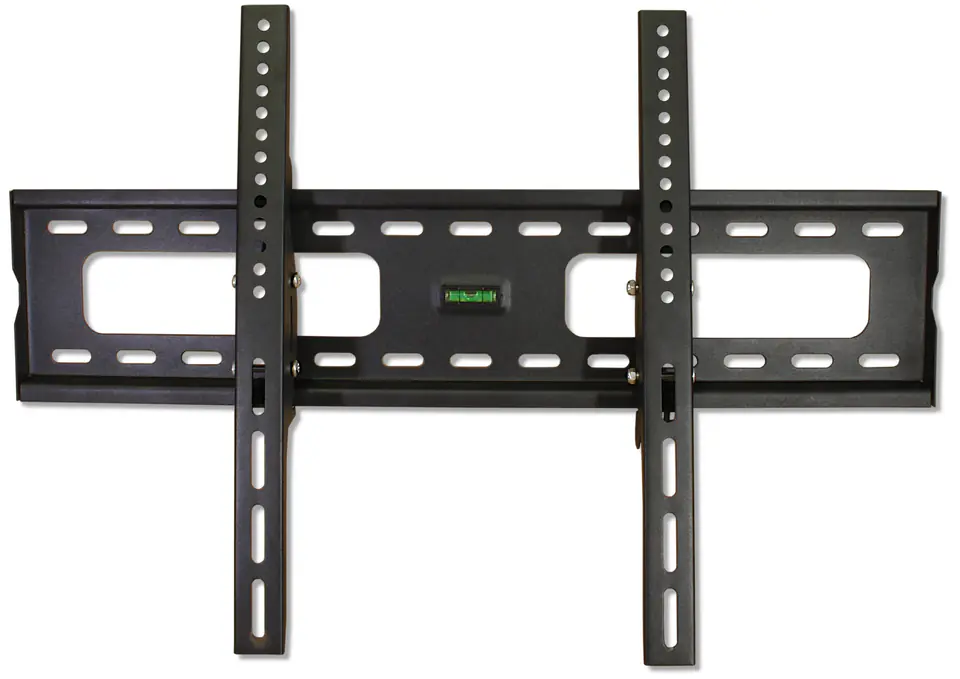

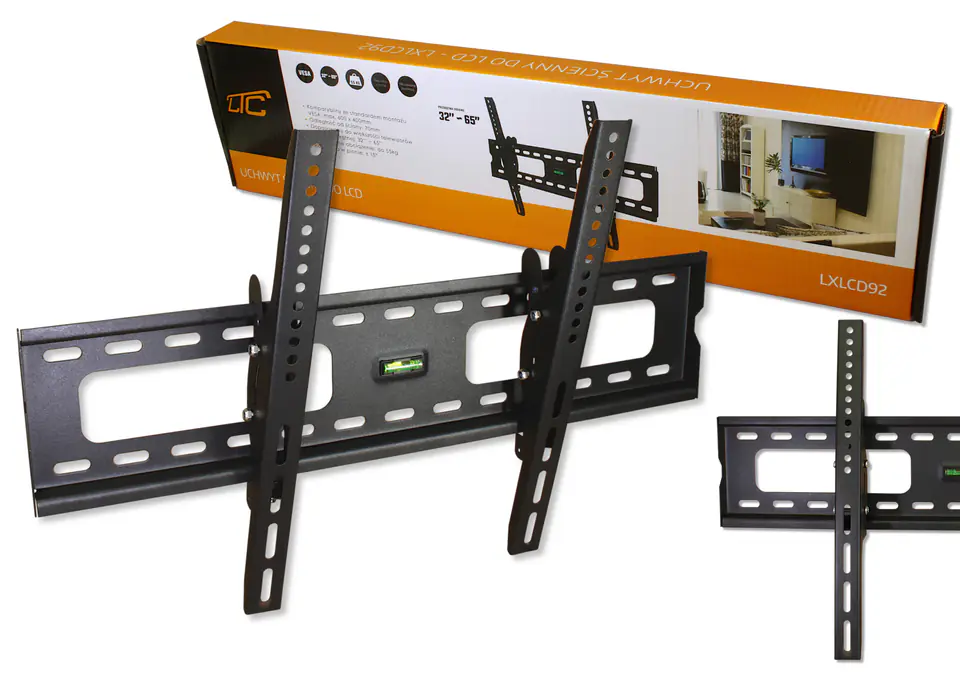

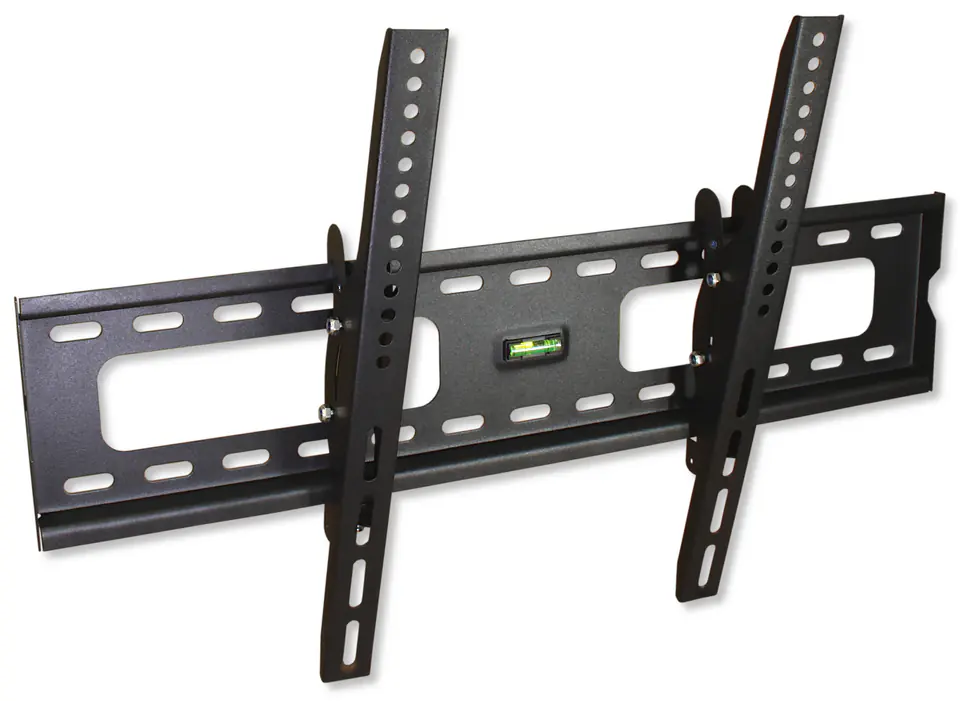

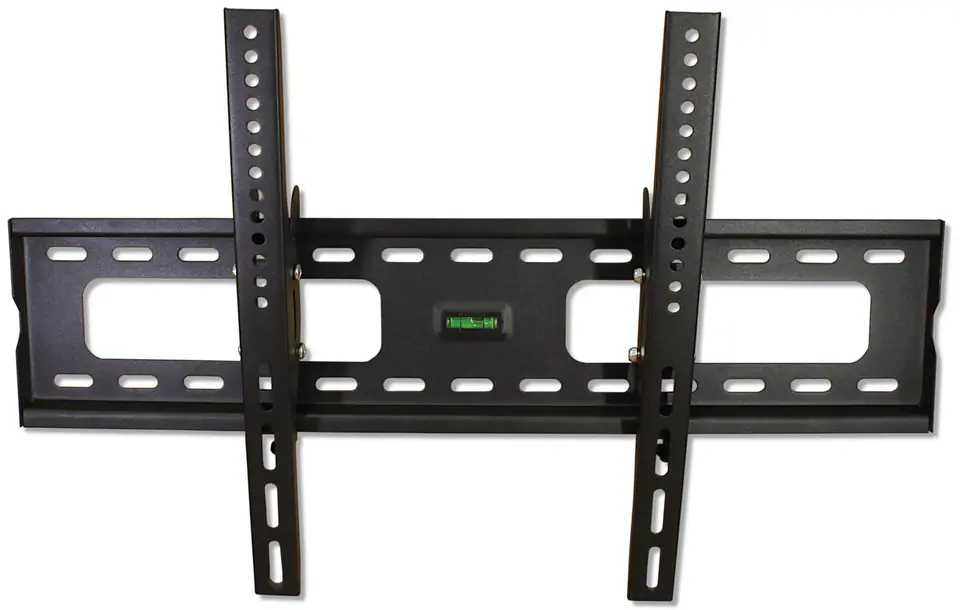

SOLID WALL MOUNT FOR TV FROM THE POLISH BRAND LTC
32 to 65 inches
This wall mount can be used for TVs larger than 65 inches without problems. However, such a TV must meet the following conditions:
- Maximum mounting hole spacing: VESA 600x400
- Minimum mounting hole spacing: VESA 75x75
- TV WEIGHT: UP TO 55KG
FULLY ADJUSTABLE
- Adjustable angle of +15° / -15° (up / down) degrees, which is able to meet the requirements of even the most demanding users.
TECHNICAL SPECIFICATIONS:
- Suitable for TVs: 32 to 65 inches
- Maximum load: up to 55 kg
- Distance from wall: 70 mm
- Vertical adjustment: + / - 15° (up / down)
- Movable arms: Yes
- Color: Black powder coated
- Built-in spirit level: Yes
- Mounting parts included: Yes
ASSEMBLY AESTHETICS
The flat design of the wall mount allows you to keep the distance of the TV from the wall to a minimum. The whole handle is only 70mm.
INCLUDED:
- Handle
- Installation instructions

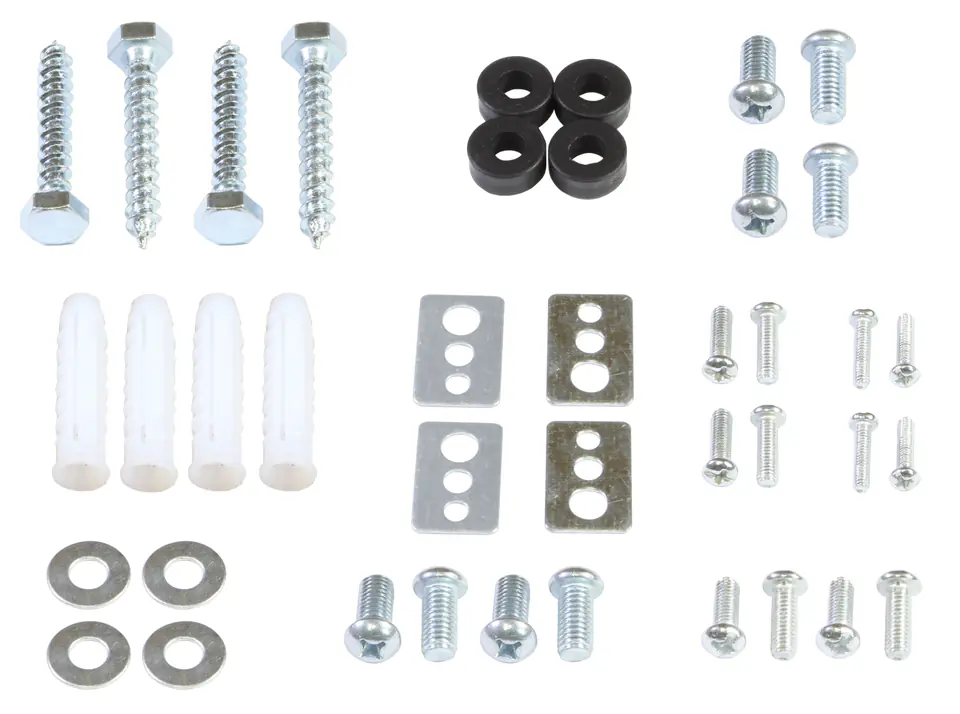

- A set of bolts and nuts needed for assembly
- (receipt / invoice)
- Warranty card
The mounting pins and screws included in the kit do not guarantee correct installation on all types of walls.
The person assembling the bracket is responsible for selecting the type, number and size of mounting pins and screws.
Poor selection of pins and screws for the type of wall and weight of the TV or their incorrect installation may lead to tearing the handle out of the wall, which will result in damage to the TV, wall, environment and poses a risk to human health and life.
STANDARD WITH VESA (mounting hole spacing):
- VESA 100x100 (horizontal 100mm x vertical 100mm)
- VESA 200x100 (horizontal 200mm x vertical 100mm)
- VESA 200x200 (horizontal 200mm x vertical 200mm)
- VESA 200x300 (horizontal 200mm x vertical 300mm)
- VESA 200x400 (horizontal 200mm x vertical 400mm)
- VESA 300x200 (horizontal 300mm x vertical 200mm)
- VESA 300x300 (horizontal 300mm x vertical 300mm)
- VESA 400x200 (horizontal 400mm x vertical 200mm)
- VESA 400x400 (horizontal 400mm x vertical 400mm)
- VESA 600x400 (horizontal 600mm x vertical 400mm)
- And all intermediate, e.g. horizontal 431 x vertical 378
