Manual reamer, adjustable
Design: right-handed, with interchangeable HSS blades, according to the factory standard, cylindrical shank with a quadrangular carrier. The uneven pitch between the blades ensures accurate holes, without notches. The reamer can be infinitely adjustable within a defined range. Adjustments shall be made by means of a check. Uncoated surface.
Application: designed in particular for repair work. Only for reaming through holes. Not suitable for blind holes due to the face screw. For steels with a strength of up to 500 N/mm2, e.g. for ordinary structural steels, steel materials with a strength of up to 900 N/mm2 such as free-cutting steels, heat conditioning steels, tool steels, cast iron and non-ferrous metals such as aluminium, brass, copper and bronze.
Adjustable reamer HSS, 11-12mm BECK
€103.94
Shipping from warehouse: B6
Estimated shipping: Mon, Oct 27 - Wed, Oct 29
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- BECK
- Product code:
- 30102347 / 4332163927082
Share this product:

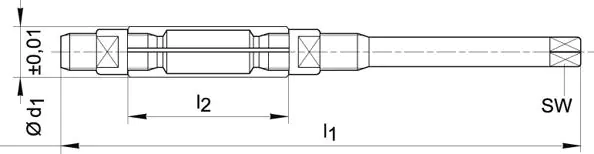

Specification
| Adjustment range ø: | 11.0 to 12.0 mm |
|---|---|
| Aluminium > 8% silicon: | Recommended |
| Cast iron gg/gts: | Recommended |
| Copper alloys: | Recommended |
| Cutting part length l2: | 35 mm |
| Ggg cast iron: | Recommended |
| Key size: | 4.9 mm |
| Number of blades: | 5 |
| Ø drill degrees mm: | 3 |
| Ø nominal d1: | 11.0 mm |
| Steel < 1000 n/mm2: | Recommended |
| Steel < 1400 n/mm2: | Acceptable |
| Steel < 700 n/mm2: | Recommended |
| Total length l1: | 125 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
