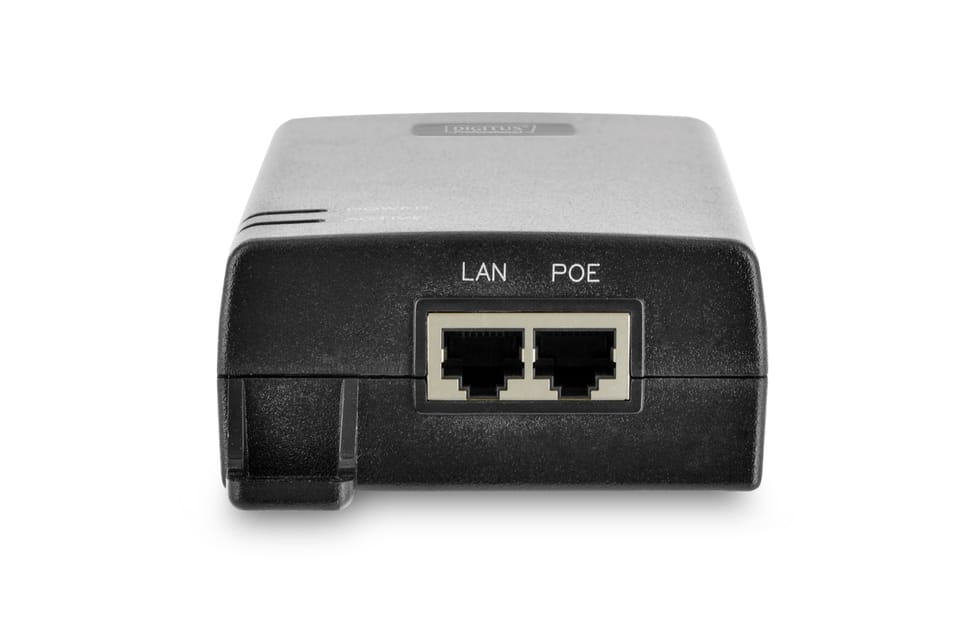

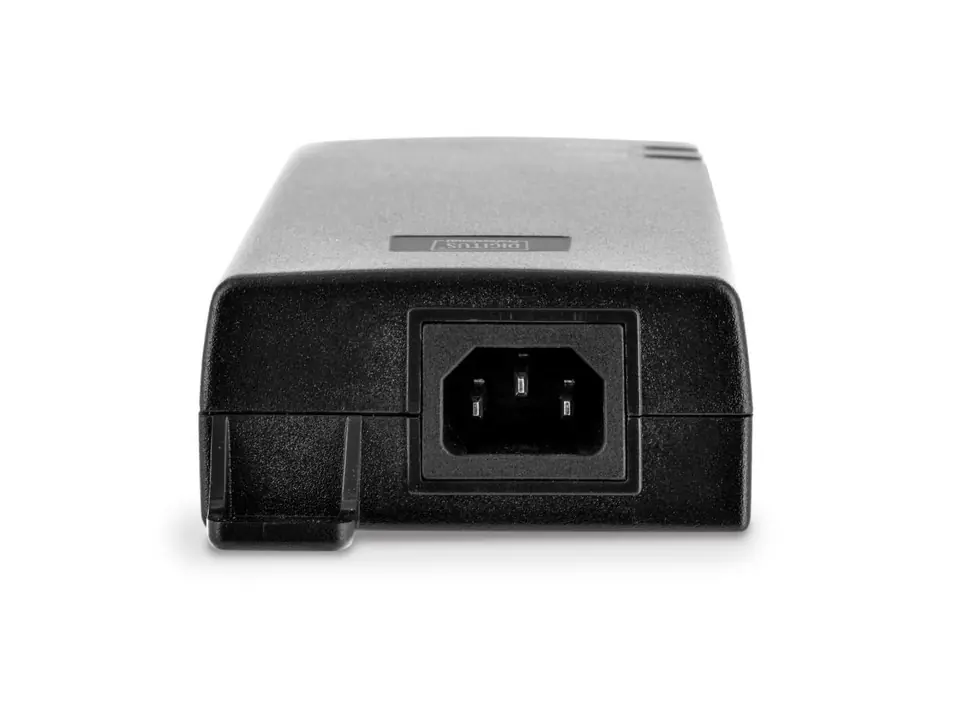

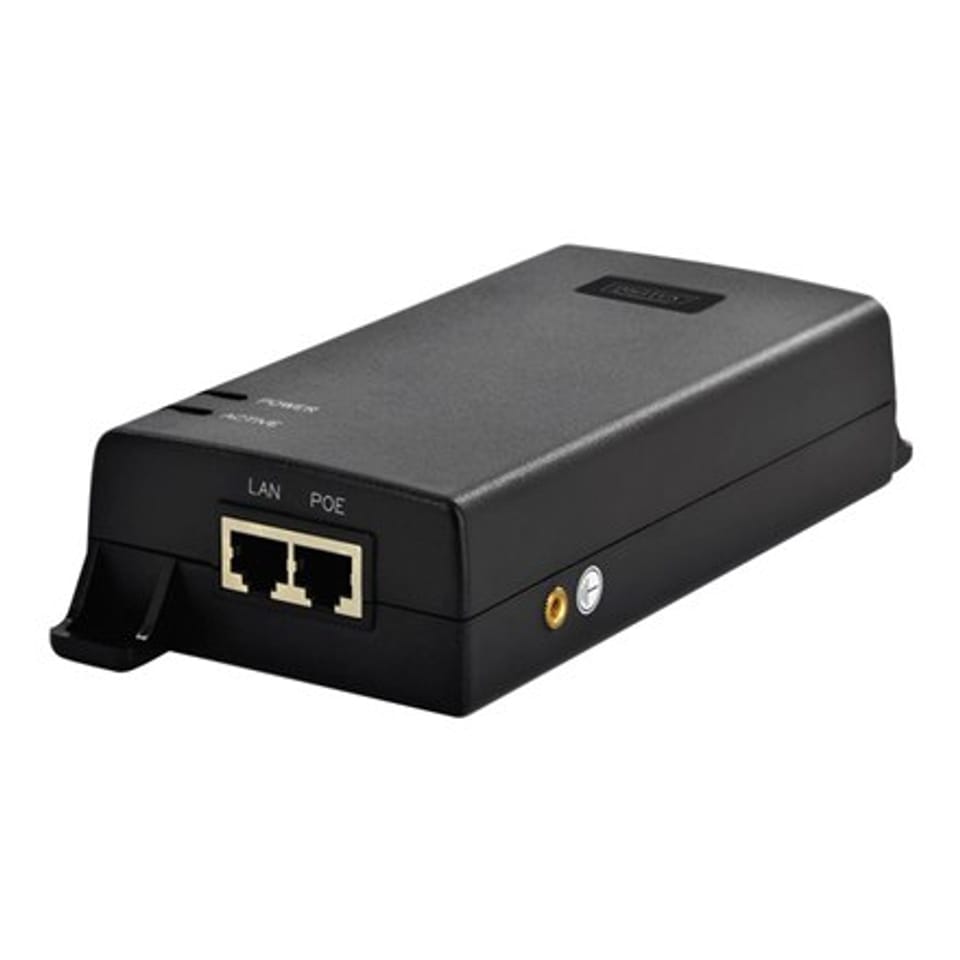

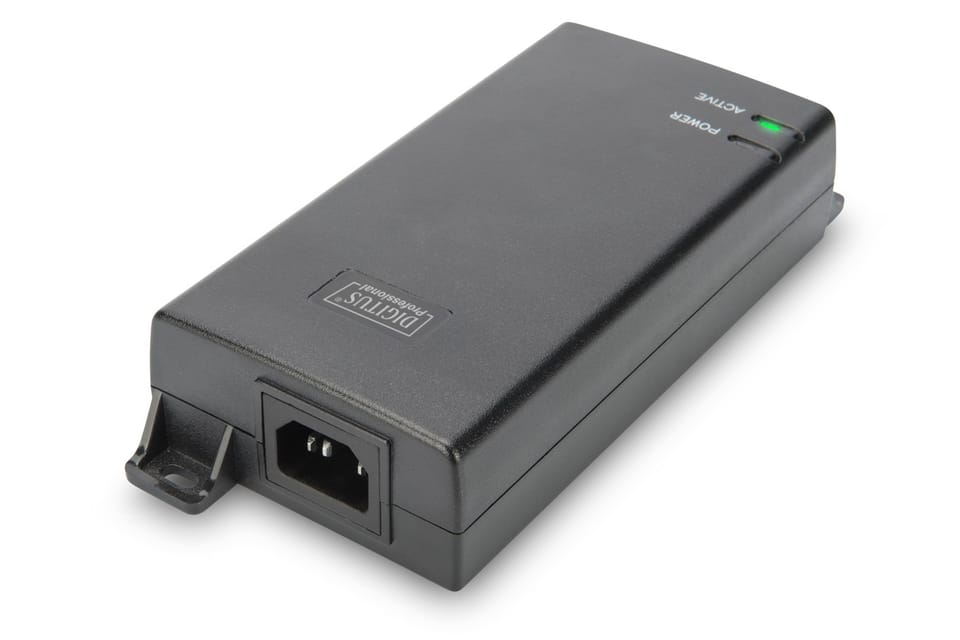

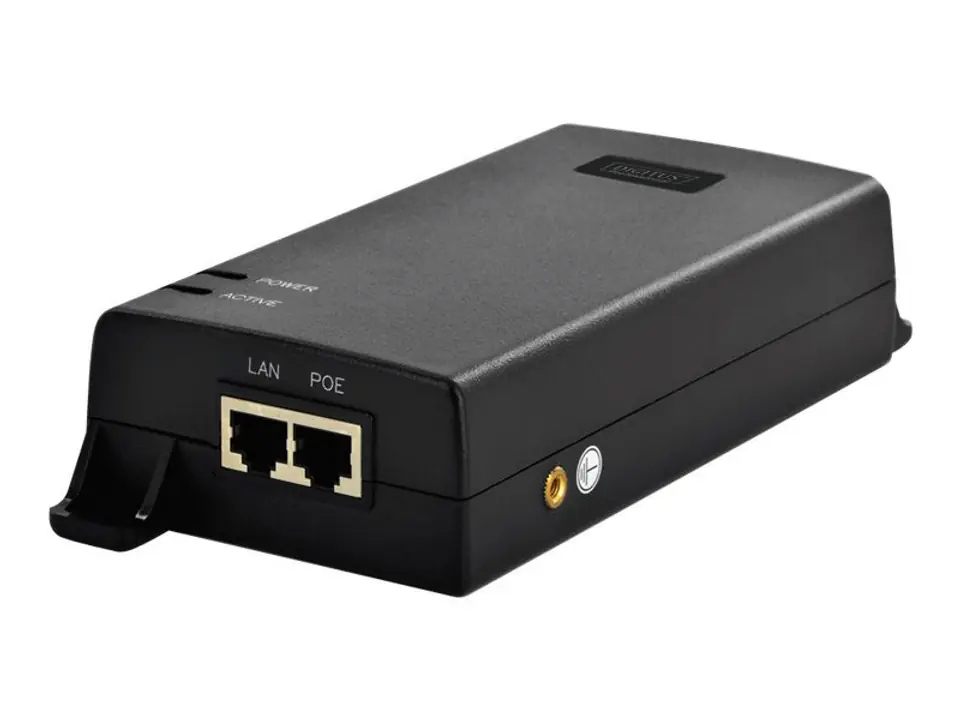

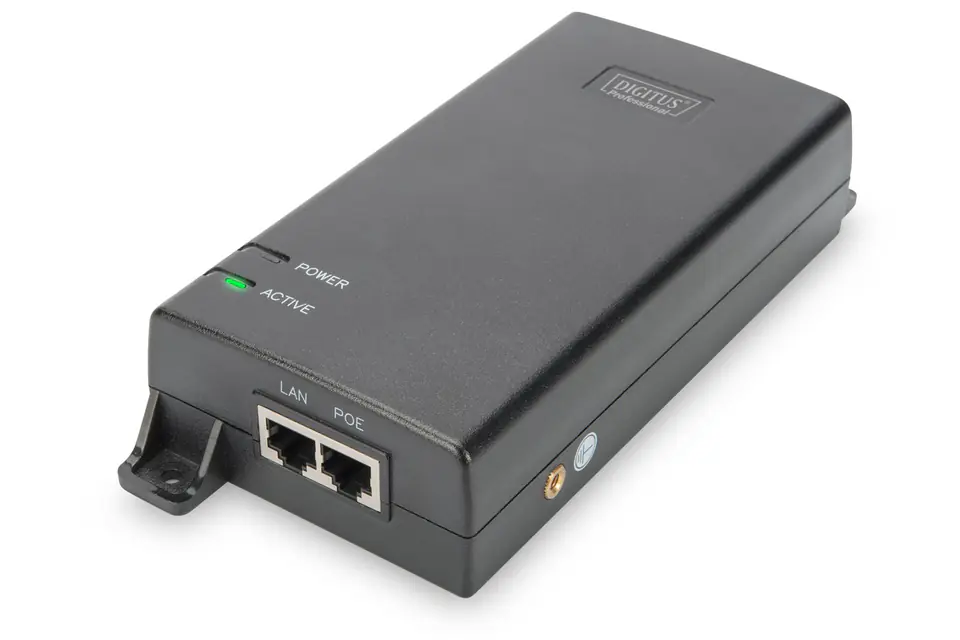

Power supply/PoE+ adapter 802.3at, max. 48V 60W Gigabit 10/100/1000Mbps, active

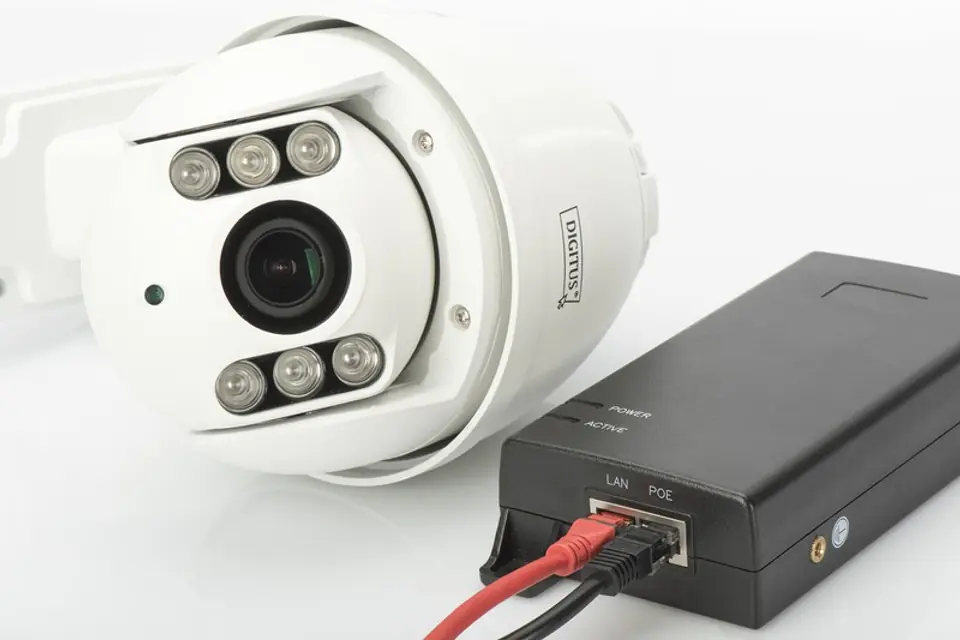

The power supply is used to supply voltage via a twisted pair cable directly to devices that support the PoE+ standard, eg IP cameras, access points, IP telephones.

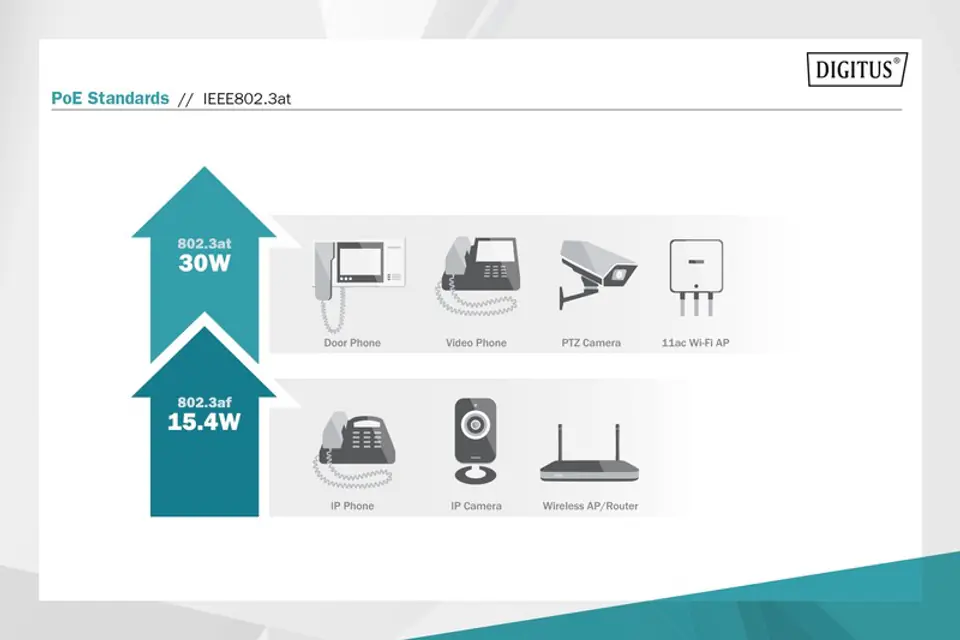

- Compatibility with 802.3at Ultra PoE+ and 802.3af PoE standards
- Simple connection of the power cable and data cable in one cable
- Supports all PoE devices (eg access points, VoIP phones and IP cameras) compatible with IEEE 802.3af
- The transmission range is up to 100 m and with an additional PoE extension cable up to 400 m
- Own consumption: 1.6 W max.
- Own consumption (full load): 10 W max.

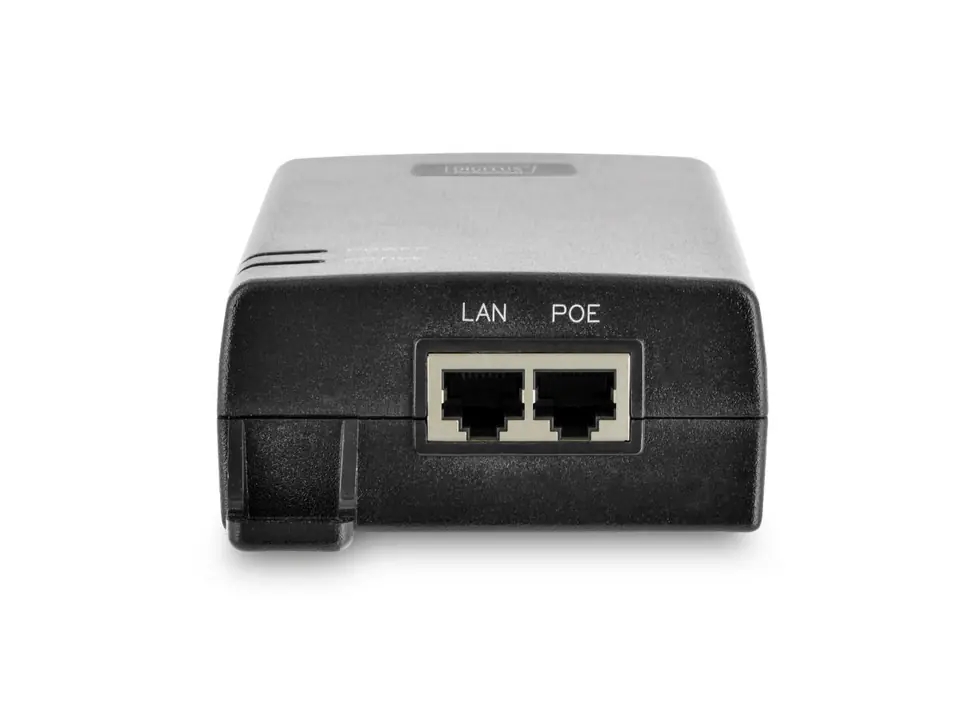

- Input: 1 x RJ-45 (data)
- Output: 1 x RJ-45 (current and data)
- Data output: 100/100/1000 Mbit/s Gigabit
- Output power: 60 watts
- Output voltage: 55 V DC
- Working temperature range: -10°C to +45°C
Active PoE + Injector 802.3af 60W Gigabit
PLN 188.13
Shipping from warehouse: A3
Estimated shipping: Mon, Nov 3 - Thu, Nov 6
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Product code:
- DN-95104 / 4016032375944
Share this product:
Specification
| Country of origin: | China |
|---|---|
| Dc-in jack: | Yes |
| Dimensions (wxdxh): | 193 x 85 x 41 mm |
| Ethernet interface type: | Gigabit Ethernet |
| Ethernet lan (rj-45) ports: | 2 |
| Ethernet lan data rates: | 10, 1000 Mbit/s, 100 |
| Harmonized system (hs) code: | 85044095 |
| Led indicators: | Yes |
| Maximum operating distance: | 400 m |
| Networking standards: | IEEE 802.3at |
| Number of products included: | 1 pc(s) |
| Operating temperature (t-t): | -10 - 45 °C |
| Output power: | 60 W |
| Package depth: | 210 mm |
| Package volume: | 1470 cm³ |
| Package weight: | 602.5 g |
| Package width: | 140 mm |
| Power consumption (max): | 10 W |
| Power over ethernet (poe): | Yes |
| Power over ethernet (poe) voltage: | 55 V |
| Product colour: | Black |
| Total power over ethernet (poe) budget: | 60 W |
| Uk trade tariff code: | 85176200 |
| Weight: | 380 g |
