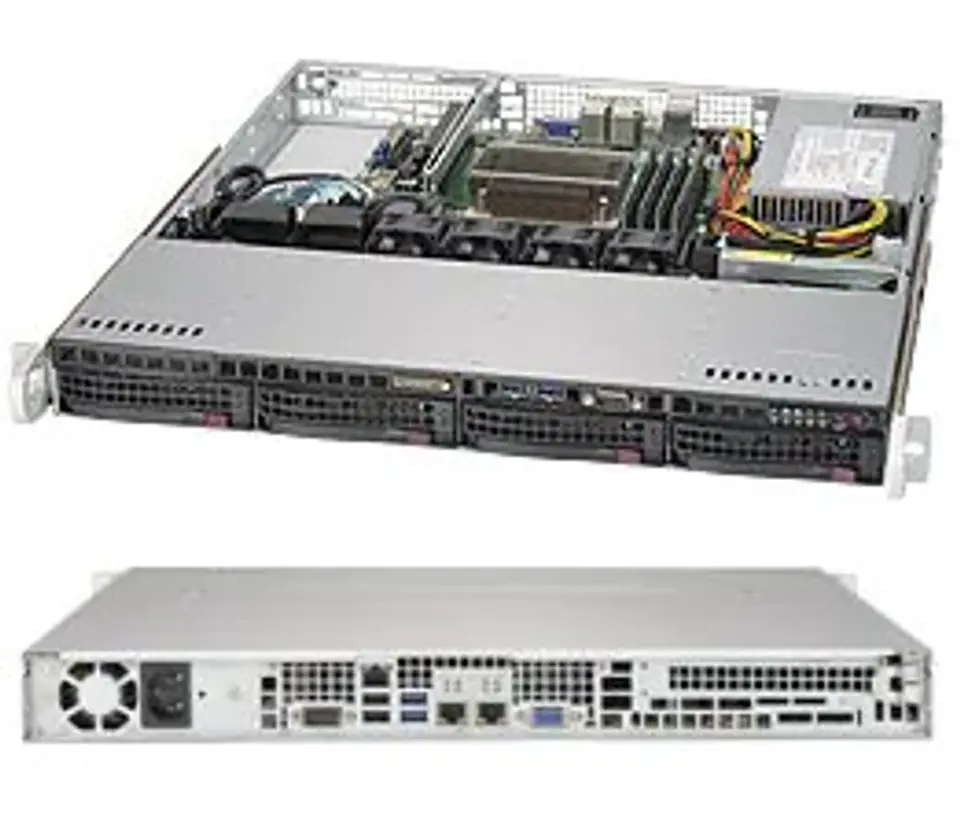

Actina 5901443345312 server 960 GB Rack (1U) Intel Xeon E E-2356G 3.2 GHz 16 GB DDR4-SDRAM 350 W
This product is not available
- Availability:
- expected delivery
- Brand:
- Action
- Product code:
- SRWAAARAC0029 / 5901443345312
Share this product:
Specification
| Cabling technology: | 10/100/1000Base-T(X) |
|---|---|
| Chassis type: | Rack (1U) |
| Depth: | 503 mm |
| Ethernet interface type: | Gigabit Ethernet |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 2 |
| Height: | 43 mm |
| Hot-swap: | Yes |
| Internal memory: | 16 GB |
| Internal memory type: | DDR4-SDRAM |
| Lan controller: | Intel I210 |
| Maximum internal memory: | 128 GB |
| Maximum storage capacity: | 960 TB |
| Memory layout (slots x size): | 2 x 8 GB |
| Memory slots: | 4x DIMM |
| Motherboard chipset: | Intel C252 |
| Motherboard form factor: | micro ATX |
| Number of 5.25" bays: | 1 |
| Number of lan controllers: | 1 |
| Number of main power supplies: | 1 |
| Number of processors installed: | 1 |
| Number of ssds installed: | 2 |
| On-board graphics card: | Yes |
| On-board graphics card family: | Intel® UHD Graphics |
| On-board graphics card model: | Intel UHD Graphics P750 |
| Operating relative humidity (h-h): | 10 - 85% |
| Operating system installed: | No |
| Operating temperature (t-t): | 0 - 50 °C |
| Optical drive type: | No |
| Pci express x16 (gen 4.x) slots: | 1 |
| Pci express x4 (gen 3.x) slots: | 1 |
| Pci express x8 (gen 4.x) slots: | 2 |
| Power cable length: | 2 m |
| Power cables quantity: | 1 |
| Power supply: | 350 W |
| Power supply input frequency: | 50-60 Hz |
| Power supply input voltage: | 100-240 V |
| Processor boost frequency: | 5 GHz |
| Processor cache: | 12 MB |
| Processor cores: | 6 |
| Processor family: | Intel Xeon E |
| Processor frequency: | 3.2 GHz |
| Processor manufacturer: | Intel |
| Processor model: | E-2356G |
| Rack mounting: | Yes |
| Rack rails: | Yes |
| Raid levels: | 10, 0, 1, 5 |
| Raid support: | Yes |
| Redundant power supply (rps) support: | No |
| S/pdif out port: | No |
| Serial ports quantity: | 1 |
| Ssd capacity: | 480 GB |
| Ssd interface: | SATA III |
| Ssd size: | 2.5" |
| Storage relative humidity (h-h): | 10 - 95% |
| Storage temperature (t-t): | -20 - 60 °C |
| Supported ssd sizes: | 2.5" |
| Total number of sata connectors: | 6 |
| Total storage capacity: | 960 GB |
| Usb 2.0 ports quantity: | 2 |
| Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity: | 3 |
| Vga (d-sub) ports quantity: | 1 |
| Wi-fi: | No |
| Width: | 437 mm |
