| Antenna type: | MIMO TDMA13 dBi Integrated |
|---|---|
| Dimensions: | 179 x 78 x 59 mm |
| Frequency range: | 5150 MHz ... 5875 MHz2412 MHz ... 2472 MHz |
| Lan ports: | 1 x 10/100/1000 Mbps |
| Main beam width in horizontal plane (h): | 45 ° |
| Main beam width in vertical plane (v): | 45 ° |
| Memory: | 64 MB DDR2 |
| Operating modes: | Access Point - Point to Point, Access Point - Point to Multi Point, Station - Point to Point, Station - Point to Multi Point |
| Operating system: | AirOS |
| Operating temperature: | -40 °C ... 70 °C |
| Permissible relative ambient humidity: | 5 % ... 95 % |
| Polarity: | vertical/horizontal |
| Power: | 24 V / 0.5 A - Gigabit PoE (no power adapter included) |
| Power consumption: | 7 watts |
| Processor: | Atheros MIPS 74KC, 560MHz |
| Producer / brand: | Ubiquiti |
| Receiver sensitivity: | -96 dBm ± 2 dB @ 1 x BPSK (1/2) -95 dBm ± 2 dB @ 2 x QPSK (1/2) -92 dBm ± 2 dB @ 2 x QPSK (3/4) -90 dBm ± 2 dB @ 4 x 16-QAM (1/2) -86 dBm ± 2 dB @ 4 x 16-QAM (3/4) -83 dBm ± 2 dB @ 6 x 64-QAM (2/3) -77 dBm ± 2 dB @ 6 x 64-QAM (3/4) -74 dBm ± 2 dB @ 6 x 64-QAM (5/6) -69 dBm ± 2 dB @ 8 x 256-QAM (3/4) -65 dBm ± 2 dB @ 8 x 256-QAM (5/6) |
| Scales: | 0.177 kg |
| Security: | 24 kV Contact/Air (ESD/EMP) surge protector ± |
| Selected features: | Performance up to 450 Mbps Range up to 10+ km Channel width 10/20/30/40/50/60/80 MHz Additional radio module for device management The device can work both indoors and outdoors Very simple and quick assembly without tools It has a tight and UV-resistant housing |
| Standards: | IEEE 802.11a IEEE 802.11n IEEE 802.11ac |
| Transmitter power: | 25 dBm ± 2 dB @ 1 x 8PSK (1/2) 25 dBm ± 2 dB @ 2 x Mbps QPSK (1/2) 25 dBm ± 2 dB @ 2 x QPSK (3/4) 25 dBm ± 2 dB @ 4 x 16-QAM (1/2) 25 dBm ± 2 dB @ 4 x 16-QAM (3/4) 25 dBm ± 2 dB @ 6 x 64-QAM (2/3) 24 dBm ± 2 dB @ 6 x 64-QAM (3/4) 23 dBm ± 2 dB @ 6 x 64-QAM (5/6) 21 dBm ± 2 dB @ 8 x 256-QAM (3/4) 21 dBm ± 2 dB @ 8 x 256-QAM (5/6) |
| Vswr: | .max. 1.8 : 1 |
| Warranty: | 2 years |

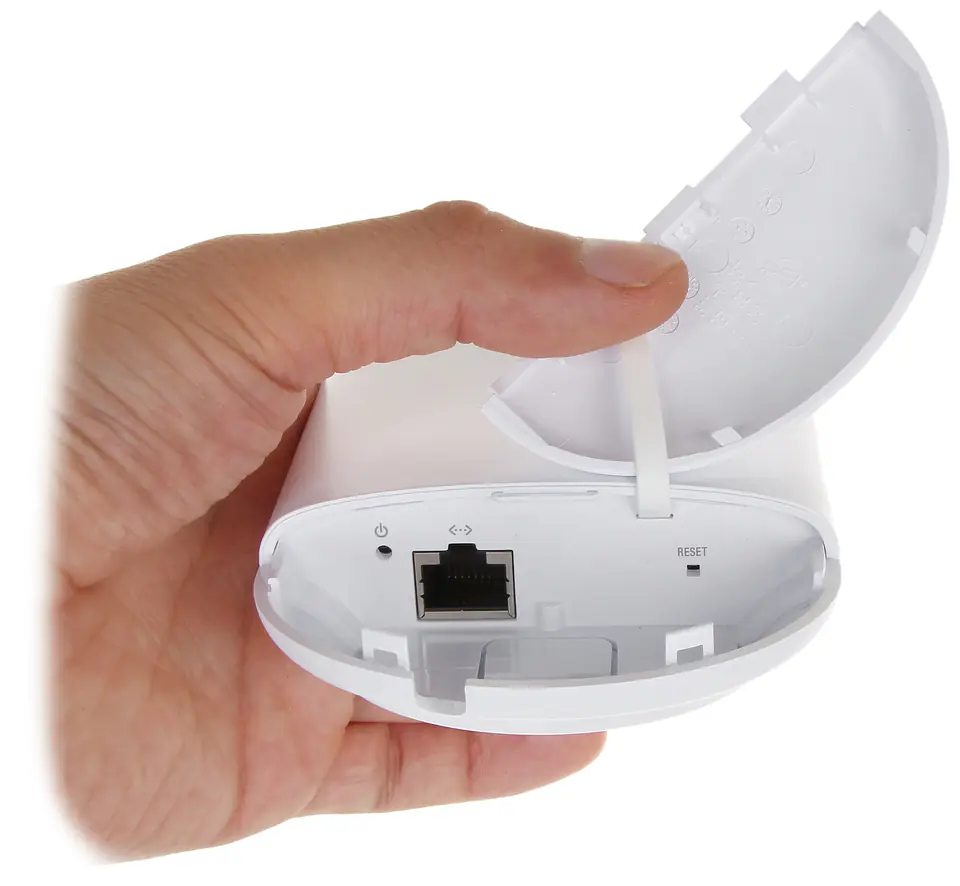

UBIQUITI NanoStation NS-5ACL is a device operating in the airMAX ac (MIMO TDMA) standard
The radio module with antenna with 13dBi gain are integrated in one compact housingThe device is a very efficient client ending (CPE)
airMAX ac products support true TCP/IP throughput of up to 450 Mbps – tripling the bandwidth of standard airMAX products
