| Antenna type:: | 2Tx 2Rx MIMO11 dBi Integrated |
|---|---|
| Dimensions:: | 278 x 80 x 59 mm |
| Frequency range:: | 2412 MHz ... 2462 MHz |
| Lan ports:: | 2 x 10/100 Mbps BASE-TX (Cat. 5, RJ-45) |
| Manufacturer / brand:: | UBIQUITI |
| Memory:: | 32 MB SDRAM, 8 MB FLASH |
| Operating modes:: | Station, Station WDS, Access Point, Access Point WDS |
| Operating system:: | AirOS |
| Operating temperature:: | -30 °C ... 75 °C |
| Permissible relative humidity:: | 5 % ... 95 % |
| Polarity:: | vertical/horizontal |

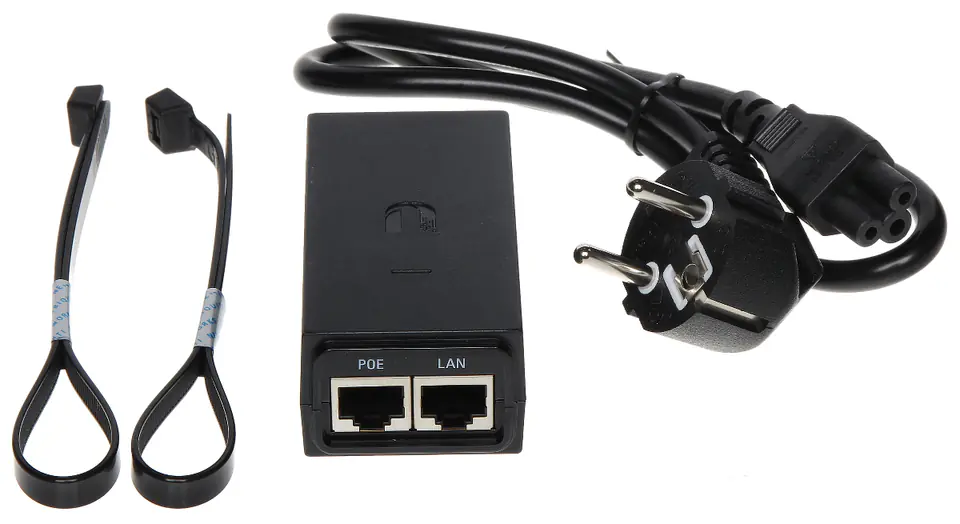

| Power:: | 24 V / 0.5 A (power supply included) |
| Processor:: | Atheros MIPS 24KC, 400MHz |
| Receiver sensitivity:: | -83 dBm @ 1 ... 24 Mbps -80 dBm @ 36 Mbps -77 dBm @ 48 Mbps -75 dBm @ 54 Mbps |
| Scales:: | 0.4 kg |
| Security:: | 15kV surge protectors for radio path |
| Standards:: | IEEE 802.11b IEEE 802.11g IEEE 802.11n |
| Transmitter power:: | 28 dBm @ 1 ... 24 Mbps 26 dBm @ 36 Mbps 25 dBm @ 48 Mbps 24 dBm @ 54 Mbps |

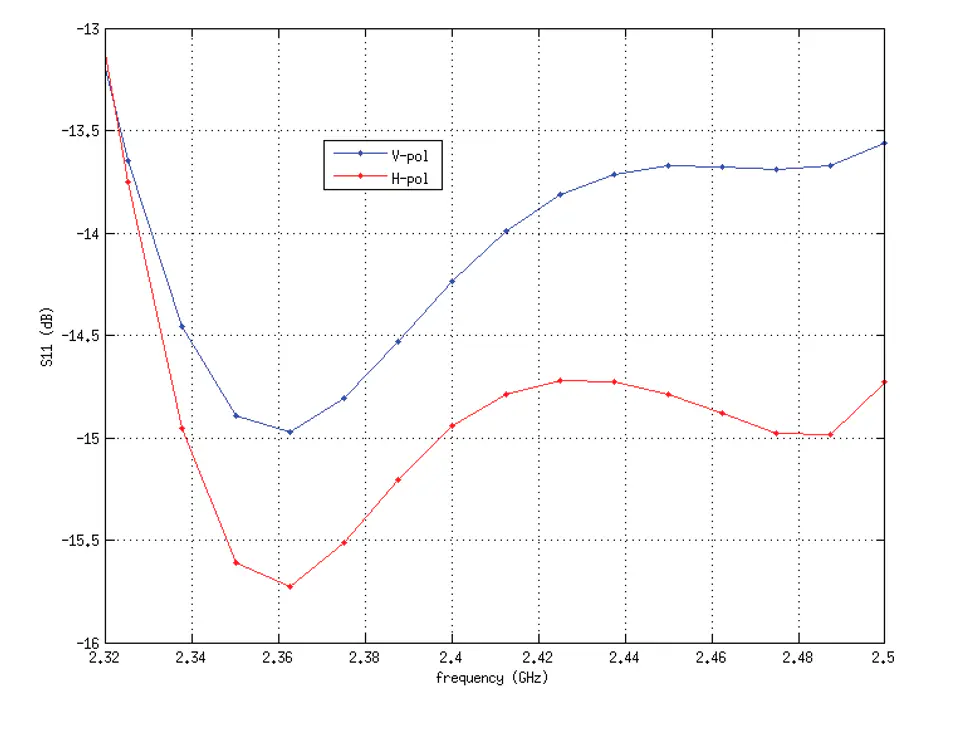

| Vswr:: | 1.6 : 1 |
| Warranty:: | 2 years |

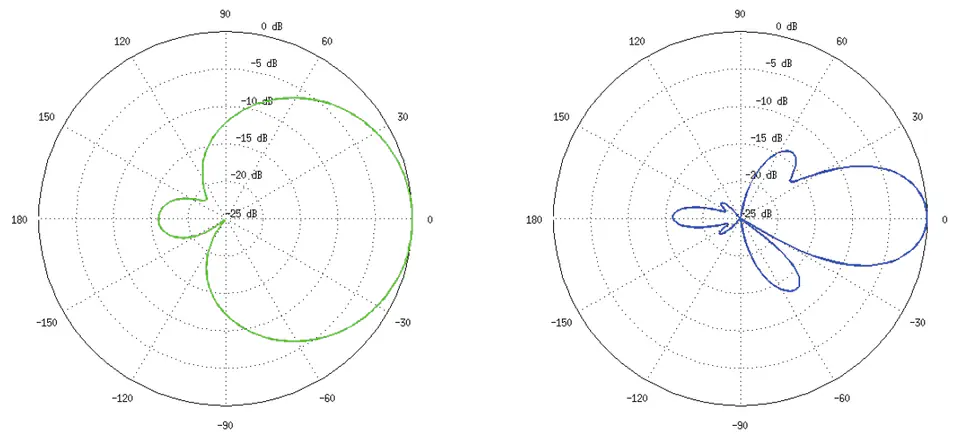

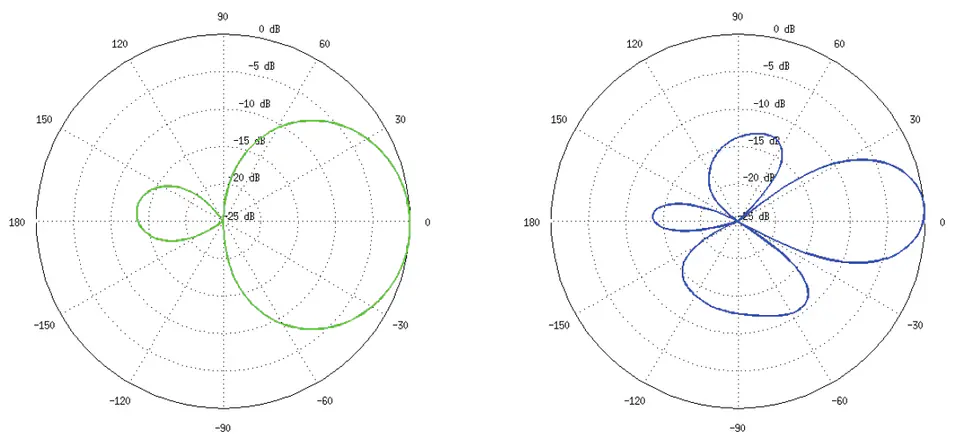

| Width of the main beam in the horizontal plane (h):: | 55 ° |
| Width of the main beam in the vertical plane (v):: | 53 ° |
UBIQUITI NanoStation NANOSTATION-M2 is a device operating in the 2x2 MIMO (Multiple Input Multiple Output) standard
The use of a two-polarization antenna with an energy gain of 11dBi and work in the MIMO standard allow for the compilation of more efficient links

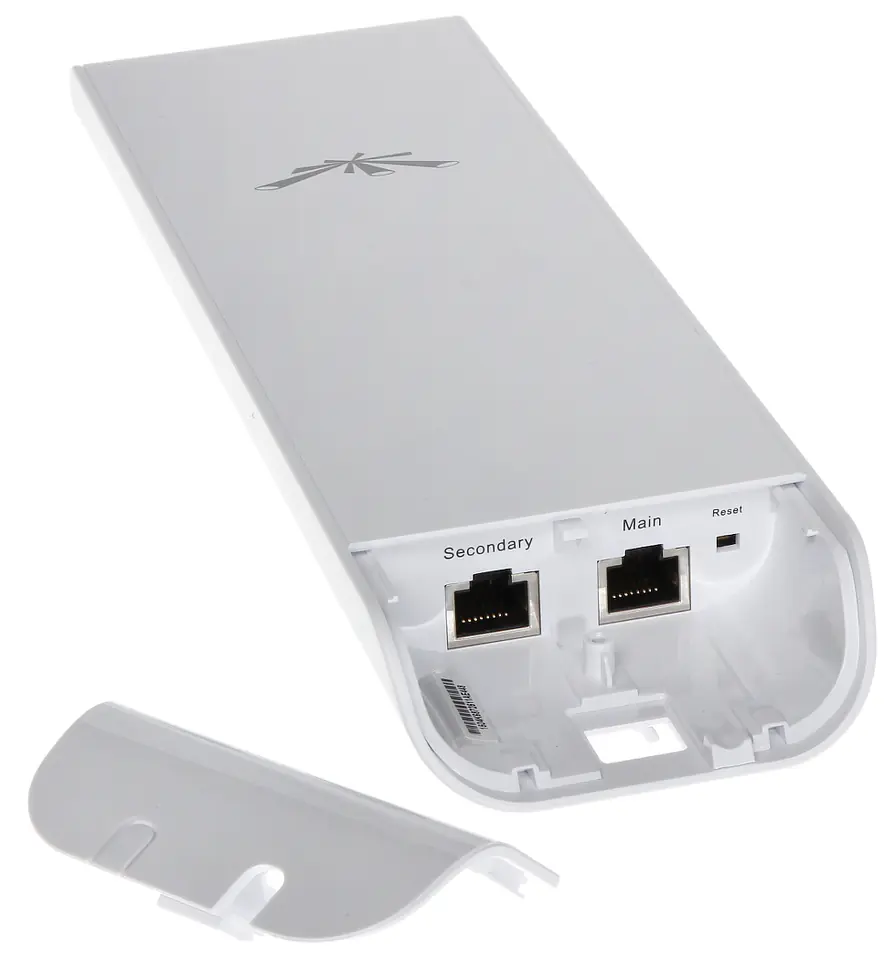

NANOSTATION-M2 is additionally equipped with 2 LAN ports, one of which offers a PoE Output function, while the other allows you to provide access to the network to another device without the use of additional switches.
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
