| Antenna type: | 2Tx 2Rx MIMO13 dBi Integrated |
|---|---|
| Dimensions: | 179 x 80 x 60 mm |
| Frequency range: | 5470 MHz ... 5825 MHz |
| Lan ports: | 1 x 10/100 Mbps |

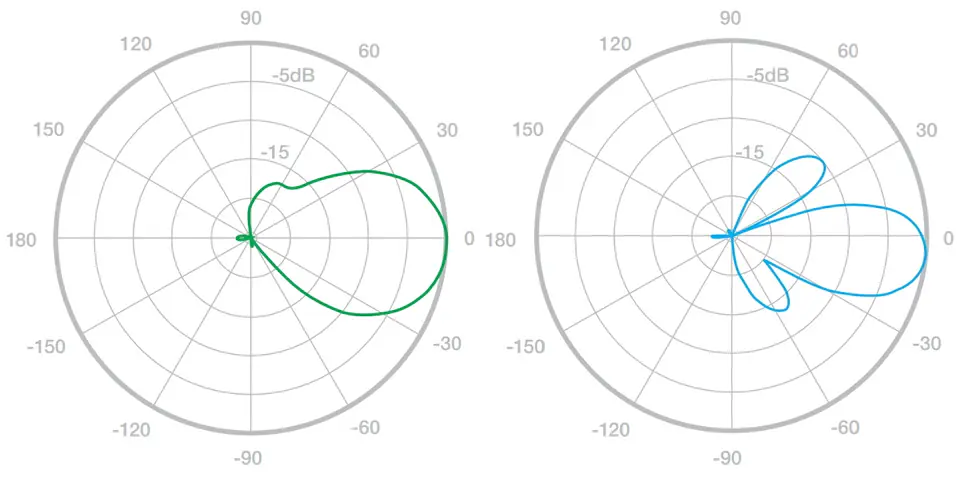

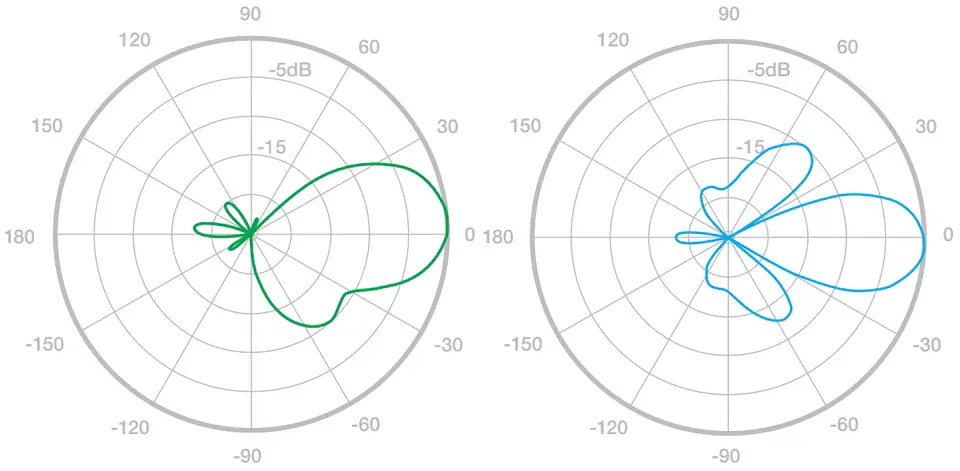

| Main beam width in horizontal plane (h): | 45 ° |
| Main beam width in vertical plane (v): | 45 ° |
| Memory: | 32 MB SDRAM, 8 MB FLASH |
| Operating modes: | Station, Station WDS, Access Point, AccessPoint WDS |
| Operating system: | AirOS |
| Operating temperature: | -30 °C ... 80 °C |
| Permissible relative ambient humidity: | / 5 % ... 95 % |
| Polarity: | vertical/horizontal |
| Power: | 24 volts / 0.5 amps |
| Processor: | Atheros MIPS 24KC, 400MHz |
| Producer / brand: | Ubiquiti |
| Receiver sensitivity: | -83 dBm @ 6 ... 24 Mbps -80 dBm @ 36 Mbps -77 dBm @ 48 Mbps -75 dBm @ 54 Mbps |
| Scales: | 0.190 kg |
| Security: | 15kV overvoltage protection for radio path |
| Standards: | IEEE 802.11a IEEE 802.11n |
| Transmitter power: | 23 dBm @ 6 ... 24 Mbps 21 dBm @ 36 Mbps 19 dBm @ 48 Mbps 18 dBm @ 54 Mbps |
| Vswr: | 1.4 : 1 |
| Warranty: | 2 years |
UBIQUITI NanoStation LOCO-M5 is a device operating in the 2x2 MIMO (Multiple Input Multiple Output) standard
The use of a new dual-polarization antenna with 13dBi gain, and operation in the MIMO standard allow to set up more efficient links (up to 150 Mbps) over distances up to 15 km
