UBIQUITI NanoStation LOCO-M2 is a device operating in 2x2 MIMO (Multiple Input Multiple Output) standard
The use of a dual-polarization antenna with 8dBi gain and MIMO standard operation allow for more efficient links
Antenna type: | 2Tx 2Rx MIMO8 dBi Integrated |
---|---|
Dimensions: | 179 x 80 x 60 mm |
Frequency range: | 2412 MHz ... 2462 MHz |
Lan ports: | 1 x 10/100 Mbps |

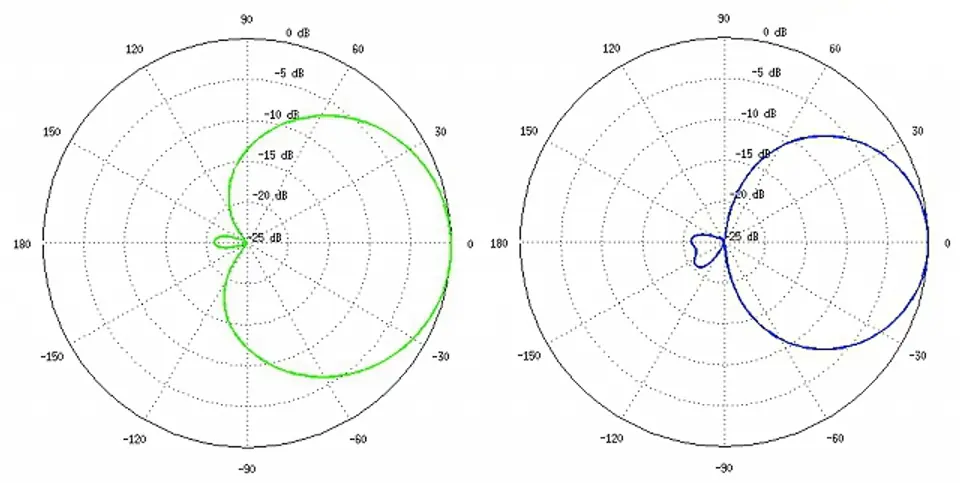

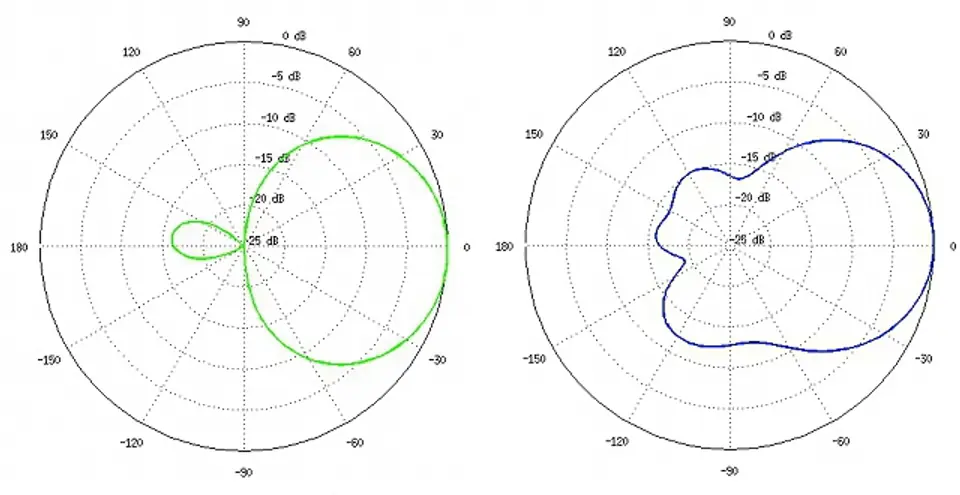

Main beam width in horizontal plane (h): | 60 ° |
Main beam width in vertical plane (v): | 60 ° |
Memory: | 32 MB SDRAM, 8 MB FLASH |
Operating modes: | Station, Station WDS, Access Point, AccessPoint WDS |
Operating system: | AirOS |
Operating temperature: | -30 °C ... 80 °C |
Permissible relative ambient humidity: | 5 % ... 95 % |
Polarity: | vertical/horizontal |

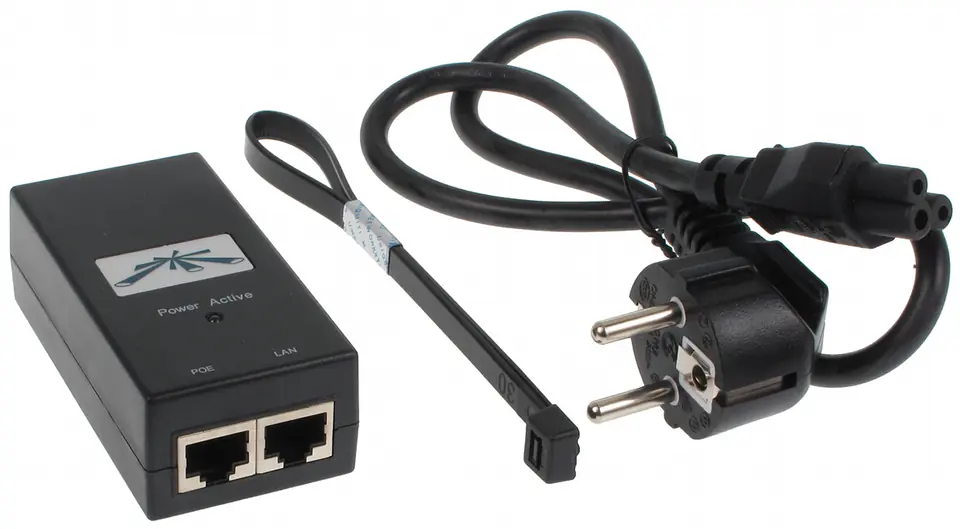

Power: | 24 volts / 0.5 amps |
Processor: | Atheros MIPS 24KC, 400MHz |
Producer / brand: | Ubiquiti |
Receiver sensitivity: | -83 dBm @ 1 ... 24 Mbps -80 dBm @ 36 Mbps -77 dBm @ 48 Mbps -75 dBm @ 54 Mbps |
Scales: | 0.190 kg |
Security: | 15kV overvoltage protection for radio path |
Standards: | IEEE 802.11b IEEE 802.11g IEEE 802.11n |
Transmitter power: | 23 dBm @ 1 ... 24 Mbps 21 dBm @ 36 Mbps 19 dBm @ 48 Mbps 18 dBm @ 54 Mbps |
Vswr: | 1.4 : 1 |
Warranty: | 2 years |
UBIQUITI NanoStation LOCO-M2 is a device operating in 2x2 MIMO (Multiple Input Multiple Output) standard
The use of a dual-polarization antenna with 8dBi gain and MIMO standard operation allow for more efficient links
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
