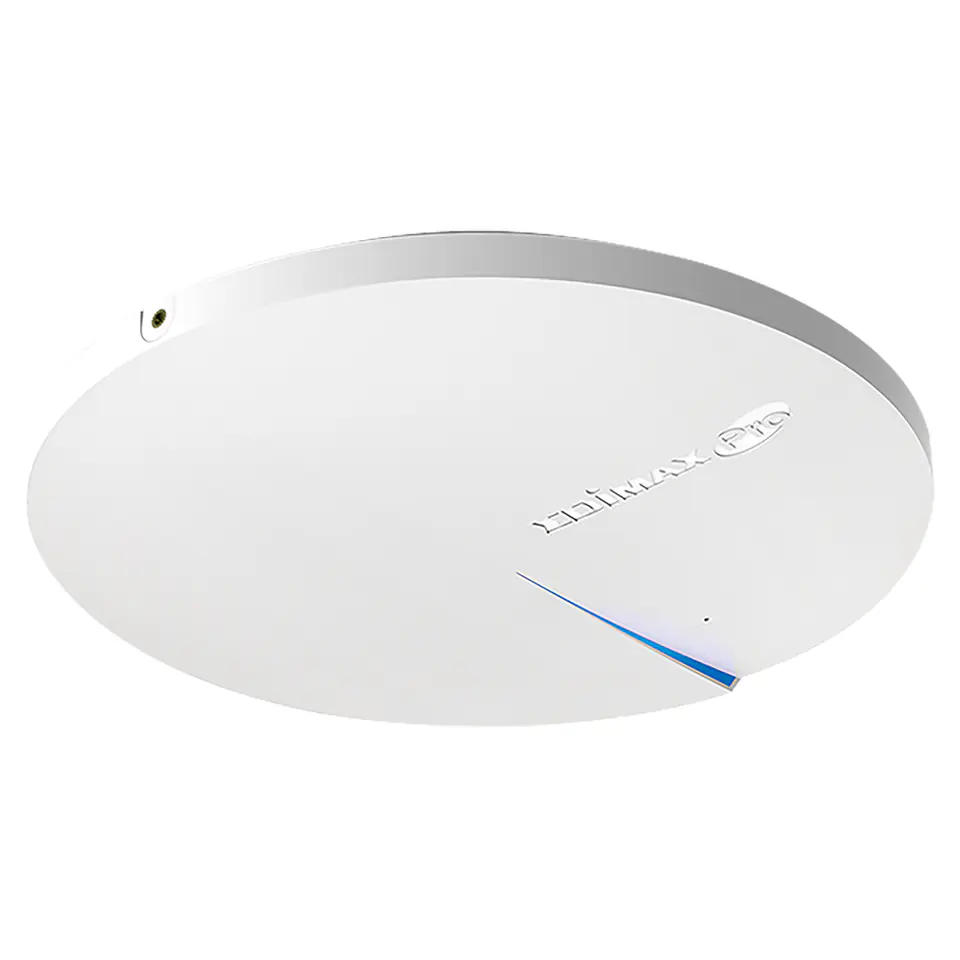

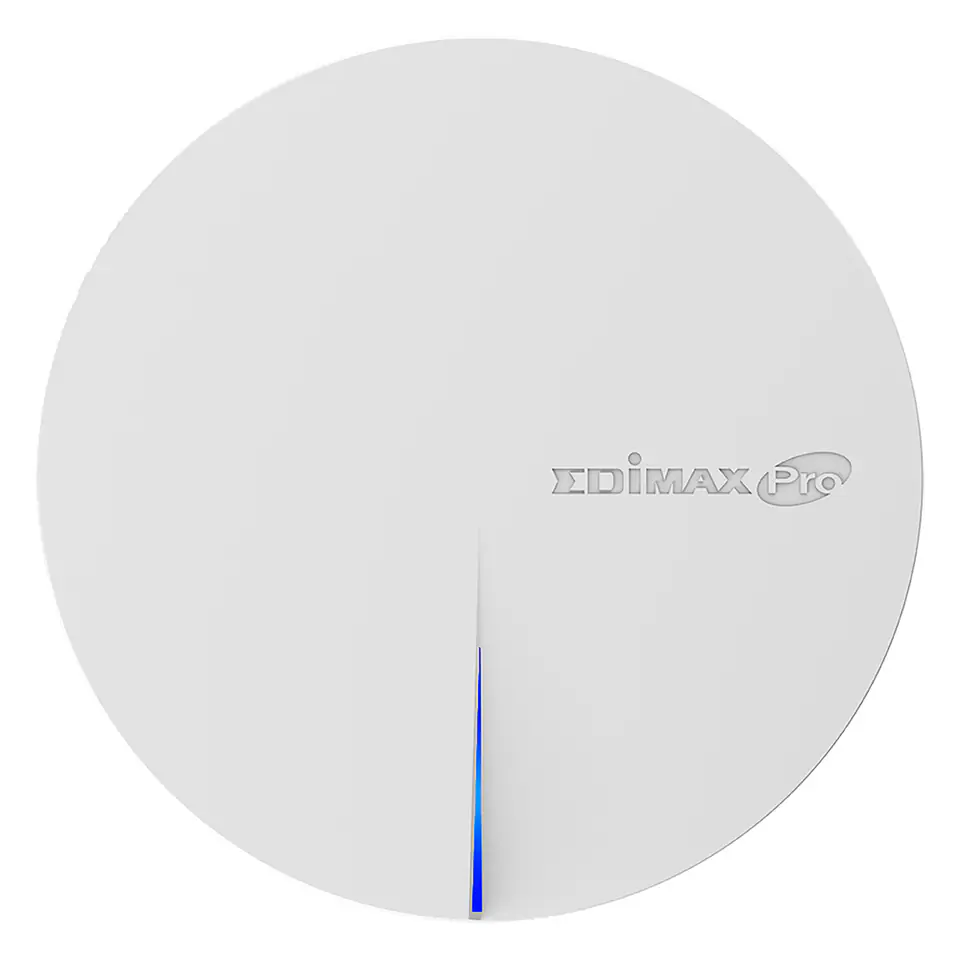

Access Point EDIMAX CAP1750 (3 x 3 AC1750 Dual-Band Ceiling-Mount PoE)
€179.36
Shipping from warehouse: M7
Estimated shipping: Mon, May 20 - Tue, May 21
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Edimax
- Product code:
- CAP1750 / 4717964701015
Share this product:
Specification
| 2.4 ghz: | 2.4 GHz |
|---|---|
| 5 ghz: | Y |
| Additional connectors: | 1x USB 2.0 |
| Antenna: | 6x internal |
| Antenna features: | Integrated antenna |
| Antenna gain level (max): | 4.38 dBi |
| Antenna type: | Internal |
| Automatic channel selection: | Y |
| Bandwidth: | 2.4 GHz |
| Cables: | DC |
| Cables included: | DC |
| Channels quantity: | 2 channels |
| Communication standards: | IEEE 802.3at, IEEE 802.11a, IEEE 802.11g, IEEE 802.11b, IEEE 802.11n, IEEE 802.11ac |
| Configuration and management: | CLI (command line), HTTP, HTTPS, SNMP v1, SNMP v2c, SNMP v3, SSH, Telnet |
| Depth: | 208 mm |
| Depth (mm): | 20.8 |
| Destiny: | Ceiling |
| Encryption / security: | WEP, WPA, WPS, SSID, WPA2 |
| Energy gain (dbi): | 4.38 dBi (2.4GHz), 5.34 dBi (5GHz) |
| Equipment: | Statement |
| Ethernet lan data rates: | 1000 Mbit/s, 10, 100 |
| Ethernet lan data transfer speed: | 100 Mbit/s, 1000 Mbit/s, 10 Mbit/s |
| Harmonized system (hs) code: | 85176990 |
| Height: | 315 mm |
| Height (mm): | 3.15 |
| Housing material: | Plastic |
| Input current: | 12 A |
| Internal: | Internal |
| Leds: | Power |
| Mac address filtering: | Y |
| Maximum data transfer rate: | 1750 Mbit/s |
| Network ports: | 1x 10/100/1000 |
| Networking standards: | IEEE 802.11g, IEEE 802.11n, IEEE 802.11b, IEEE 802.3at, IEEE 802.11a, IEEE 802.11ac |
| Number of antennas: | 6 |
| Number of channels: | 2 can. |
| Number of ssid supported: | 16 |
| Number of ssid supports: | 16 |
| Operating humidity range (%): | Up to 90 |
| Operating modes: | Access Point Client, WDS Bridge, Access Point, Range Extender |
| Operating relative humidity (h-h): | 0 - 90% |
| Operating temperature (t-t): | 0 - 50 °C |
| Operating temperature range (deg. c): | 0 to 50 |
| Other parameters: | Power consumption: 15 W |
| Output: | 2 A |
| Output current: | 2 A |
| Placement: | Ceiling |
| Poe support: | Yes |
| Power: | Power |
| Power consumption: | 15 watts |
| Power consumption (max): | 19.2 W |
| Power consumption (typical): | 15 W |
| Power over ethernet (poe): | Y |
| Product colour: | White |
| Product depth: | 208 mm |
| Product height: | 315 mm |
| Product weight: | 565 g |
| Quality of service (qos) support: | Y |
| Receiver sensitivity: | ≤-93dBm |
| Relative humidity range: | 0 - 90% |
| Security algorithms: | WEP, WPS, WPA2, WPA, SSID |
| Security measures applied: | WEP, WPA, WPA2 |
| Supported network standards: | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Temperature range (operation): | 0 - 50 °C |
| Transmitter power: | 23 dBm |
| Usb 2.0 ports quantity: | 1 |
| Vlan support: | Y |
| Warranty: | 2 years |
| Weight: | 565 g |
| Weight (g): | 565 |
| Width (mm): | 3.15 |
| Wireless isolation: | Y |
| Wireless isolation: | Yes |
