| .max. 12000 - number of identifiers: | Number of users: |
|---|---|
| 0.14 kg: | Scales: |
| 1: | Number of supported transitions: |
| 10 % ... 95 % (non-condensing): | Permissible relative ambient humidity: |
| 100: | Number of permissions per ID: |
| 12 v / 7 ah: | Battery compatibility: |
| 16 pcs.: | MCT reader support: |
| 17 ... 22 volts ac 10 ... 15 volts dc 22 ... 26 vdc: | Power: |
| 175 x 72 x 30 mm: | Dimensions: |
| 2: | Number of automation nodes: |
| 3 years: | Warranty: |
| 4: | Number of access terminals: |
| 4 pcs. - wiegand / prt: | Reader connections: |
| 5 °c ... 40 °c: | Operating temperature: |
| 8: | Output: |
| 8 - proximity card, pin, fingerprint, etc.: | Number of media per ID: |
| Buffer of 8,000,000 events: | Buffer memory: |
| Control of automation from the level of system terminals presentation of alarm surveillance statuses on terminals control of the surveillance status of alarm system zones hardware integration with the alarm and fire protection system multifunctional parametric inputs including double wiring weekly access schedules multi-year exception calendars operation integrated in viso ex: | Selected features: |
| Ethernet - rj-45 socket rs-485 interface racs 5 v2 ex (roger): | Communication: |
| Roger: | Manufacturer / Brand: |

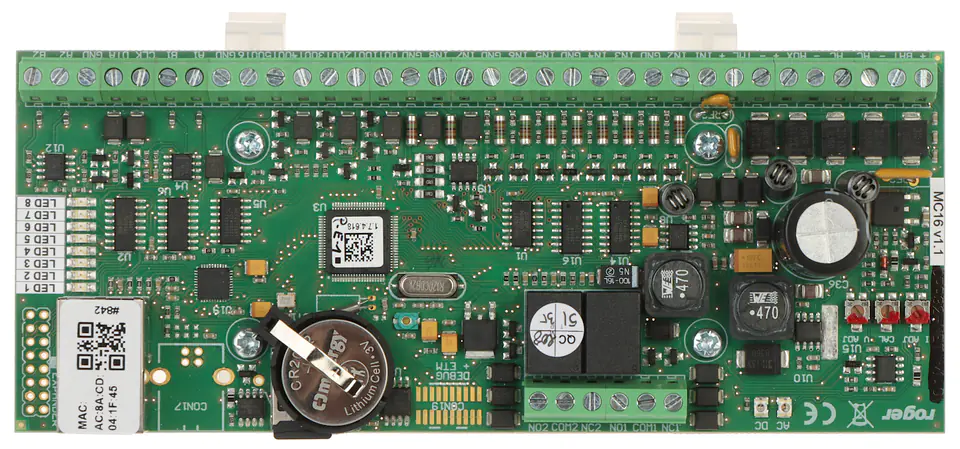

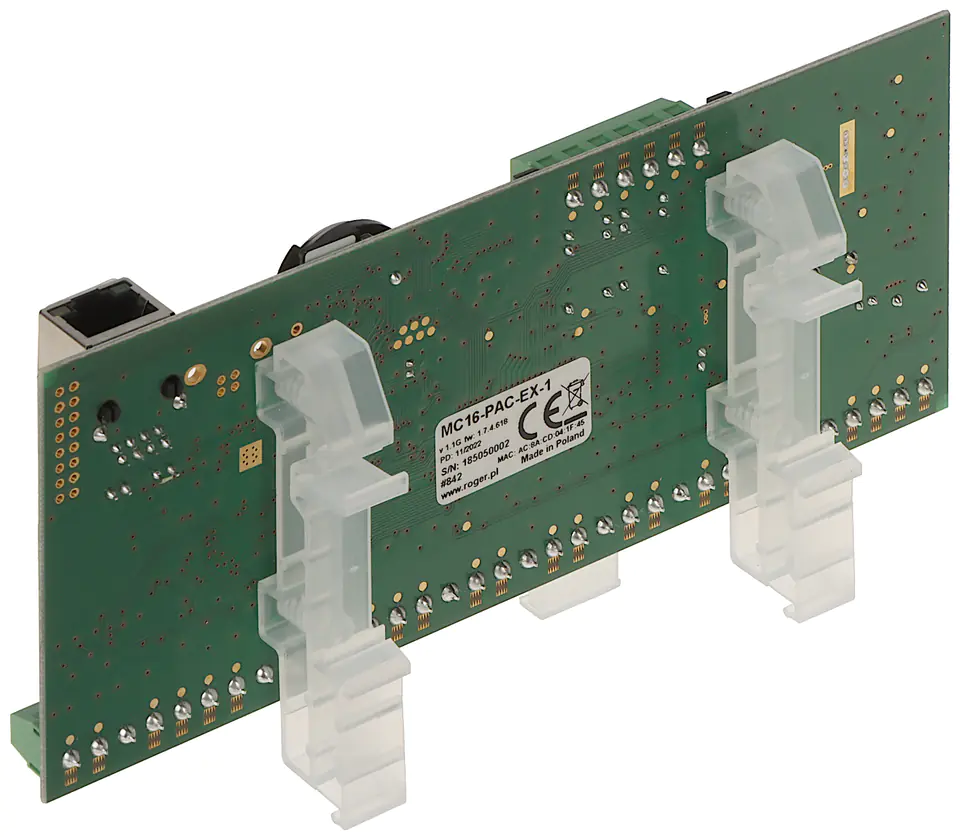

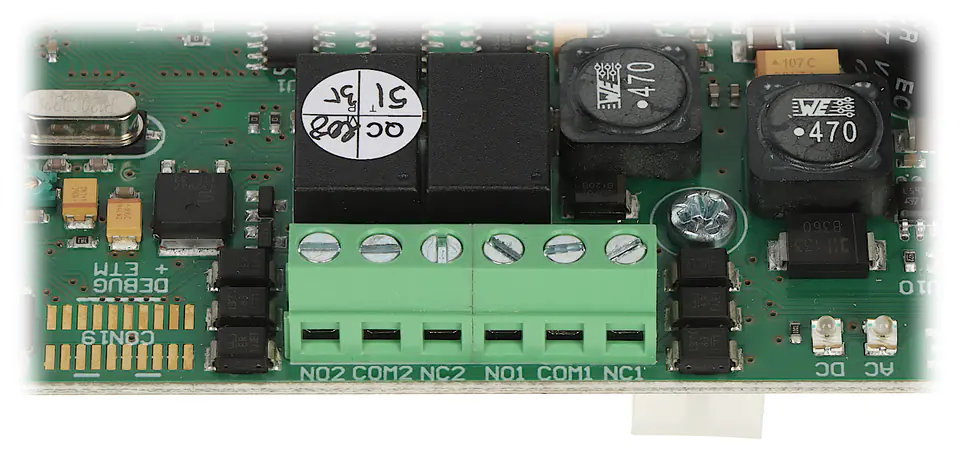

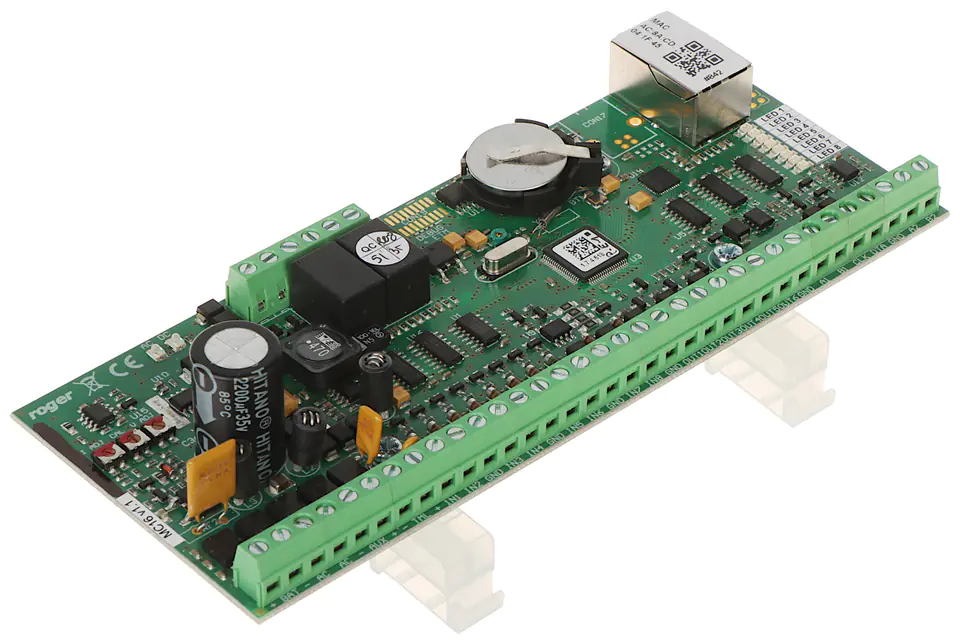

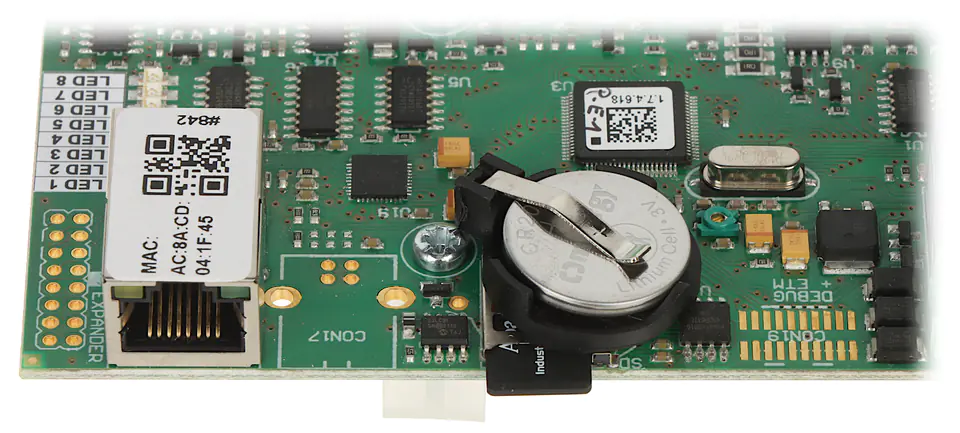

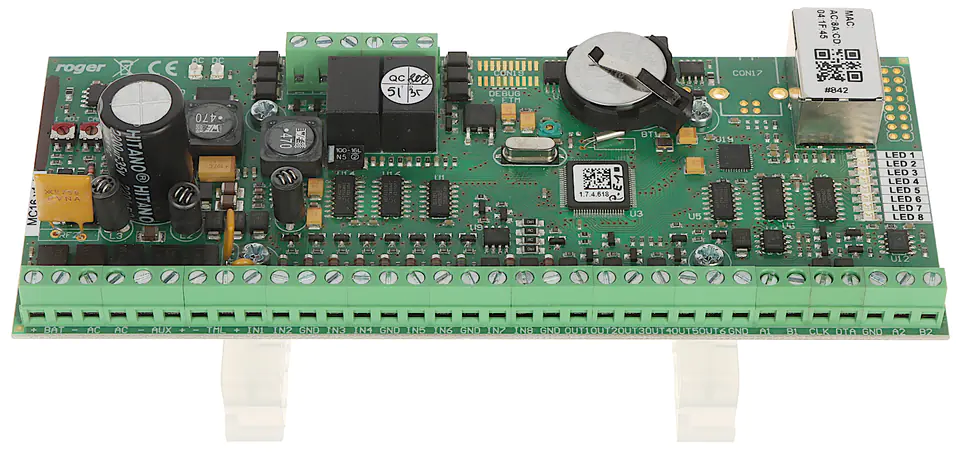

The MC16-PAC-EX-1 controller is a multifunctional electronic module designed for use in the RACS 5 v2 ver. EX, which enables the implementation of access control of passages and building automation
Remark! The preloaded license includes functionality for 1 pass control and building automation
