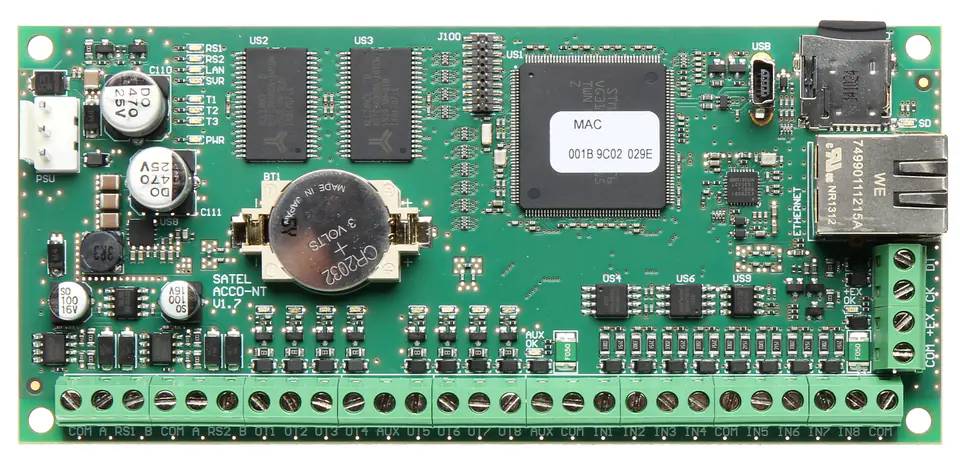

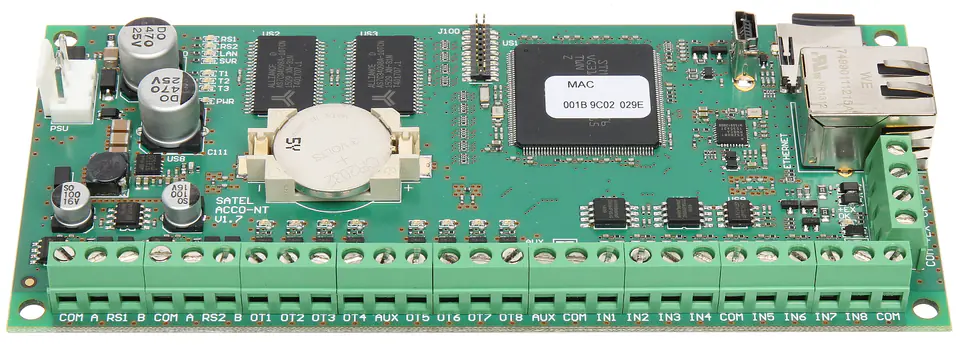

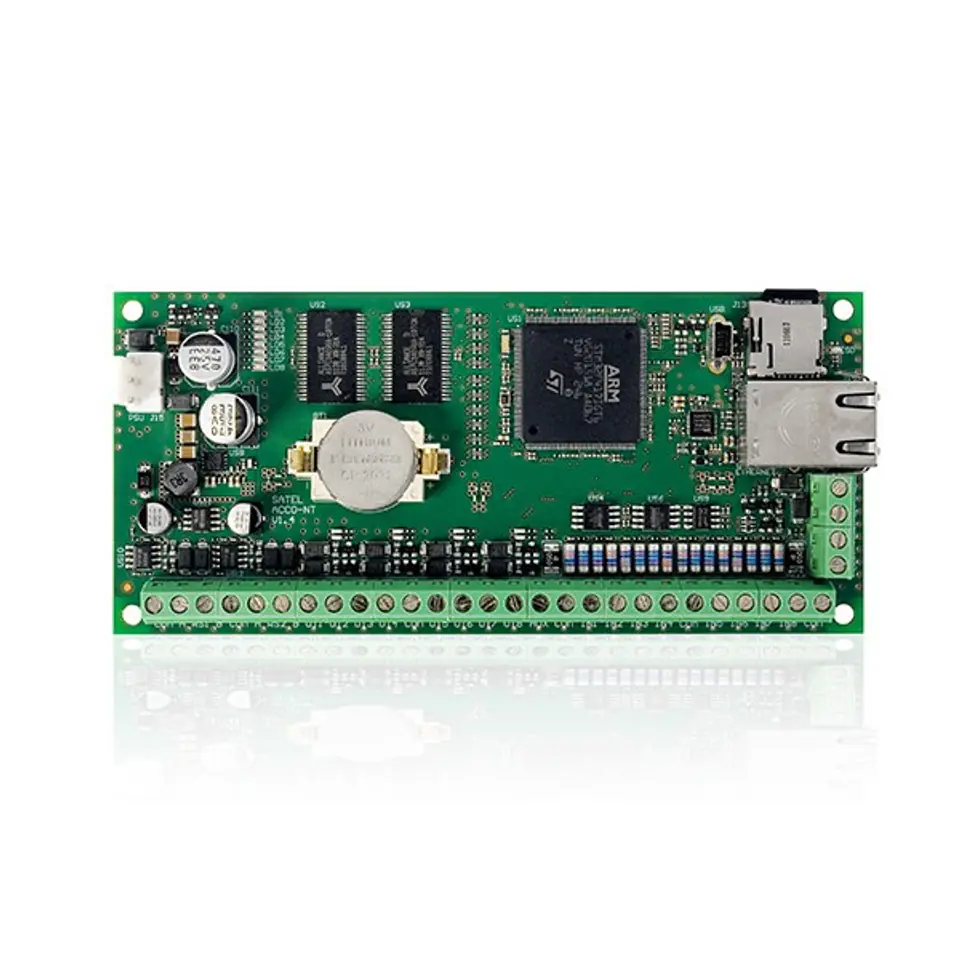

ACCESS CONTROL PANEL ACCO-NT SATEL

This product is not available

Availability:: expected delivery
Brand:
Product code:: ACCO-NT / 5905033336469

Specification

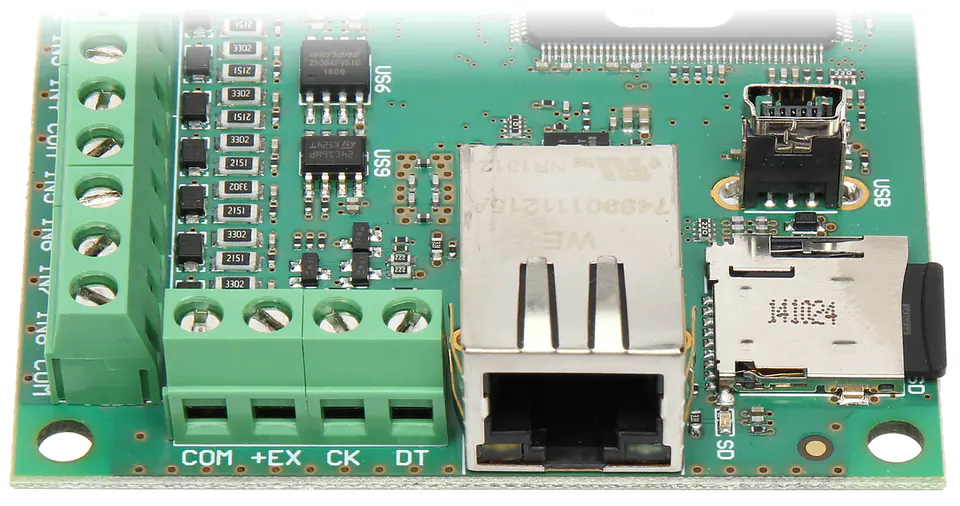

Communication:	2 x RS-485 Expander bus - up to 32 expansion modules
Depth:	68 mm
Dimensions:	151 x 69 x 17 mm

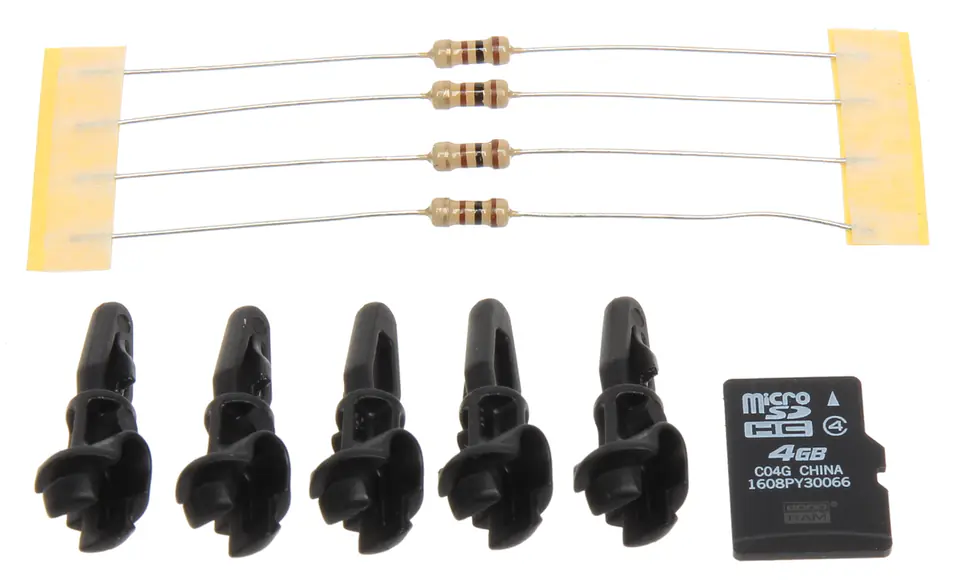

Event memory:	Recording of events on micro SD card (included) Recording up to 1,000,000 events from the control panel, Max. 100,000 events read from each access control module
Inputs:	8 pcs. - Motherboard inputs max. 264
Operating temperature:	-10 °C ... 55 °C
Output:	8 pcs. - Motherboard inputs max. 264
Output load capacity:	OC : 50 mA / 12 V DC +EX : 0.5 A / 12 V DC AUX : 0.5 A / 12 V DC
Permissible relative ambient humidity:	93 % (non-condensing)
Power:	12 V DC / 125 mA (max)
Producer / brand:	SATEL
Quantity per pack:	1 pc(s)
Scales:	0.092 kg
Selected features:	Possibility to unlock or lock the zone at a specific time or according to the access calendar, Possibility to assign one user 4 identifiers and a remote control, Possibility to assign the user up to 4 proximity cards / lozenges DALLAS, Up to 256 access calendars, weekly schedules, daily schemes, time frames Possibility to control control control panel outputs using remote controls Implementation of logic functions at inputs and outputs Support for tripods (turnstiles) Electrical protection of all inputs and outputs and communication buses
Users + administrators:	8000 + 1 Max. 65 000 users throughout ACCO NET system
Warranty:	2 years
Weight:	86 g
Width:	150 mm

ACCO-NT access control panel is an element of the ACCO NET access control system

The most important advantages of ACCO-NET include: centralization of the system, the ability to include any number of objects and any number of control panels in a given facility, as well as the ability to administer the system from the browser level

The ACCO-NT control panel has the option of programming complex logic operations at the outputs, thanks to which it is possible to implement non-standard control functions

Remark! ACCO NET requires a server with the Debian operating system

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
