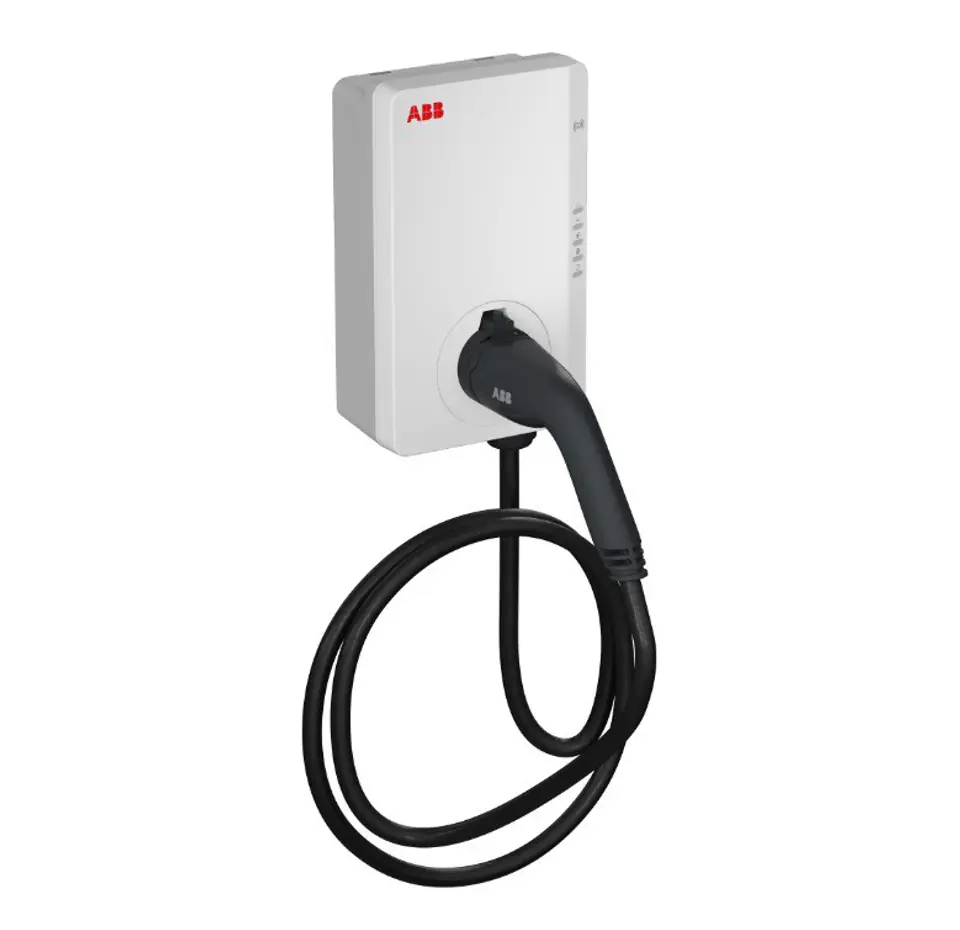

ABB Terra 11kW charging station with 5m wallbox cable
This product is not available
- Availability:
- expected delivery
- Brand:
- ABB
- Product code:
- 6AGC082156 / 8719874450942
Share this product:
Specification
| Adjustable power: | Y |
|---|---|
| Bluetooth: | Yes |
| Built-in display: | No |
| Cable length: | 5 m |
| Communication protocol: | OCPP1.6 |
| Counter: | Modbus |
| Degree of protection ik: | IK08 |
| Depth: | 110 mm |
| Ethernet: | Yes |
| Grounding system supported: | TN, TT |
| Height: | 320 mm |
| Housing colour: | White |
| Housing material: | Plastic |
| Input current: | 16 A |
| Input voltage: | 380 - 420 V |
| International protection (ip) code: | IP54 |
| Led indicators: | Yes |
| Maximum output current: | 16 A |
| Monitoring of leakage current: | Y |
| Mounting style: | Wall mount |
| Nominal frequency: | 50 - 60 Hz |
| Number of phases: | 3 |
| Output voltage: | 320 - 480 V |
| Overcurrent protection: | Yes |
| Overvoltage category: | III |
| Overvoltage protection: | Y |
| Plug and play: | Yes |
| Power: | 11000 W |
| Power led: | Yes |
| Recommended height (max): | 2000 m |
| Remotely operated: | Yes |
| Rfid: | Y |
| Rfid reader: | Yes |
| Surge protection: | Yes |
| Vehicle connection: | Type 2 cable with plug |
| Weight: | 4.1 kg |
| Wi-fi: | Yes |
| Width: | 195 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
