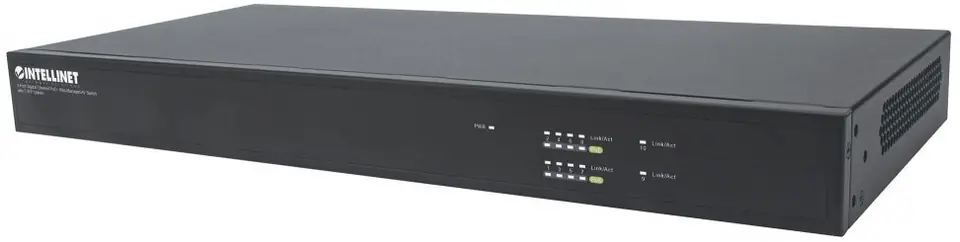

8xRJ45 PoE+ /2x SFP Managed GIGABIT AV Switch
This product is not available
- Availability:
- expected delivery
- Brand:
- INTELLINET NETWORK SOLUTIONS
- Product code:
- 5805275 / 0766623561433
Share this product:
Specification
| 10g support: | No |
|---|---|
| Ac input frequency: | 50 - 60 Hz |
| Ac input voltage: | 100 - 240 V |
| Auto mdi/mdi-x: | Yes |
| Auto-negotiation: | Yes |
| Basic switching rj-45 ethernet ports quantity: | 8 |
| Basic switching rj-45 ethernet ports type: | Gigabit Ethernet (10/100/1000) |
| Broadcast storm control: | Yes |
| Cables included: | AC |
| Copper ethernet cabling technology: | 10BASE-T, 1000BASE-T, 100BASE-TX |
| Depth: | 200 mm |
| Flow control support: | Yes |
| Forwarding rate: | 14.88 Mpps |
| Full duplex: | Yes |
| Harmonized system (hs) code: | 85176990 |
| Height: | 44 mm |
| Housing material: | Metal |
| Igmp snooping: | Yes |
| Led indicators: | PoE, Link, Activity, Power |
| Link aggregation: | Yes |
| Mac address table: | 8000 entries |
| Manual: | Yes |
| Networking standards: | IEEE 802.1w, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3az, IEEE 802.3ad, IEEE 802.1s, IEEE 802.3, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3at, IEEE 802.1D |
| Operating relative humidity (h-h): | 20 - 85% |
| Operating temperature (t-t): | 0 - 40 °C |
| Packet buffer memory: | 4.1 MB |
| Port mirroring: | Yes |
| Power consumption (max): | 270 W |
| Power over ethernet (poe): | Yes |
| Power over ethernet (poe) power per port: | 30 W |
| Power over ethernet plus (poe+) ports quantity: | 8 |
| Product colour: | Black |
| Quality of service (qos) support: | Yes |
| Rack mount kit: | Yes |
| Rack mounting: | Yes |
| Rate limiting: | Yes |
| Security algorithms: | SSH-2, HTTPS, SNMPv3, SSH, SNMP |
| Sfp module slots quantity: | 2 |
| Spanning tree protocol: | Yes |
| Storage temperature (t-t): | -10 - 70 °C |
| Store-and-forward: | Yes |
| Switch type: | Managed |
| Switching capacity: | 20 Gbit/s |
| Total power over ethernet (poe) budget: | 255 W |
| Virtual lan features: | Tagged VLAN |
| Vlan support: | Yes |
| Web-based management: | Yes |
| Weight: | 3.2 kg |
| Width: | 440 mm |
