7'' VIDEO INTERCOM IP VIFIS VDP-61 FULL HD WITH BLACK ENCRYPTION DEVICE

Specifications:

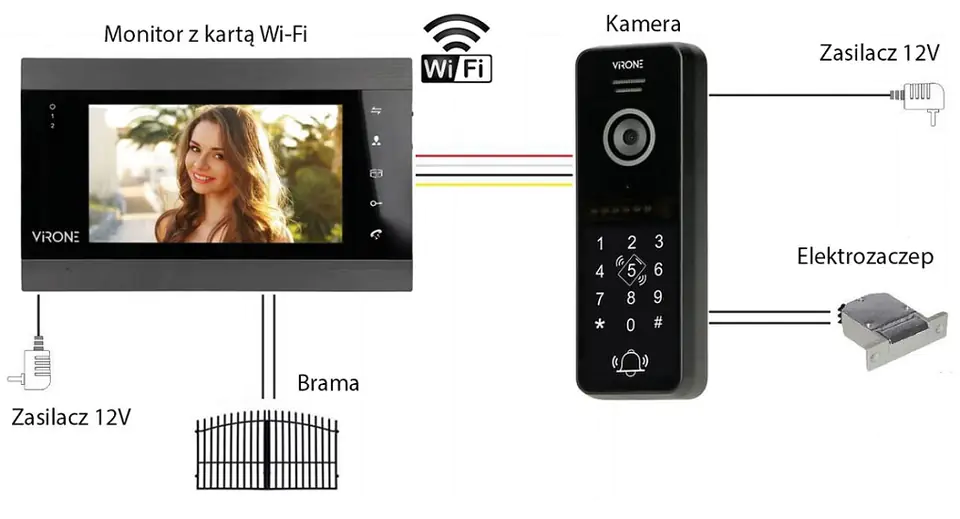

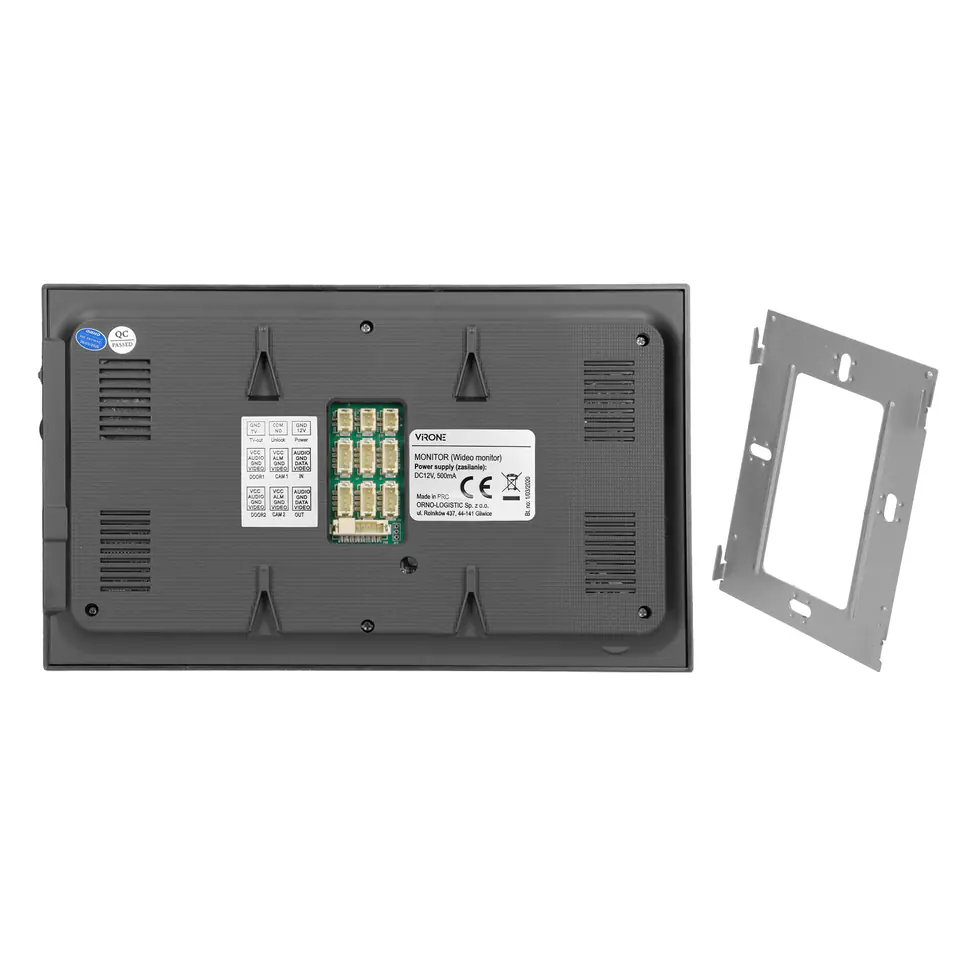

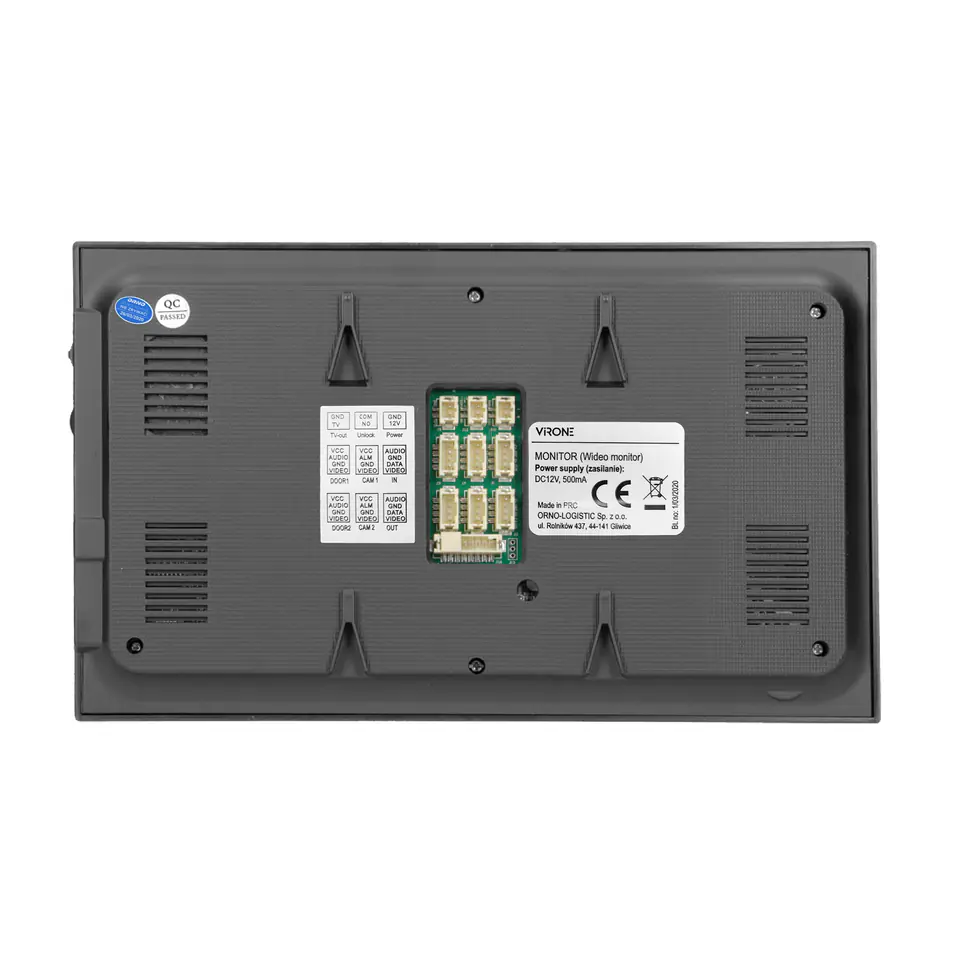

Connect:

Monitor - Door station:

12V: red
AUDIO: white
GND: Black
VIDEO: yellow

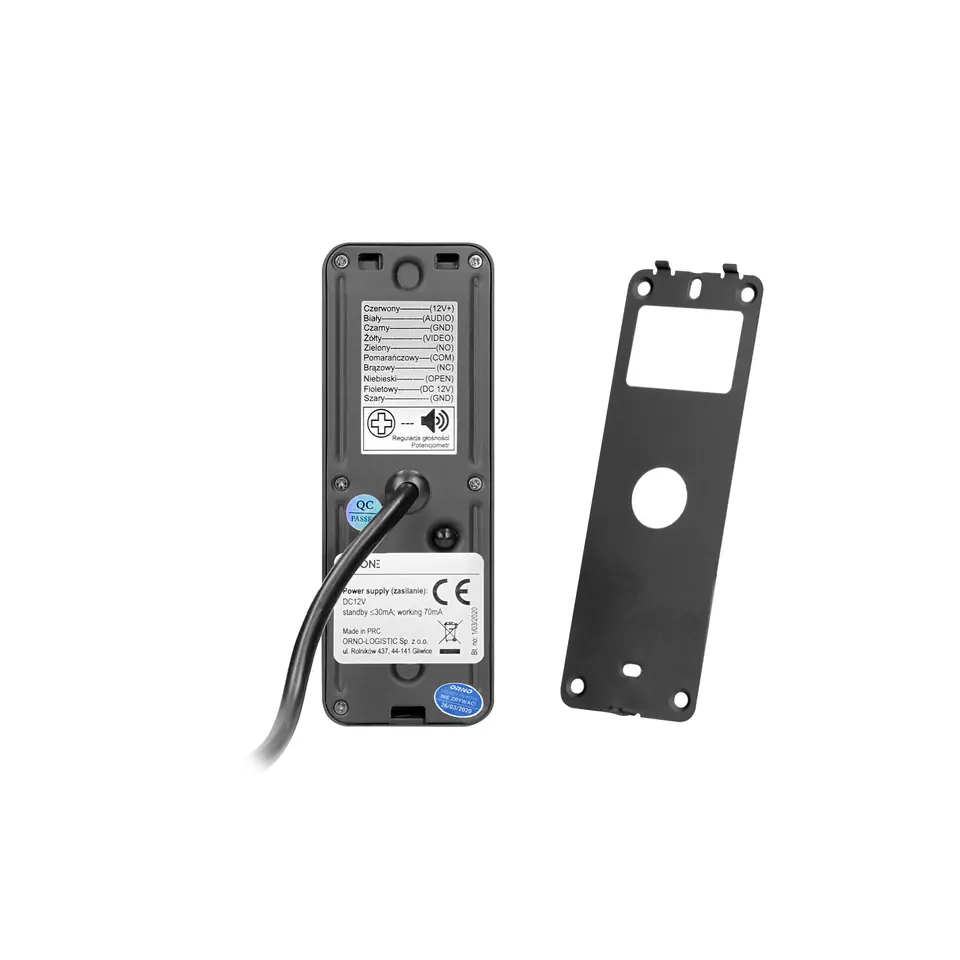

Door station:

12V: purple
GND: grey
OPEN: Blue
NO: green
COM: orange

General Specifications:

Type: Single-family, wired
Power Type: Socket Power Adapter
electric strike power supply: from video intercom
number of wires: 4+2
Connection system: 4-wire
transmission type: wired/Wifi App
Automatic gate control: yes
Expandable with an additional external panel: Yes
Expandable with additional monitor: Yes
Expandable with additional uniphone: no
expandable with an additional CCTV camera: yes

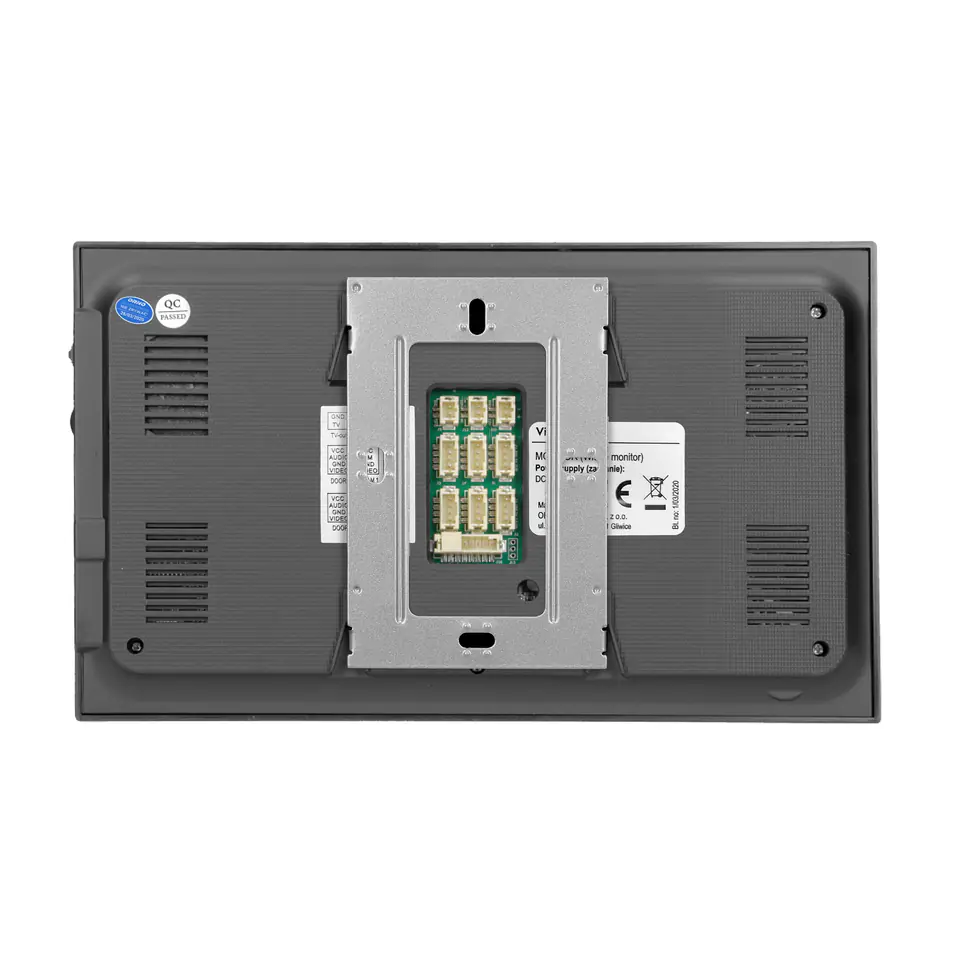

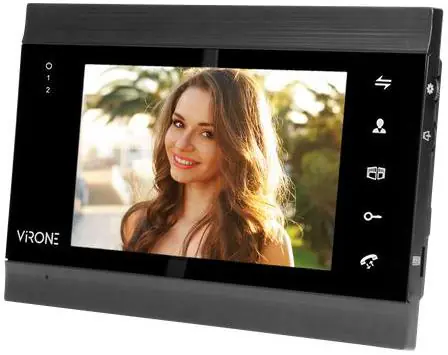

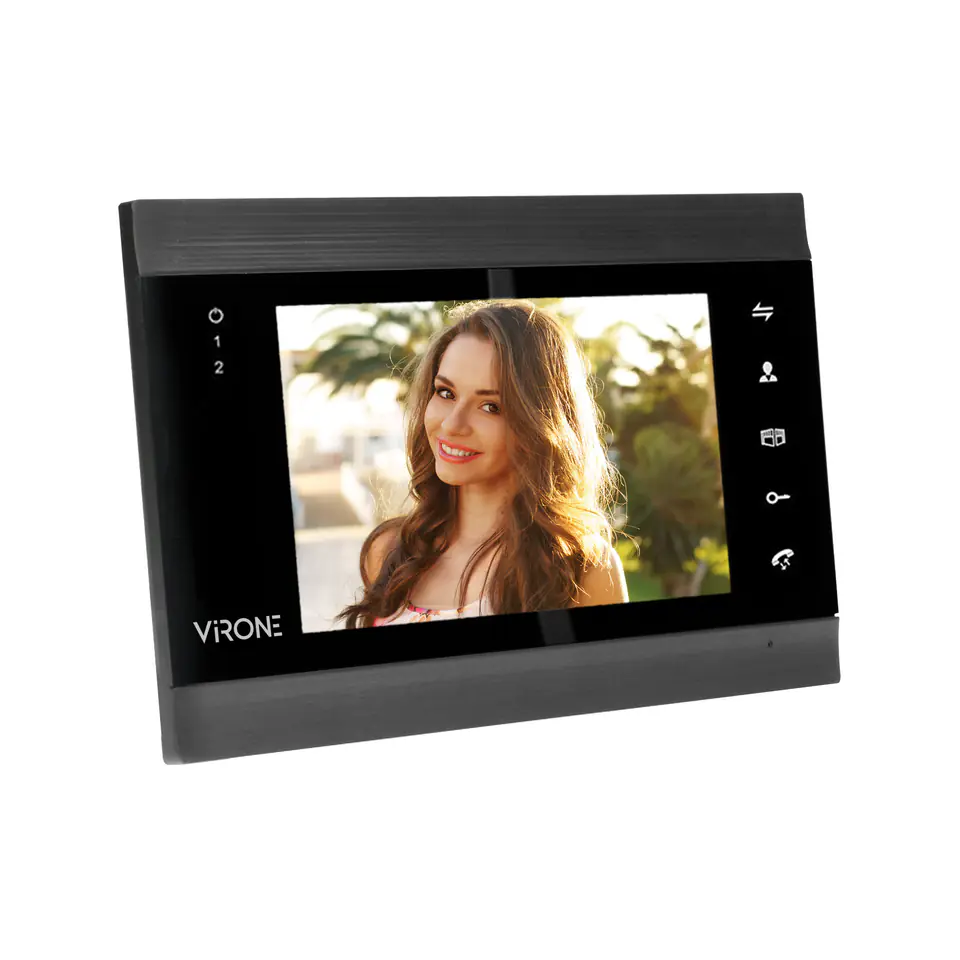

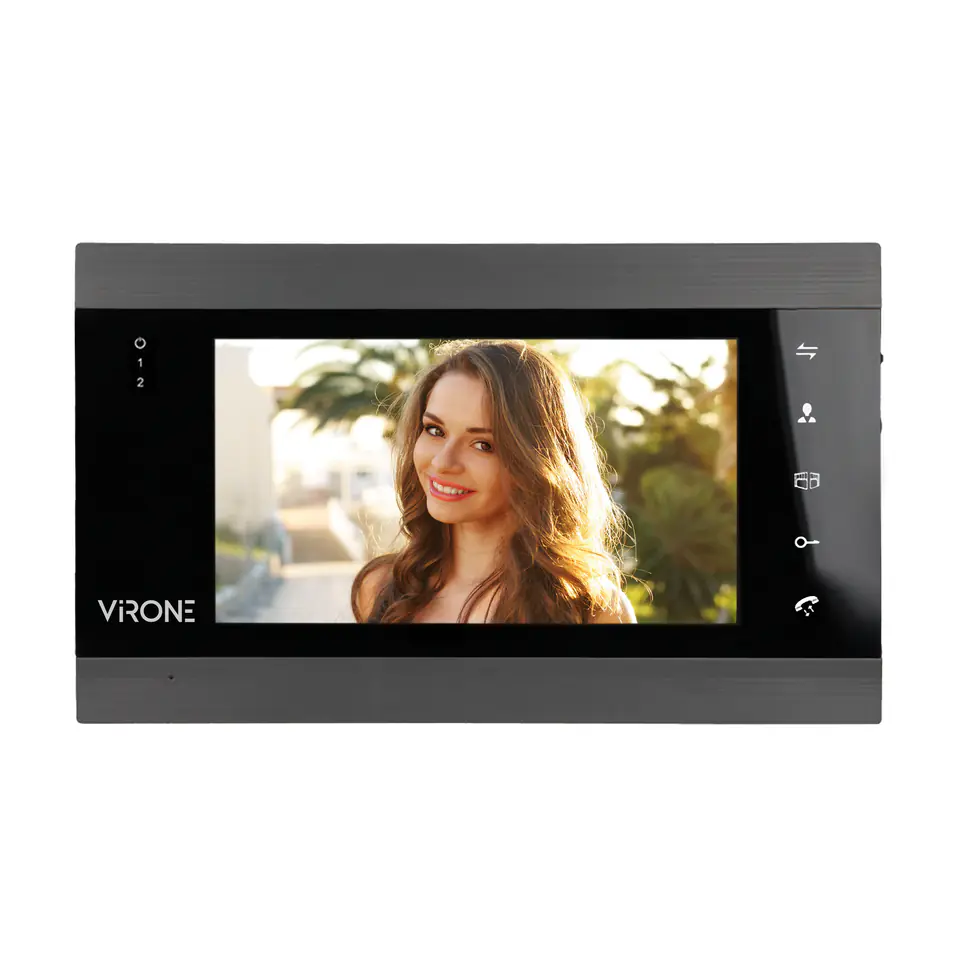

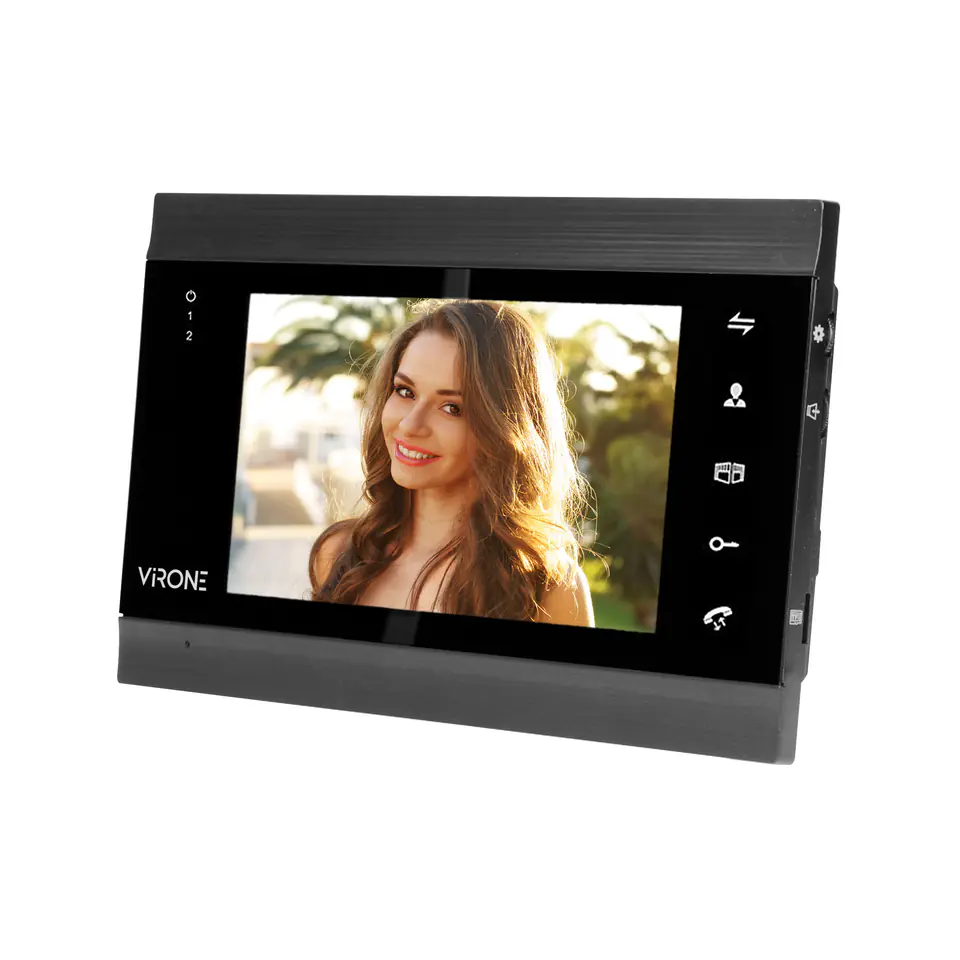

Monitor:

Ultra slim, headphoneless, hands-free
TFT-LCD colour display with a diagonal screen of 7"
Image resolution: 1024 x 600
standard: PAL
Connection mode: Double-sided / (Intercom)
AHD 720P/960P
Video input signal: CVBS, CVI, TVI, AHD 2.0
color: black
Power: max. 600 mA

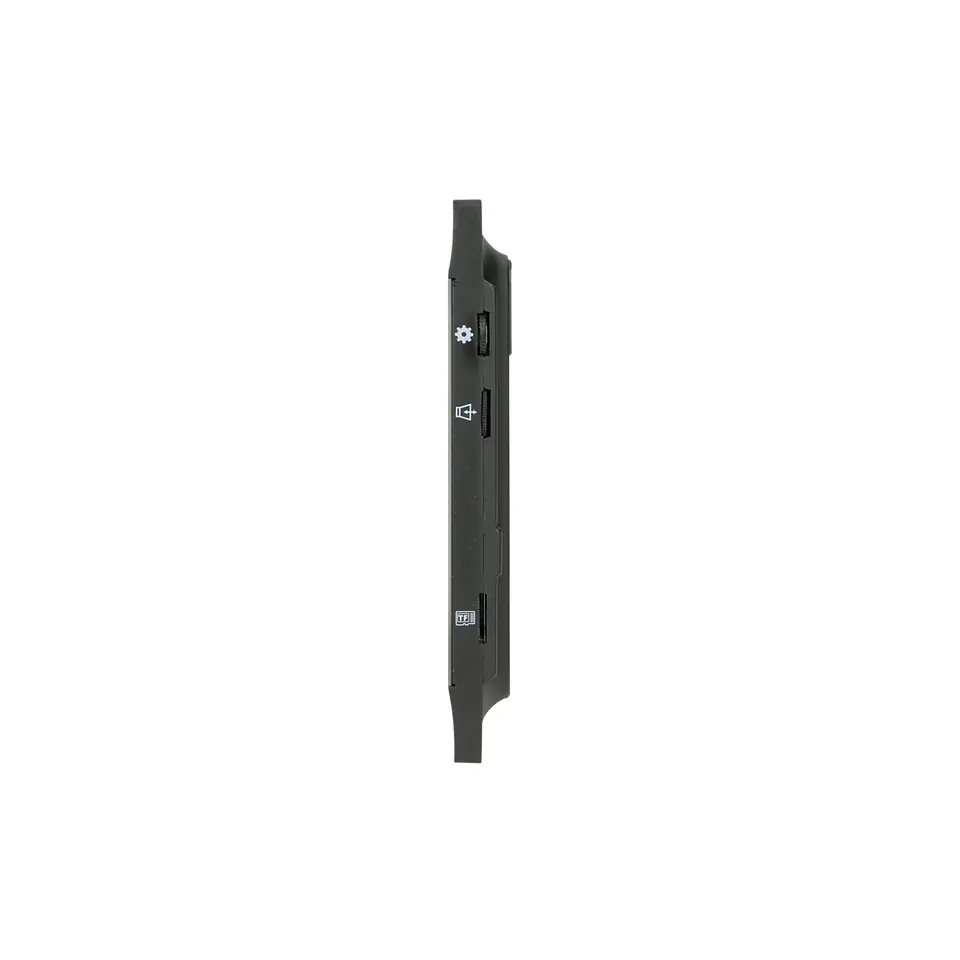

MicroSD card slot: 2~16Gb, class 10 mini TF card (read/write speed >class 10)
operating temperature: 0 ° C ... +50 ° C
power supply: 12V DC, 2000mA
Dimensions: 238 x 144 x 20.5 mm

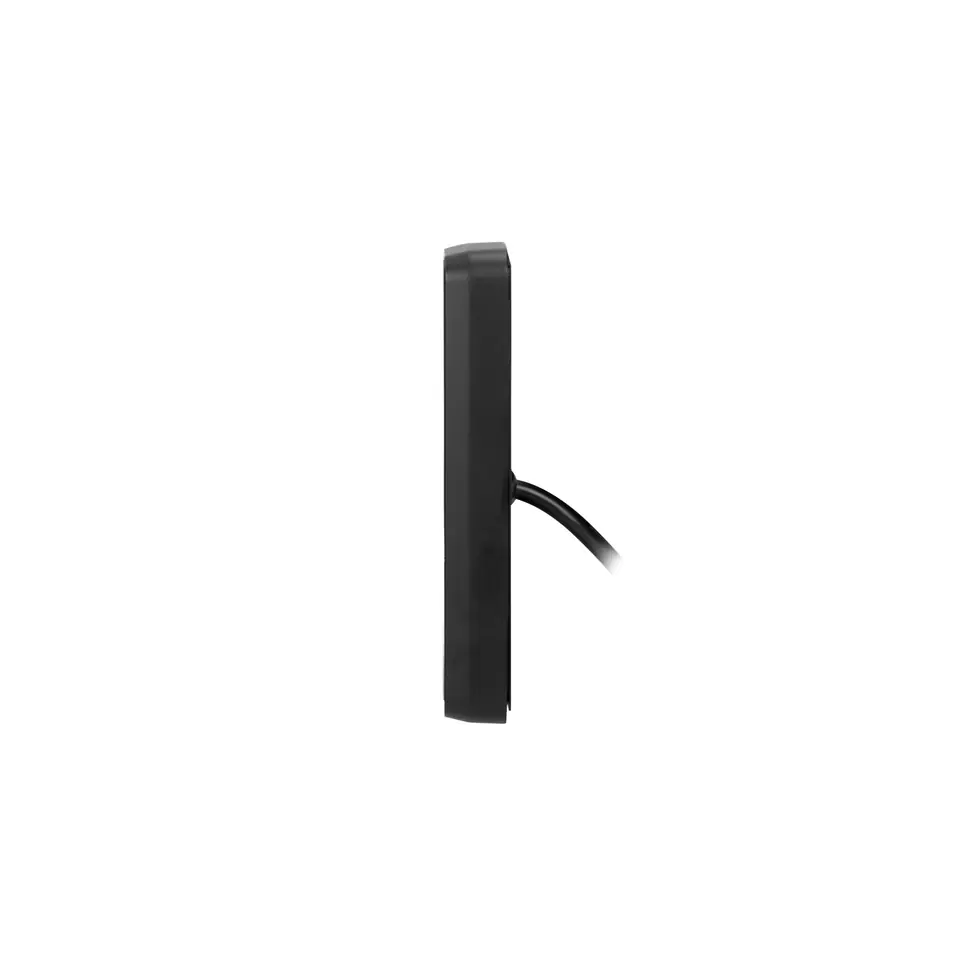

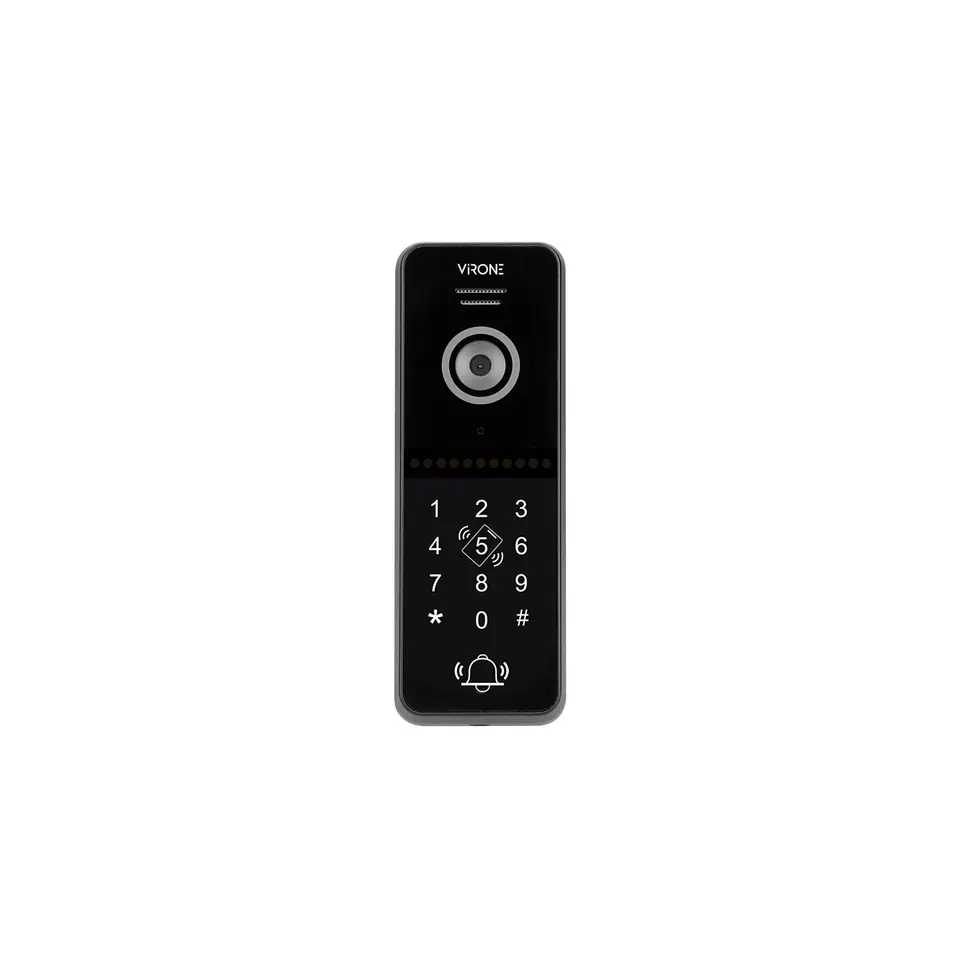

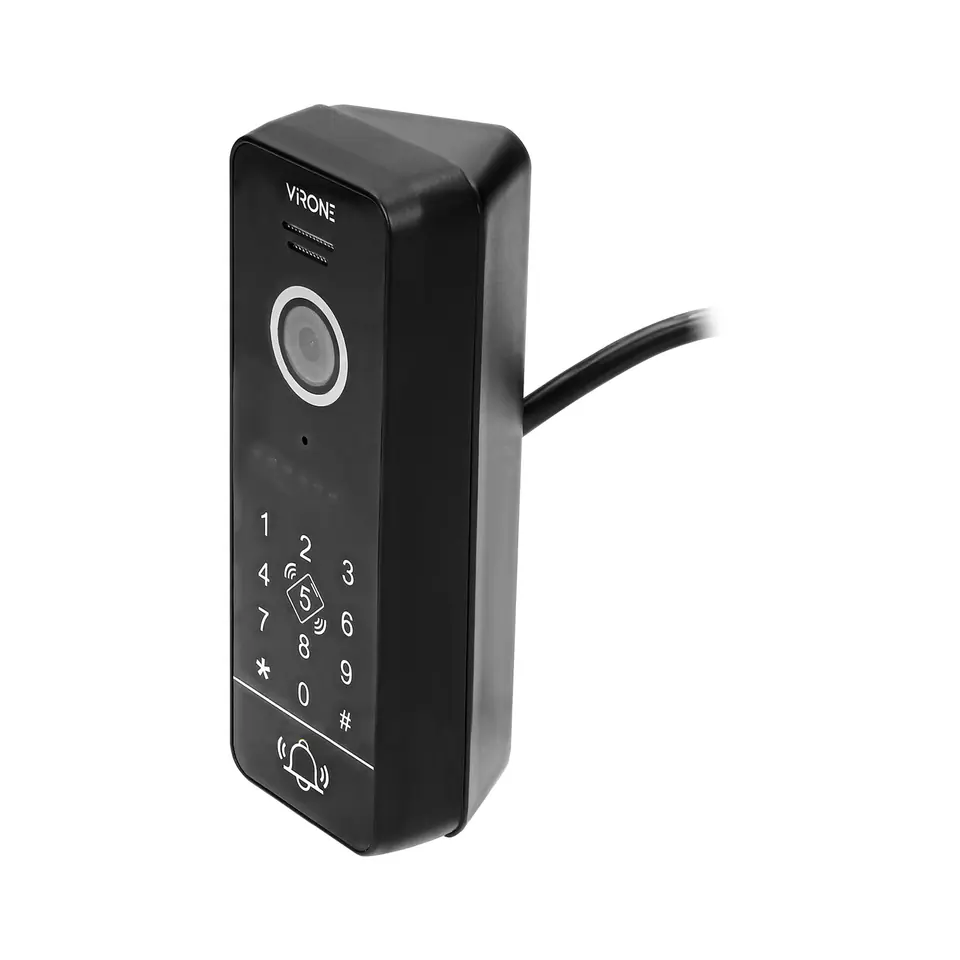

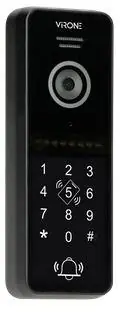

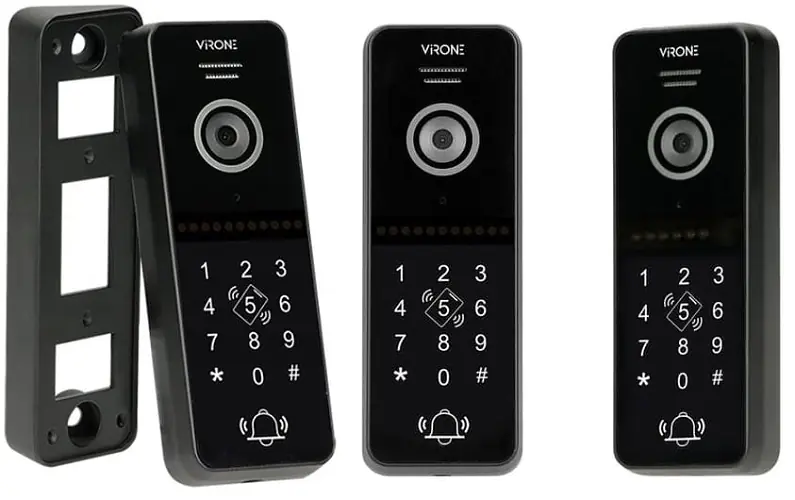

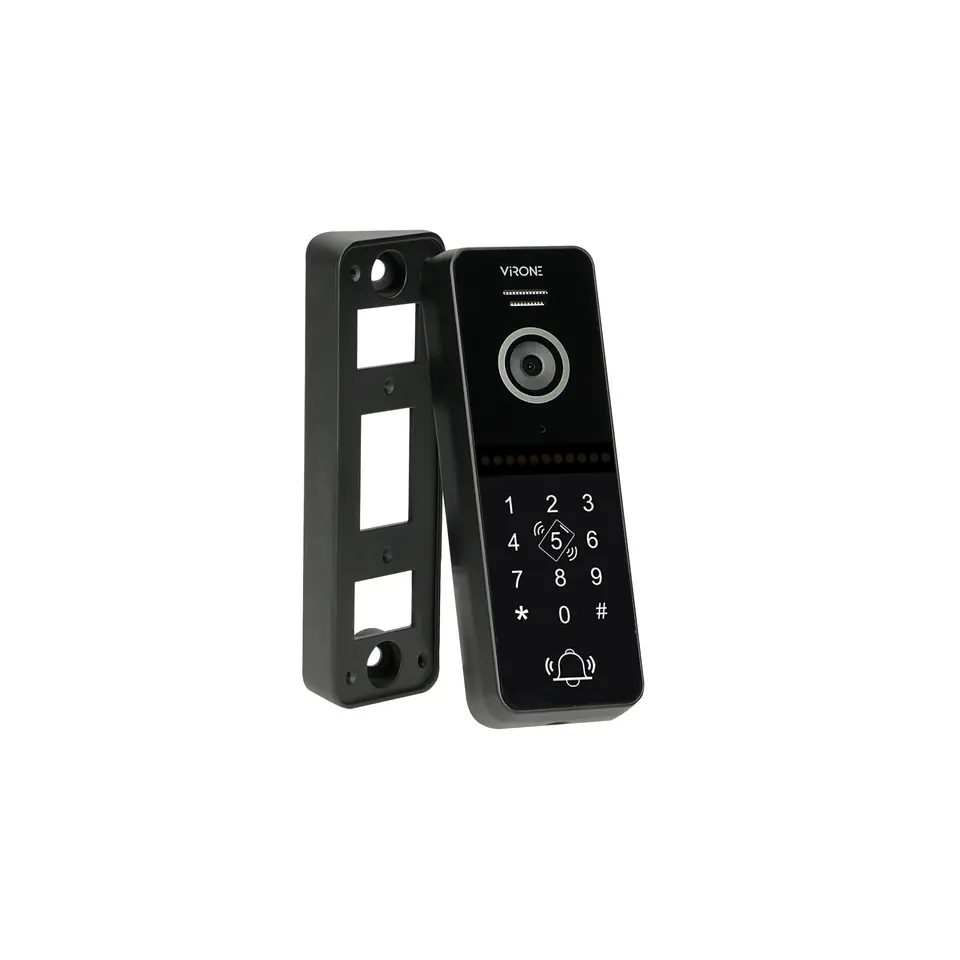

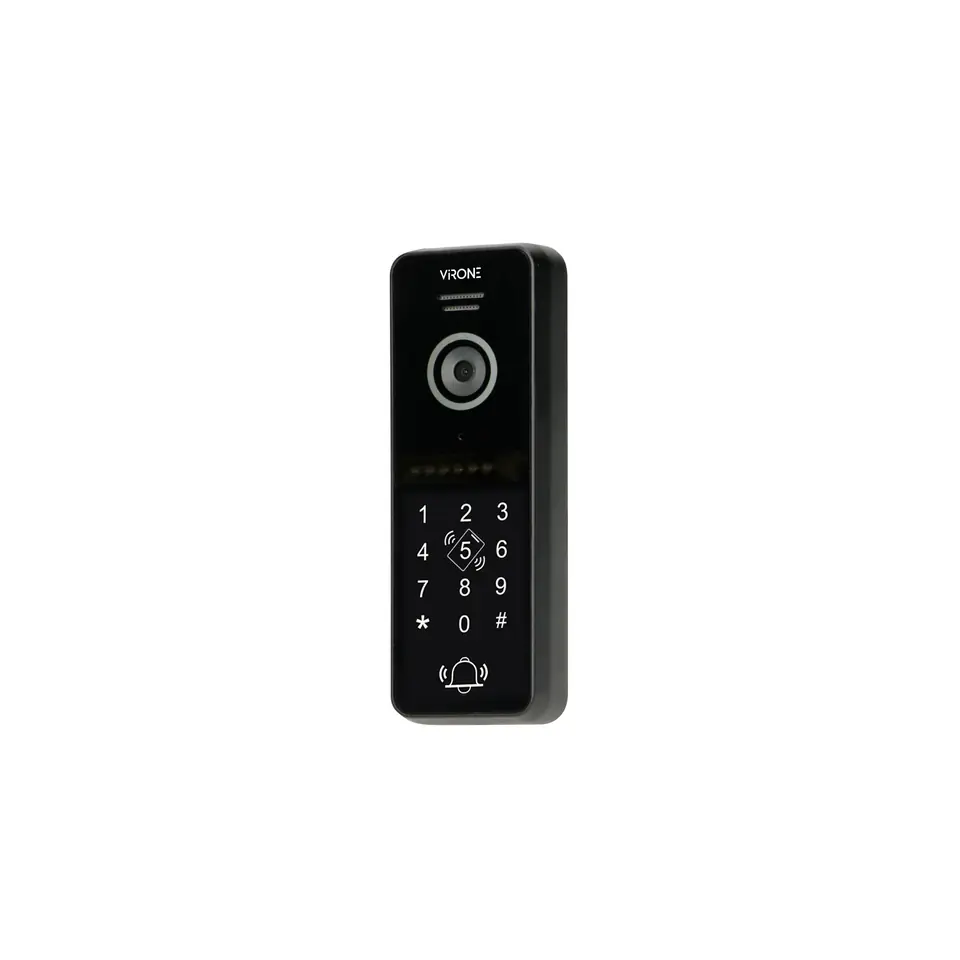

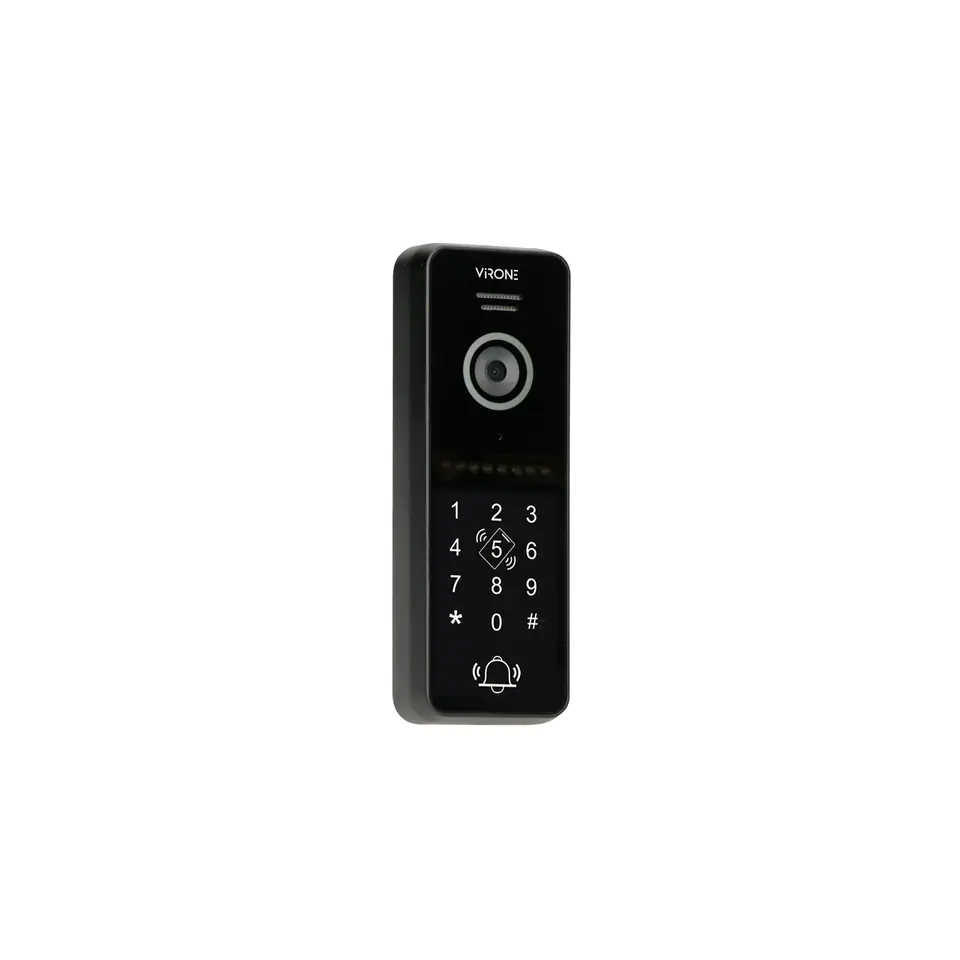

External panel:

Resolution: 1080P Full HD

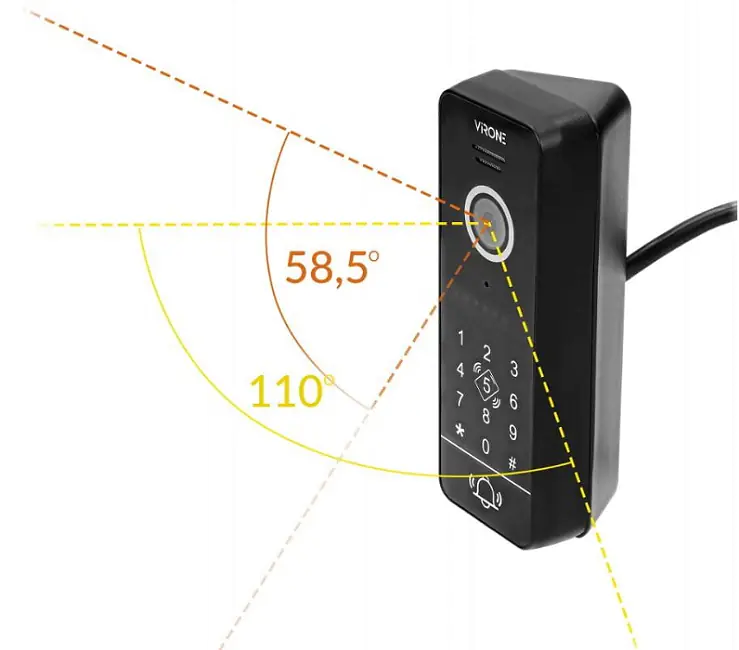

View angle: 58.5 deg (vertical), 110 deg (horizontal)
night lighting: IR LEDs
RFID proximity card reader: 13.56 MHz Mifare
Reading range: ?3 cm
electric strike release time: ?2 s
surface mounting
Protection class: IP65
operating temperature: -40 ° C ... +50 ° C
nominal voltage - input: 12VDC (+/- 15V)
current consumption: ?30 mA (standby), ? 70 mA (operation)
Dimensions: 133 x 22 x 48 mm

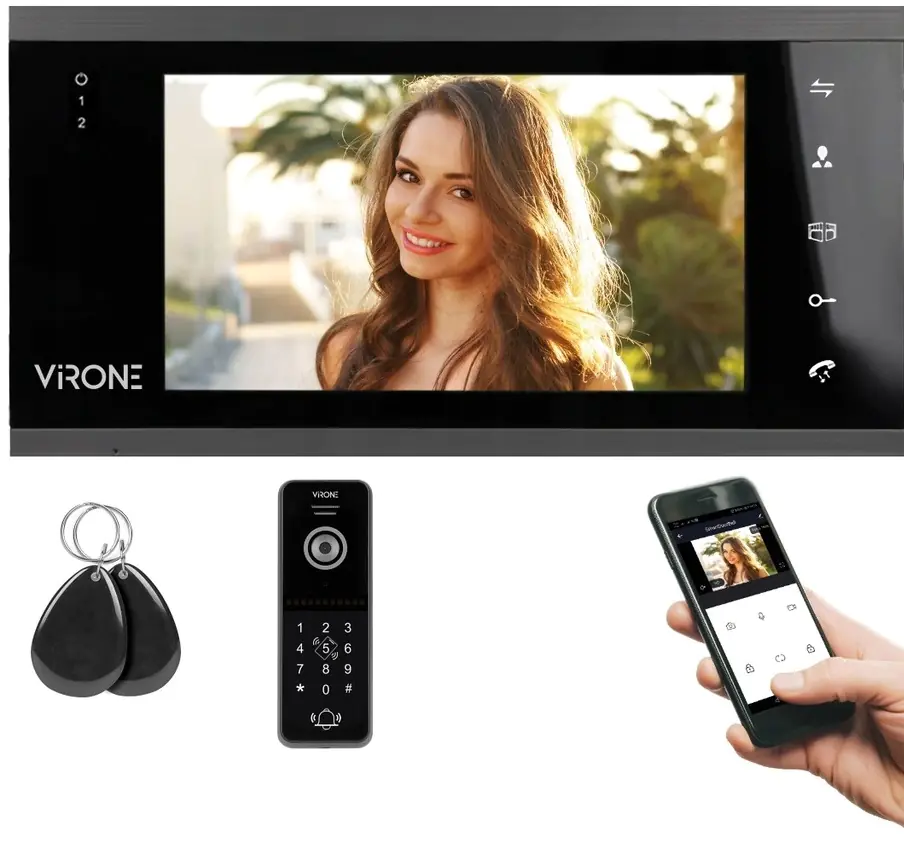

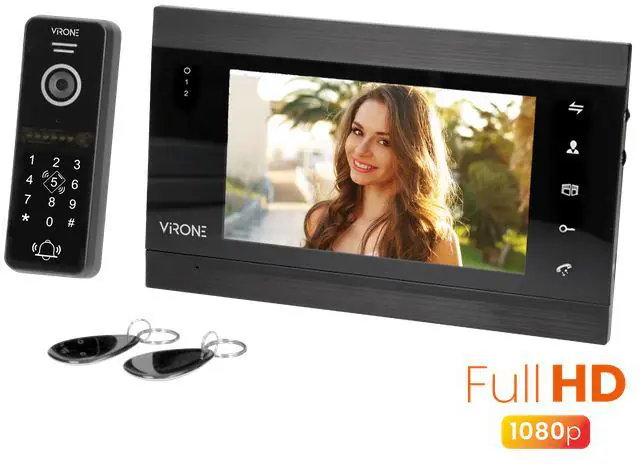

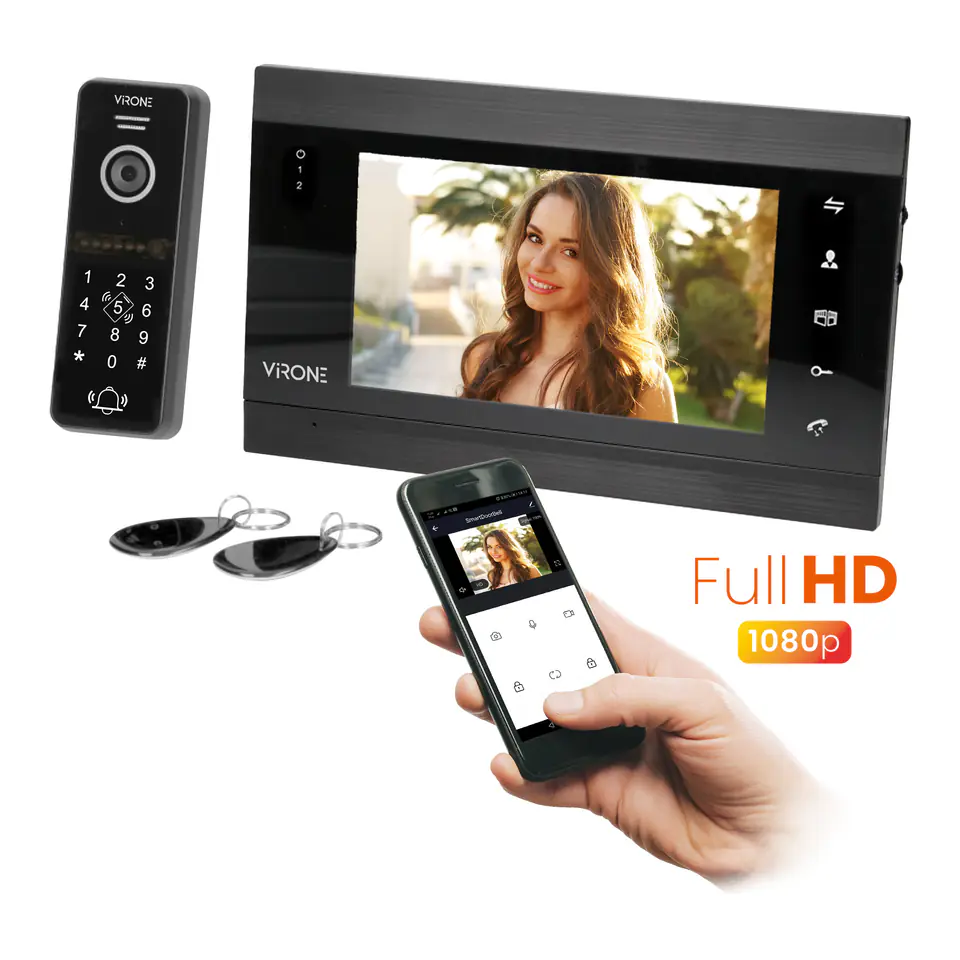

Modern VIFIS Full HD intercom video set consisting of a color ultra-flat LCD monitor 7 "guaranteeing excellent image quality, and an external cassette with a Full HD 1080P camera.

Communication between the inner and outer panels does not require a handset. After downloading the free TUYA application, the user has the ability to control the device from his smartphone.

FUNCTION TO TAKE PHOTOS AND RECORD VIDEOS.

OUTDOOR PANEL EQUIPPED WITH ILLUMINATED ENCRYPTION + READER OF CARDS AND PROXIMITY KEY RINGS.

ANSWERING MACHINE

FORWARDING CALLS TO OTHER MONITORS

PREVIEW AND LISTEN FUNCTION

VOLUME

OUTDOOR PANEL WITH CAMERA

WIDE VIEWING ANGLES


Included:

outdoor panel VIRONE VDP-61FHDKV - 1 pc
VIRONE VDP-61FHDPMV LCD monitor - 1 pc
plug power supply (for monitor) - 1 pc
plug power supply (for panel) - 1 pc

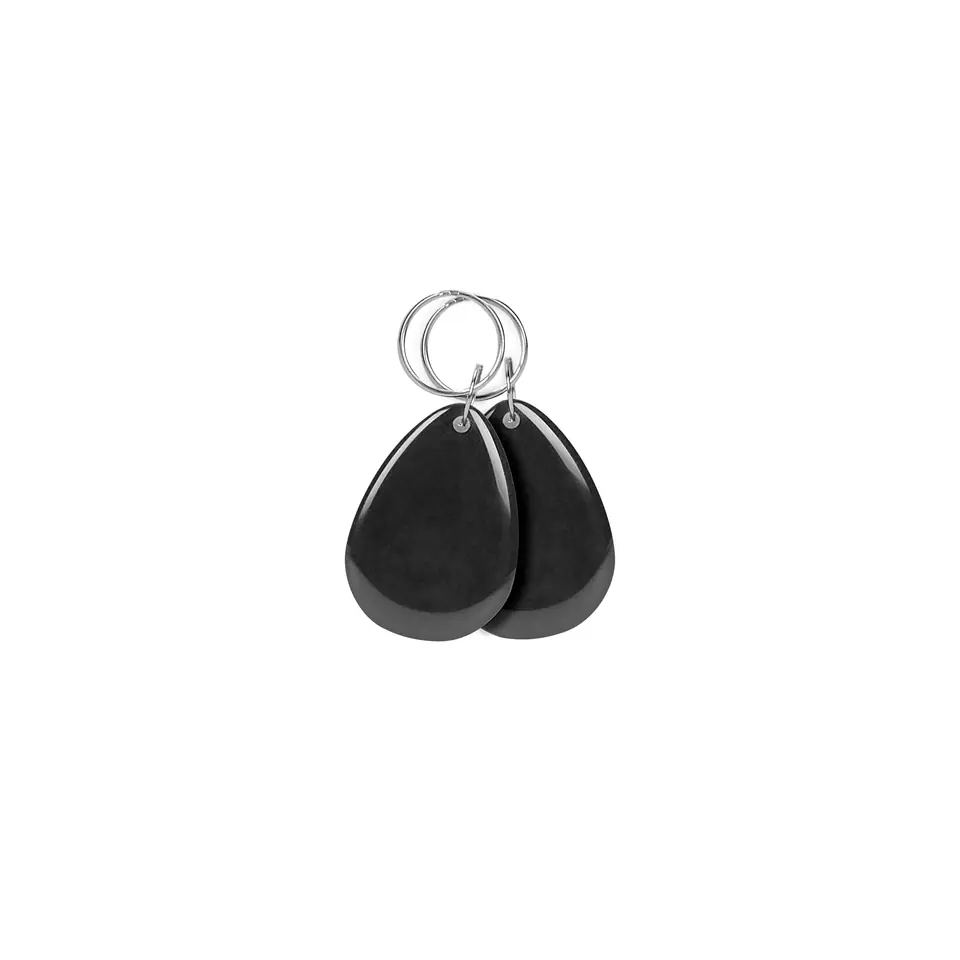

Mifare 13.56 MHz proximity pills – 2 pcs
Manual.

**
