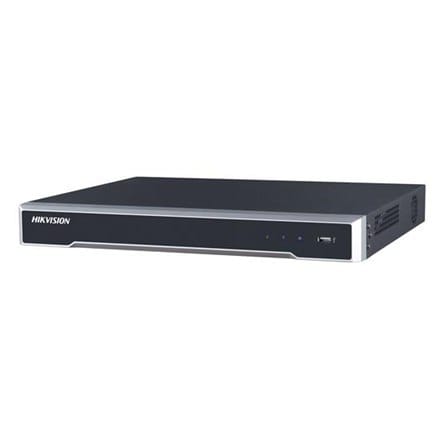

4K IP NVR Hikvision DS-7608NI-K2 / 8P
Specification
Ac input voltage: | 100 - 240 V |
---|---|
Alarm input channels: | 4 |
Alarm output channels: | 1 |
Audio rca inputs: | 1 |
Audio rca outputs: | 1 |
Depth: | 315 mm |
Ethernet lan (rj-45) ports: | 9 |
Ethernet lan data rates: | 10, 1000 Mbit/s, 100 |
Hdd interface: | Serial ATA |
Hdmi output: | Yes |
Hdmi ports quantity: | 1 |
Height: | 52 mm |
Maximum resolution: | 3840 x 2160 pixels |
Maximum storage capacity: | 6 TB |
Networking standards: | IEEE 802.3at, IEEE 802.3af |
Number of hdds supported: | 2 |
On/off switch: | Yes |
Operating relative humidity (h-h): | 10 - 90% |
Operating temperature (t-t): | -10 - 55 °C |
Power consumption (max): | 180 W |
Power consumption (typical): | 15 W |
Power over ethernet (poe): | Yes |
Power over ethernet (poe) ports quantity: | 8 |
Product colour: | Black |
Quick installation guide: | Yes |
Rack mounting: | Yes |
Supported graphics resolutions: | 1280 × 1024, 1024 × 768, 1920 × 1080 |
Total power over ethernet (poe) budget: | 120 W |
Usb 2.0 ports quantity: | 1 |
Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity: | 1 |
Vga (d-sub) output ports: | 1 |
Video formats supported: | H.265, H.264+, H.264, MPEG4 |
Video input channels: | 8 channels |
Weight: | 3 kg |
Width: | 385 mm |
