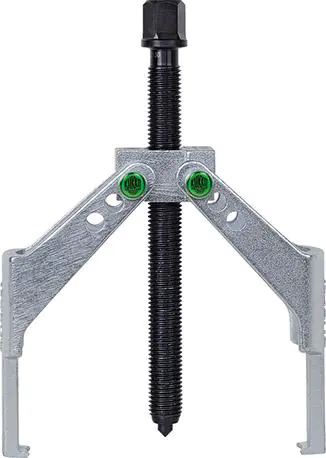

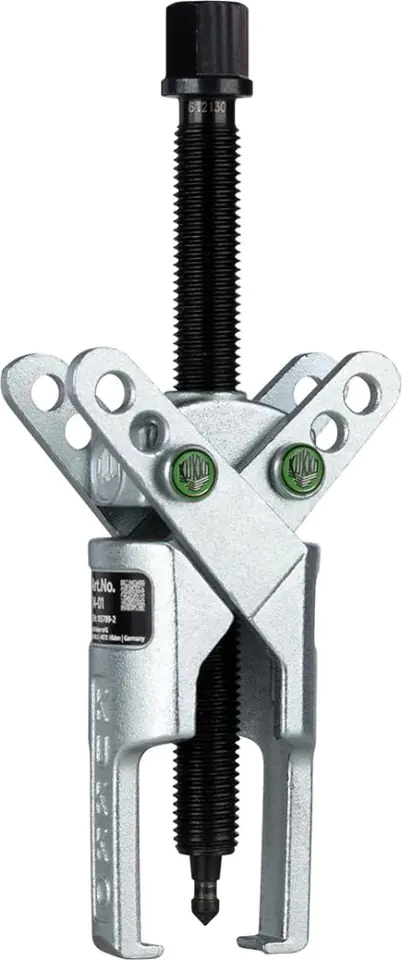

2-arm 2-arm drawstring with claws KUKKO

This product is not available
Availability:
expected delivery
Brand:
KUKKO
Product code:
14- 3 / 4021176248511

Specification

Dimension a:29 mm
Dimension b:11.0 mm
Dimension c:3.5 mm
Dimension d:3.9 mm
Model:14-3
Mounting depth:160 mm
Mounting range:15-140 mm

Adjustable claws pullers

Material: two-arm. With self-tensioning feet with claws made of tool steel with an admixture of chrome, which, thanks to the scissor hook guidance , always press inseparably into the pulled element. With a very large jaw span, which can be individually selected with the help of fixing pins. With freely rotating centering tip and heat-treated and specially coated pressure screw and extremely good sliding properties.
Application: for pulling pinions, bearings and similar parts in hard-to-reach places.

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
