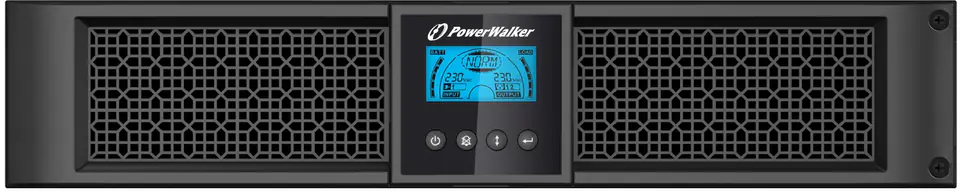

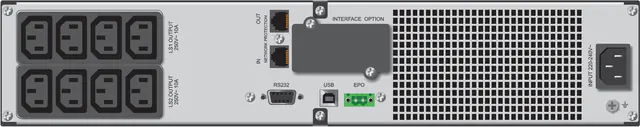

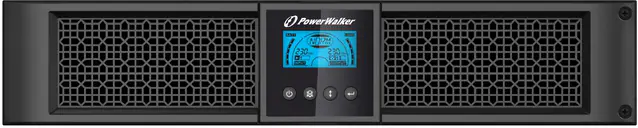

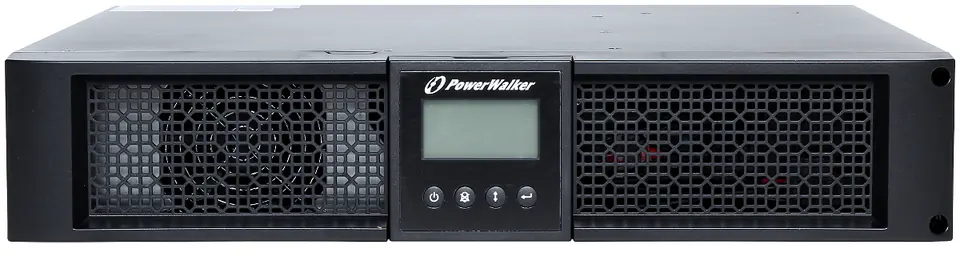

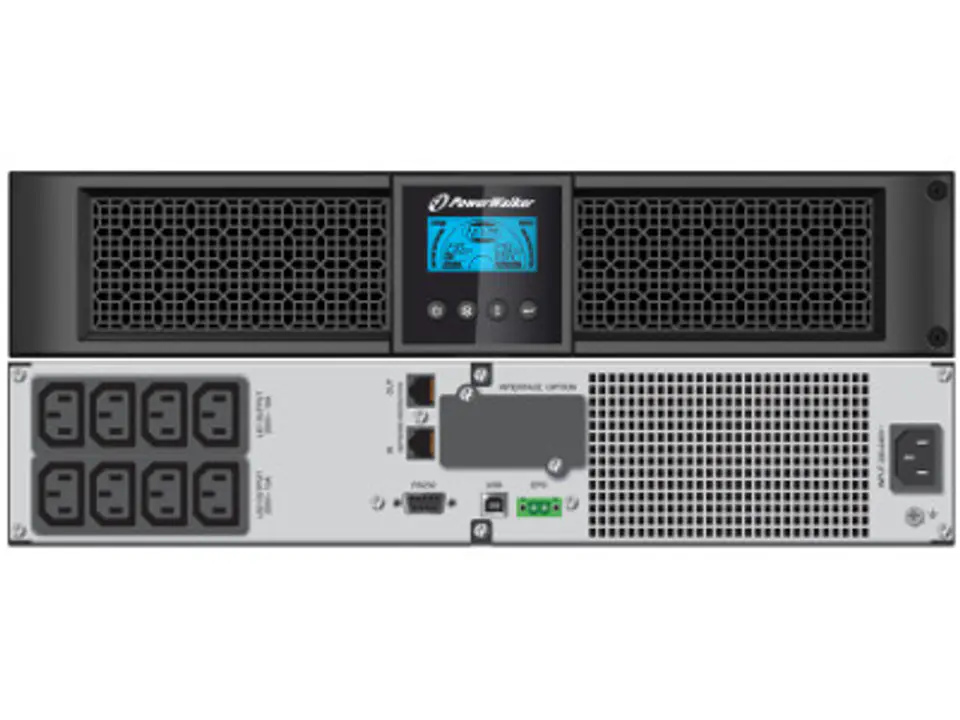

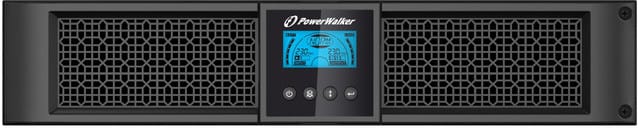

The VI-1000-RT/LCD UPS is a professional device used to maintain the operation of the connected assemblies of elementsIn addition, it protects the included devices against surges

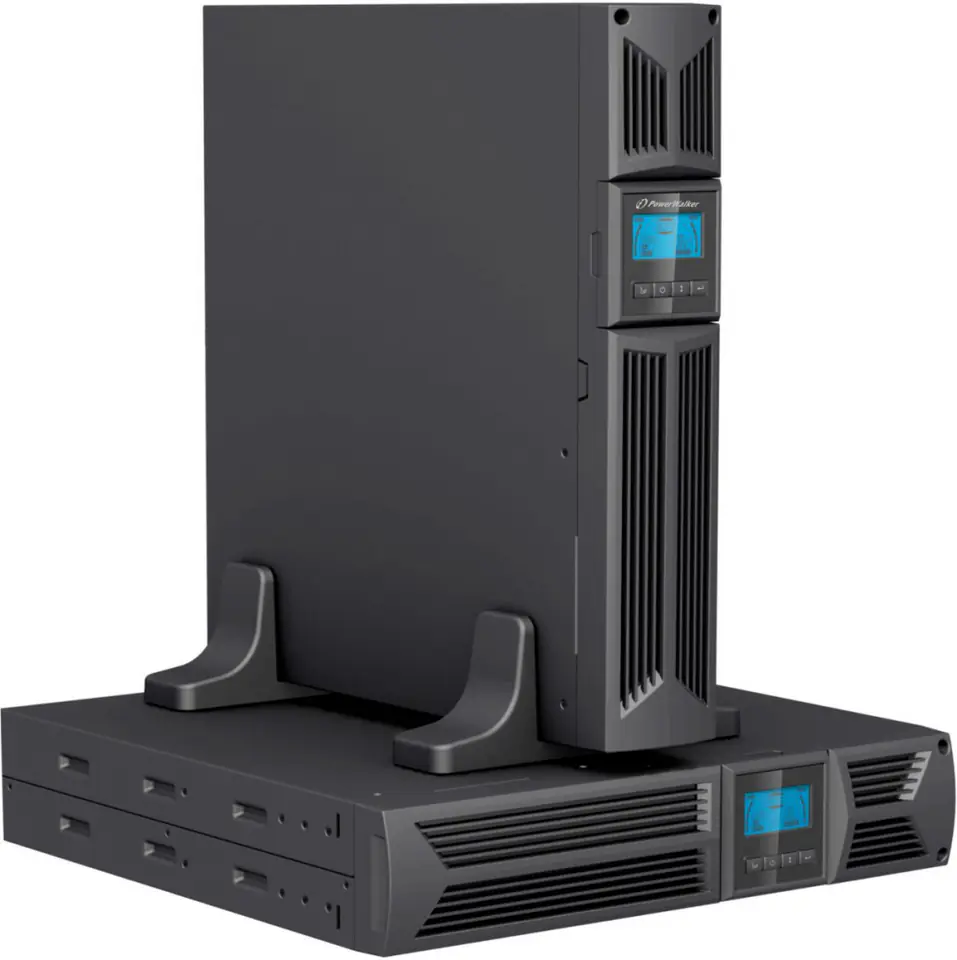

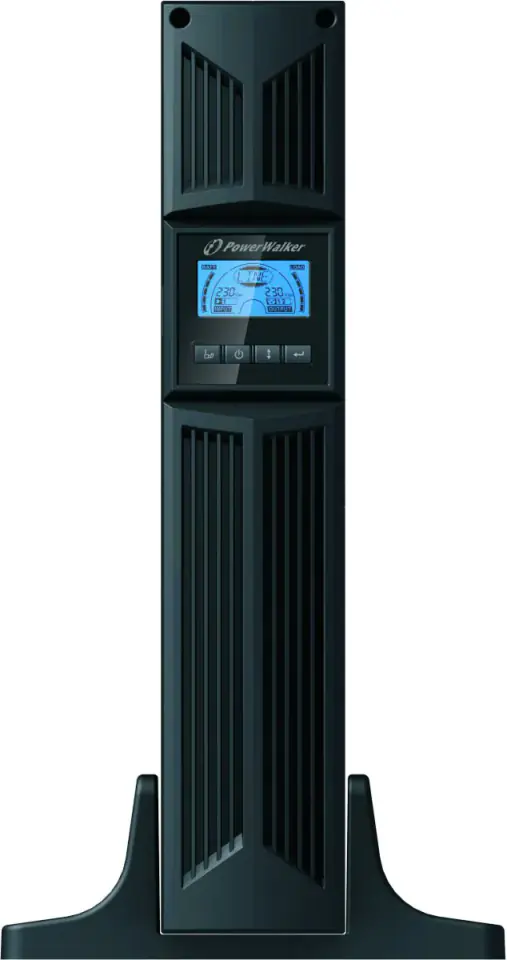

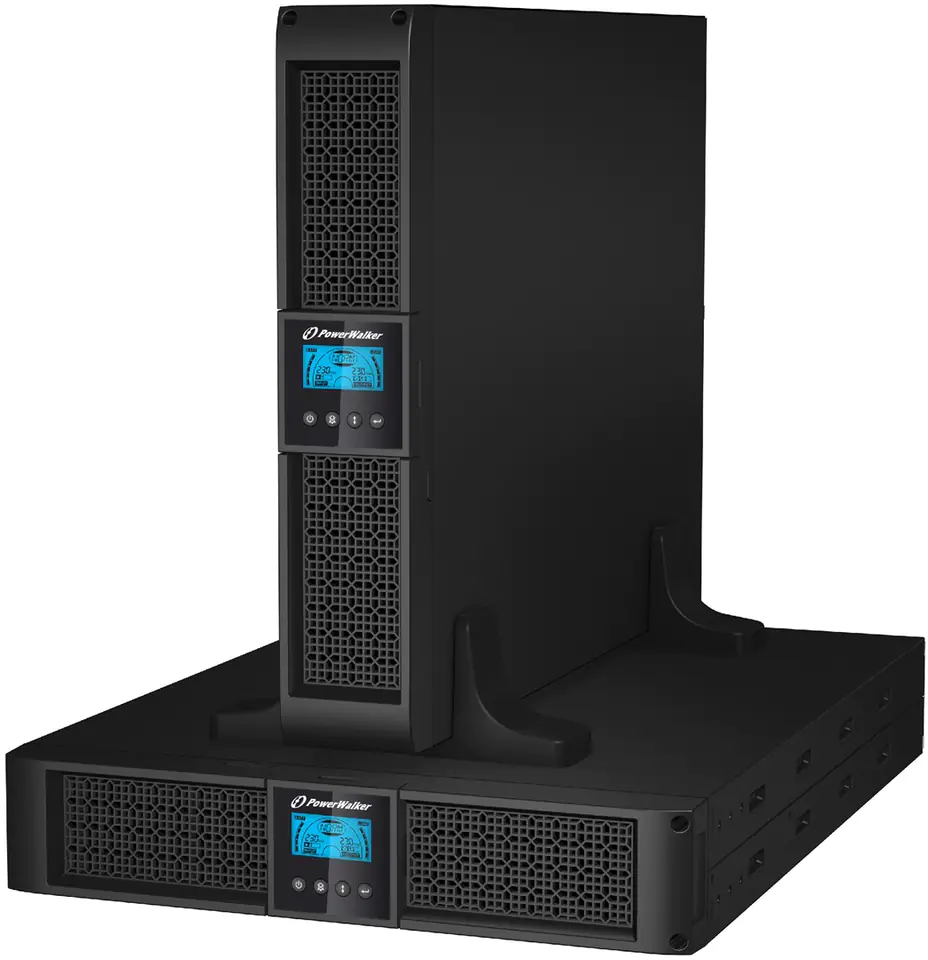

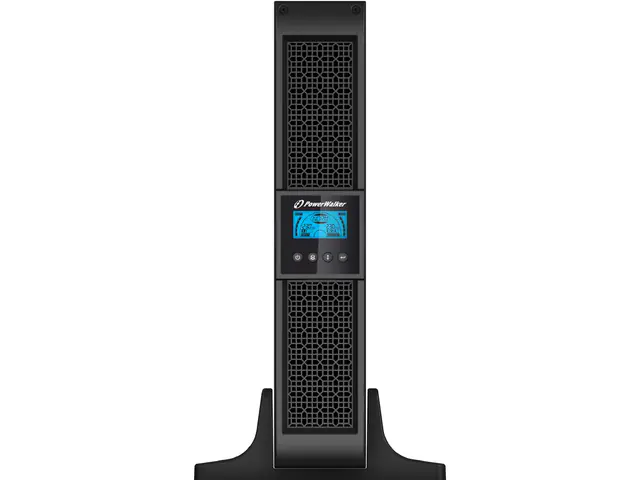

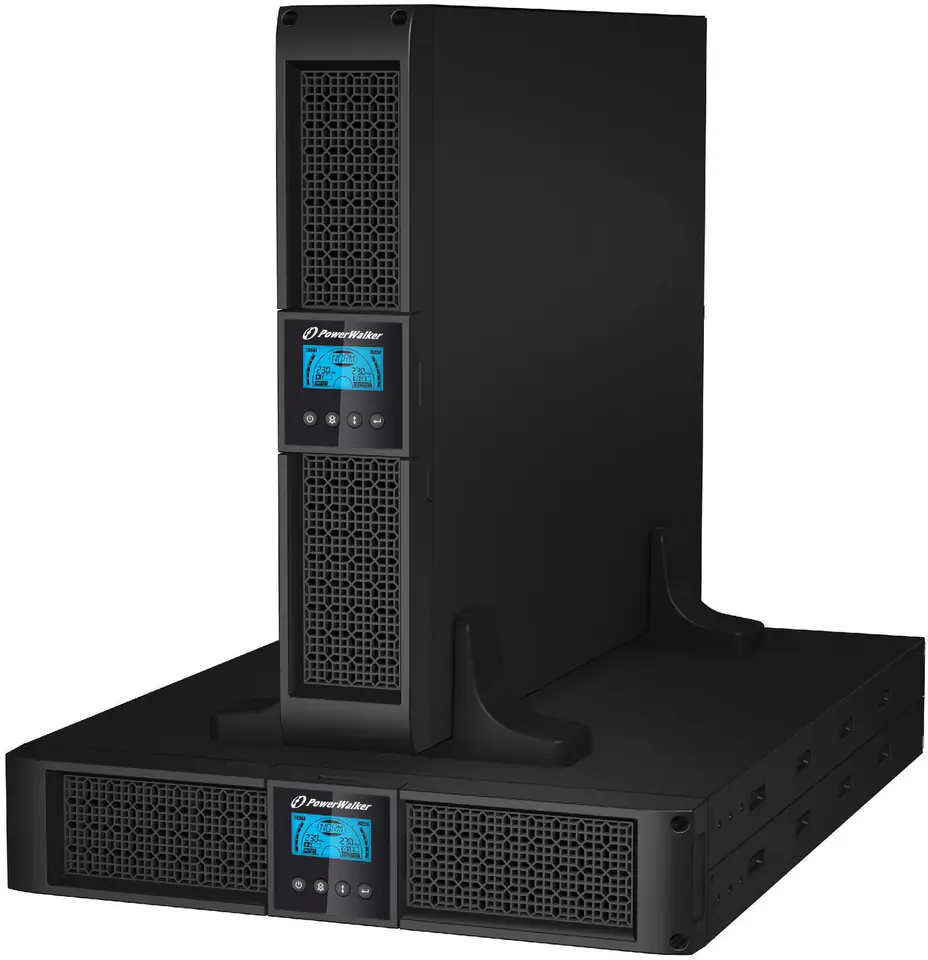

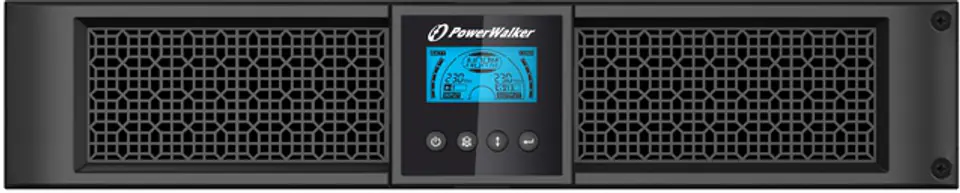

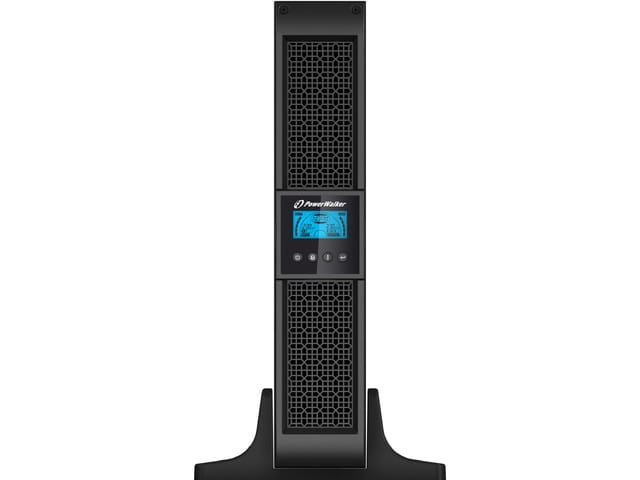

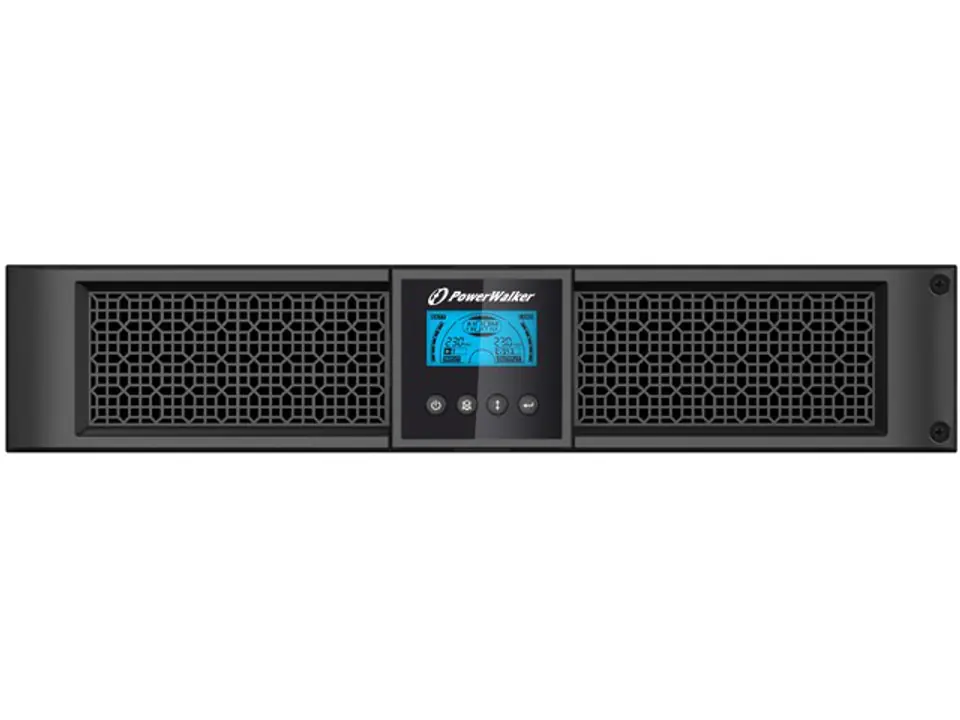

1000-VA VI-1000-RT/LCD UPS
€444.09
Shipping from warehouse: H7
Estimated shipping: Thu, Dec 11 - Mon, Dec 15
14 days returnUnconditional return policy
- Availability:
- running out
- Brand:
- PowerWalker
- Product code:
- VI-1000-RT/LCD / 4260074974317
Share this product:
Specification

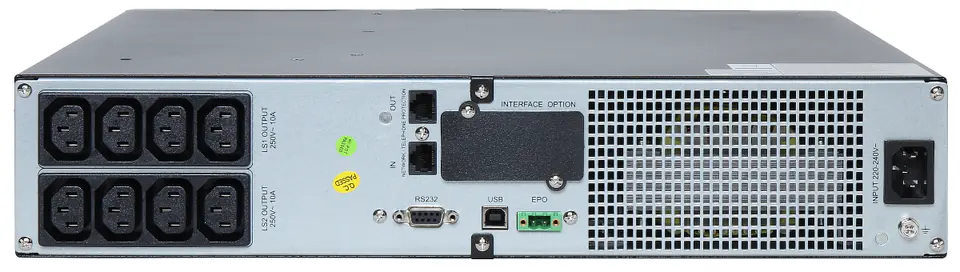

| Ac outlet types: | IEC 309 516C6 |
|---|---|
| Ac outlets quantity: | 8 AC outlet(s) |
| Accumulator: | 3 x 12V/7Ah |
| Accumulator:: | 3 x 12V/7Ah |
| Active power: | 900 watts (Printing) |
| Active power:: | 900 watts (Printing) |
| Apparent power: | 1000 VA |
| Apparent power (va): | 1000 |
| Apparent power:: | 1000 VA |
| Architecture: | Line-interactive |
| Average charging time: | 4 h (up to 90%) |
| Battery recharge time: | 4 h |
| Battery type: | 12V / 7Ah |
| Case: | Rack |
| Charging time (up to 90%): | 3 hours |
| Charging time (up to 90%):: | 3 hours |

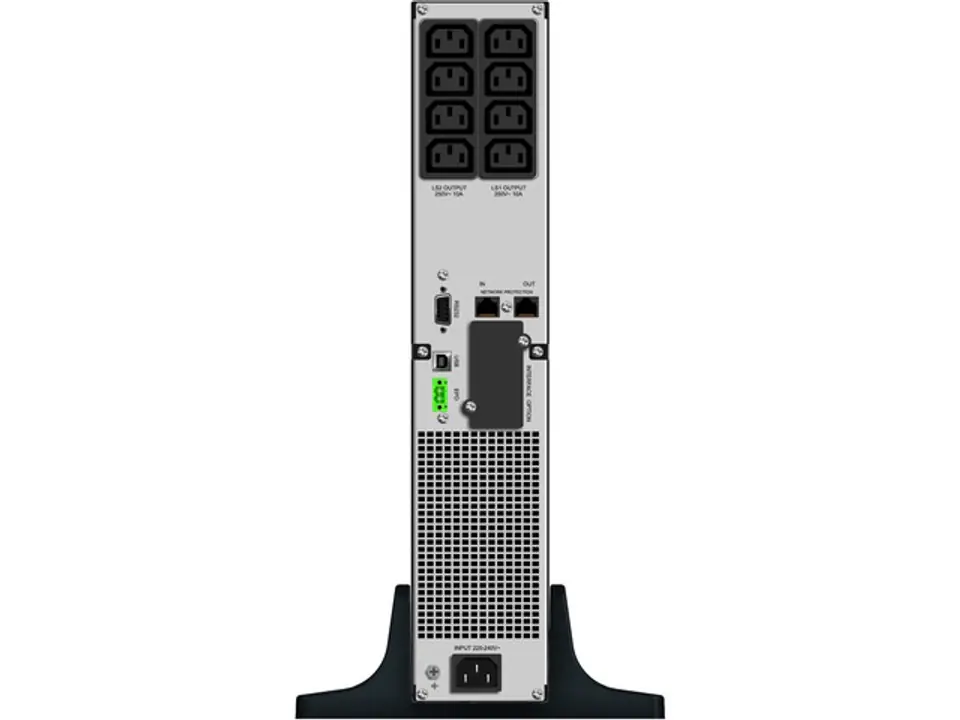

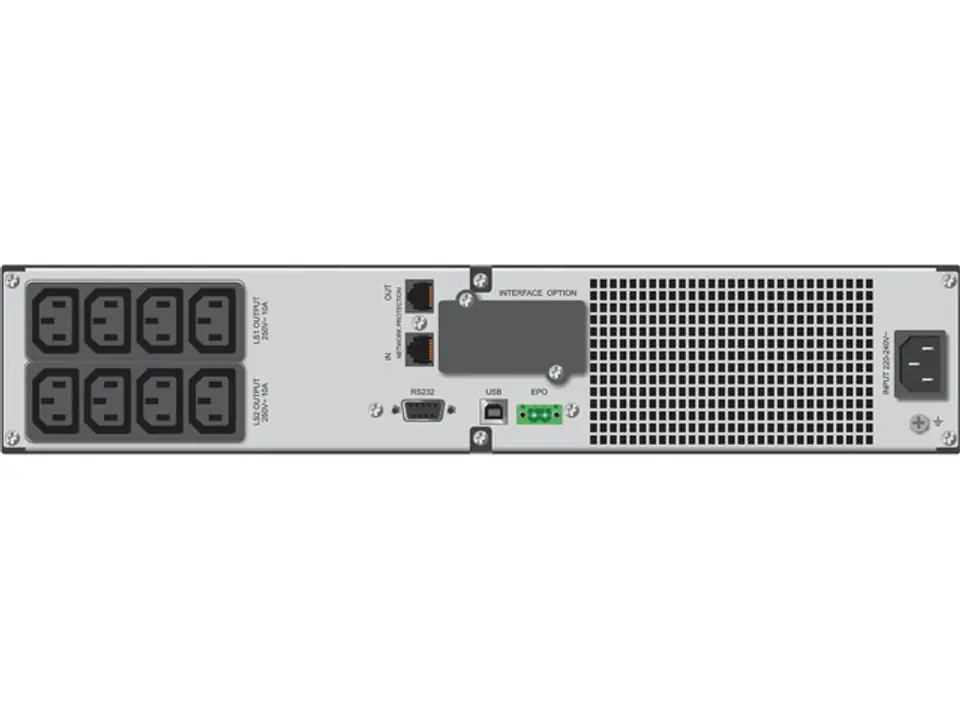

| Communication connectors: | 1x EPO, 1x USB, RJ-11, RJ-45, RS232, SNMP (optional) |
| Cooling: | 1x Fan |
| Data line protection slots: | RJ-11 (modem/telephone), RJ-45 (LAN) |
| Depth: | 436 mm |
| Depth (cm): | 86.5 |
| Destiny: | Medium enterprise monitoring systems data storage centers network, servers, workstations industrial equipment |
| Destiny:: | Medium enterprise monitoring systems data storage centers network, servers, workstations industrial equipment |
| Dimensions: | 438 x 436 x 86.5 mm |
| Dimensions:: | 438 x 436 x 86.5 mm |
| Display type: | LCD |

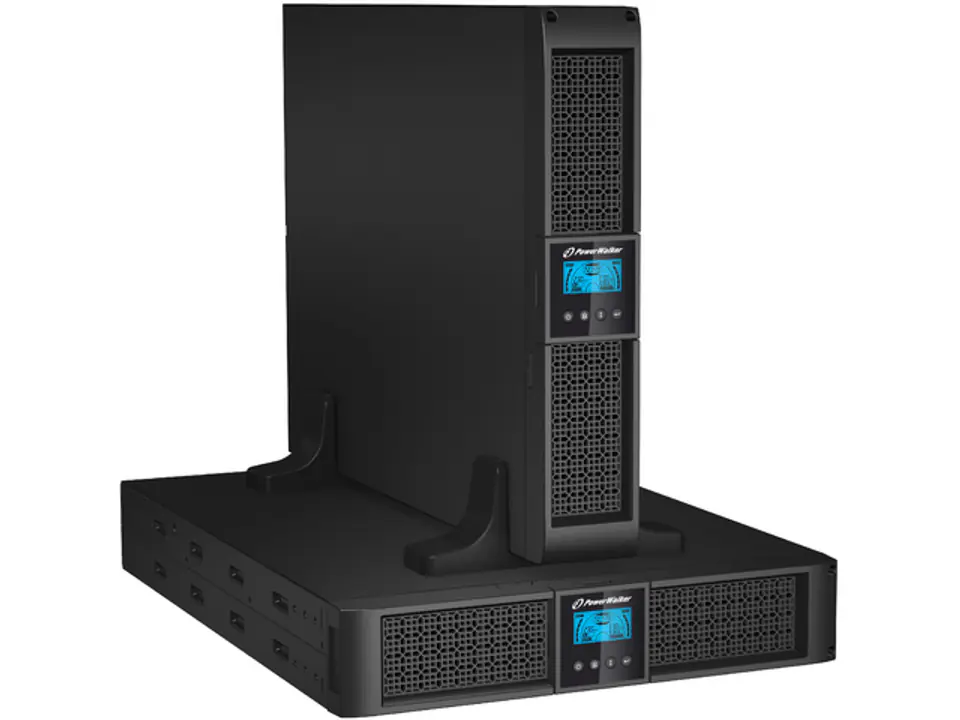

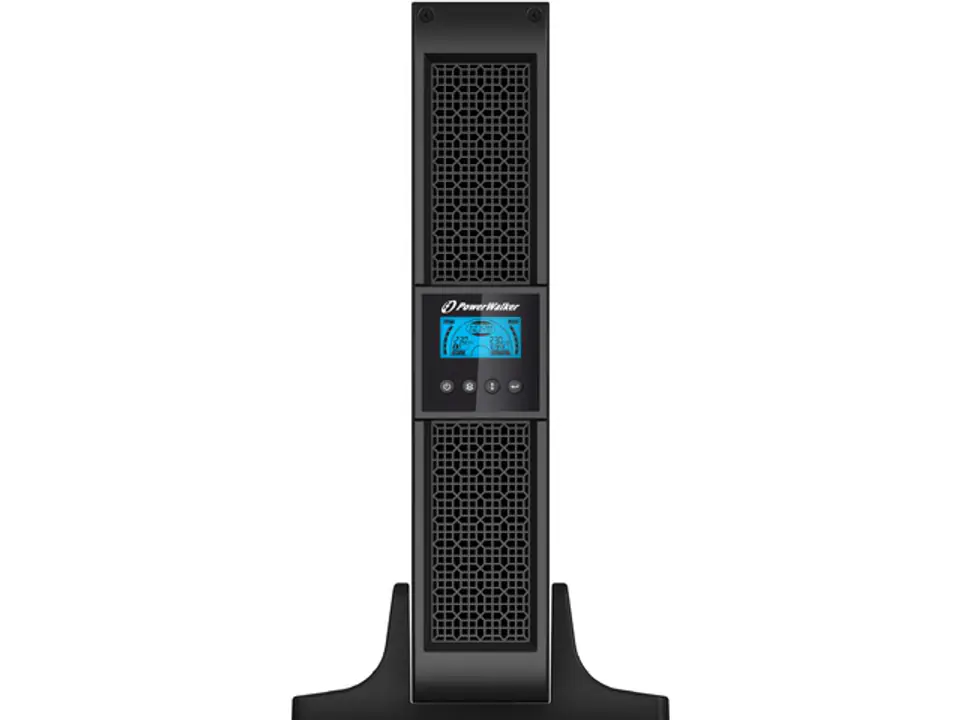

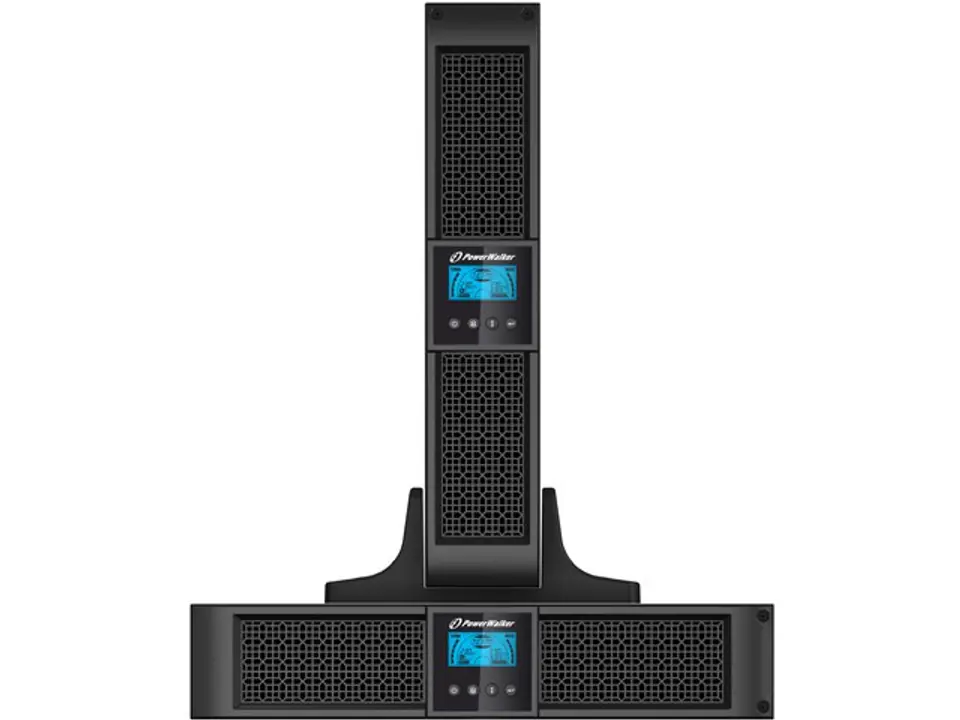

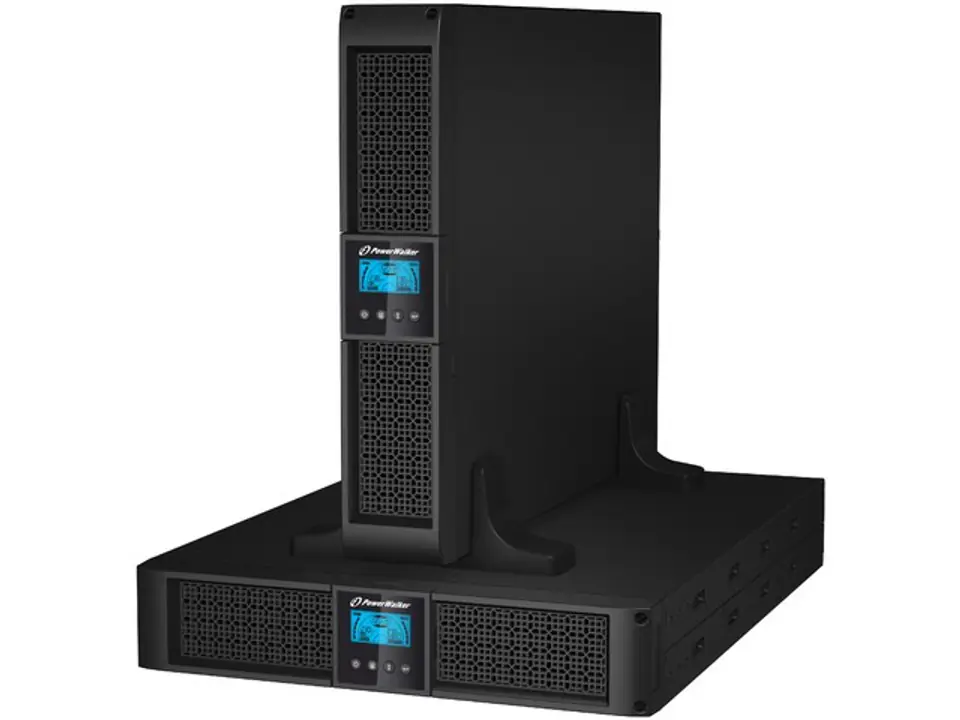

| Enclosure type: | 2 in 1 (Rack / Tower) |

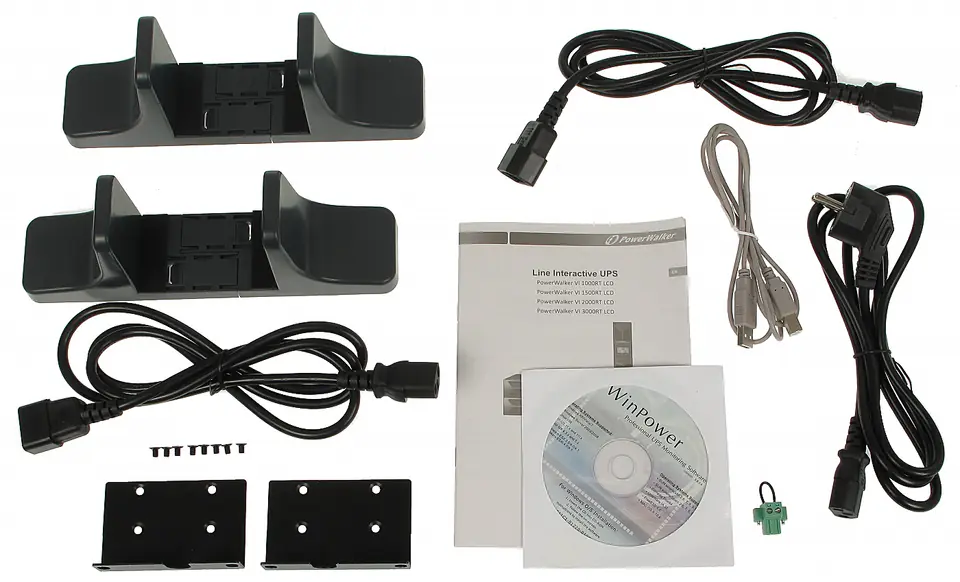

| Equipment: | Software CD, 2x IEC cable, RS-232 cable, USB cable, Power cord |
| Estimated battery life: | 4:30 minutes(at full load) |
| Estimated battery life:: | 4:30 minutes(at full load) |
| Ethernet lan (rj-45) ports: | 1 |
| Form factor: | Rackmount |
| Frequency control: | ± 0.1 % (battery mode) |
| Frequency control:: | ± 0.1 % (battery mode) |
| Harmonized system (hs) code: | 85078000 |
| Height: | 86.5 mm |
| Height (cm): | 43.6 |
| Housing type:: | 2 in 1 (Rack / Tower) |
| In addition, it protects: | RJ11, RJ45 |
| In addition, it secures:: | RJ11, RJ45 |
| Input frequency: | 50/60 Hz |
| Input frequency: | 50 / 60 Hz ± 5 % for normal mode> 40 Hz for generator mode |
| Input frequency:: | 50 / 60 Hz ± 5 % for normal mode> 40 Hz for generator mode |
| Input operation voltage (max): | 288 V |
| Input operation voltage (min): | 154 V |
| Input voltage: | 161 ... 276 VAC |
| Input voltage (v): | 220/230/240 |
| Input voltage:: | 161 ... 276 VAC |
| Kind: | Uninterruptible power supply |
| Led indicators: | Yes |
| Management software: | WinPower (Windows 98/2000/XP/Vista/7/8, MAC, Linux, FreeBSD, Solaris) |
| Management software:: | WinPower (Windows 98/2000/XP/Vista/7/8, MAC, Linux, FreeBSD, Solaris) |
| Modem (rj-11) ports: | 2 |
| Network ports: | 8x IEC320 |
| Number of battery cells: | 3 |
| Number of outputs: | 8 pcs. |
| Number of outputs:: | 8 pcs. |
| Operating relative humidity (h-h): | 20 - 80% |
| Operating temperature (t-t): | 0 - 40 °C |
| Operating temperature / relative humidity: | 0 °C ... 40°C / 20~90% (non-condensing) |
| Operating temperature / relative humidity:: | 0 °C ... 40°C / 20~90% (non-condensing) |
| Other parameters: | LCD display, Audible alarms, Battery: 3x 12V/7.0Ah, Frequency: 50/60HZ +/- 10%, LCD panel: AC; battery mode; load level; battery level; input voltage; output voltage; overload; failure, Ambient temperature : from 0C to + 40C, Humidity: 20%-80% |
| Output operation voltage (max): | 240 V |
| Output operation voltage (min): | 220 V |
| Output power: | 900 W |
| Output power capacity: | 1 kVA |
| Output voltage: | 220 / 230 / 240 V AC (pure sine wave) |
| Output voltage (v): | 220/230/240 |
| Output voltage shape: | Sine wave |
| Output voltage total harmonic distortion (thd): | 3% |
| Output voltage:: | 220 / 230 / 240 V AC (pure sine wave) |
| Overload protection: | Yes |
| Power (w): | 900 |
| Power protection features: | Short circuit, Over power, Overload |
| Product colour: | Black |
| Rs-232 ports: | 1 |
| Scales: | 16.2 kg |
| Scales:: | 16.2 kg |
| Security: | Overload |
| Security measures applied: | Overload, Before deep battery discharge, Before battery overcharge, Overvoltage |
| Security:: | Overload |
| Selected features: | GreenPower UPS Technology EPO (Emergency power off) Automatic AVR Voltage Regulator Automatic UPS Diagnostic System Reduced charging time Automatic restart and charging USB/RS-232 communication port LCD, audible prompts Display error indication blue, red, red flashing depending on UPS status Programmable sockets ICE C13 4 slots Charging in off mode "Cold start" function Energy saving function (can be disabled in the software) |
| Selected features:: | GreenPower UPS Technology EPO (Emergency power off) Automatic AVR Voltage Regulator Automatic UPS Diagnostic System Reduced charging time Automatic restart and charging USB/RS-232 communication port LCD, audible prompts Display error indication blue, red, red flashing depending on UPS status Programmable sockets ICE C13 4 slots Charging in off mode "Cold start" function Energy saving function (can be disabled in the software) |
| Surge energy rating: | 430 J |
| Switching time: | 2 ... 6 ms (max. 10 ms) (13ms for generator mode) |
| Switching time:: | 2 ... 6 ms (max. 10 ms) (13ms for generator mode) |
| Usb 2.0 ports quantity: | 1 |
| Voltage regulation: | ± 5 % RMS for the entire battery voltage range |
| Voltage regulation:: | ± 5 % RMS for the entire battery voltage range |
| Warranty: | 2 years |
| Warranty:: | 2 years |
| Weight: | 17.8 kg |
| Weight (kg): | 17.8 |
| Width: | 438 mm |
| Width (cm): | 43.8 |
