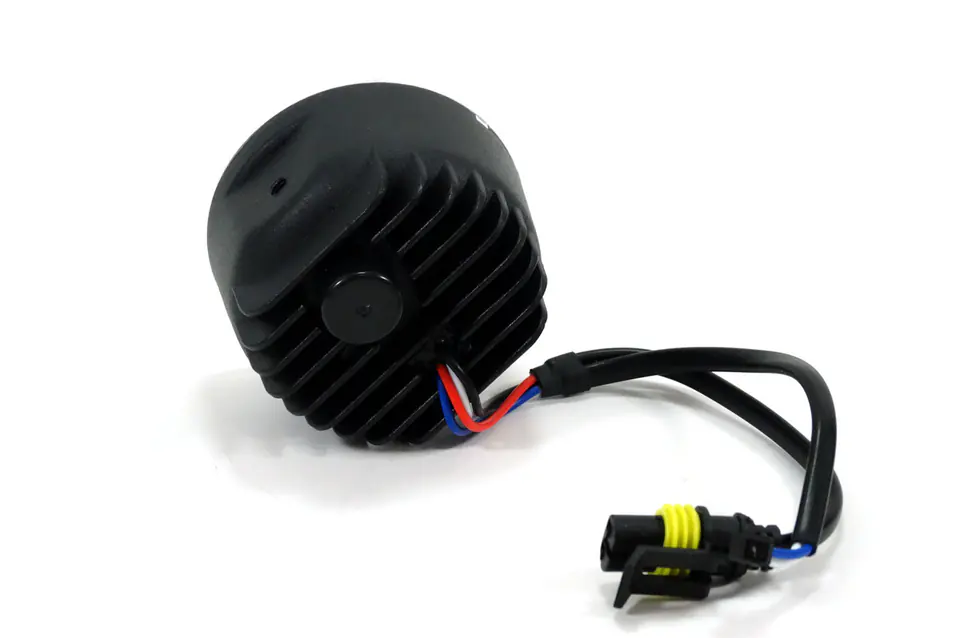

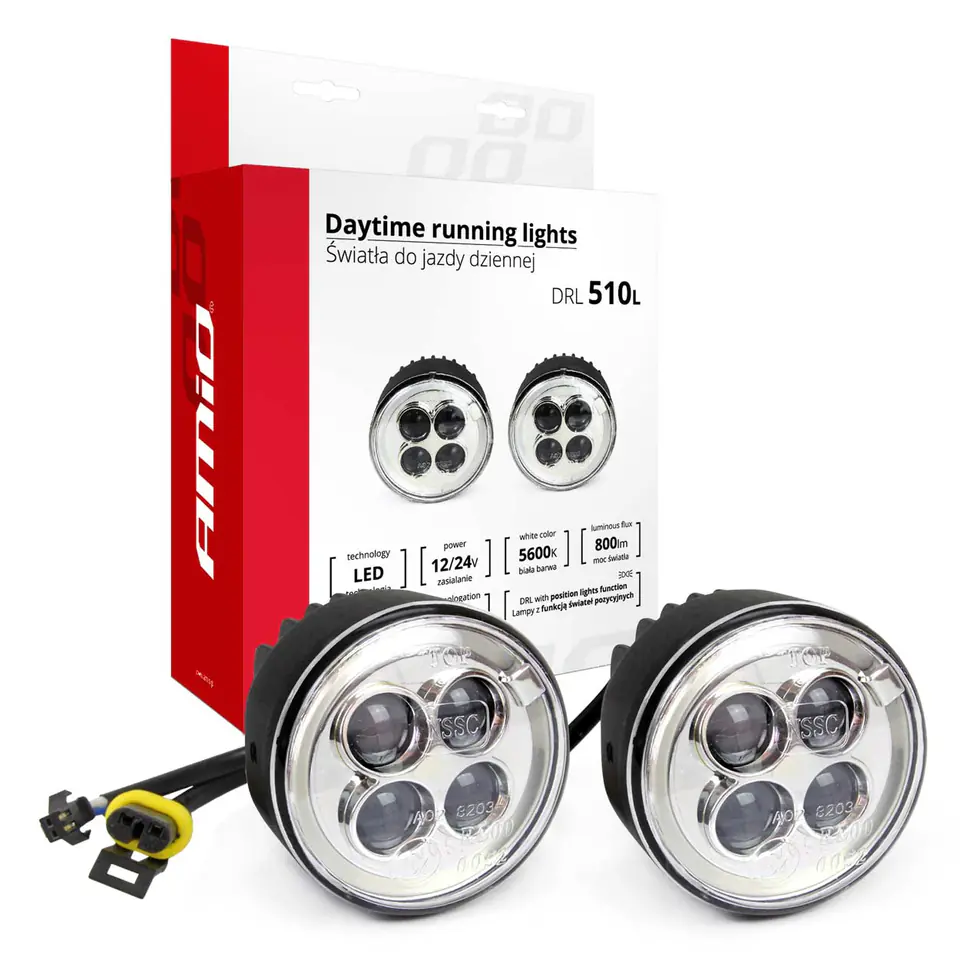

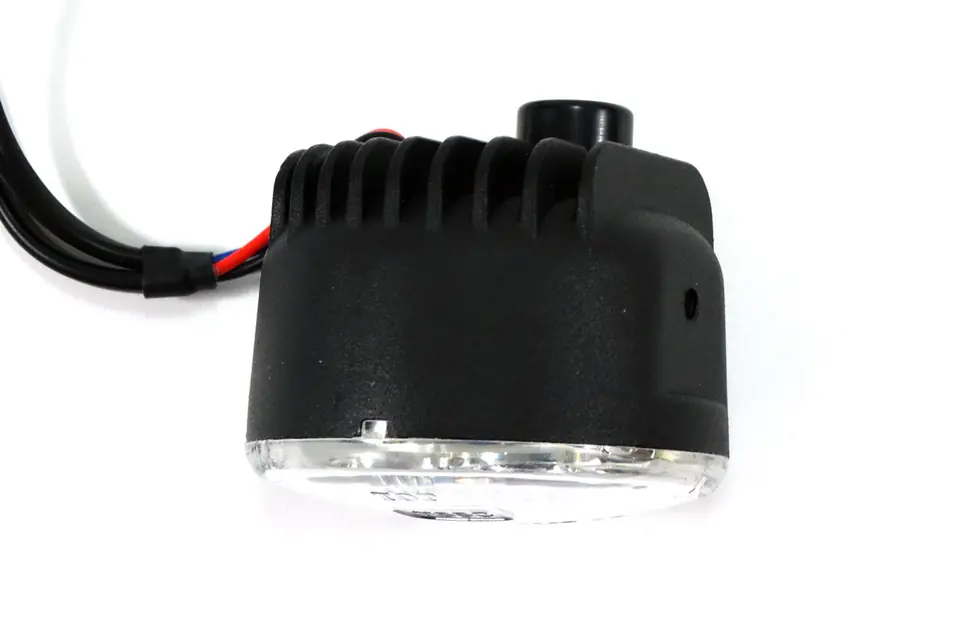

The 510L is a new version of the 510HP. The model was constructed on lenses and lightbar. As daytime running light, 4 lenses illuminated by 6070 LEDs are used. When the dipped headlights are switched on, the daytime running lights go out and a ring (border) is lit around them to serve as a position light. They are used in round holes prepared for fog lights, as well as on flat bumper surfaces. This is possible thanks to the use of masking flanges, which successfully cover the mounting hole made in the bumper, hiding discrepancies in sizes in place after the fog lights.
Full specifications:
- LEDs 4 x 6070 and 2 x 328 (per lamp)
- Dimensions (width/height/depth) ø70 (ø80) x 63 (mm)
- Total power consumption: 11.16W
- Voltage 12 V
- RL00, E4 approval . Approved on the basis of RCE87
- Heat dissipation heatsink Yes
- Waterproof Yes
- Mounting bracket Yes
- Lamp pressure adjustable breather Yes
- Auto switch included Yes
- Machine Joints Yes
- Glossy reflector
- Warranty : Yes
- PE front glass (safety and compliant with EU requirements)
