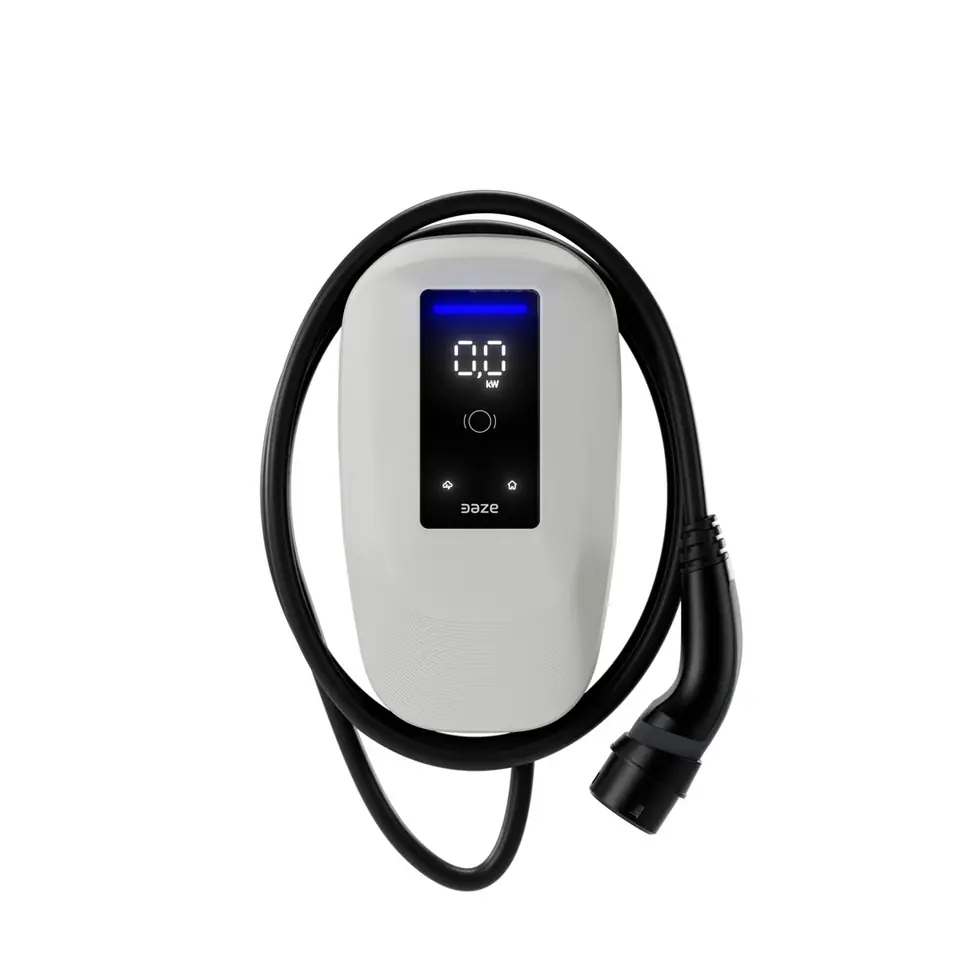

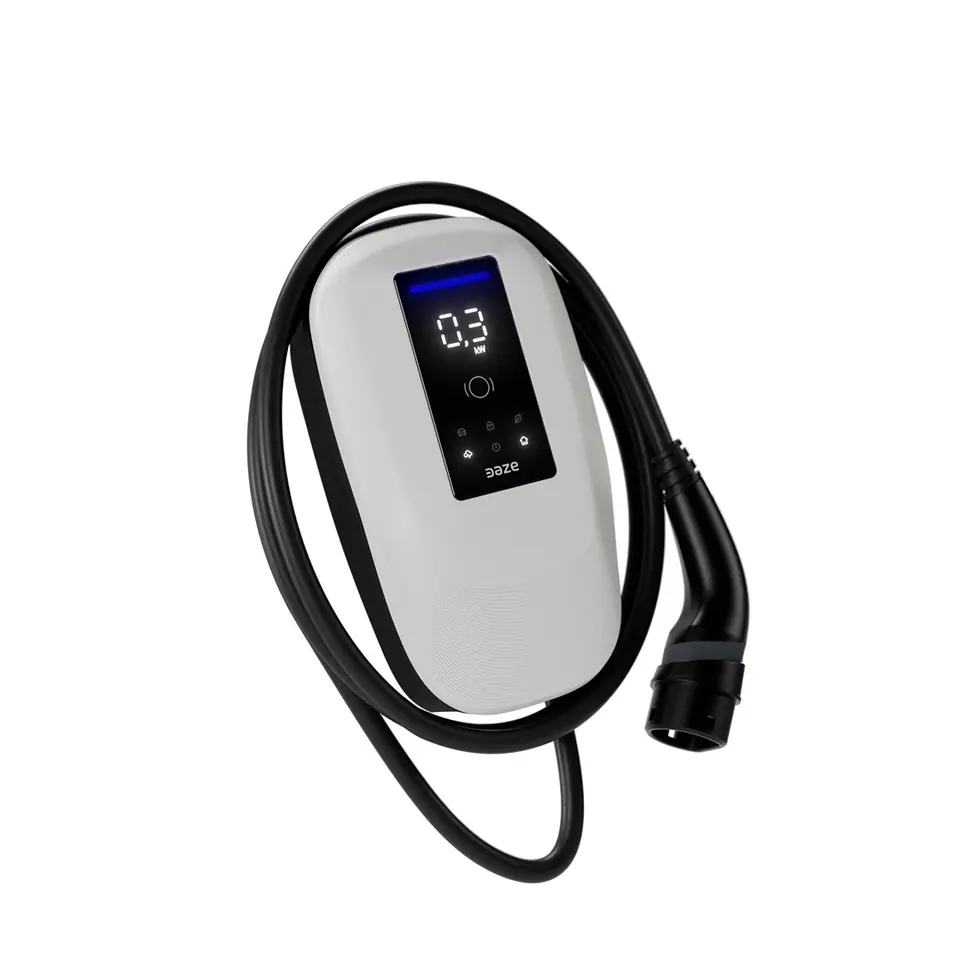

Wallbox DazeBox Home 22kW cable 5m
This product is not available
- Availability:
- expected delivery
- Brand:
- DAZE
- Product code:
- DT01DE32T5 / 8054320761587
Share this product:
Specification
| Applications support: | Yes |
|---|---|
| Bluetooth: | Yes |
| Bluetooth version: | 4.2 BLE |
| Built-in counter: | No |
| Built-in display: | LED |
| Cable length: | 5 m |
| Certificates: | IEC 62196-2, IEC 61851-1, CE, IEC 61851-21 |
| Charging current control: | 6.5 - 32 A |
| Communication protocol: | OCPP1.6J |
| Conductor cross section: | 10 mm² |
| Degree of protection ik: | IK10 |
| Depth: | 110 mm |
| Dynamic power management (dlm): | Yes |
| Ethernet: | Yes |
| Frequency: | 50 / 60 Hz |
| Height: | 356 mm |
| Housing material: | Polycarbonate, ASA |
| International protection (ip) code: | IP66 |
| Jumper cable included: | Yes |
| Maximum power (blocked motor): | 22200 W |
| Minimum power: | 4500 W |
| Network configuration: | TT / TN |
| Number of phases: | 3 |
| Operating temperature (t-t): | -30 - 55 °C |
| Over the air updates (ota): | Yes |
| Over voltage protection: | Yes |
| Power control: | Yes |
| Power supply voltage: | 400 V |
| Product colour: | White |
| Rfid: | Y |
| Temperature monitoring: | Yes |
| Touch control: | Y |
| Weight: | 6 kg |
| Wi-fi: | Yes |
| Width: | 200 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
