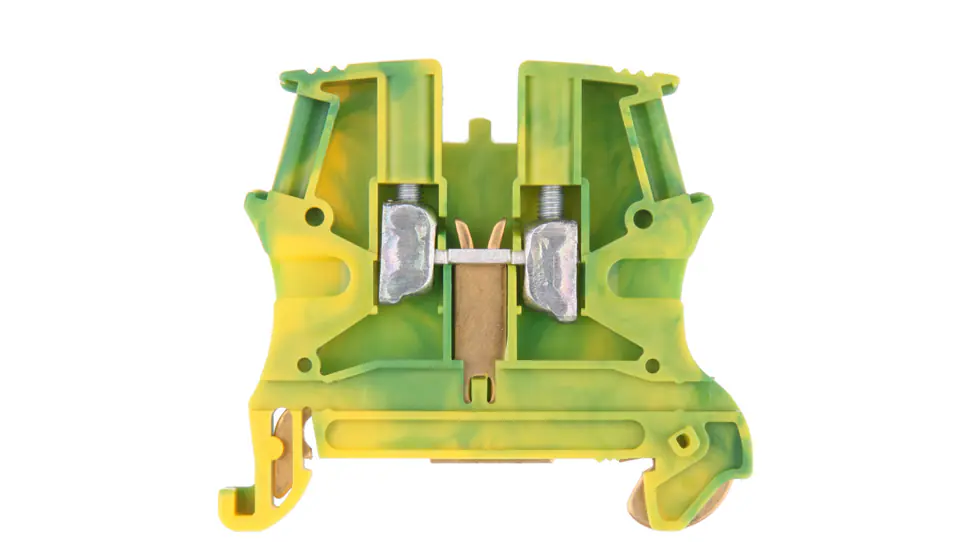

VIKING connector 4mm2 green-yellow 037171
This product is not available
- Availability:
- expected delivery
- Brand:
- Legrand
- Product code:
- 037171 / 3245060371715
Share this product:
Specification
| Colour: | Green-yellow |
|---|---|
| Connection position: | Side / side |
| Cross-section of the connected cable without sleeve terminal [mm2] from: | 0,25 |
| Cross-section of the connected cable without sleeve terminal [mm2] to: | 4 |
| Cross-section of the connected multicore cable [mm2] from: | 0,25 |
| Cross-section of the connected multicore cable [mm2] to: | 4 |
| Cross-section of the connected single-wire cable [mm2] from: | 0,25 |
| Cross-section of the connected single-wire cable [mm2] to: | 6 |
| Ean: | 3245060371715 |
| Electrical connection type 1: | Screw connection |
| Flammability class of insulating material according to ul 94: | V2 |
| Height at the lowest mounting method [mm]: | 46.4 |
| Length [mm]: | 52,2 |
| Mounting method: | Mounting rail DIN 35 mm |
| Number of levels: | 1 |
| Number of terminals per floor: | 2 |
| Pen function: | Yes |
| Required closing plate: | Yes |
| Type of insulating material: | Thermoplastic |
| Width / size of pitch [mm]: | 6 |
