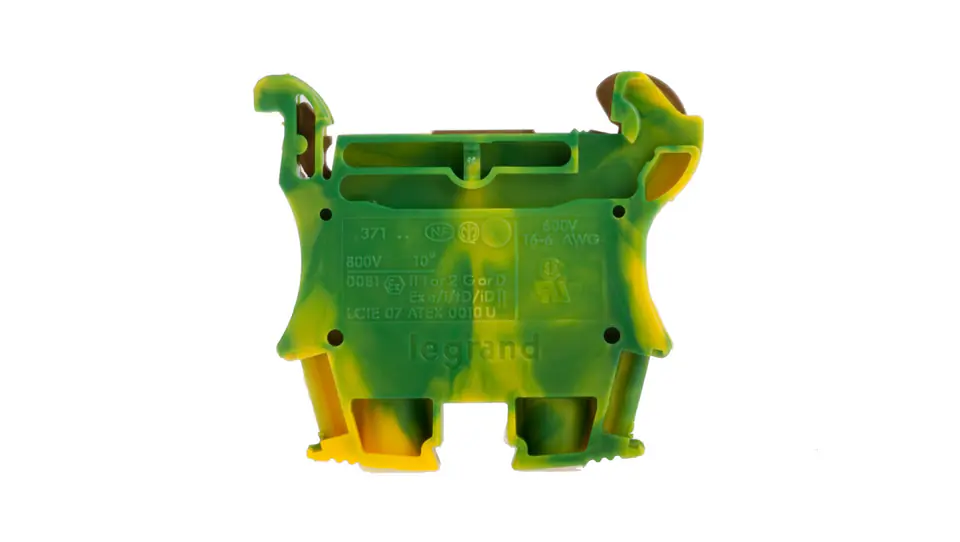

VIKING connector 10 mm2 green-yellow 037173
This product is not available
- Availability:
- expected delivery
- Brand:
- Legrand
- Product code:
- 037173 / 3245060371739
Share this product:
Specification
| Colour: | Green-yellow |
|---|---|
| Connection position: | Side / side |
| Cross-section of the connected cable with sleeve terminal [mm2] from: | 2,5 |
| Cross-section of the connected cable with sleeve terminal [mm2] to: | 10 |
| Cross-section of the connected cable without sleeve terminal [mm2] from: | 1,5 |
| Cross-section of the connected cable without sleeve terminal [mm2] to: | 16 |
| Cross-section of the connected multicore cable [mm2] from: | 2,5 |
| Cross-section of the connected multicore cable [mm2] to: | 10 |
| Cross-section of the connected single-wire cable [mm2] from: | 1,5 |
| Cross-section of the connected single-wire cable [mm2] to: | 16 |
| Electrical connection type 1: | Screw connection |
| Flammability class of insulating material according to ul 94: | V2 |
| Height at the lowest mounting method [mm]: | 63 |
| Length [mm]: | 54 |
| Mounting method: | Mounting rail DIN 35 mm |
| Number of levels: | 1 |
| Number of terminals per floor: | 2 |
| Pen function: | Yes |
| Required closing plate: | Yes |
| Type of insulating material: | Thermoplastic |
| Width / size of pitch [mm]: | 10 |
